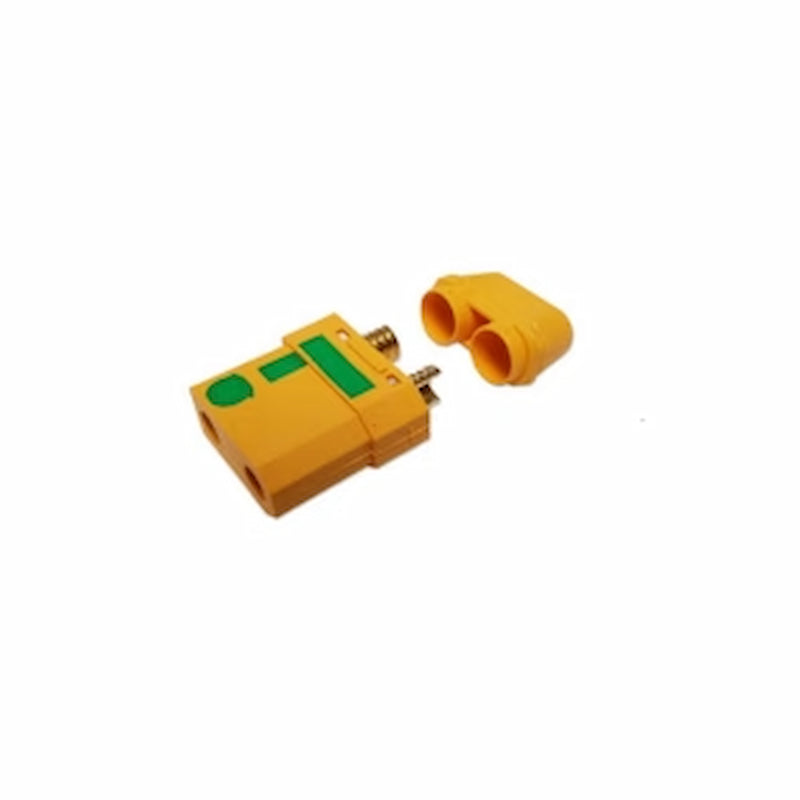

Amass XT90S Anti Spark Connector with Housing-Female - XT90S-F.G.Y

From ₹ 224.40

Product Description

The Amass XT90S Anti Spark Connector with Housing – Female (XT90S-F.G.Y) is a premium high-current anti-spark DC power connector engineered for safe and reliable power transmission in agriculture drones, industrial UAVs, electric vehicles, robotics, RC aircraft, battery packs, portable power stations, and high-power electronic systems. Manufactured by Amass, a globally trusted leader in connector technology, the XT90S series enhances the standard XT90 design by incorporating a built-in anti-spark resistor, eliminating the large inrush spark that occurs when connecting high-voltage battery packs.

The XT90S-F.G.Y Female Connector features high-quality gold-plated brass spring contacts that provide excellent electrical conductivity, low contact resistance, and efficient power transfer. The gold plating minimizes voltage drop and heat generation while offering outstanding resistance to oxidation and corrosion, ensuring stable electrical performance and long service life even in demanding operating environments.

One of the standout features of the XT90S series is its integrated anti-spark technology, which suppresses the initial inrush current generated when connecting high-capacity lithium batteries. This protects sensitive electronic components such as ESCs, flight controllers, and battery management systems while reducing connector wear and extending service life. Unlike external anti-spark modules, the XT90S integrates this functionality directly into the connector, resulting in a cleaner, more reliable installation.

The connector includes an integrated protective housing (solder cover) that provides improved insulation, strain relief, and protection for solder joints. This housing also enhances cable management while reducing the risk of accidental short circuits during installation and operation. The XT90S Female Connector is fully compatible with standard XT90 male connectors, making upgrades simple without changing the entire power system.

Constructed from high-temperature Nylon (PA) with a UL94 V-0 flame-retardant rating, the housing offers excellent mechanical strength, thermal stability, and resistance to vibration and impact. The connector supports up to 90A continuous current, operates at 500V DC, and accepts up to 8 AWG wire, making it ideal for high-current power applications.

Whether you're assembling a professional UAV, building a high-capacity battery pack, upgrading an electric vehicle, or designing industrial power systems, the Amass XT90S Anti Spark Female Connector with Housing delivers professional-grade safety, reliability, and efficient power transmission.

Key Features

Genuine Amass XT90S-F.G.Y Female Connector with Housing
Built-in anti-spark technology for safe battery connections
High-current DC power connector
Premium gold-plated brass spring contacts
Low contact resistance for efficient power transfer
Supports 90A+ continuous current
Rated for 500V DC
Integrated housing provides strain relief and solder joint protection
High-temperature Nylon (PA) UL94 V-0 flame-retardant housing
Compatible with standard XT90 connectors
Supports up to 8 AWG wire
Easy solder-type wire termination

Applications & Use Cases

The Amass XT90S Female Connector is widely used in:

Agriculture drones and spraying UAVs
Heavy-lift commercial drones
FPV drone battery systems
Lithium-ion and LiPo battery packs
Electronic Speed Controllers (ESCs)
Electric vehicles (EVs) and e-bikes
Robotics and industrial automation
RC aircraft, helicopters, boats, and cars
Portable power stations
Solar energy storage systems
High-current charging systems
DIY electronics and battery projects

Technical Specifications

Brand: Amass
Model: XT90S-F.G.Y
Connector Type: Female
Series: XT90S
Number of Pins: 2
Contact Material: Gold-plated brass
Housing Material: High-temperature Nylon (PA), UL94 V-0 flame-retardant
Rated Current: 90A+ Continuous
Rated Voltage: 500V DC
Connector Size: 4.5 mm
Recommended Wire Size: Up to 8 AWG
Operating Temperature: -20°C to 120°C
Mounting Type: Cable mount
Electrical Connection: Solder termination
Protection Rating: IP40

Why Choose This Connector?

The Amass XT90S Anti Spark Female Connector with Housing is ideal for professionals and hobbyists who require a safe, high-current, and reliable power connector for lithium battery systems. Its integrated anti-spark circuit eliminates damaging connection sparks, protecting expensive electronics while extending connector lifespan. Combined with gold-plated contacts, a flame-retardant nylon housing, and compatibility with standard XT90 connectors, it offers a superior solution for demanding drone, EV, robotics, and industrial applications.

Package Includes

1 × Amass XT90S Anti Spark Connector with Housing – Female (XT90S-F.G.Y)

Only 6 items left

Amass XT90(2+2) Male Connector - XT90(2+2)-M.G.Y Original Drone Connectors

From ₹ 212.40

Product Description

The Amass XT90(2+2) Male Connector (XT90(2+2)-M.G.Y) is a premium hybrid high-current power and signal connector engineered for applications that require high-current power transmission along with integrated signal communication. Manufactured by Amass, a globally trusted leader in connector technology, this connector is ideal for agriculture drones, industrial UAVs, electric vehicles, robotics, smart battery systems, battery management systems (BMS), RC aircraft, and industrial automation equipment. It combines two high-current power contacts with two auxiliary signal pins, enabling both power and communication through a single compact connector.

The XT90(2+2)-M.G.Y Male Connector features precision gold-plated brass contacts that deliver excellent electrical conductivity, low contact resistance, and efficient power transfer. The gold-plated contacts minimize voltage drop and heat generation while providing excellent resistance to oxidation and corrosion, ensuring stable electrical performance even in demanding environments.

Designed specifically for high-power battery systems, the connector integrates two power terminals for DC power transmission and two signal terminals for battery communication, telemetry, battery identification, or BMS data transfer. This hybrid design significantly reduces wiring complexity, simplifies installation, and improves overall system reliability in advanced electronic applications.

The XT90(2+2) connector is rated for 45A continuous current on the power terminals (using 10 AWG wire) and supports up to 90A peak current, with a rated voltage of 150V DC. Each signal pin is rated for 1A, making it suitable for low-current communication functions while maintaining excellent electrical isolation between power and signal circuits.

Constructed from high-temperature PA (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, the housing offers outstanding insulation, mechanical durability, and thermal stability. The connector withstands vibration, mechanical shock, and harsh operating conditions, making it suitable for commercial drones, electric mobility systems, and industrial automation equipment. With an expected mechanical life of approximately 1,000 mating cycles, it provides dependable long-term performance.

Whether you're building a commercial UAV, integrating a smart battery pack, designing an electric vehicle power system, or developing industrial robotics, the Amass XT90(2+2) Male Connector delivers professional-grade reliability, efficient power transmission, and integrated signal connectivity.

Key Features

Genuine Amass XT90(2+2)-M.G.Y Male Connector
Hybrid power and signal connector
2 high-current power contacts + 2 signal pins
Premium gold-plated brass contacts
Low contact resistance for efficient power transfer
Rated for 45A continuous current
Supports 90A peak current
Signal pins rated for 1A
Rated for 150V DC
High-temperature PA (Polyamide/Nylon) UL94 V-0 flame-retardant housing
Supports 10 AWG wire
Solder-type wire termination
Excellent resistance to heat, vibration, and corrosion

Applications & Use Cases

The Amass XT90(2+2) Male Connector is widely used in:

Agriculture drones and industrial UAVs
Smart lithium battery packs
Battery Management Systems (BMS)
Electric vehicles (EVs) and e-bikes
Robotics and industrial automation
RC aircraft and helicopters
Battery charging systems
Industrial power distribution equipment
Telemetry-enabled battery systems
Embedded electronic systems
DIY electronics and custom battery projects
High-current power applications with integrated signal communication

Technical Specifications

Brand: Amass
Model: XT90(2+2)-M.G.Y
Connector Type: Male
Series: XT90 (2+2)
Pin Configuration: 2 Power + 2 Signal Pins
Contact Material: Gold-plated brass
Housing Material: PA (Polyamide/Nylon), UL94 V-0 flame-retardant
Rated Current: 45A Continuous (10 AWG)
Peak Current: 90A
Signal Pin Rating: 1A per pin
Rated Voltage: 150V DC
Contact Resistance: ≤1.2mΩ
Insulation Resistance: ≥2000MΩ
Recommended Wire Size: 10 AWG
Mechanical Life: Approximately 1,000 mating cycles
Operating Temperature: -20°C to 120°C
Mounting Type: Cable mount, solder termination

Why Choose This Connector?

The Amass XT90(2+2) Male Connector is an ideal solution for professionals who require high-current power delivery together with integrated signal communication. Its 2+2 pin architecture simplifies wiring by combining power and data transmission into a single connector, reducing cable clutter while improving installation efficiency and system reliability.

Compared to standard XT90 connectors, the XT90(2+2) series offers the added advantage of integrated communication pins, making it particularly suitable for smart batteries, commercial UAVs, robotics, electric vehicles, and industrial automation systems where both power and signal connectivity are essential.

Package Includes

1 × Amass XT90(2+2) Male Connector – XT90(2+2)-M.G.Y

In stock

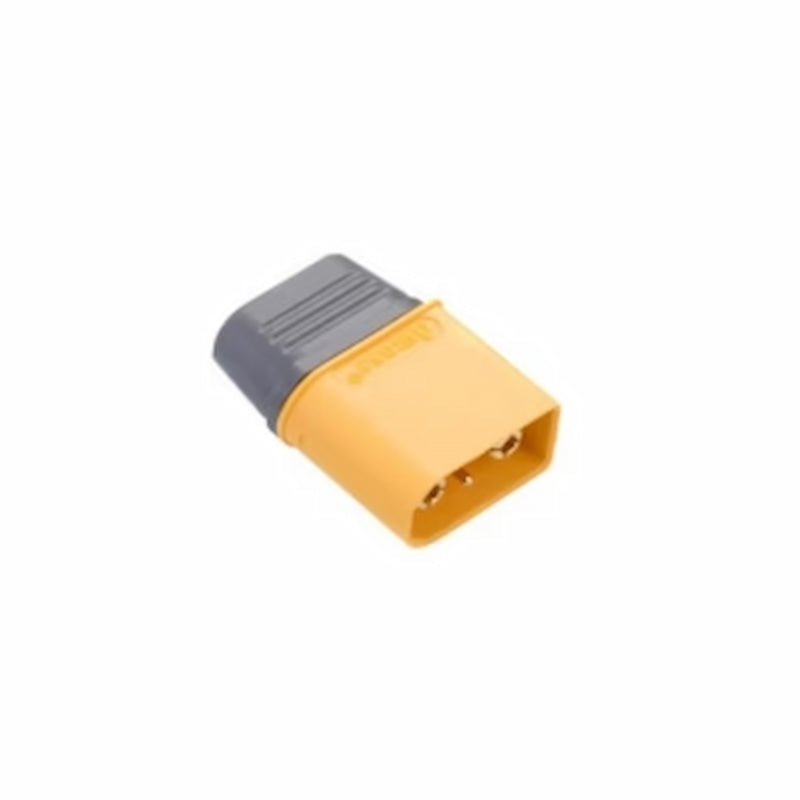

Amass XT90(2+2) Female Connector - XT90(2+2)-F.G.Y Original Drone Connectors

From ₹ 212.40

Product Description

The Amass XT90(2+2) Female Connector (XT90(2+2)-F.G.Y) is a premium hybrid high-current power and signal connector designed for applications that require both high-current power transmission and integrated signal communication. Manufactured by Amass, a globally recognized leader in connector technology, this connector is widely used in agriculture drones, industrial UAVs, electric vehicles, robotics, smart battery systems, Battery Management Systems (BMS), RC aircraft, and industrial automation equipment. The connector combines two high-current power contacts with two auxiliary signal pins, allowing both electrical power and communication signals to pass through a single compact connector.

The XT90(2+2)-F.G.Y Female Connector features precision gold-plated brass contacts that provide excellent electrical conductivity, low contact resistance, and efficient power transfer. The gold-plated contacts reduce voltage drop and heat generation while offering superior resistance to corrosion and oxidation, ensuring stable electrical performance and long service life even in demanding operating environments.

Designed for high-performance battery systems, the connector integrates two power terminals for high-current DC power and two signal terminals for battery communication, telemetry, battery identification, temperature sensing, or BMS data transfer. This hybrid design reduces wiring complexity, improves cable management, and increases overall system reliability, making it ideal for intelligent battery applications used in professional drones and industrial equipment.

The XT90(2+2) connector is rated for 45A continuous current (using 10 AWG wire) and supports up to 90A peak current, with a rated voltage of 500V DC. Each signal pin is designed for low-current communication (up to 1A), allowing reliable signal transmission while maintaining electrical isolation from the main power contacts.

Constructed from high-temperature PA66 (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, the housing provides excellent insulation, mechanical strength, and thermal stability. The rugged construction resists vibration, mechanical shock, and harsh environmental conditions, making it suitable for commercial UAVs, industrial robotics, electric mobility systems, and other demanding applications. The connector is designed for solder-type wire termination and offers approximately 1,000 mating cycles, ensuring dependable long-term performance.

Whether you're assembling a commercial UAV, integrating a smart lithium battery pack, designing an electric vehicle power system, or developing industrial automation equipment, the Amass XT90(2+2) Female Connector delivers professional-grade reliability, efficient power transmission, and integrated signal connectivity.

Key Features

Genuine Amass XT90(2+2)-F.G.Y Female Connector
Hybrid power and signal connector
2 high-current power contacts + 2 auxiliary signal pins
Premium gold-plated brass contacts
Low contact resistance for efficient power transfer
Rated for 45A continuous current
Supports 90A peak current
Signal pins rated for 1A
Rated for 500V DC
High-temperature PA66 (Polyamide/Nylon) UL94 V-0 flame-retardant housing
Supports 10 AWG wire
Solder-type wire termination
Excellent resistance to heat, vibration, and corrosion

Applications & Use Cases

The Amass XT90(2+2) Female Connector is widely used in:

Agriculture drones and industrial UAVs
Smart lithium battery packs
Battery Management Systems (BMS)
Electric vehicles (EVs) and e-bikes
Robotics and industrial automation
RC aircraft and helicopters
Battery charging systems
Industrial power distribution equipment
Telemetry-enabled battery systems
Embedded electronic systems
DIY electronics and custom battery projects
High-current applications with integrated signal communication

Technical Specifications

Brand: Amass
Model: XT90(2+2)-F.G.Y
Connector Type: Female
Series: XT90 (2+2)
Pin Configuration: 2 Power + 2 Signal Pins
Contact Material: Gold-plated brass
Housing Material: PA66 (Polyamide/Nylon), UL94 V-0 flame-retardant
Rated Current: 45A Continuous (10 AWG)
Peak Current: 90A
Signal Pin Rating: Up to 1A per pin
Rated Voltage: 500V DC
Recommended Wire Size: 10 AWG
Mechanical Life: Approximately 1,000 mating cycles
Operating Temperature: -20°C to 120°C
Mounting Type: Cable mount
Electrical Connection: Solder termination
Protection Rating: IP40

Why Choose This Connector?

The Amass XT90(2+2) Female Connector is an excellent solution for professionals who require high-current power delivery combined with integrated signal communication. Its 2+2 pin architecture simplifies wiring by combining power and signal transmission into a single connector, reducing cable clutter while improving installation efficiency and system reliability.

Compared to conventional XT90 power connectors, the XT90(2+2) series provides the added advantage of integrated communication pins, making it particularly suitable for smart batteries, commercial UAVs, robotics, electric vehicles, and industrial automation systems where both power and signal connectivity are essential.

Package Includes

1 × Amass XT90(2+2) Female Connector – XT90(2+2)-F.G.Y

In stock

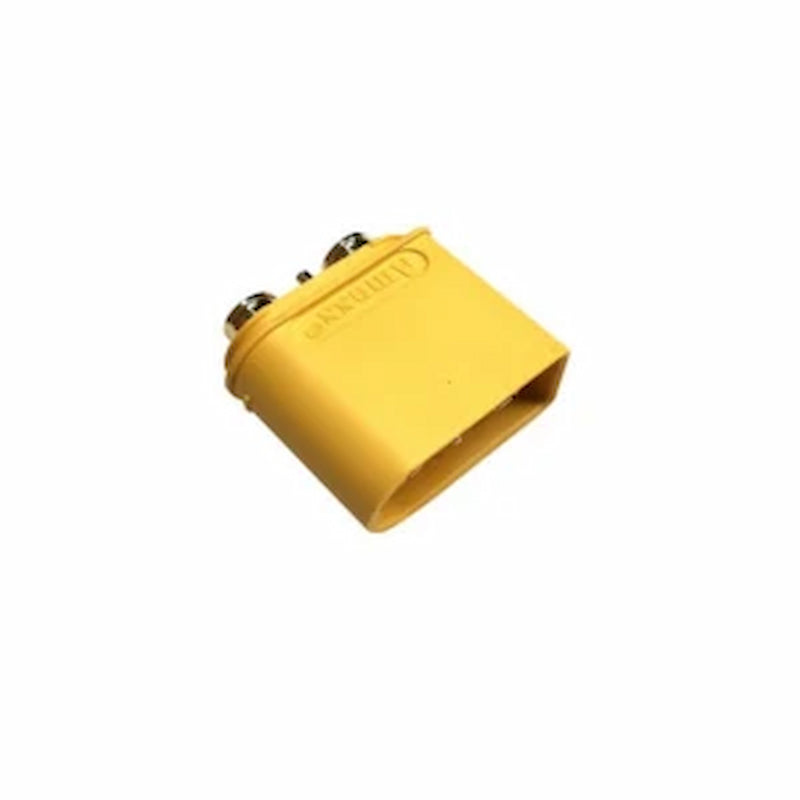

Amass XT90PB(2+2)-M GOLD PLATED YELLOW - XT90(2+2)PB-M.G.Y

From ₹ 211.20

Product Description

The Amass XT90PB(2+2) Male Connector (XT90(2+2)PB-M.G.Y) is a premium PCB-mounted hybrid power and signal connector engineered for applications that require high-current power transmission and integrated signal communication through a single compact interface. Manufactured by Amass, a globally trusted leader in connector technology, this connector is designed for agriculture drones, industrial UAVs, smart battery systems, Battery Management Systems (BMS), robotics, electric vehicles, charging systems, and industrial automation equipment. Its 2+2 pin configuration combines two high-current power contacts with two auxiliary signal pins, simplifying wiring while improving system reliability.

The XT90PB(2+2)-M.G.Y Male Connector features precision gold-plated brass contacts that provide excellent electrical conductivity, low contact resistance, and efficient power transfer. The premium gold plating minimizes voltage drop and heat generation while offering excellent resistance to oxidation and corrosion, ensuring dependable long-term electrical performance in demanding environments.

Designed for PCB-mounted applications, the connector utilizes a vertical through-hole (THT) mounting configuration, allowing it to be directly soldered onto printed circuit boards. This design provides excellent mechanical stability while simplifying the integration of high-current battery connections into power distribution boards, battery management systems, charging stations, and embedded electronic equipment. The additional signal pins support battery communication, telemetry, battery identification, and monitoring functions without requiring separate connectors.

The XT90PB(2+2) connector is rated for 30A continuous current on the main power contacts and supports up to 60A instantaneous current, with a rated voltage of 500V DC. Each signal pin is rated for 3A, making the connector ideal for intelligent battery systems where both power delivery and signal transmission are required.

The housing is manufactured from high-temperature PA66 (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, providing excellent insulation, thermal stability, and mechanical durability. Its rugged construction withstands vibration, mechanical shock, and continuous electrical loading, making it suitable for commercial drones, industrial robotics, electric mobility systems, and other demanding applications. The connector is designed for approximately 100 mating cycles, ensuring reliable long-term operation.

Whether you're designing a UAV power distribution board, integrating a smart lithium battery system, building an industrial controller, or developing advanced embedded electronics, the Amass XT90PB(2+2) Male Connector delivers professional-grade reliability, efficient power transfer, and integrated signal connectivity.

Key Features

Genuine Amass XT90(2+2)PB-M.G.Y Male Connector
PCB-mounted hybrid power and signal connector
2 high-current power contacts + 2 signal pins
Vertical through-hole (THT) PCB mounting
Premium gold-plated brass contacts
Low contact resistance for efficient power transfer
Rated for 30A continuous current
Supports 60A instantaneous current
Signal pins rated for 3A
Rated for 500V DC
High-temperature PA66 (Polyamide/Nylon) UL94 V-0 flame-retardant housing
Excellent resistance to heat, vibration, and corrosion

Applications & Use Cases

The Amass XT90PB(2+2) Male Connector is widely used in:

Agriculture drones and industrial UAVs
Smart lithium battery packs
Battery Management Systems (BMS)
Power Distribution Boards (PDBs)
Electric vehicles (EVs) and e-bikes
Robotics and industrial automation
Battery charging systems
Industrial power distribution equipment
Embedded electronic systems
Telemetry-enabled battery systems
DIY electronics and custom PCB projects
High-current applications with integrated signal communication

Technical Specifications

Brand: Amass
Model: XT90(2+2)PB-M.G.Y
Connector Type: Male
Series: XT90PB (2+2)
Pin Configuration: 2 Power + 2 Signal Pins
Mounting Type: PCB Through-Hole (Vertical/THT)
Contact Material: Gold-plated brass
Housing Material: PA66 (Polyamide/Nylon), UL94 V-0 flame-retardant
Rated Current (Power Contacts): 30A Continuous
Instantaneous Current: 60A
Signal Pin Rating: 3A per pin
Rated Voltage: 500V DC
Contact Resistance: ≤0.40mΩ (Power Contacts)
Recommended Wire Size: Equivalent PCB design for 8–12 AWG systems
Mechanical Life: 100 mating cycles
Operating Temperature: -20°C to 120°C
Protection Rating: IP40

Why Choose This Connector?

The Amass XT90PB(2+2) Male Connector is an excellent solution for engineers and manufacturers who require a PCB-mounted connector capable of carrying high-current power while simultaneously transmitting communication signals. Its 2+2 hybrid design reduces cable clutter, simplifies PCB layouts, and improves overall system reliability.

Compared to conventional PCB power connectors, the XT90PB(2+2) series offers integrated power and signal connectivity, premium gold-plated contacts, flame-retardant construction, and reliable high-current performance, making it an ideal choice for smart battery systems, commercial drones, robotics, and industrial electronic equipment.

Package Includes

1 × Amass XT90PB(2+2) Male Connector – XT90(2+2)PB-M.G.Y

In stock

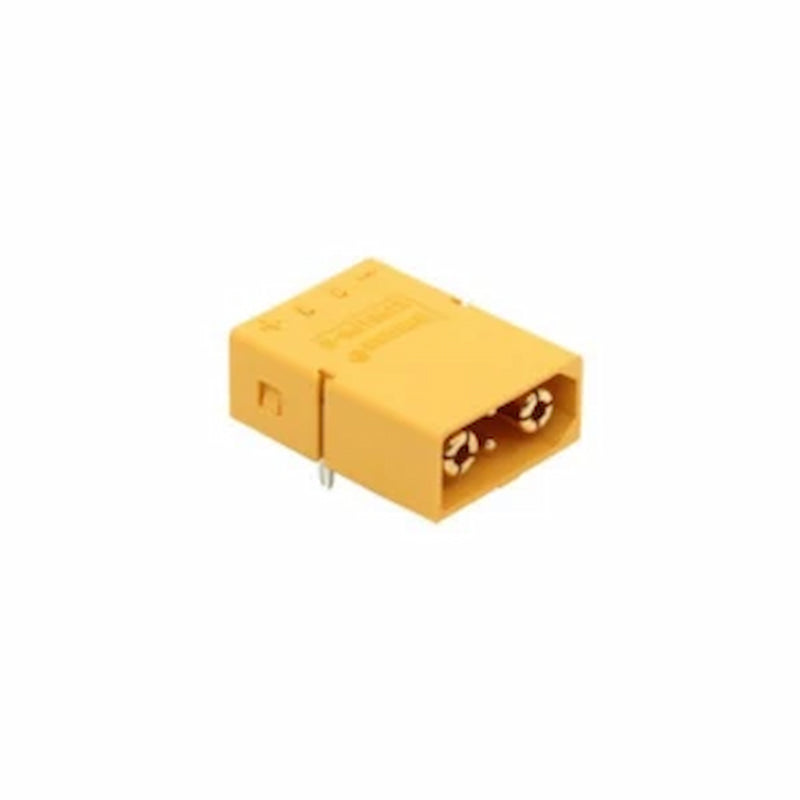

Amass XT90PW(2+2) Male Connector - XT90(2+2)PW-M.G.Y Drone Connectors

From ₹ 291.04

Product Description

The Amass XT90PW(2+2) Male Connector (XT90(2+2)PW-M.G.Y) is a premium right-angle PCB-mounted hybrid power and signal connector designed for applications that require high-current power transmission and integrated signal communication through a single compact interface. Manufactured by Amass, a globally trusted leader in connector technology, this connector is ideal for agriculture drones, industrial UAVs, smart battery systems, Battery Management Systems (BMS), robotics, electric vehicles, power distribution boards, and industrial automation equipment. Its 2+2 pin configuration combines two high-current power contacts with two auxiliary signal pins, reducing wiring complexity while improving system reliability.

The XT90PW(2+2)-M.G.Y Male Connector features precision gold-plated brass contacts that provide excellent electrical conductivity, ultra-low contact resistance, and efficient current transfer. The gold plating minimizes voltage drop and heat generation while offering superior resistance to oxidation and corrosion, ensuring dependable long-term electrical performance even in demanding operating environments.

Designed for right-angle PCB mounting, the connector utilizes a through-hole (THT) mounting configuration, allowing it to be securely soldered directly onto printed circuit boards. The 90-degree design enables horizontal cable routing, optimizes PCB space, and reduces mechanical stress on solder joints. The integrated signal pins support battery communication, telemetry, battery identification, temperature sensing, and BMS data transmission, eliminating the need for separate signal connectors.

The XT90PW(2+2) connector is rated for 45A continuous current on the power contacts and 1A on each signal pin, with a maximum voltage rating of 500V DC. Its compact yet rugged construction makes it ideal for intelligent battery systems, UAV electronics, industrial controllers, and embedded power distribution applications.

Constructed from high-temperature PA66 (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, the housing provides excellent insulation, thermal stability, and mechanical durability. The connector withstands vibration, mechanical shock, and continuous electrical loading, making it suitable for demanding commercial and industrial environments. With a mechanical life of approximately 200 mating cycles (100×2), it offers reliable long-term performance.

Whether you're designing a UAV power distribution board, integrating a smart battery pack, developing an industrial robotics platform, or building advanced embedded electronics, the Amass XT90PW(2+2) Male Connector delivers professional-grade reliability, efficient power transfer, and integrated signal connectivity.

Key Features

Genuine Amass XT90(2+2)PW-M.G.Y Male Connector
Right-angle PCB-mounted hybrid power and signal connector
2 high-current power contacts + 2 signal pins
Through-hole (THT) PCB mounting
Premium gold-plated brass contacts
Low contact resistance for efficient power transfer
Rated for 45A continuous current
Signal pins rated for 1A
Rated for 500V DC
High-temperature PA66 (Polyamide/Nylon) UL94 V-0 flame-retardant housing
Excellent resistance to heat, vibration, and corrosion
Compact 90° design for space-saving PCB layouts

Applications & Use Cases

The Amass XT90PW(2+2) Male Connector is widely used in:

Agriculture drones and industrial UAVs
Smart lithium battery packs
Battery Management Systems (BMS)
Power Distribution Boards (PDBs)
Electric vehicles (EVs) and e-bikes
Robotics and industrial automation
Battery charging systems
Industrial power distribution equipment
Embedded electronic systems
Telemetry-enabled battery systems
DIY electronics and custom PCB projects
High-current applications with integrated signal communication

Technical Specifications

Brand: Amass
Model: XT90(2+2)PW-M.G.Y
Connector Type: Male
Series: XT90PW (2+2)
Pin Configuration: 2 Power + 2 Signal Pins
Mounting Type: Right-angle PCB Through-Hole (THT)
Contact Material: Gold-plated brass
Housing Material: PA66 (Polyamide/Nylon), UL94 V-0 flame-retardant
Rated Current (Power Contacts): 45A Continuous
Signal Pin Rating: 1A per pin
Rated Voltage: 500V DC
Contact Resistance: ≤0.4mΩ
Recommended Wire Size: 8–12 AWG
Mechanical Life: Approximately 200 mating cycles (100×2)
Operating Temperature: -20°C to 120°C
Protection Rating: IP40

Why Choose This Connector?

The Amass XT90PW(2+2) Male Connector is an excellent choice for engineers and manufacturers who require a compact right-angle PCB-mounted connector capable of carrying both high-current power and low-current communication signals. Its 2+2 hybrid design simplifies PCB layouts, reduces cable clutter, and improves installation efficiency while ensuring reliable electrical performance.

Compared to conventional PCB power connectors, the XT90PW(2+2) series offers integrated power and signal connectivity, premium gold-plated contacts, space-saving right-angle mounting, and rugged flame-retardant construction, making it ideal for smart battery systems, commercial drones, robotics, and industrial electronic equipment.

Package Includes

1 × Amass XT90PW(2+2) Male Connector – XT90(2+2)PW-M.G.Y

Only 134 items left

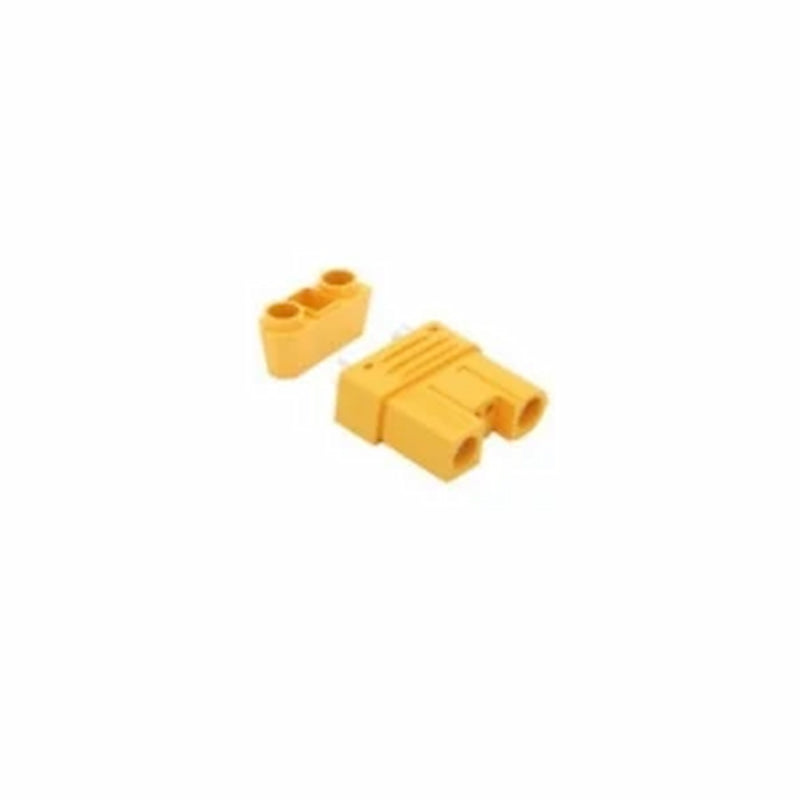

Amass XT120(2+2) Female Connector - XT120(2+2)-F.S.Y + Original Drone Connectors

From ₹ 291.96

Product Description

The Amass XT120(2+2) Female Connector (XT120(2+2)-F.S.Y) is a premium hybrid high-current power and signal connector designed for applications requiring high-current power delivery and integrated signal communication through a single connector. Manufactured by Amass, a globally trusted leader in connector technology, this connector is ideal for agriculture drones, industrial UAVs, electric vehicles, robotics, smart battery systems, Battery Management Systems (BMS), power distribution systems, and industrial automation equipment. Its 2+2 pin configuration combines two high-current power contacts with two auxiliary signal pins, reducing wiring complexity while improving system reliability.

The XT120(2+2)-F.S.Y Female Connector features silver-plated main power contacts for maximum conductivity and lower contact resistance, along with gold-plated signal pins for stable, low-current communication. This combination ensures efficient power transmission, reduced heat generation, and reliable signal integrity even in demanding operating conditions.

Designed for high-power battery and controller systems, the connector integrates two power terminals for DC power transmission and two signal terminals for battery communication, telemetry, battery identification, or BMS monitoring. This hybrid design minimizes cable clutter, simplifies installation, and enhances overall electrical reliability.

The XT120(2+2) connector is rated for 60A continuous current on the power contacts and 5A on the signal pins, with a rated voltage of up to 500V DC. It supports 8–12 AWG wires and is suitable for demanding high-current applications such as commercial drones, battery packs, industrial robotics, and electric mobility systems.

The housing is manufactured from high-temperature PA (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, providing excellent insulation, thermal stability, and mechanical durability. The connector withstands vibration, mechanical shock, and harsh operating environments while offering approximately 100 mating cycles for dependable long-term use.

Whether you're assembling a commercial UAV, integrating a smart lithium battery pack, designing an EV battery system, or building industrial automation equipment, the Amass XT120(2+2) Female Connector delivers professional-grade reliability, efficient power transmission, and integrated signal connectivity.

Key Features

Genuine Amass XT120(2+2)-F.S.Y Female Connector
Hybrid power and signal connector
2 high-current power contacts + 2 signal pins
Silver-plated power contacts for superior conductivity
Gold-plated signal pins for reliable communication
Rated for 60A continuous current
Signal pins rated for 5A
Rated for 500V DC
High-temperature PA (Polyamide/Nylon) UL94 V-0 flame-retardant housing
Supports 8–12 AWG wire
Solder-type wire termination
Excellent resistance to heat, vibration, and corrosion

Applications & Use Cases

The Amass XT120(2+2) Female Connector is widely used in:

Agriculture drones and industrial UAVs
Smart lithium battery packs
Battery Management Systems (BMS)
Electric vehicles (EVs) and e-bikes
Robotics and industrial automation
Power distribution systems
Battery charging systems
Industrial controllers
Embedded electronic systems
Telemetry-enabled battery systems
DIY electronics and custom battery projects
High-current applications with integrated signal communication

Technical Specifications

Brand: Amass
Model: XT120(2+2)-F.S.Y
Connector Type: Female
Series: XT120 (2+2)
Pin Configuration: 2 Power + 2 Signal Pins
Contact Material: Silver-plated copper alloy (Power), Gold-plated brass (Signal)
Housing Material: PA (Polyamide/Nylon), UL94 V-0 flame-retardant
Rated Current (Power Contacts): 60A Continuous
Peak Current: 120A
Signal Pin Rating: 5A per pin
Rated Voltage: 500V DC (600V DC withstand)
Contact Resistance: ≤0.40mΩ (Power Contacts)
Insulation Resistance: ≥2000MΩ
Recommended Wire Size: 8–12 AWG
Mechanical Life: 100 mating cycles
Operating Temperature: -20°C to 120°C
Protection Rating: IP40

Why Choose This Connector?

The Amass XT120(2+2) Female Connector is an excellent solution for engineers and manufacturers who require high-current power delivery with integrated signal communication in a single compact connector. Its silver-plated power contacts provide superior electrical conductivity, while the gold-plated signal pins ensure reliable communication for smart battery systems and industrial electronics.

Compared to conventional power connectors, the XT120(2+2) series offers higher current capacity, integrated signal functionality, flame-retardant construction, and outstanding reliability, making it an ideal choice for professional UAVs, electric vehicles, robotics, and industrial automation.

Package Includes

1 × Amass XT120(2+2) Female Connector – XT120(2+2)-F.S.Y

In stock

Amass XT30U-M.N.B - XT30U Male Connector (Nickel-Plated, Black)

From ₹ 52.00

Product Description

The Amass XT30U-M.N.B (XT30U Male Connector – Nickel-Plated, Black) is a premium compact high-current DC power connector designed for reliable power transmission in FPV drones, RC aircraft, robotics, battery packs, electronic speed controllers (ESCs), portable electronics, and DIY electronic projects. Manufactured by Amass, a globally trusted connector manufacturer, the XT30U series is known for its compact size, secure polarized design, and dependable electrical performance, making it ideal for space-constrained power applications.

The XT30U-M.N.B Male Connector features nickel-plated brass contacts that provide excellent electrical conductivity, low contact resistance, and enhanced resistance to corrosion and wear. The nickel plating ensures long-term durability while maintaining stable electrical performance under continuous operation.

Designed for cable-mounted applications, the connector utilizes a solder-type wire termination, allowing secure attachment to 14–18 AWG wires. Its polarized housing prevents reverse polarity connections, ensuring safe installation while providing a firm, vibration-resistant connection with compatible XT30 female connectors.

The connector supports 15A continuous current and 30A peak current, with a rated voltage of 500V DC, making it suitable for compact power systems used in drones, RC models, battery packs, and embedded electronics.

The housing is manufactured from high-temperature black PA (Nylon/Polyamide) with a UL94 V-0 flame-retardant rating, offering excellent thermal stability, electrical insulation, and mechanical durability. Its sleek black finish provides a clean, professional appearance while withstanding vibration, impact, and demanding operating environments.

Whether you're assembling an FPV drone, building a lithium battery pack, upgrading an RC vehicle, or designing a compact robotics project, the Amass XT30U-M.N.B Male Connector delivers reliable power transmission, durable construction, and long-lasting performance.

Key Features

Genuine Amass XT30U-M.N.B Male Connector
Compact high-current DC power connector
Nickel-plated brass contacts
Low contact resistance for efficient power transfer
Rated for 15A continuous current
Supports 30A peak current
Rated for 500V DC
High-temperature black PA (Nylon) UL94 V-0 flame-retardant housing
Polarized design prevents reverse polarity
Supports 14–18 AWG wire
Solder-type wire termination
Excellent resistance to heat, vibration, and corrosion

Applications & Use Cases

The Amass XT30U-M.N.B Male Connector is widely used in:

FPV drones and racing drones
RC aircraft and helicopters
RC cars and boats
Electronic Speed Controllers (ESCs)
Lithium-ion and LiPo battery packs
Robotics and automation projects
Portable electronic devices
Battery charging systems
Power distribution modules
DIY electronics and embedded systems

Technical Specifications

Brand: Amass
Model: XT30U-M.N.B
Connector Type: Male
Series: XT30U
Number of Pins: 2
Contact Material: Nickel-plated brass
Housing Material: High-temperature PA (Nylon/Polyamide), UL94 V-0 flame-retardant
Rated Current: 15A Continuous
Peak Current: 30A
Rated Voltage: 500V DC
Recommended Wire Size: 14–18 AWG
Mechanical Life: ≥1,000 mating cycles
Operating Temperature: -20°C to 120°C
Mounting Type: Cable mount
Electrical Connection: Solder termination
Protection Rating: IP40

Why Choose This Connector?

The Amass XT30U-M.N.B Male Connector is an excellent choice for engineers, drone builders, and RC enthusiasts who require a compact, lightweight, and durable high-current connector. Its nickel-plated contacts provide excellent corrosion resistance and long service life, while the black flame-retardant housing offers a professional appearance and dependable mechanical strength.

Compared to standard XT30 connectors, the XT30U-M.N.B combines reliable electrical performance with a sleek black finish, making it ideal for compact drone, robotics, battery, and portable power applications where durability and aesthetics are equally important.

Package Includes

1 × Amass XT30U-M.N.B – XT30U Male Connector (Nickel-Plated, Black)

In stock

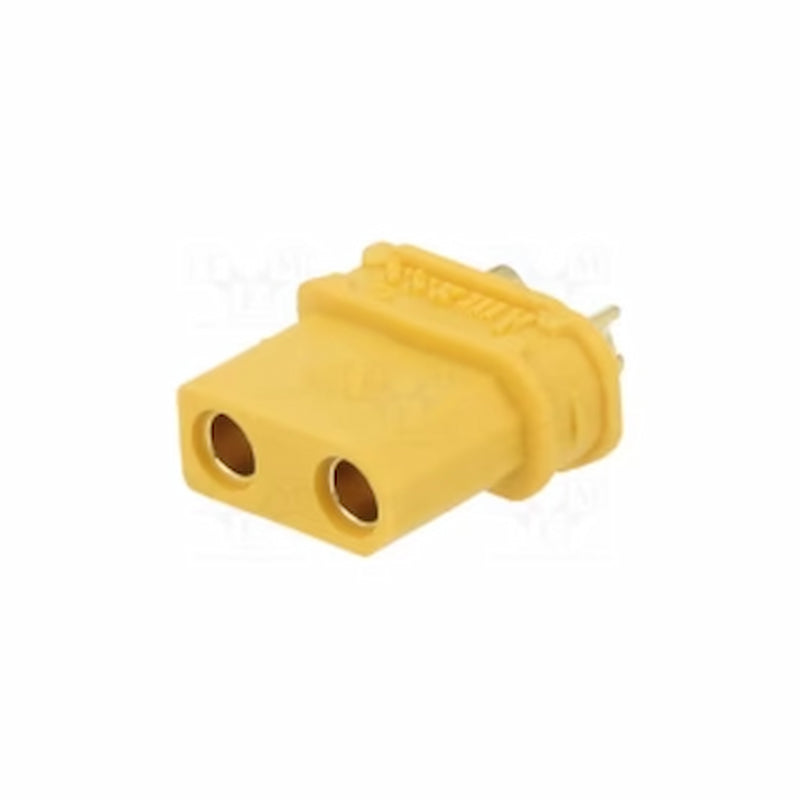

Amass XT30UW-F.G.Y - XT30UW Female Connector (Gold-Plated, Yellow)

From ₹ 69.00

Product Description

The Amass XT30UW-F.G.Y (XT30UW Female Connector – Gold-Plated, Yellow) is a premium compact right-angle high-current DC power connector designed for reliable power transmission in FPV drones, RC aircraft, robotics, battery packs, electronic speed controllers (ESCs), portable electronics, and DIY electronic projects. Manufactured by Amass, a globally trusted connector manufacturer, the XT30UW series features a 90-degree wire exit design, making it ideal for applications where space optimization, improved cable routing, and strain reduction are essential. It delivers dependable electrical performance in compact, high-performance power systems.

The XT30UW-F.G.Y Female Connector features gold-plated brass contacts that provide excellent electrical conductivity, low contact resistance, and superior corrosion resistance. The gold plating minimizes voltage drop and heat generation while ensuring reliable power transfer and extended service life even under demanding operating conditions.

Designed for cable-mounted applications, the connector utilizes a solder-type wire termination and supports 14–18 AWG wires. Its right-angle (90°) cable exit allows cleaner wiring inside compact drone frames and electronic enclosures while reducing stress on solder joints and improving cable management. The polarized housing prevents reverse polarity and ensures secure mating with compatible XT30UW male connectors.

The connector is rated for 20A continuous current and 500V DC, making it suitable for FPV drones, RC models, lithium battery packs, robotics, and embedded electronic systems where compact size and dependable performance are critical.

The housing is manufactured from high-temperature yellow PA (Nylon/Polyamide) with a UL94 V-0 flame-retardant rating, providing excellent thermal stability, electrical insulation, and mechanical durability. It withstands vibration, impact, and demanding operating environments while offering approximately 1,000 mating cycles for long-term reliability.

Whether you're assembling an FPV drone, building a compact battery pack, upgrading an RC vehicle, or designing a lightweight robotics project, the Amass XT30UW-F.G.Y Female Connector delivers reliable power transmission, space-saving cable routing, and durable construction.

Key Features

Genuine Amass XT30UW-F.G.Y Female Connector
Compact right-angle (90°) high-current DC power connector
Premium gold-plated brass contacts
Low contact resistance for efficient power transfer
Rated for 20A continuous current
Rated for 500V DC
Right-angle cable exit for improved cable management
High-temperature yellow PA (Nylon) UL94 V-0 flame-retardant housing
Polarized design prevents reverse polarity
Supports 14–18 AWG wire
Solder-type wire termination
Excellent resistance to heat, vibration, and corrosion

Applications & Use Cases

The Amass XT30UW-F.G.Y Female Connector is widely used in:

FPV drones and racing drones
RC aircraft and helicopters
RC cars and boats
Electronic Speed Controllers (ESCs)
Lithium-ion and LiPo battery packs
Robotics and automation projects
Portable electronic devices
Battery charging systems
Power distribution modules
DIY electronics and embedded systems

Technical Specifications

Brand: Amass
Model: XT30UW-F.G.Y
Connector Type: Female
Series: XT30UW
Number of Pins: 2
Contact Material: Gold-plated brass
Housing Material: High-temperature PA (Nylon/Polyamide), UL94 V-0 flame-retardant
Rated Current: 20A Continuous
Rated Voltage: 500V DC
Recommended Wire Size: 14–18 AWG
Mechanical Life: 1,000 mating cycles
Operating Temperature: -20°C to 120°C
Mounting Type: Cable mount
Electrical Connection: Solder termination
Cable Exit: Right-angle (90°)
Protection Rating: IP40

Why Choose This Connector?

The Amass XT30UW-F.G.Y Female Connector is an excellent choice for drone builders, RC enthusiasts, and electronics professionals who require a compact, lightweight, and right-angle high-current connector. Its 90-degree cable exit enables cleaner wiring and improved space utilization, while the gold-plated contacts provide efficient power transfer and long-term reliability.

Compared to standard straight XT30 connectors, the XT30UW series offers improved cable routing, reduced wire strain, and easier installation in compact electronic assemblies, making it ideal for FPV drones, robotics, battery systems, and portable electronic devices.

Package Includes

1 × Amass XT30UW-F.G.Y – XT30UW Female Connector (Gold-Plated, Yellow)

In stock

Amass XT30UPB-M30.N.B - XT30UPB Male Connector (Nickel-Plated, Black)

From ₹ 52.00

Product Description

The Amass XT30UPB-M30.N.B (XT30UPB Male Connector – Nickel-Plated, Black) is a premium PCB-mounted high-current DC power connector designed for compact and reliable power delivery in FPV drones, RC aircraft, robotics, battery management systems (BMS), power distribution boards, and embedded electronic systems. Manufactured by Amass, a globally trusted connector brand, this XT30UPB series is widely used where direct PCB integration and stable high-current performance are required.

The XT30UPB-M30.N.B Male Connector features nickel-plated brass contacts that provide good electrical conductivity, corrosion resistance, and stable long-term performance. The nickel plating helps maintain durability in repeated mating cycles while ensuring consistent current transfer in demanding electronic applications.

Designed for through-hole PCB mounting (THT), the connector is soldered directly onto the PCB, making it ideal for compact power distribution layouts where wired connectors would take more space. Its straight vertical structure ensures firm mechanical anchoring, reducing stress on solder joints during vibration-heavy applications like drones and RC systems.

The connector is rated for 15A continuous current and 500V DC, making it suitable for low-to-medium power battery systems and ESC connections. It uses a 2-pin configuration (positive and negative) and is designed to maintain low contact resistance for efficient power flow in compact systems.

The housing is made from high-temperature PA (Nylon/Polyamide) with UL94 V-0 flame-retardant rating, ensuring strong thermal stability, electrical insulation, and resistance to mechanical stress. Its black color gives a clean, professional look suitable for integrated PCB designs in drones and industrial electronics.

Whether you're designing a drone power distribution board, building a compact LiPo battery system, or integrating power into a robotics PCB, the Amass XT30UPB-M30.N.B Male Connector offers a reliable, space-efficient, and durable solution.

Key Features

Genuine Amass XT30UPB-M30.N.B Male PCB Connector
PCB-mounted (Through-Hole / THT) design
Nickel-plated brass contacts for durability and corrosion resistance
Rated for 15A continuous current
Rated for 500V DC
Compact 2-pin high-current power connector
High-temperature PA66 (Nylon) housing
UL94 V-0 flame-retardant material
Stable mechanical anchoring for vibration-prone systems
Designed for drone, RC, and embedded PCB power systems

Applications & Use Cases

FPV drones and racing drones
RC aircraft and ground vehicles
Power Distribution Boards (PDBs)
Battery Management Systems (BMS)
Lithium battery packs
Embedded electronics and IoT power systems
Robotics and automation PCBs
ESC and motor controller boards
Compact industrial electronics

Technical Specifications

Brand: Amass
Model: XT30UPB-M30.N.B
Connector Type: Male
Series: XT30UPB
Mounting Type: PCB Through-Hole (THT)
Contact Material: Brass
Contact Plating: Nickel
Housing Material: PA66 (Nylon), UL94 V-0
Rated Current: 15A
Rated Voltage: 500V DC
Number of Pins: 2
Orientation: Straight vertical PCB mount
Mechanical Durability: ~1000 mating cycles
Operating Temperature: -20°C to 120°C

Why Choose This Connector?

The XT30UPB-M30.N.B is ideal when you want a direct PCB power input/output solution instead of bulky wired connectors. It keeps designs compact, reduces wiring complexity, and provides reliable current handling for small-to-medium drone and robotics power systems.

Package Includes

1 × Amass XT30UPB-M30.N.B – XT30UPB Male Connector (Nickel-Plated, Black)

In stock

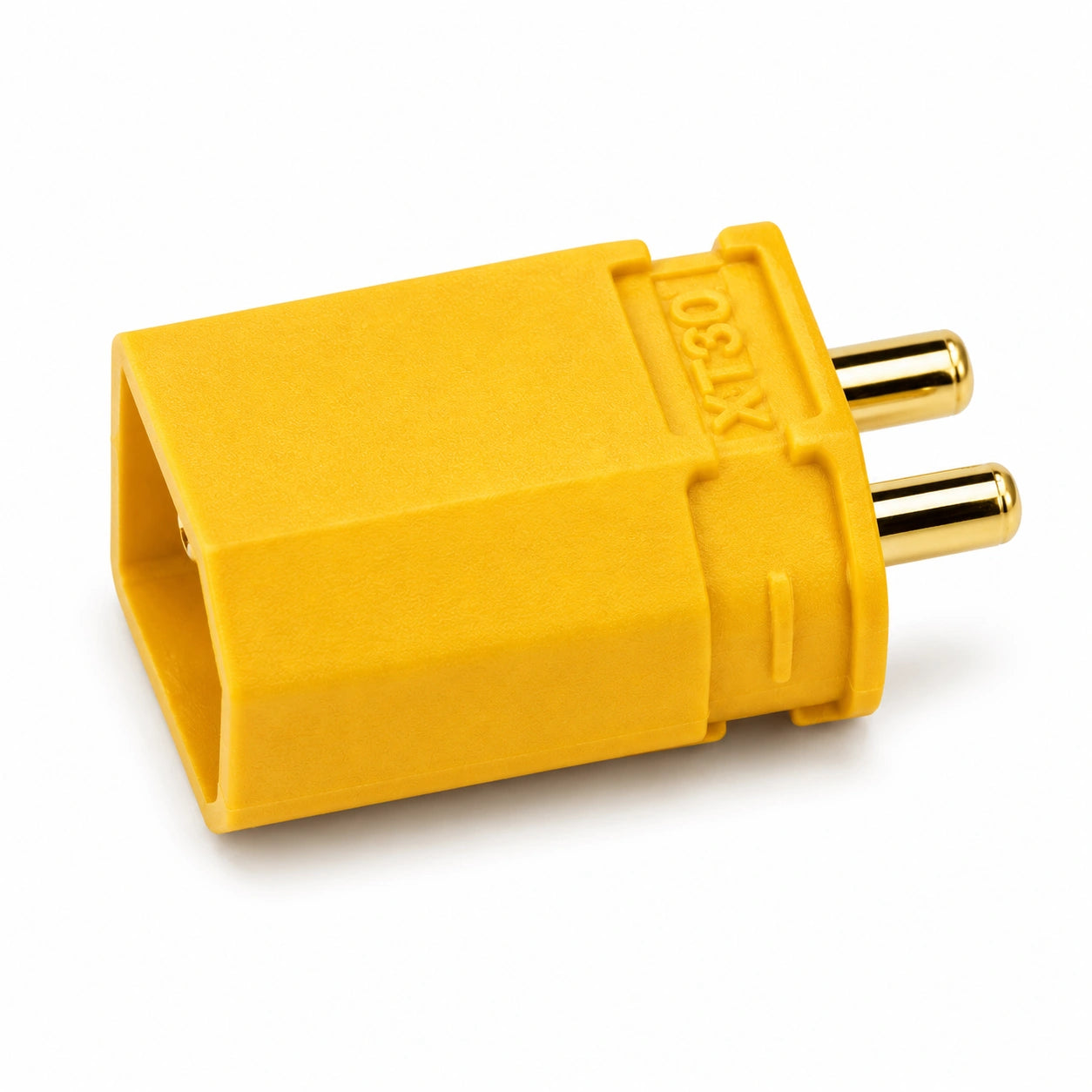

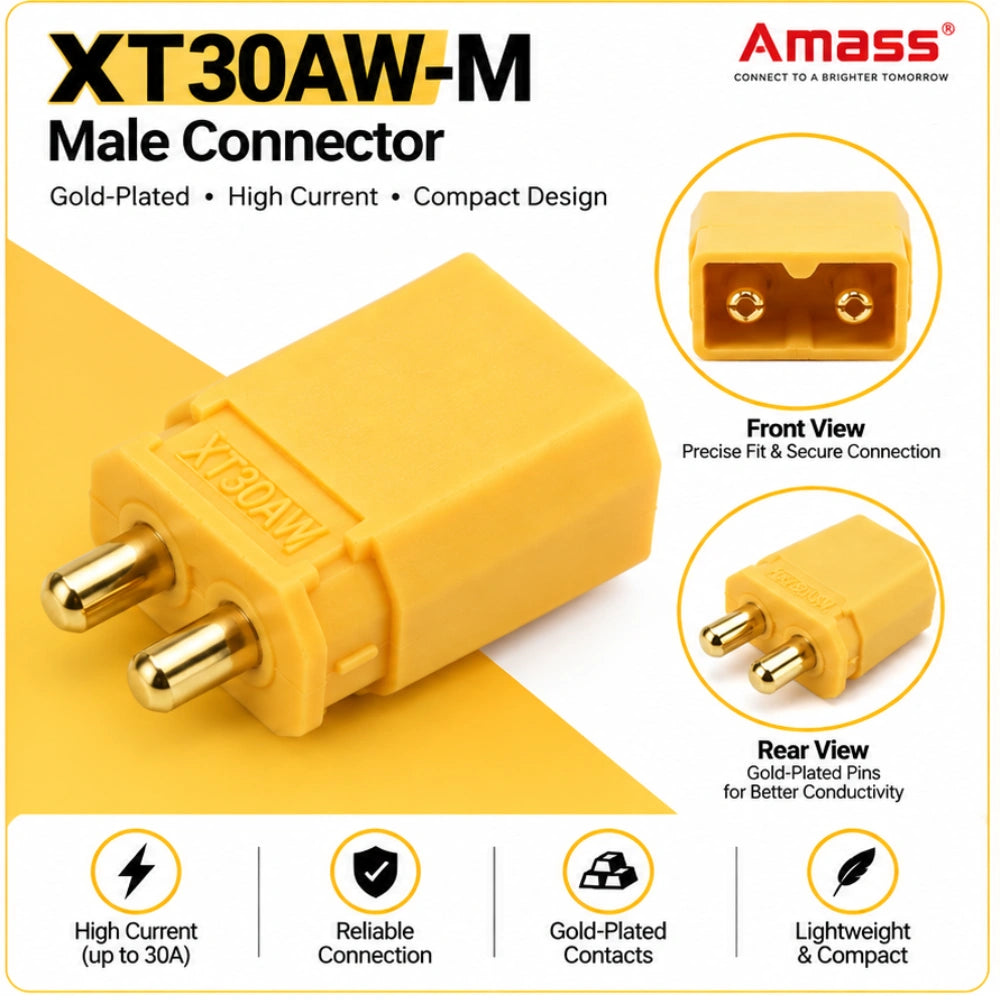

Amass XT30AW-M Male Connector – Gold-Plated Yellow XT30

From ₹ 118.75

Amass XT30AW-M Male Connector – Gold-Plated Yellow XT30 PCB Connector

The Amass XT30AW-M Male Connector is a compact 2-pin power connector designed for reliable PCB-mounted electrical connections in drones, RC models, battery systems, robotics, and other compact electronic applications. It features a yellow polyamide housing with gold-flash-plated brass contacts for dependable electrical conductivity and corrosion resistance.

Designed for through-hole (THT) PCB mounting, the XT30AW-M provides a practical solution where a secure and space-efficient power connection is required. Its compact XT30 form factor makes it suitable for applications where board space is limited while maintaining a robust mechanical connection.

Key Features of Amass XT30AW-M

2-Pin Male Connector: Designed for DC power connections in compact electronic systems.
PCB Mount Design: Suitable for direct through-hole mounting on printed circuit boards.
Gold-Plated Contacts: Brass contacts with gold-flash plating provide reliable conductivity and improved resistance to oxidation.
Compact XT30 Design: Small connector format for space-constrained drone, RC, and electronics applications.
Yellow Housing: Easy visual identification in wiring and power systems.
Flame-Retardant Housing: Polyamide housing is rated UL94V-0 according to the manufacturer's specifications.
Durable Construction: Designed for repeated mating and unmating, with mechanical durability specified at approximately 1,000 cycles.

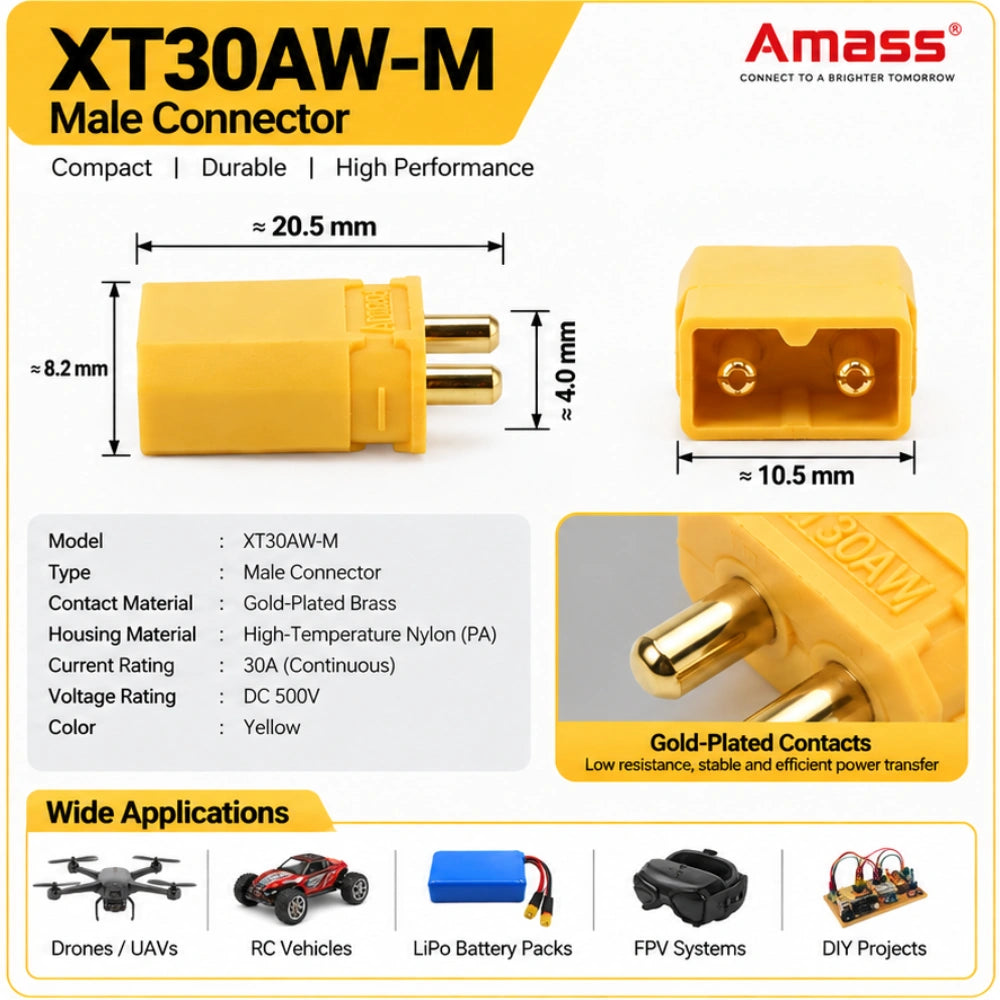

Technical Specifications

Specification	Details
Brand	Amass
Model	XT30AW-M
Connector Type	Male DC Power Connector
Series	XT30
Number of Pins	2
Mounting	PCB Mount / THT
Orientation	Straight
Contact Material	Brass
Contact Plating	Gold Flash
Housing Material	Polyamide
Housing Colour	Yellow
Flammability Rating	UL94V-0
Maximum Current	20A
Rated Voltage	600V DC
Mechanical Durability	1000 Cycles
Operating Temperature	-20°C to +120°C

Applications

The XT30AW-M male connector is suitable for a wide range of compact power and electronics applications, including:

FPV drones and UAV power systems
RC cars, aircraft, boats, and other RC models
LiPo battery-powered electronics
Drone power distribution boards
Robotics and automation projects
Battery management systems
Custom PCB power connections
DIY electronics and embedded systems

Why Choose the XT30AW-M Connector?

Reliable power connections are essential in battery-powered electronics, particularly in drones and RC systems where vibration, repeated connection cycles, and compact installation can place additional demands on connectors. The Amass XT30AW-M combines a compact PCB-mount design with gold-plated brass contacts and a flame-retardant housing.

Its standardized XT30 form factor also makes it useful when designing or repairing power connections around compatible XT30-series components. Before installation, verify connector compatibility, polarity, PCB footprint, current requirements, and the specifications of the mating connector for your application.

Installation Information

The XT30AW-M is designed for through-hole PCB mounting. Solder the connector securely to the PCB using an appropriate soldering process and inspect the joints for proper wetting and mechanical strength before connecting a power source.

Always confirm polarity and electrical specifications before powering the assembled circuit. Incorrect polarity or an unsuitable mating connector can damage connected electronic components.

Package Includes

1 × Amass XT30AW-M Male Connector

Frequently Asked Questions

What is the Amass XT30AW-M?

The Amass XT30AW-M is a 2-pin male XT30-series power connector designed for direct PCB mounting. It is commonly used in drones, RC models, battery systems, robotics, and compact electronic devices.

Is the XT30AW-M a PCB-mount connector?

Yes. The XT30AW-M is designed for PCB mounting using a through-hole soldering configuration.

What is the current rating of the XT30AW-M?

The manufacturer's specification lists the XT30AW-M at up to 20A maximum current under specified conditions. Always consider the actual wire, PCB, thermal conditions, and application requirements when designing a power system.

What material are the XT30AW-M contacts made from?

The contacts are made from brass and feature gold-flash plating, which helps provide reliable electrical contact and resistance to oxidation.

Where can the XT30AW-M be used?

The connector can be used in FPV drones, UAVs, RC vehicles, LiPo-powered systems, robotics, battery modules, power distribution boards, and custom electronics projects requiring a compatible XT30 PCB connection.

What is the colour of the XT30AW-M?

The XT30AW-M has a yellow housing, making it easy to identify in power and wiring assemblies.

In stock

Amass XT60U-F XT60U-M Connector Plug Male Female

From ₹ 55.00

Product Description

The Amass XT60U-F / XT60U-M Connector Plug Set is a premium high-current DC power connector pair designed for reliable power transmission in FPV drones, RC aircraft, robotics, battery packs, ESC systems, and DIY electronics projects. Manufactured by Amass, a globally trusted connector brand, the XT60U series is widely used for its secure locking design, compact size, and excellent electrical performance, making it a standard choice in drone and RC power systems.

The XT60U Male Connector (XT60U-M) and XT60U Female Connector (XT60U-F) feature gold-flash plated brass contacts, which provide excellent conductivity, low contact resistance, and strong resistance to oxidation and corrosion. This ensures stable power delivery with minimal heating even under continuous load conditions.

Designed for cable-mounted solder termination, both connectors support 12–14 AWG wires, allowing secure integration into lithium battery packs, ESCs, and power distribution systems. The polarized housing ensures correct connection alignment, preventing reverse polarity and improving safety in high-current setups.

The XT60U series is rated for 30A continuous current with a 500V DC rating, and supports momentary higher surge currents, making it suitable for medium-power drone and RC applications.

The housing is made from high-temperature PA (Nylon/Polyamide) with UL94 V-0 flame-retardant rating, offering strong insulation, mechanical durability, and resistance to vibration and impact. The connector design is optimized for long service life, typically supporting around 1000 mating cycles.

Whether you're building a drone battery system, upgrading an RC vehicle, or designing a compact robotics power setup, the Amass XT60U Male-Female Connector Set provides a reliable, widely standardized, and durable power connection solution.

Key Features:

Original Amass XT60U connector set
Includes male and female connector plugs
Gold-plated brass terminals for low resistance
High-current carrying capability
Heat-resistant nylon housing
Secure and stable connection design
Durable and long-lasting performance
Easy soldering and installation
Suitable for RC and power applications

Applications:

RC cars and airplanes
Drone and UAV battery connections
LiPo battery packs
Battery chargers and ESCs
Robotics and automation projects
DIY electronics and power systems
Industrial power distribution

Specifications:

Specification	Details
Product Type	XT60 Connector Plug Set
Model	XT60U-F / XT60U-M
Brand	Amass
Connector Type	Male and Female Plug
Contact Material	Gold-Plated Brass
Housing Material	High-Temperature Nylon
Application	Battery and High-Current Power Connection
Usage	RC, Drone, Robotics, DIY Electronics

Why Choose This Connector?

The XT60U connector pair is one of the most widely used drone and RC power connectors because it balances size, safety, and current handling. It offers a strong, secure fit, reliable soldering characteristics, and consistent performance in medium-power systems where efficiency and durability matter more than ultra-high current capacity.

Package Includes

1 × Amass XT60U-M Male Connector
1 × Amass XT60U-F Female Connector

Only 11 items left

16 Way FRC Flat Ribbon Cable

From ₹ 24.00

In stock

DF13 5-Pin Flight Controller Cable 20Cm for Multirotor Quadcopter

From ₹ 91.00

In stock

Amass 1-6S 30V XT30 / XT60 Fuse Installation Test Safety Plug

₹ 602.00

Product Description

The Amass XT30 1–6S (30V) Fuse Installation Test Safety Plug (XT30 / XT60 Smoke Stopper) is a premium in-line protection device designed to safely power up and test electronic systems such as FPV drones, RC aircraft, battery packs, ESCs, and embedded electronics. Manufactured by Amass-compatible safety accessory standards, this device is widely used as a “smoke stopper” to prevent damage during first-time power checks or troubleshooting.

It works by placing a resettable fuse (PTC / polyfuse) in series with the power line, which immediately limits current if a short circuit or wiring fault is detected, protecting sensitive electronics from permanent damage.

Key Function

When you power your drone or circuit for the first time, the device:

Allows safe startup if wiring is correct
Instantly limits current if a short circuit occurs
Cuts power temporarily to prevent “magic smoke” damage
Automatically resets after the fault is removed

This makes it an essential tool for first power-on testing and debugging.

Key Features

Compatible with XT30 and XT60 connectors
Supports 1–6S LiPo systems (3V–30V)
Built-in resettable fuse (PTC protection)
Typical trip current ~1A, hold current ~0.5A (varies by model)
Fast response to short circuits and overloads
LED indication (on normal operation / off when tripped, depending on model)
Lightweight and portable design
Reusable protection (self-reset after fault removal)
Ideal for safe electronics debugging

Applications & Use Cases

First power-up of FPV drones
Testing new ESC, FC, or wiring setups
Battery pack safety checks
Robotics and DIY electronics debugging
Preventing damage during soldering mistakes
RC aircraft and vehicle maintenance
Safe workshop testing tool for LiPo systems

Technical Specifications

Product Name: Amass XT30 / XT60 Fuse Installation Test Safety Plug
Input Voltage: 1–6S (3–30V DC)
Connector Type: XT30 / XT60 compatible
Protection Type: Resettable PTC fuse (self-healing)
Trip Current: ~1.0A (typical)
Hold Current: ~0.5A (typical)
Function: Short-circuit and overload protection
Reset Method: Automatic reset after disconnect/recovery
Housing Material: Durable plastic + metal contacts
Weight: ~10–15g (varies by version)
Operating Use: Temporary in-line safety testing only

Why Choose This Device?

The Amass XT30/XT60 Smoke Stopper is one of the most important tools for anyone working with drones or LiPo batteries because it acts as a cheap insurance layer between your battery and your electronics. Instead of instantly burning components during a wiring mistake, it safely limits current and gives you time to diagnose the problem.

It is especially useful for beginners and builders because it significantly reduces the risk of damaging expensive flight controllers, ESCs, and battery systems during testing.

Package Includes

1 × Amass XT30 / XT60 Fuse Installation Test Safety Plug (1–6S, 30V)

Out of stock

XT-90 Male & Female Plug Connector Yellow for Battery Quadcopter Multicopter

From ₹ 95.00

Readytosky XT90 Connector Set (Male & Female) – High-Current Heavy Duty Interface

Power your high-performance RC builds with the Readytosky XT90 Connector Set. Engineered for large-scale drones, high-voltage multicopters, and heavy-duty RC vehicles, the XT90 is the industry standard for systems that demand massive current delivery without the risk of heat-related failure.

Molded from high-temperature, flame-retardant nylon, these connectors feature 4.5mm gold-plated bullet pins that ensure maximum surface contact and minimal resistance. Whether you are running a 6S racing rig or an industrial-grade cinelifter, the XT90 provides the secure, "clatter-free" connection required for high-vibration environments.

Key Highlights:

Massive Current Capacity: Built to handle a constant 90A current with burst capabilities up to 120A, making them ideal for high-torque brushless motors and large LiPo packs.
Easy-Solder Design: The pins feature a "half-cup" soldering terminal, making it significantly easier to secure thick gauge wires (up to 10AWG) for a professional, low-resistance joint.
Spark-Resistant Geometry: Designed with deep-recessed terminals to prevent accidental short circuits and provide a tight, friction-locked fit that won't vibrate loose during flight.
Polarity Protection: The distinct asymmetrical housing ensures that it is physically impossible to plug your battery in backward, protecting your ESCs and flight controllers from catastrophic reverse-polarity damage.
Premium Conductivity: High-grade 4.5mm gold plating prevents oxidation over time, ensuring your power delivery remains consistent even after hundreds of plug cycles.

Technical Specifications

Feature	Details
Brand	Readytosky
Connector Type	XT90 (Male & Female Pair)
Material	High-Temp Nylon / Gold-Plated Copper
Bullet Diameter	4.5mm
Current Rating	90A (Continuous) / 120A (Peak)
Recommended Wire	10AWG – 12AWG
Color	High-Visibility Yellow

Pro-Builder Tip:

Because the XT90 handles such high current, we recommend using high-quality 10AWG or 12AWG silicone wire. Always use heat shrink tubing over the soldered terminals to ensure total insulation against the carbon fiber frames of your drone.

Partsbaba Quality Assurance: All Readytosky connectors are 100% genuine and original. We provide a 14-day replacement warranty against manufacturing defects, so you can build your high-power systems with complete confidence.

Out of stock

PPM Encoder V1.3 with Case

₹ 748.00

ReadytoSky PPM Encoder V1.3 – High-Precision PWM to PPM Signal Converter

Simplify your flight controller wiring and resolve receiver compatibility issues with the ReadytoSky PPM Encoder V1.3. This essential module is designed for pilots using older PWM receivers (which use one wire per channel) with modern flight controllers like Pixhawk, APM, or Paparazzi that require a single-wire PPM input.

By encoding up to 8 individual PWM channels into a single, streamlined PPM composite signal, this encoder significantly reduces "cable clutter" and frees up valuable I/O ports on your autopilot. Housed in a protective plastic case, the V1.3 is pre-flashed and mission-ready out of the box.

Key Highlights:

8-Channel Signal Aggregation: Capable of reading up to 8 individual PWM input channels and merging them into one precise PPM output stream.
Plug-and-Play Firmware: Comes pre-flashed with the latest stable firmware, requiring no complex software setup for standard UAV operations.
Programmable & Customizable: Advanced users can re-flash the onboard ATmega328P via an AVR ISP programmer to invert PPM signals or adjust specific fail-safe values.
Protective Hard Case: Includes a durable, lightweight enclosure that shields the sensitive electronics from dust, moisture, and mechanical stress during flight.
Broad Autopilot Support: The industry-standard solution for connecting PWM-only receivers to Pixhawk 2.4.8, APM 2.8, and other modern 32-bit flight stacks.
Low Latency Conversion: High-speed processing ensures that your control inputs remain responsive with minimal signal delay.

Technical Specifications

Feature	Details
Brand	ReadytoSky
Model	PPM Encoder V1.3
Processor	ATmega328P
Input Channels	8 PWM Channels
Output	Single PPM Composite
Firmware	Pre-flashed (v2.3.16 or compatible)
Case Material	High-Grade Plastic
Dimensions	28mm x 27mm x 9mm (with case)

What’s in the Box:

1x PPM Encoder Module (with Case)
1x 10-pin Input Cable (PWM side)
1x 3-pin Output Cable (PPM side)

Pro-Builder Tip:

If you are transitioning to an autonomous flight stack like ArduPilot, using a PPM encoder is the most reliable way to maintain your current RC transmitter setup. Ensure that your receiver is powered through the encoder's input rail, and double-check your channel mapping in Mission Planner after the first connection to ensure all 8 channels are moving correctly!

Partsbaba Authenticity Guarantee: All ReadytoSky electronics are 100% genuine and original. We offer a 14-day replacement warranty against manufacturing defects, so you can integrate this encoder into your UAV with complete confidence.

In stock
