FFC Cables

Compatibility: Printers and industrial equipment requiring longer connections. This 14 Pin 1mm Pitch 650mm Same Side FFC Flexible Flat Cable is designed for medium-range applications with high-density connections, providing reliable and flexible performance for longer cable runs.

Applying to digital cameras, digital camcorders, laptops, LCD TVs, LCD monitors, etc

• Pin: 14
• Pitch: 1mm
• Length: 650mm
• Type: Same Side (Type-A)

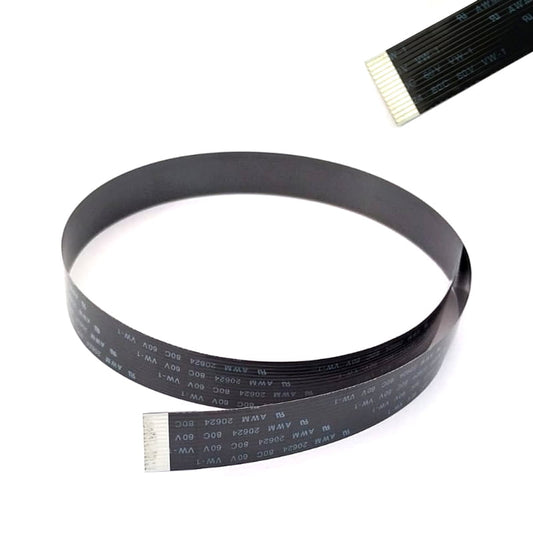

This 14-pin flexible flat cable (FFC) features a 1mm pitch and extends to 650mm in length, designed with a 100-micron thick conductor for durable and reliable connections. Its 0.1x0.65mm conductor size ensures precise signal transmission, making it ideal for electronic applications requiring compact and flexible wiring solutions. The same-side connection design simplifies installation in tight spaces, ensuring compatibility with a variety of devices such as plotter heads and other precision electronics.

• Equipped with 14 pins at a 1mm pitch for consistent and reliable connectivity
• 650mm length provides ample reach for diverse electronic configurations
• 100-micron thick conductors enhance signal integrity and durability
• 0.1x0.65mm conductor size tailored for precise electrical performance
• Same-side connection facilitates straightforward installation in compact assemblies
• Flexible design ideal for tight or curved spaces within electronic devices
• Perfectly suited for use in plotter heads and other precision equipment

The 18 Pin 1mm Pitch 255mm Same Side Connection FFC Ribbon Flexible Flat Cable is a flexible flat cable designed for making compact electrical connections between compatible electronic components and circuit boards. It features 18 conductors with a 1mm contact pitch and a total length of 255mm. The same-side connection configuration means the exposed contacts are oriented on the same side at both ends, making it suitable for applications where the connected components require this specific contact orientation. Its flexible construction allows the cable to be routed through tight spaces and around components where a conventional wired connection may be less suitable. This FFC ribbon cable can be used in electronic equipment, control panels, display assemblies, printers, scanners, embedded devices, and other compatible systems requiring an 18-pin, 1mm-pitch connection. Before installation, verify the pin count, pitch, cable length, contact orientation, and connector requirements of your device to ensure compatibility.

The 6 Pin 1mm Pitch 150mm Reverse Side Connection FFC Ribbon Flexible Flat Cable is designed to provide reliable and flexible connections in compact electronic assemblies. It features a 1mm pitch spacing between pins and a length of 150mm, making it ideal for connecting components like small printers, sensors, and control panels where space is limited. Its reverse side connection enhances installation options while maintaining secure contact and consistent signal transmission.

• Six-pin configuration supports precise and stable electrical connections for various low-power devices.
• 1mm pitch spacing ensures compatibility with connectors requiring fine pitch cabling.
• 150mm length offers an extended reach suited for tight or intricate layouts.
• Reverse side connection allows versatile installation in confined spaces without compromising cable integrity.
• Flexible flat cable design enables easy bending and routing in compact electronic assemblies.
• Reliable performance ideal for use in sensitive equipment like sensors and control panels.

The 8 Pin 1mm Pitch 200mm Reverse Side Connection FFC Ribbon Flexible Flat Cable is designed for devices requiring a compact and flexible cable solution with reverse-side connectivity. Its 1mm pitch and 200mm length make it ideal for short-range data transmission, ensuring a secure and reliable link between components. Compatible with printers and other electronics that demand precise, flexible connections, this flat cable offers excellent durability and ease of installation in tight spaces.

• 8-pin configuration provides stable and clear data pathways for efficient communication.
• The 1mm pitch allows for compact alignment suited for high-density electronics.
• 200mm length accommodates extended reach in confined environments without strain.
• Reverse side connection supports specialized mounting requirements to optimize space.
• Flexible ribbon design ensures effortless bending and positioning without compromising performance.
• Compatible with printers and similar devices that require dependable flexible flat cables.
• Constructed to maintain signal integrity during short-range data transmissions.
• Easy integration into electronic assemblies needing durable yet adaptable cabling solutions.

The 16 Pin 0.5mm Pitch 200mm Same Side Connection FFC Ribbon Flexible Flat Cable is designed for reliable connections in compact electronic devices. With a 0.5mm pitch and a length of 200mm, this flexible flat cable facilitates precise signal transmission for printers and similar equipment. Its same-side connection layout ensures easy installation while maintaining flexibility suited for medium-range connectivity needs.

• 16-pin configuration supports secure data transfer across multiple circuits.
• 0.5mm pitch spacing enables compatibility with fine-pitch connectors in compact devices.
• 200mm cable length accommodates medium-range connections without excess bulk.
• Same side connection simplifies integration by aligning contacts on one side.
• Flexible flat design allows installation in tight spaces requiring bending or folding.
• Ideal for use in printers and devices that require durable, flexible signal cables.

The 6 Pin 0.5mm Pitch 150mm Reverse Side Connection FFC Ribbon Flexible Flat Cable is designed for compact electrical connections between compatible electronic components, circuit boards, displays, control panels, and other electronic assemblies. It features 6 conductive contacts arranged at a 0.5mm pitch and has a total cable length of 150mm. The reverse-side connection configuration means the exposed contacts are positioned on opposite sides at the two ends of the cable, making it suitable for assemblies that require this specific connector orientation. Its flexible flat construction allows convenient routing through compact spaces while maintaining a low-profile connection between compatible components. This FFC ribbon cable is suitable for electronic equipment repair, replacement, maintenance, and assembly applications where a 6-pin, 0.5mm-pitch reverse-side connection is required. Before installation, verify the pin count, pitch, cable length, contact orientation, and connector specifications against the original cable or device requirements to ensure proper compatibility.

The 6 Pin 0.5mm Pitch 100mm Same Side Connection FFC Ribbon Flexible Flat Cable offers a compact and reliable solution for connecting low pin-count devices. Designed with a 0.5mm pitch and a length of 100mm, this flat flexible cable is ideal for short-distance wiring in small printers, sensors, and control panels. Its same side connection design ensures straightforward installation in tight spaces while maintaining consistent data transfer performance.

• 6-pin configuration tailored for applications requiring minimal connection points without compromising signal integrity
• 0.5mm pitch spacing provides precise alignment for secure and stable connectivity in compact electronic assemblies
• 100mm cable length fits well within confined setups, reducing clutter and facilitating neat cable management
• Same side connection simplifies installation by keeping contacts on one side, enhancing compatibility with various devices
• Flexible flat cable design allows bending and folding without damaging the conductors, making it suitable for dynamic or space-constrained environments
• Ideal for small printers, sensors, and control panels where reliable, short-range connections are essential for efficient operation

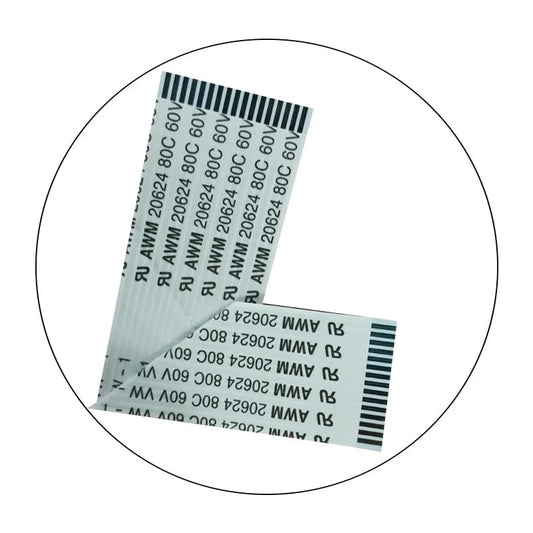

The 12 Pin 1mm Pitch 400mm Same Side Connection FFC Ribbon Flexible Flat Cable is designed for medium-distance data transmission in devices like printers and similar electronics. Measuring 400mm in length with a 1mm pitch between pins, this cable ensures reliable and flexible connectivity on the same side of the device. Its flat ribbon design facilitates easy routing in compact spaces while maintaining durability during repeated bending and movement.

• 12-pin configuration provides ample connections for various electronic signals
• 1mm pitch spacing allows precise alignment with compatible connectors
• 400mm length supports extended connection distances without signal loss
• Same side connection simplifies installation by keeping contacts aligned on one edge
• The flexible flat cable design enhances adaptability in tight or moving assemblies
• Compatible with printers and other equipment requiring durable, long-range flexible connections

The 8 Pin 1mm Pitch 200mm Same Side Connection FFC Ribbon Flexible Flat Cable is designed for secure and flexible data transmission in compact electronic devices. This cable features an 8-pin configuration with a 1mm pitch and a 200mm length, ideal for same-side connections where space is limited. It is compatible with printers, scanners, and other consumer electronics that require moderate-length flexible flat cables to maintain reliable performance and organized wiring.

• 8-pin arrangement with 1mm pitch ensures high-density connections for efficient signal transfer.
• 200mm length provides ample reach for moderate-distance internal connections without excess bulk.
• Same-side connection design simplifies installation in compact electronics with limited space.
• Flexible flat cable construction allows bending and routing without compromising signal integrity.
• Compatible with a wide range of consumer electronics including printers and scanners.
• Delivers consistent performance for moderate-length cable applications requiring durability and flexibility.

The 6 Pin 1mm Pitch 200mm Reverse Side Connection FFC Ribbon Flexible Flat Cable is designed for printers and electronic devices requiring precise, longer reverse connections. This flexible flat cable ensures reliable data transmission with its reverse-side configuration, making it ideal for compact and sensitive electronic assemblies. Its 1mm pitch and 200mm length offer versatility for various short-range applications where space and flexibility are crucial.

• Reverse side connection enables secure and space-efficient cable routing in tight electronic setups
• 6-pin configuration supports stable data transfer for compatible devices
• 1mm pitch spacing ensures precise alignment with connectors for consistent performance
• 200mm length accommodates extended reach without sacrificing flexibility
• Constructed as a flat flexible cable (FFC) to minimize bulk and improve installation ease
• Ideal for use in printers and other electronics needing reliable reverse side connectivity

The 8 Pin 1mm Pitch 70mm Same Side Connection FFC Ribbon Flexible Flat Cable is designed for compact electronic devices requiring short, reliable connections. Its flexible flat cable structure ensures easy routing and stable signal transmission in tight spaces. Ideal for printers and small electronics, this cable supports secure data transfer with an 8-pin configuration and 1mm pitch, making it a dependable choice for precise, same-side connections.

• 8-pin layout offers reliable connectivity for small-scale electronic assemblies.
• 1mm pitch spacing ensures precise alignment for accurate signal transfer.
• 70mm length accommodates compact device layouts without excess bulk.
• Same side connection design simplifies installation in confined spaces.
• Flexible flat cable construction allows easy bending and routing.
• Compatible with printers and various small electronics requiring short-range connections.
• Supports secure and stable data transmission to maintain device performance.

The 28 Pin 1mm Pitch 300mm Same Side Connection FFC Ribbon Flexible Flat Cable is designed for high-density electronic setups requiring reliable medium-length connections. This flexible flat cable offers consistent data transfer and is ideal for applications such as printers and other specialized equipment. Its 1mm pin pitch and same-side connection ensure compatibility with compact connectors in tight spaces.

• 28-pin configuration supports high-density connections for precise signal transmission
• 1mm pitch spacing enables compact, efficient wiring in constrained environments
• 300mm length provides a moderate range ideal for internal device connections
• Same side connection simplifies installation by aligning contacts on one side of the cable
• Flexible flat cable design allows easy routing and bending without compromising performance
• Compatible with printers and specialized electronics requiring stable, moderate-length data paths
• Constructed to maintain signal integrity in high-density electronic applications

The 26 Pin 0.5mm Pitch 200mm Same Side Connection FFC Ribbon Flexible Flat Cable is designed for reliable data transmission within compact electronic setups. This flat cable features a 0.5mm pitch between 26 pins and extends 200mm, making it perfect for connecting components on the same side in devices like printers and scanners. Its flexible construction supports medium-density connections, providing durability and consistent performance in tight spaces.

• 26-pin configuration with 0.5mm pitch ensures precise and stable connectivity for circuit boards and devices.
• 200mm length offers ample reach for moderate-distance same-side connections without excess slack.
• Flexible flat cable design adapts easily within confined spaces, ideal for compact electronics.
• Engineered for compatibility with printers, scanners, and similar devices requiring medium-density wiring.
• Constructed to maintain secure signal transmission in environments where reliable data flow is critical.
• Durable materials resist bending fatigue, extending cable lifespan in repeated use scenarios.

The 24 Pin 0.5mm Pitch 300mm Same Side Connection FFC Ribbon Flexible Flat Cable is designed for reliable medium-length connections in devices like printers, scanners, and various consumer electronics. This flexible flat cable features a 0.5mm pitch between pins and a 300mm length, supporting same-side connections with consistent signal integrity. Its durable construction ensures dependable performance in applications requiring moderate-density wiring and flexibility.

• 24-pin configuration enables precise and efficient connection for medium-density electronic setups
• 0.5mm pitch spacing ensures compatibility with a wide range of circuit board connectors
• 300mm length provides adequate reach for internal wiring in printers and scanners
• Same-side connector orientation simplifies installation in compact device layouts
• Flexible design accommodates tight bends without compromising signal transmission
• Ideal for consumer electronics requiring medium-range, reliable connectivity
• Constructed to maintain consistent performance under moderate mechanical stress

Compatibility: Printers, LCD displays, and various consumer electronics needing moderate-length same-side connections. The 40 Pin 1mm Pitch 200mm Same Side FFC Flexible Flat Cable provides high-density, medium-range connectivity for flexible data transmission in compact, space-constrained applications.

Compatibility: Printers and small electronics needing moderate-length same-side connections. ThiS 18 Pin 0.5mm Pitch 100mm Same Side FFC Flexible Flat Cable provides secure, short-range connections for low-density applications, offering reliable performance and flexibility in compact designs.

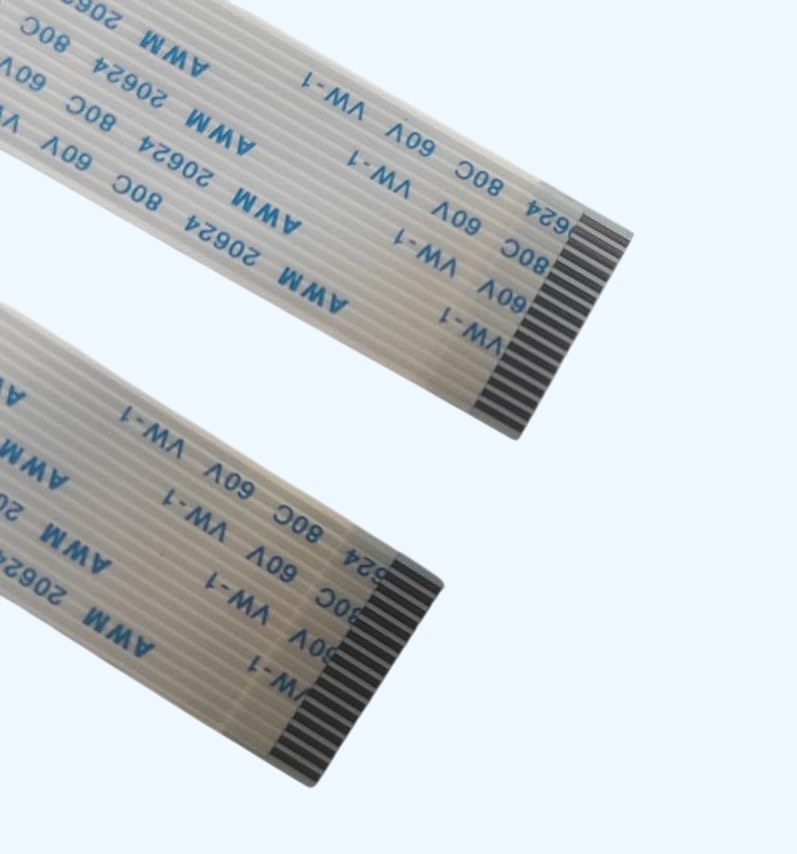

The 17 Pin 1mm Pitch 200mm Reverse Side Connection FFC Ribbon Flexible Flat Cable is designed for reliable data transmission in printers and industrial machinery. Its 17-pin configuration and 1mm pitch provide precise connectivity, while the 200mm length and reverse side connection enable versatile installation in medium-range applications. This flexible flat cable ensures secure signal transfer where space constraints require a compact and adaptable cable solution.

• 17-pin, 1mm pitch design delivers accurate and consistent electrical connections
• 200mm length supports extended reach for medium-distance wiring needs
• Reverse side connection facilitates installation in tight or reverse-facing slots
• Flexible flat cable construction allows easy routing in confined spaces without compromising durability
• Compatible with a range of printers and industrial equipment requiring secure data transmission
• Durable materials ensure long-lasting performance under various operational conditions

Compatibility: Printers, scanners, and consumer electronics requiring moderate-length same-side connections. ThiS 17 Pin 1mm Pitch 200mm Same Side FFC Flexible Flat Cable provides medium-range, high-density connectivity, ensuring flexible and reliable data transfer for various compact systems.

Compact Connectivity with the 10-Pin FFC Ribbon Cable

Tight spaces in modern electronics often lead to messy or pinched wiring. This 10-Pin FFC Ribbon Cable provides a sleek solution for short-distance connections. It facilitates clean internal cable management because it measures only 50mm in length. You can restore your device's functionality without dealing with excess cable clutter.

Advantages of the 50mm ffc cable

The 50mm ffc cable is perfect for small printers and handheld gadgets. It ensures high-speed data transmission while occupying almost no vertical space. Since it uses a Type A same-side connection, installation is straightforward and intuitive. This cable also helps maintain better airflow inside compact housings.

Precision Build for Reliable Performance

This 10-Pin FFC Ribbon Cable uses premium copper traces for maximum conductivity. It stays firmly in place once you lock it into the connector. The 0.5mm pitch is engineered for precision, so you avoid short circuits or data errors. It also features a durable outer layer that protects against moisture and dust.

Features & Benefits

• Ultra-Short 50mm Length – Eliminates cable tangles in very small electronic enclosures.

• Type A Contact – Features pins on the same side for easy board-to-board links.

• High Flexibility – Bends easily to fit into the tightest corners of your device.

• 0.5mm Pitch – Matches the standard specifications for most modern micro-electronics.

Technical Specifications

Compatibility Table

Secure Your 50mm ffc cable

Handle the 10-Pin FFC Ribbon Cable by the edges to keep the contacts clean. A clean 10-Pin FFC Ribbon Cable ensures the best possible signal for your device.

The 12 Pin 1mm Pitch 100mm Same Side FFC Ribbon Flexible Flat Cable is designed for reliable connections in compact electronic assemblies. This flat cable features 12 pins spaced at a 1mm pitch, extending 100mm in length with contacts on the same side. It is ideal for internal wiring in devices where space is limited, ensuring efficient data or signal transmission. Its flexible design allows easy routing and installation in tight spaces, making it a versatile choice for various electronic applications.

• 12-pin configuration delivers precise connectivity for compact electronics
• 1mm pitch spacing supports high-density wiring requirements
• 100mm length offers ample reach for most internal device connections
• Same side contacts simplify connections and reduce assembly complexity
• Flexible flat cable design enables easy bending and routing in confined spaces
• Compatible with various electronic components requiring flat flexible cabling
• Durable construction ensures long-lasting performance under repeated flexing

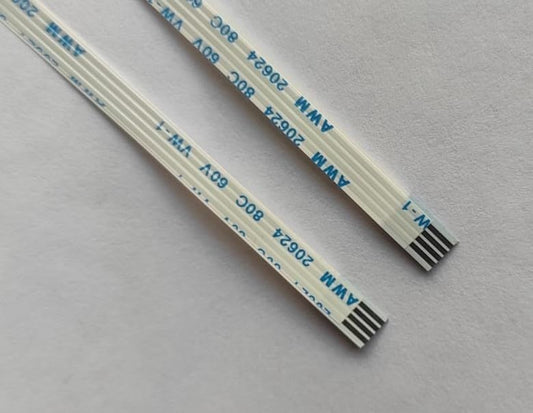

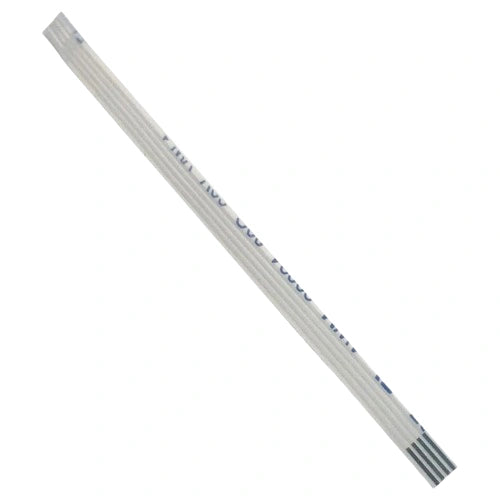

The 4 Pin 1mm Pitch 70mm Reverse Side Connection FFC Ribbon Flexible Flat Cable is designed for compact electronic devices and sensors that require a reliable reverse-side connection. With a 1mm pitch and 70mm length, this flexible flat cable suits applications needing low pin-count connections. Its durable design ensures stable signal transmission while allowing for flexibility in tight spaces.

• Four-pin configuration supports essential signal connections with minimal space use
• 1mm pitch spacing guarantees precise alignment and compatibility with standard connectors
• 70mm length accommodates short-distance wiring needs perfectly
• Reverse side connection enables integration in compact layouts where traditional connections are impractical
• Flexible flat cable construction enhances durability and ease of routing in confined areas
• Ideal for small electronics and sensor modules requiring reliable flexible connections
• Engineered for steady electrical performance in low pin-count applications

This 40 Pin 0.5mm Pitch 152mm Same Side Connection FFC Ribbon Flexible Flat Cable is designed to provide reliable medium-length connections for printers and specialized electronic equipment. Featuring a compact 0.5mm pitch and a 152mm length, this flexible flat cable ensures high-density signal transmission in tight spaces. Its same-side connection style simplifies installation in devices requiring organized, flexible wiring solutions, making it ideal for various industrial and commercial applications.

• 40-pin configuration supports multiple signal pathways for complex device interfacing
• 0.5mm pitch delivers precise and compact connections suitable for space-constrained electronics
• 152mm cable length provides optimal reach for moderate-distance connections without excess bulk
• Same-side connection design facilitates streamlined installation and maintenance in equipment layouts
• Flexible flat cable construction allows bending and positioning in confined or dynamic environments
• Compatible with a wide range of printers and specialized devices requiring FFC solutions
• Designed for durable signal integrity in industrial and commercial electronic systems

This 36 Pin 0.5mm Pitch 100mm Same Side Connection FFC Ribbon Flexible Flat Cable is designed to provide efficient and reliable connections in compact electronic devices and printers. Featuring a medium-density 0.5mm pitch and a 100mm length, it offers a flexible flat cable solution for short-range, same-side connections. Its construction ensures durability and optimal performance in space-limited applications, making it ideal for internal wiring where compactness and flexibility are essential.

• 36-pin configuration supports precise medium-density connections for various electronics
• 0.5mm pitch spacing enhances compatibility with fine-pitch connectors
• 100mm length accommodates short-range wiring needs without excess cable bulk
• Same side connection design simplifies installation in tight spaces
• Flexible flat cable construction resists bending stress and maintains signal integrity
• Ideal for internal printer wiring and compact electronic devices
• Optimized for applications requiring space-saving cable routing

The 32 Pin 1mm Pitch 200mm Reverse Side Connection FFC Ribbon Flexible Flat Cable is designed for precise data transmission in devices requiring extended reverse-side connections. This flexible cable is ideal for printers and other electronics that demand reliable medium-length connections. Its 1mm pitch and 200mm length ensure compatibility with various systems, providing secure and adaptable performance in compact setups.

• 32-pin configuration supports complex data signals with accuracy and stability.
• 1mm pitch spacing offers compatibility with many electronic components and connectors.
• 200mm length accommodates medium-range connections where extra reach is necessary.
• Reverse side connection enables flexible installation in tight or intricate device layouts.
• Flat, flexible design allows easy routing without strain or damage in confined spaces.
• Ideal for printers and similar equipment requiring secure and efficient data transmission paths.

The 26 Pin 1mm Pitch 200mm Same Side Connection FFC Ribbon Flexible Flat Cable is designed for reliable data transmission in compact electronic devices. Its 26-pin configuration with a 1mm pitch provides a precise, medium-density connection over a 200mm length. Ideal for printers and specialized equipment, this flexible flat cable supports same-side connections, ensuring streamlined installation and efficient performance in applications requiring moderate cable length.

• 26-pin arrangement ensures stable and accurate signal transfer for medium-density connections
• 1mm pitch spacing aligns perfectly with standard connectors for seamless compatibility
• 200mm length offers an optimal reach for moderate connection distances in compact setups
• Same-side connection design simplifies cable routing and installation in tight spaces
• Flexible flat cable construction allows for easy bending and positioning without damaging the wires
• Specifically engineered for printers and specialized electronic devices requiring reliable FFC connections

The 24 Pin 0.5mm Pitch 350mm Same Side Connection FFC Ribbon Flexible Flat Cable is designed to deliver reliable connections for printers and similar devices requiring moderate-length same-side interfacing. With its 0.5mm pitch and 350mm length, this flexible flat cable offers high-density signal transmission while maintaining flexibility and durability for stable data flow in compact electronic setups.

• 24-pin configuration ensures compatibility with a wide range of electronic devices needing precise multi-wire connections.
• 0.5mm pitch spacing provides high-density connection capability, optimizing space without sacrificing signal integrity.
• 350mm length accommodates moderate-range connections, ideal for internal wiring in printers and related applications.
• Same side connection design simplifies installation by aligning contacts on the same side for straightforward interfacing.
• Flexible flat cable structure enhances durability and adapts to tight spaces where traditional round cables may be unsuitable.
• Constructed to support consistent data transmission, reducing signal loss across moderate distances.
• Suitable for applications requiring reliable electrical connections within compact electronic assemblies.

Compatibility: Printers and other devices requiring moderate-length same-side connections. The 24 Pin 0.5mm Pitch 250mm Same Side FFC Flexible Flat Cable is designed for medium-density, medium-range connections, providing flexible and reliable data transmission in space-constrained environments.
