Dome Switches at Partsbaba.com – Compact Switches for Reliable User Input
Explore Dome Switches at Partsbaba.com, compact switching components designed for user input, control panels, keyboards, membrane switches, electronic devices, and PCB applications.
Dome switches provide tactile feedback when pressed, making them useful where users need a clear indication that a button has been activated.
Explore Dome Switches
The Dome Switch collection can include:
- Metal Dome Switches
- Tactile Dome Switches
- PCB Dome Switches
- Membrane Dome Switches
- SMD Dome Switches
- Snap Dome Switches
- Push Dome Switches
- Replacement Dome Switches
- Custom-Size Dome Switches
- Adhesive-Backed Dome Switches
Compatibility Tip: Before selecting a dome switch, check the diameter, height, actuation force, travel, operating life, contact configuration, and PCB/membrane compatibility.
What Is a Dome Switch?
A dome switch is a small momentary switching component with a dome-shaped metal or conductive element.
When pressed, the dome flexes and creates an electrical connection between contacts.
When released, it returns to its original position.
A simplified operation is:
Press → Contact Closes → Electrical Signal
Release → Contact Opens
This makes dome switches particularly useful for buttons and user interfaces.
How Does a Dome Switch Work?
A typical metal dome switch sits over two or more electrical contacts.
When the user presses the dome:
- The dome flexes downward.
- It touches the PCB contacts.
- The electrical circuit closes.
- The device detects the button press.
- When released, the dome returns to its original position.
The characteristic snap or tactile response provides feedback to the user.
Common Applications of Dome Switches
Dome switches are widely used in:
- Membrane keypads
- Control panels
- Remote controls
- Keyboards
- Consumer electronics
- Industrial equipment
- Medical equipment
- Test instruments
- Automotive controls
- Printers
- Electronic devices
- User-interface panels
For printer-related applications, explore Control Panel components.
Types of Dome Switches

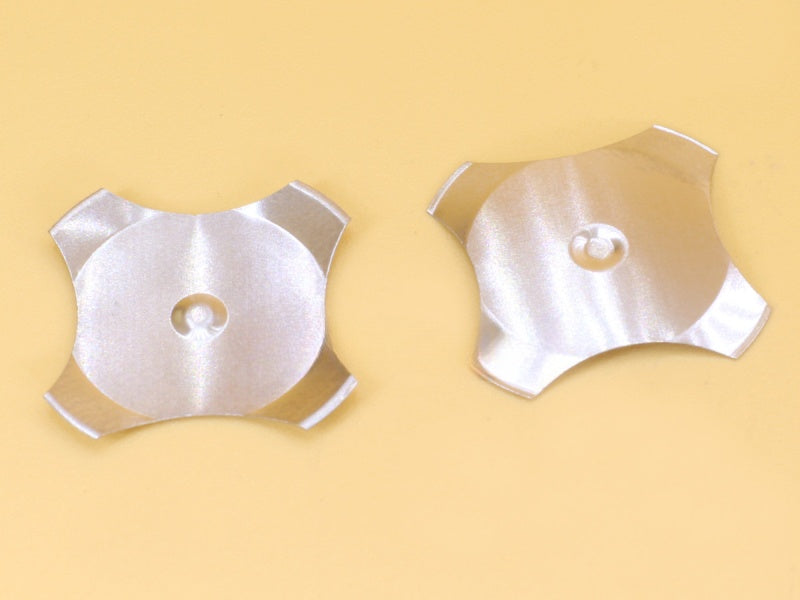

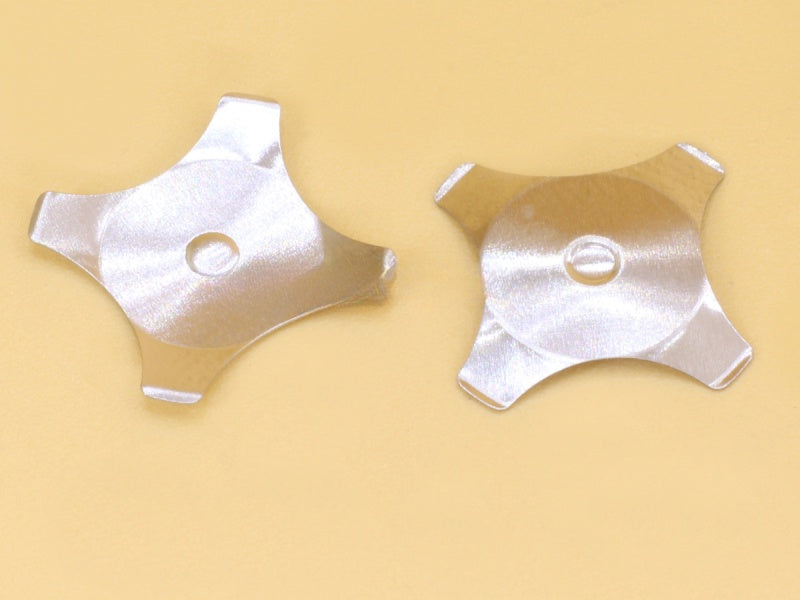

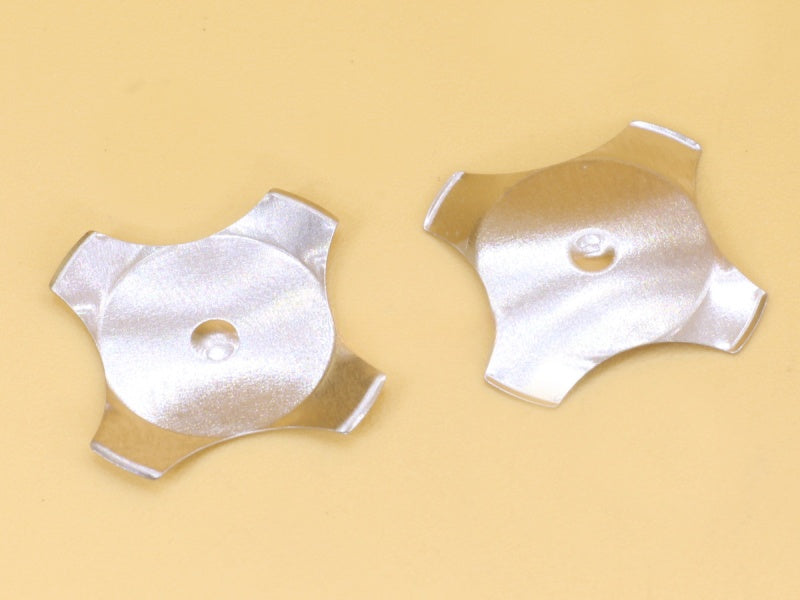

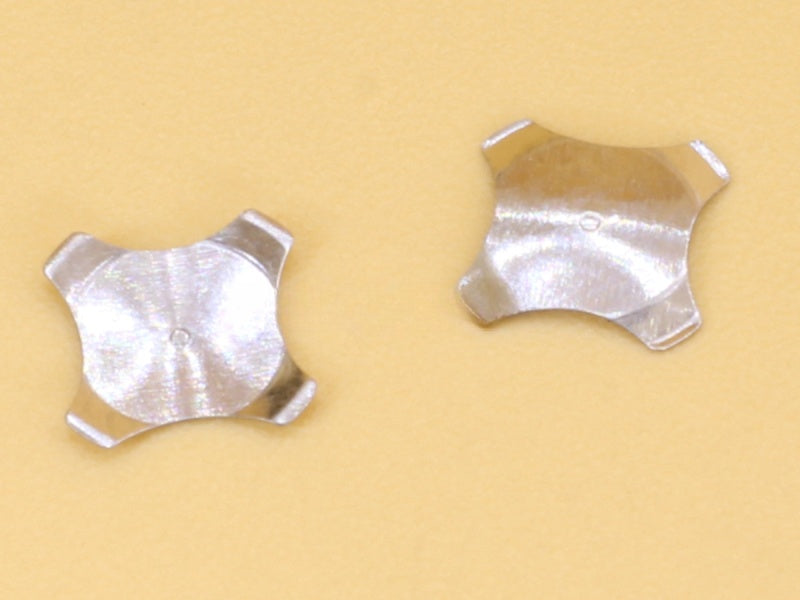

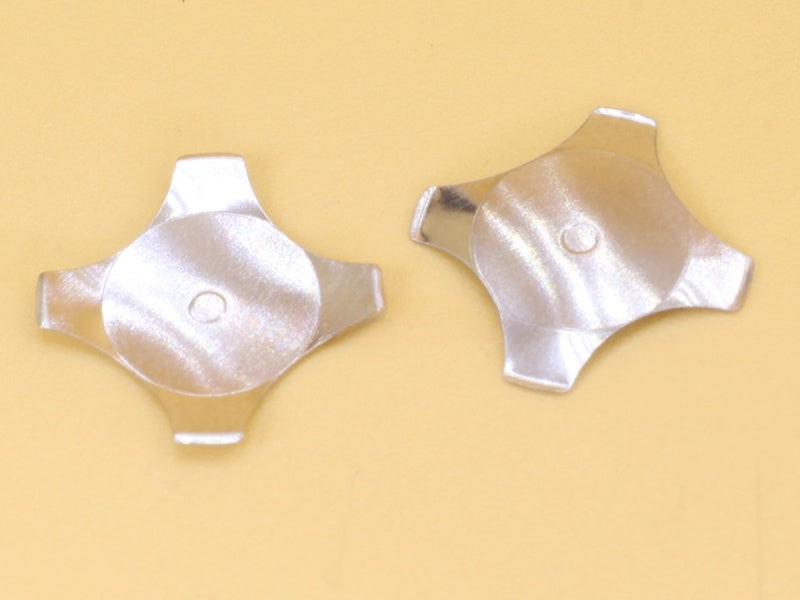

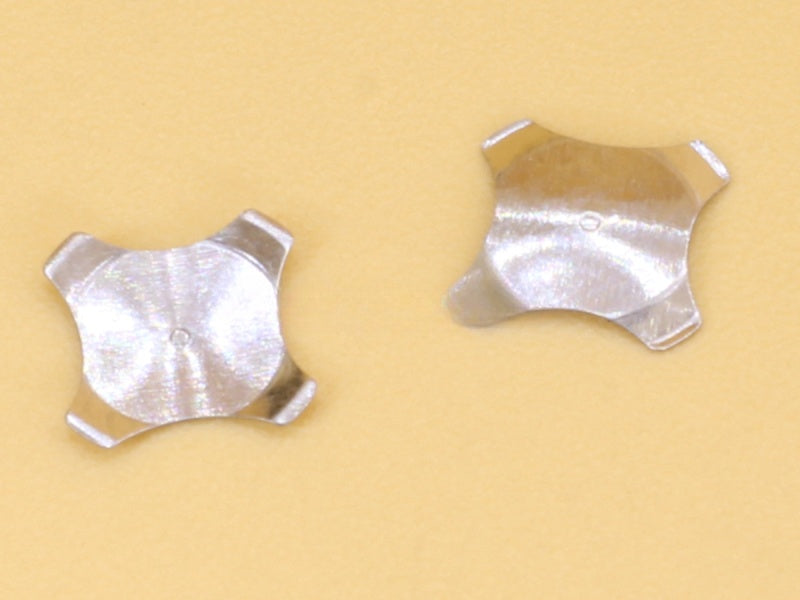

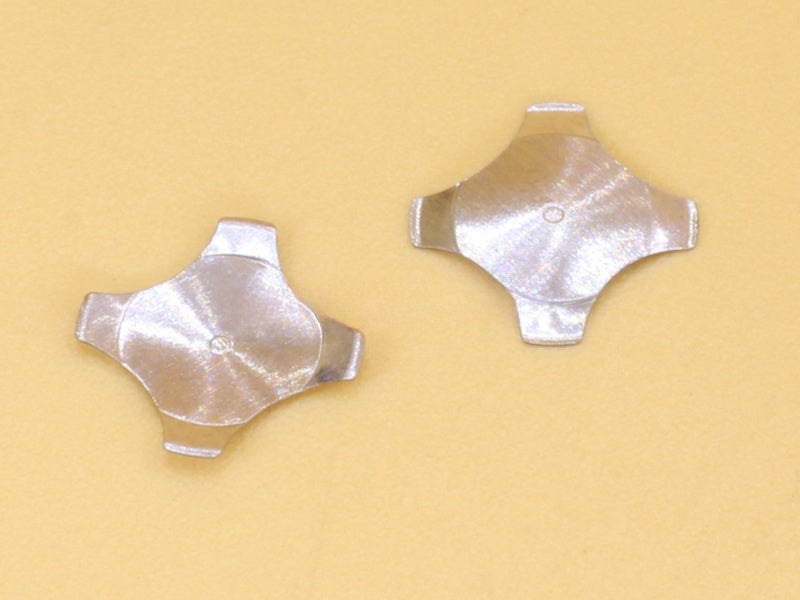

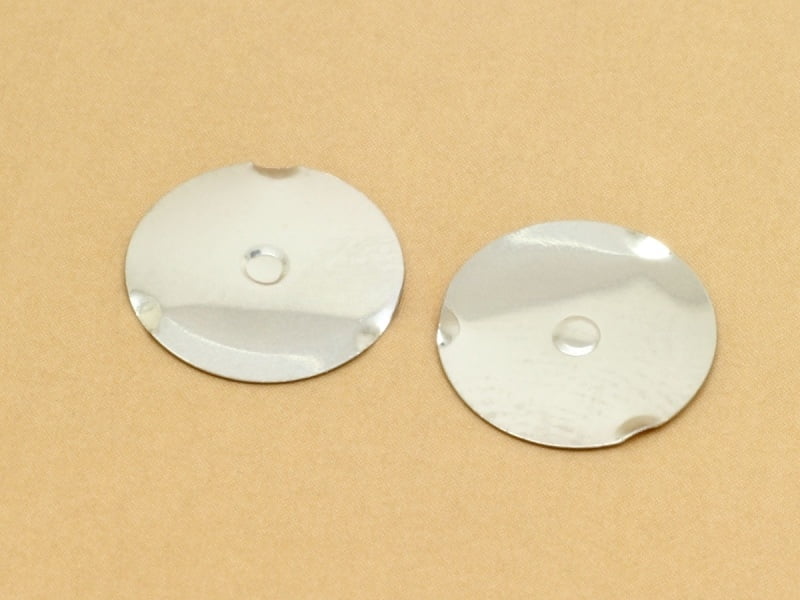

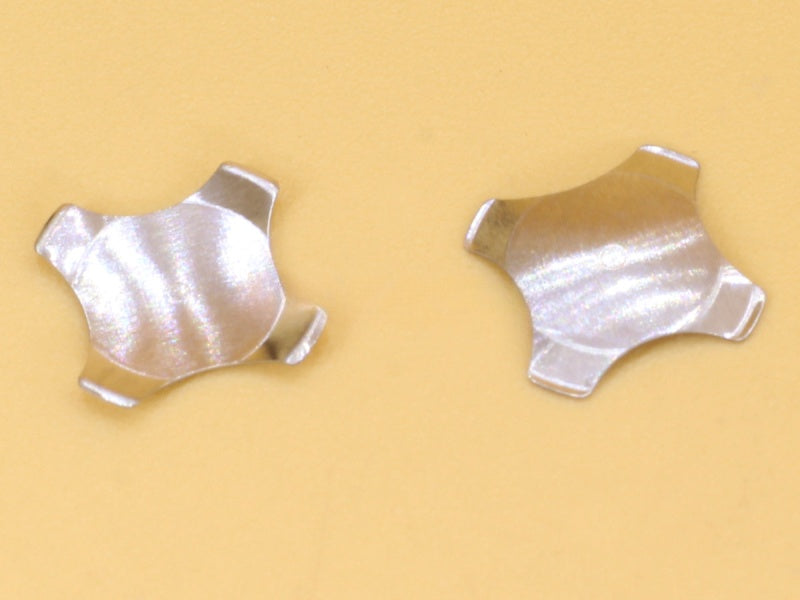

Metal Dome Switches
Metal domes are commonly used where a tactile response and reliable electrical contact are required.
They can be manufactured in different:
- Diameters
- Heights
- Actuation forces
- Shapes
Membrane Dome Switches
These are commonly incorporated into membrane keypad assemblies.
The dome provides the tactile action beneath the keypad surface.
SMD Dome Switches
Surface-mounted dome-style switches can be installed directly on compatible PCBs.
Snap Dome Switches
Snap domes are designed to provide a noticeable tactile response when activated.
Dome Switch Specifications
| Specification | What to Check |
|---|---|
| Diameter | Required contact area |
| Height | Dome profile |
| Actuation Force | Required pressing force |
| Travel | Movement distance |
| Contact Type | Normally open/appropriate configuration |
| Operating Life | Expected number of operations |
| Material | Metal/conductive material |
| Mounting | PCB, membrane, adhesive, etc. |
| Temperature Range | Application requirements |
| Tactile Feedback | Required snap response |
How to Choose the Right Dome Switch?
1. Measure the Dome Diameter
Measure the diameter of the existing dome or required PCB contact area.
Even a small size difference can affect the fit and button operation.
2. Check the Height
The dome height affects the button's:
- Travel
- Tactile response
- Overall keypad height
3. Select the Actuation Force
Actuation force determines how much pressure is required to activate the switch.
Choose a force appropriate for the intended user experience.
4. Check the Contact Pattern
The dome must correctly bridge the PCB's conductive contacts when pressed.
5. Consider Operating Life
For frequently used buttons, choose a dome with an appropriate rated operating life.
6. Check the Mounting Method
Depending on the design, the dome may be:
- Positioned directly on a PCB
- Held under a membrane
- Attached using adhesive
- Integrated into a keypad assembly
Dome Switch vs Tactile Switch
Both provide tactile feedback, but they are used differently.
| Feature | Dome Switch | Tactile Switch |
|---|---|---|
| Form | Dome-shaped contact | Complete switch component |
| Typical Use | Membrane/keypad interfaces | PCB push-button input |
| Tactile Feedback | Yes | Yes |
| Mounting | PCB/membrane | Usually PCB |
| Compactness | Very high | High |
| Replacement | Often application-specific | Component-based |
Explore Tactile Switch for PCB-mounted tactile switches.
Dome Switch vs Push Button Switch
| Feature | Dome Switch | Push Button |
|---|---|---|
| Operation | Momentary | Momentary or maintained |
| Profile | Very low | Usually larger |
| Typical Application | Keypads/membranes | Control panels |
| Tactile Feedback | Common | Depends on design |
| PCB Footprint | Application-specific | Component-specific |
Explore Push Button Switches for push-button products.
Dome Switches in Printers
Dome switches can be used in printer and electronic control interfaces where buttons require tactile feedback.
They can be found in:
- Control panels
- Keypads
- Function buttons
- User-interface assemblies
When replacing a printer dome switch, carefully match the size, height, actuation force, contact pattern, and keypad design.
Common Dome Switch Problems
| Problem | Possible Cause |
|---|---|
| Button Does Not Respond | Damaged or misaligned dome |
| Weak Tactile Feel | Worn dome |
| Intermittent Input | Poor contact |
| Button Stays Pressed | Dome deformation |
| Multiple Inputs | Contact or membrane issue |
| Difficult to Press | Incorrect dome specification |
Replacing a Dome Switch
Before replacing a dome switch:
- Identify the original component.
- Measure the diameter.
- Measure the height.
- Check the actuation force.
- Inspect the PCB contacts.
- Check the mounting arrangement.
- Install the replacement carefully.
- Test the button repeatedly.
If the PCB contacts are dirty or damaged, simply replacing the dome may not resolve the problem.
Dome Switch Installation
For a typical PCB application:
Step 1: Power Off the Device
Disconnect the device from its power source.
Step 2: Inspect the PCB Contacts
Make sure the conductive contact area is clean and undamaged.
Step 3: Position the Dome
Place the dome accurately over the contact pattern.
Step 4: Install the Membrane or Button
Secure the keypad or membrane layer without shifting the dome.
Step 5: Test the Button
Press the button and confirm the device registers the input correctly.
Why Choose Dome Switches from Partsbaba.com?
- Suitable for electronic user interfaces
- Compact switching solution
- Useful for keypad and membrane applications
- Suitable for PCB-based controls
- Useful for printer and electronic equipment repair
- Different sizes and specifications available
- Related switches and electronic components available
- Convenient online sourcing from Partsbaba.com
Explore Related Collections at Partsbaba.com
Find more switching and electronic components:
- Tactile Switch – Explore tactile PCB switches.
- Push Button Switches – Browse push-button switches.
- DIP Switch – Find PCB configuration switches.
- Key Switch – Explore key-operated switches.
- Panel Indicators – Browse panel indicators.
- Control Panel – Find control-panel components.
- Printer Supplies – Explore printer-related products.
- Repairing Tools – Find electronics repair tools.
Frequently Asked Questions
What is a dome switch?
A dome switch is a small momentary contact component that closes an electrical circuit when pressed and provides tactile feedback.
Where are dome switches used?
They are commonly used in membrane keypads, remote controls, keyboards, control panels, printers, and electronic devices.
What is a metal dome switch?
A metal dome switch is a flexible metal contact that snaps down when pressed and bridges the PCB contacts to register an input.
How do I choose a replacement dome switch?
Check the diameter, height, actuation force, travel, contact pattern, mounting method, and operating life.
Can I replace a dome switch with a tactile switch?
Not necessarily. They have different physical designs and mounting requirements. The replacement must match the application's mechanical and electrical requirements.
Are dome switches momentary?
Most dome switches are designed for momentary operation: the circuit closes while the dome is pressed and opens when released.
Shop Dome Switches at Partsbaba.com
Find Dome Switches at Partsbaba.com for electronic keypads, control panels, printer interfaces, membrane switches, PCB projects, and replacement applications.
Explore Dome Switches at Partsbaba.com and find the right tactile switching solution for your electronic device.
