Drone Sensors

Drone Sensors at Partsbaba.com – Essential Sensors for Drone Control & Navigation

Explore Drone Sensors at Partsbaba.com, a range of sensors designed for flight control, navigation, altitude measurement, obstacle detection, orientation, and environmental monitoring in compatible drone and UAV systems.

Sensors provide the flight controller with important information about the drone's movement, orientation, altitude, position, and surroundings, helping the system respond to changing flight conditions.

Explore Drone Sensors

The Drone Sensors collection can include:

• Gyroscope Sensors
• Accelerometer Sensors
• IMU Sensors
• Barometric Pressure Sensors
• Altitude Sensors
• Distance Sensors
• Optical Flow Sensors
• Proximity Sensors
• Magnetic/Compass Sensors
• Temperature Sensors
• Light Sensors
• Obstacle Detection Sensors
• Navigation Sensors
• Replacement Drone Sensor Modules

Compatibility Tip: Before purchasing a drone sensor, check the sensor type, part number, communication interface, operating voltage, measurement range, dimensions, connector, and compatibility with the flight controller.

What Are Drone Sensors?

Drone sensors are electronic components that collect information about the drone and its environment.

The sensor data is processed by the flight controller or another onboard processor.

A simplified system is:

Sensors → Flight Controller → Processing → ESCs → Motors

The controller uses sensor information to determine how the drone should respond.

Why Are Sensors Important in Drones?

A drone relies on sensors for stable and controlled flight.

Sensor data can help the drone:

• Detect movement
• Measure orientation
• Maintain stability
• Estimate altitude
• Detect obstacles
• Determine direction
• Assist navigation
• Maintain position
• Monitor environmental conditions

Without appropriate sensor feedback, many automated or stabilized flight functions would not operate correctly.

Types of Drone Sensors

Gyroscope

A gyroscope measures angular velocity, helping the flight controller determine how quickly the drone is rotating around its axes.

It is important for:

• Stabilization
• Roll control
• Pitch control
• Yaw control

Accelerometer

An accelerometer measures changes in acceleration and helps determine the drone's movement and orientation relative to gravity.

Gyroscopes and accelerometers are often combined into an IMU (Inertial Measurement Unit).

IMU Sensor

An IMU can combine multiple sensing elements, commonly including:

• Accelerometer
• Gyroscope

Some IMUs may also incorporate additional sensing capabilities.

The flight controller uses this information to estimate the drone's movement and orientation.

Barometric Pressure Sensor

A barometric sensor measures atmospheric pressure.

Changes in pressure can be used to estimate relative altitude, making barometers useful in flight-control systems.

Magnetometer / Compass Sensor

A magnetometer can detect Earth's magnetic field and help determine heading.

It can be used as part of a drone's navigation system.

Optical Flow Sensor

Optical-flow sensors detect movement relative to a surface by analyzing changes in the visual environment.

They can help drones maintain position, particularly in suitable indoor or low-altitude environments.

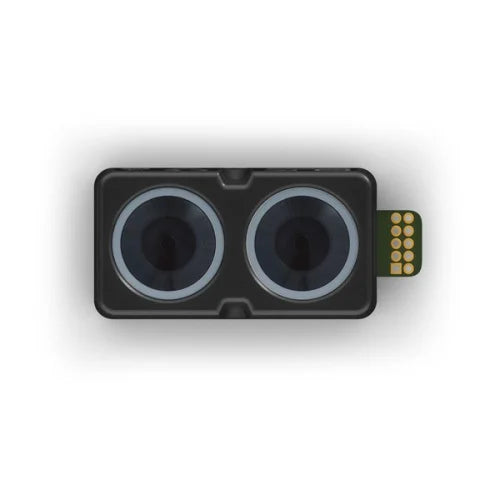

Distance Sensor

Distance sensors measure the distance between the drone and nearby objects or surfaces.

They can be used for:

• Altitude assistance
• Obstacle detection
• Landing assistance
• Position control

Proximity / Obstacle Sensors

These sensors can help detect nearby objects and provide information that may be used by an obstacle-avoidance system.

Temperature Sensors

Temperature sensors can monitor conditions around electronic components or batteries, depending on the drone design.

Drone Sensor Specifications

How to Choose the Right Drone Sensor?

1. Identify the Sensor Type

Determine exactly what the drone requires.

For example:

• Flight stabilization → Gyroscope/IMU
• Relative altitude → Barometer
• Heading → Magnetometer
• Distance measurement → Distance sensor
• Position assistance → Optical flow or other positioning sensor

2. Check the Flight Controller

The sensor must be compatible with the flight controller's available interfaces and supported hardware.

3. Check the Communication Interface

Common sensor interfaces include:

• I²C
• SPI
• UART

The required interface depends on the flight controller and sensor.

4. Check Operating Voltage

Make sure the sensor can operate safely at the voltage supplied by the drone's electronics.

5. Check Physical Compatibility

For replacement applications, compare:

• Dimensions
• Connector
• Mounting points
• Cable length
• Board layout

Drone Sensors and Flight Controllers

Sensors and flight controllers work together closely.

A simplified flight-control loop is:

Sensor Data → Flight Controller → Flight Calculation → Motor Commands → ESC → Motors

The flight controller continuously processes incoming sensor data and adjusts motor outputs.

Explore Drone Boards for flight controllers and other drone PCBs.

Drone Sensors for Navigation

Navigation systems may use multiple sensors together.

For example:

GPS + Compass + IMU + Barometer

Combining different sensor inputs can provide information about:

• Position
• Heading
• Altitude
• Movement
• Orientation

The exact sensor combination depends on the drone's design and navigation system.

Drone Sensors for Obstacle Detection

Obstacle-detection systems can use distance or proximity sensors to detect objects around the drone.

Possible technologies include:

• Optical sensors
• Infrared sensors
• LiDAR-based systems
• Ultrasonic sensors
• Vision systems

The suitable technology depends on the required range, environment, accuracy, and drone design.

Common Drone Sensor Problems

Drone Sensor Installation

When replacing a drone sensor:

Step 1: Disconnect the Battery

Always disconnect power before working on the drone electronics.

Step 2: Identify the Sensor

Confirm the exact sensor model or replacement part number.

Step 3: Check Orientation

Some sensors must be installed in a specific orientation.

Step 4: Connect the Sensor

Connect the sensor using the correct connector and wiring.

Step 5: Secure the Sensor

Ensure the sensor is properly mounted and protected from unnecessary vibration where applicable.

Step 6: Configure or Calibrate

Some sensors require calibration after installation.

Step 7: Test the Drone

Perform controlled testing and verify that sensor readings and flight-control functions operate correctly.

Safety Tip: Perform initial testing in a controlled environment and follow the manufacturer's calibration and flight instructions.

Sensor Calibration

Calibration can be important for accurate drone operation.

Depending on the sensor, calibration may involve:

• Accelerometer calibration
• Gyroscope calibration
• Compass calibration
• Level calibration
• Sensor alignment

Always follow the instructions for the specific flight controller and sensor.

Drone Sensor vs Flight Controller

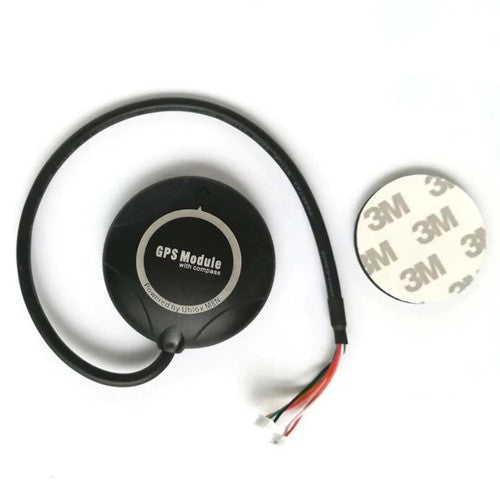

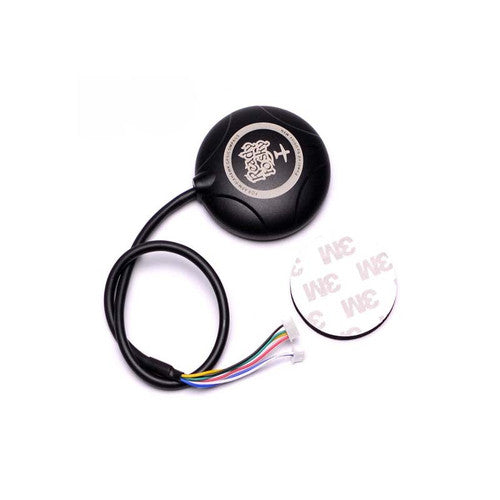

Drone Sensor vs GPS

GPS and sensors serve different purposes.

GPS: Primarily provides positioning information.

IMU: Measures movement and orientation.

Barometer: Helps estimate relative altitude.

Compass: Helps determine heading.

A drone can combine these systems to improve navigation and flight control.

Why Choose Drone Sensors from Partsbaba.com?

• Suitable for drone and UAV applications
• Useful for repair and replacement
• Options for different sensing functions
• Suitable for DIY drone projects
• Useful for electronics prototyping
• Compatible options for flight-control systems
• Related drone components available
• Convenient online sourcing from Partsbaba.com

Explore Related Drone Collections

Find complementary drone products:

• Drone Boards – Explore flight controllers and drone PCBs.
• Drone Remote – Browse drone remote controllers.
• Drone Speed Controller – Find ESCs.
• Drone FPV Camera – Explore FPV cameras.
• Drone Connectors – Find drone connectors.
• Drone Frame – Browse drone frames.
• Drone Propeller – Explore drone propellers.
• Motors – Find drone motors.
• JST Connectors – Browse compact connectors.

Frequently Asked Questions

What are drone sensors?

Drone sensors are electronic devices that measure information such as movement, orientation, altitude, distance, heading, and environmental conditions.

Which sensors are commonly used in drones?

Common examples include gyroscopes, accelerometers, IMUs, barometers, magnetometers, optical-flow sensors, distance sensors, and temperature sensors.

What does an IMU do in a drone?

An IMU typically combines motion sensors such as a gyroscope and accelerometer to provide information about the drone's movement and orientation.

Can I replace a drone sensor?

Yes, provided the replacement sensor is compatible with the flight controller, interface, voltage, firmware, mounting arrangement, and sensor requirements.

Do drone sensors need calibration?

Some sensors require calibration or alignment after installation. Follow the instructions for the specific drone or flight-control system.

What should I check before buying a drone sensor?

Check the sensor type, model/part number, interface, voltage, measurement range, dimensions, connector, mounting, and flight-controller compatibility.

Shop Drone Sensors at Partsbaba.com

Find Drone Sensors at Partsbaba.com for flight control, navigation, altitude measurement, obstacle detection, drone repair, DIY UAV builds, and electronics projects.

Explore Drone Sensors at Partsbaba.com and find the right sensing solution for your drone system.
