Readytosky Pre-Soldered ESC Power Distribution Board (PDB) – Plug-and-Play Hub

Eliminate the hassle of complex soldering and messy wiring harnesses with the Readytosky Pre-Soldered ESC Power Distribution Board. Specifically designed for pilots who want a fast, reliable, and "tool-free" assembly experience, this PDB comes ready to use right out of the box. With high-quality connectors already professionally soldered, it serves as the centralized power hub for your quadcopter’s battery and speed controllers.

The board features a streamlined circular layout that fits perfectly in the center of most 250mm to 450mm frames, ensuring that power is distributed evenly to all four arms without the clutter of traditional wiring "octopuses."

Key Highlights:

• Plug-and-Play Setup: Comes pre-fitted with an XT60 Male plug for your battery and 3.5mm Banana Bullet connectors for your ESCs, saving you hours of soldering and heat-shrinking.

• Clean & Organized Layout: By centralizing your connections, this board significantly improves airflow through the frame and makes troubleshooting ESC issues much easier.

• Universal Frame Support: The mounting and connector layout are optimized for a wide range of drones, including the F450, QAV250, and QAV280 series.

• High-Current Copper Traces: Built on a thick PCB with high-conductivity copper to handle the heavy amp draws required during high-throttle maneuvers.

• Rugged Construction: Professional-grade solder joints ensure vibration resistance, a critical factor for long-term reliability in multirotor flight.

Technical Specifications

Installation Note:

To ensure a secure fit, double-check that your ESCs are equipped with matching 3.5mm male bullet connectors. If your ESCs have bare wires, simply solder 3.5mm male bullets to them for a completely modular, "snap-together" power system.

Partsbaba Quality Assurance: Every Readytosky power board we supply is 100% genuine and original. We offer a 14-day replacement warranty against manufacturing defects, so you can build your next project with total peace of mind.

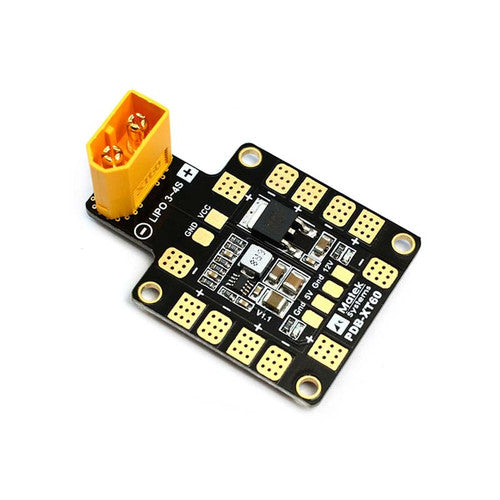

Matek PDB-XT60 with Dual BEC – Professional 5V & 12V Power Distribution Board

Streamline your drone build and ensure rock-solid power delivery with the Matek PDB-XT60. Engineered for high-current efficiency, this Power Distribution Board (PDB) acts as the central nervous system for your multirotor, distributing raw battery power to up to 6 ESCs while providing clean, regulated voltage for your sensitive electronics.

Built on a heavy-duty 4-layer 2oz copper PCB, the Matek PDB is designed to handle high amp draws without overheating. With an integrated XT60 socket and synchronized 5V/12V BECs, it eliminates "wire nests," reducing weight and improving the overall reliability of your FPV racer or cinema rig.

Key Highlights:

• High-Current Distribution: Designed to support 3S–4S LiPo inputs, providing stable power to 4 ESCs at 25A continuous (or 6 ESCs at 15A).

• Dual Synchronous BECs: Features a high-efficiency 5V (2A) output for flight controllers and receivers, plus a filtered 12V (500mA) output specifically for noise-free FPV video.

• Integrated XT60 Mounting: The PCB-mounted XT60 connector provides a secure, low-resistance battery connection, saving space and simplifying your frame layout.

• Visual Status Indicators: Dual onboard LEDs provide instant visual confirmation that your 5V and 12V regulators are functioning correctly.

• Short-Circuit Protection: Tolerant to brief short-circuits, protecting your expensive flight stack from accidental wiring mishaps during the build process.

• Clean Video Filtering: The 12V linear regulator is optimized to minimize "lines" in your FPV feed, ensuring a crystal-clear image for your camera and VTX.

Technical Specifications

Power Configuration Note:

• On 4S LiPo (14.8V): The 12V BEC provides a steady, regulated 12V output.

• On 3S LiPo (11.1V): The 12V output will follow the battery voltage minus approximately 1V (e.g., ~10.1V).

Pro-Builder Tip:

The Matek PDB-XT60 features standard 30.5mm x 30.5mm mounting holes, allowing you to stack it directly beneath your flight controller. To keep your video feed as clean as possible, use the dedicated VCC/GND pads for your high-power components and keep signal wires away from the high-current ESC traces!

Partsbaba Quality Guarantee: All Matek products supplied are 100% genuine. We offer a 14-day replacement warranty against manufacturing defects, so you can power up your next FPV project with complete peace of mind.

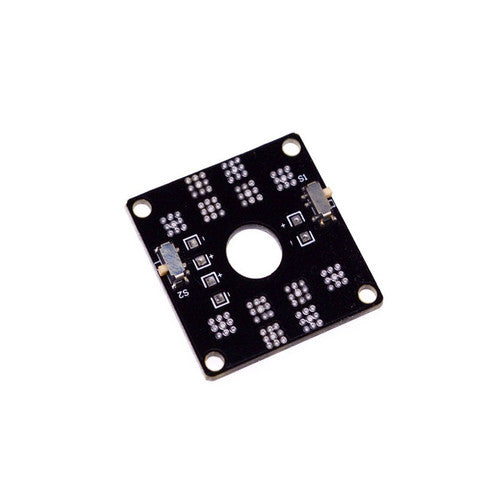

Readytosky CC3D Power Distribution Board (PDB) – Specialized for QAV250 Mini Quads

Streamline your mini quadcopter build with the Readytosky CC3D Power Distribution Board. Specifically engineered for the iconic QAV250 frame and CC3D flight controller ecosystem, this PDB acts as a centralized hub for your power needs. By eliminating messy "octopus" wiring harnesses, it allows you to solder ESCs and battery leads directly to a single, rigid board, significantly improving electrical reliability and creating a professional, low-profile finish.

The board's footprint is a perfect 1:1 match for the standard CC3D mounting pattern, allowing you to stack it directly beneath your flight controller using nylon standoffs to save precious internal space.

Key Highlights:

• Integrated Accessory Control: Features a built-in 2-way mechanical switch, giving you manual control over auxiliary components like high-intensity LED strips or FPV transmitters.

• Precision Stackable Design: Designed with the exact dimensions and hole spacing (36x36mm) of the CC3D Flight Controller for a seamless, "sandwich-style" stack.

• Ultralight Performance: At a mere 3.5g, this PDB provides essential power routing without compromising the power-to-weight ratio of your racing drone.

• Optimized for QAV250/ZMR250: The layout is specifically tailored for 250-class frames, placing solder pads in the ideal locations for standard ESC arm mounting.

• Rugged PCB Construction: High-conductivity copper traces ensure stable power delivery even during high-throttle punch-outs.

Technical Specifications

Installation Note:

To maintain the best signal integrity, we recommend using nylon standoffs when stacking this PDB with your flight controller. This prevents electrical interference and physical contact between the two boards.

Partsbaba Quality Promise: All Readytosky power components are 100% genuine and original. We offer a 14-day replacement warranty against manufacturing defects, so you can solder and build with total confidence.
