Side SMD LED

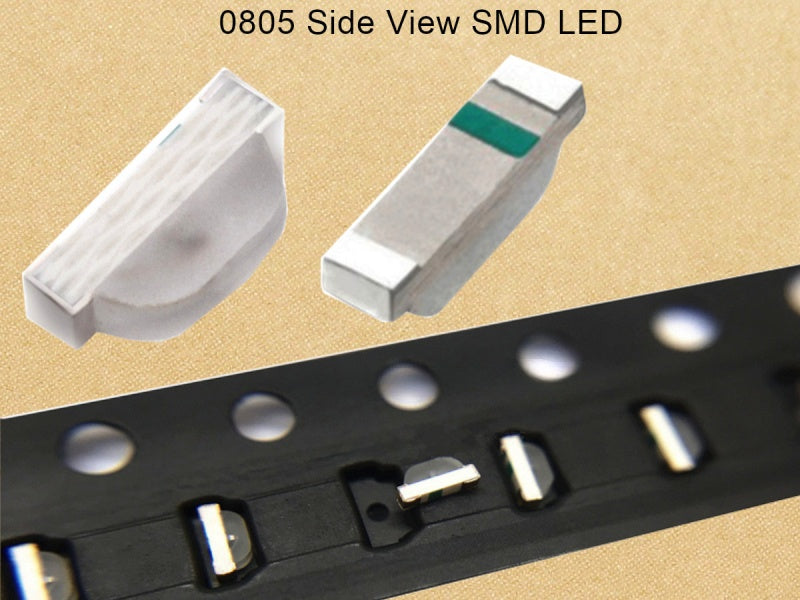

The Blue Side LED 0805 is a compact component designed to emit light from the side, ideal for applications requiring side visibility on PCB assemblies. This LED is engineered for precise mounting, ensuring effective illumination where frontal LED placement isn't optimal. Its design suits various electronic devices and projects demanding clear side-angle lighting, enhancing both functionality and aesthetic appeal.

• Side-view illumination provides versatile lighting options for complex PCB layouts
• Compact 0805 package fits easily into tight spaces without compromising performance
• Compatible with standard PCB mounting techniques for seamless integration
• Blue LED offers distinct visibility ideal for indicator and decorative lighting
• Reliable and durable design ensures consistent brightness over extended use
• Perfect for electronic devices requiring angled light emission for better user interaction

The Green Side LED 0805 is designed for applications that require illumination from the side of a PCB. This compact component offers efficient side-view lighting, ideal for enhancing visibility in tight spaces where traditional top-view LEDs are unsuitable. Its small 0805 package allows for easy integration into various electronic devices, making it a versatile choice for precise lighting needs.

• Side-view LED design enables targeted illumination from the PCB edge, optimizing light direction.
• Compact 0805 package supports space-saving layouts and seamless mounting on standard circuit boards.
• Compatible with a range of electronic assemblies requiring subtle, angled lighting effects.
• Provides consistent and reliable light output, enhancing device functionality and visual appeal.

Very useful when LED light needs to be on the side view of PCB mounting

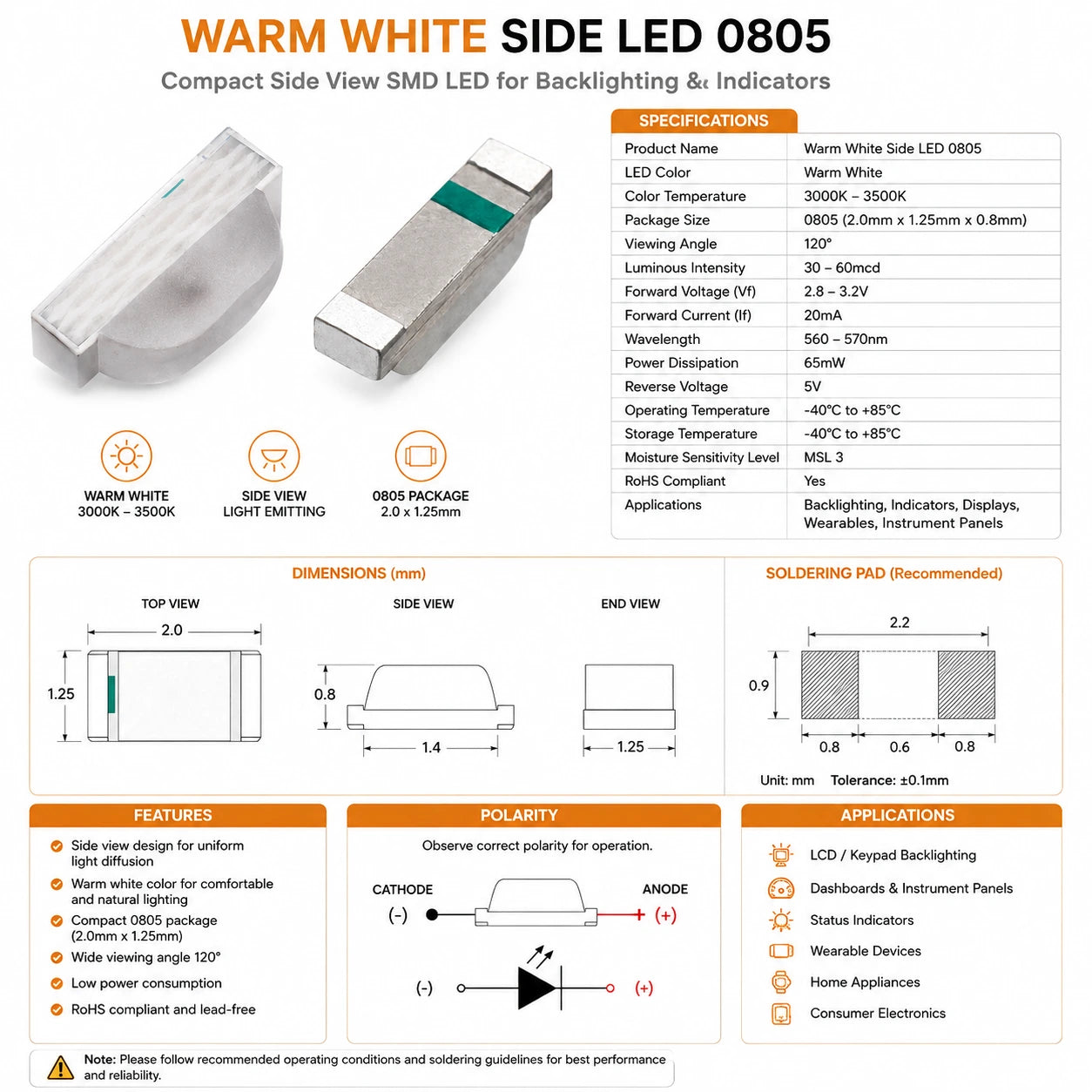

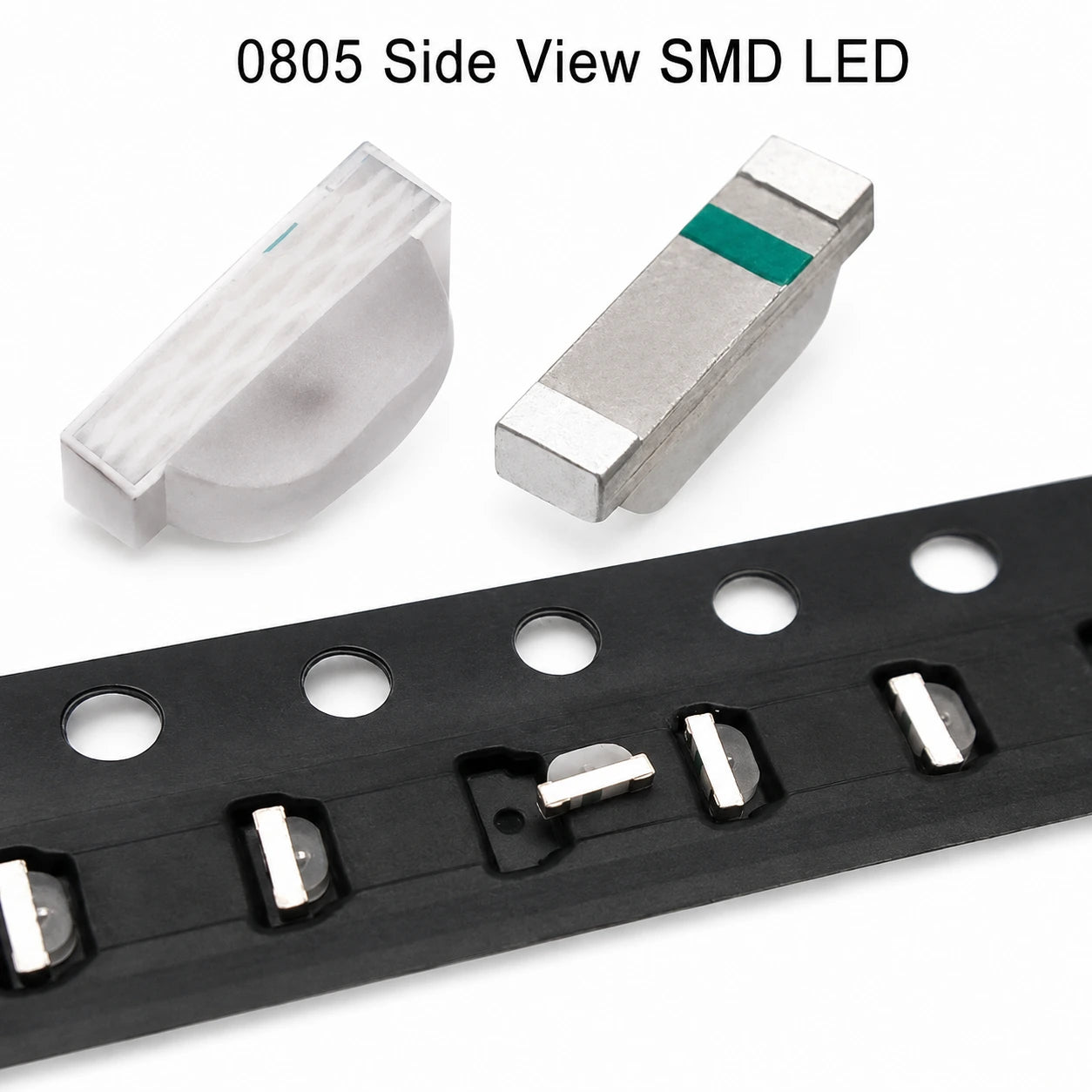

• Product Name: Warm White Side LED 0805
• 0805 (2012 Metric) side-emitting SMD LED for compact electronic designs.
• Emits a warm white light, ideal for soft and comfortable illumination.
• Side-view (side-emitting) design is suitable for edge lighting and low-profile applications.
• Compact size allows easy integration into space-constrained PCB layouts.
• Provides high brightness with low power consumption.
• Built with high-quality materials for reliable and long-lasting performance.
• Compatible with automated SMT assembly and reflow soldering processes.
• Ideal for backlighting, indicator lights, display panels, keypads, consumer electronics, automotive electronics, and DIY electronic projects.
• Offers stable light output and consistent performance.
• Lightweight, durable, and designed for continuous operation.

Very useful when LED light needs to be on the side view of PCB mounting

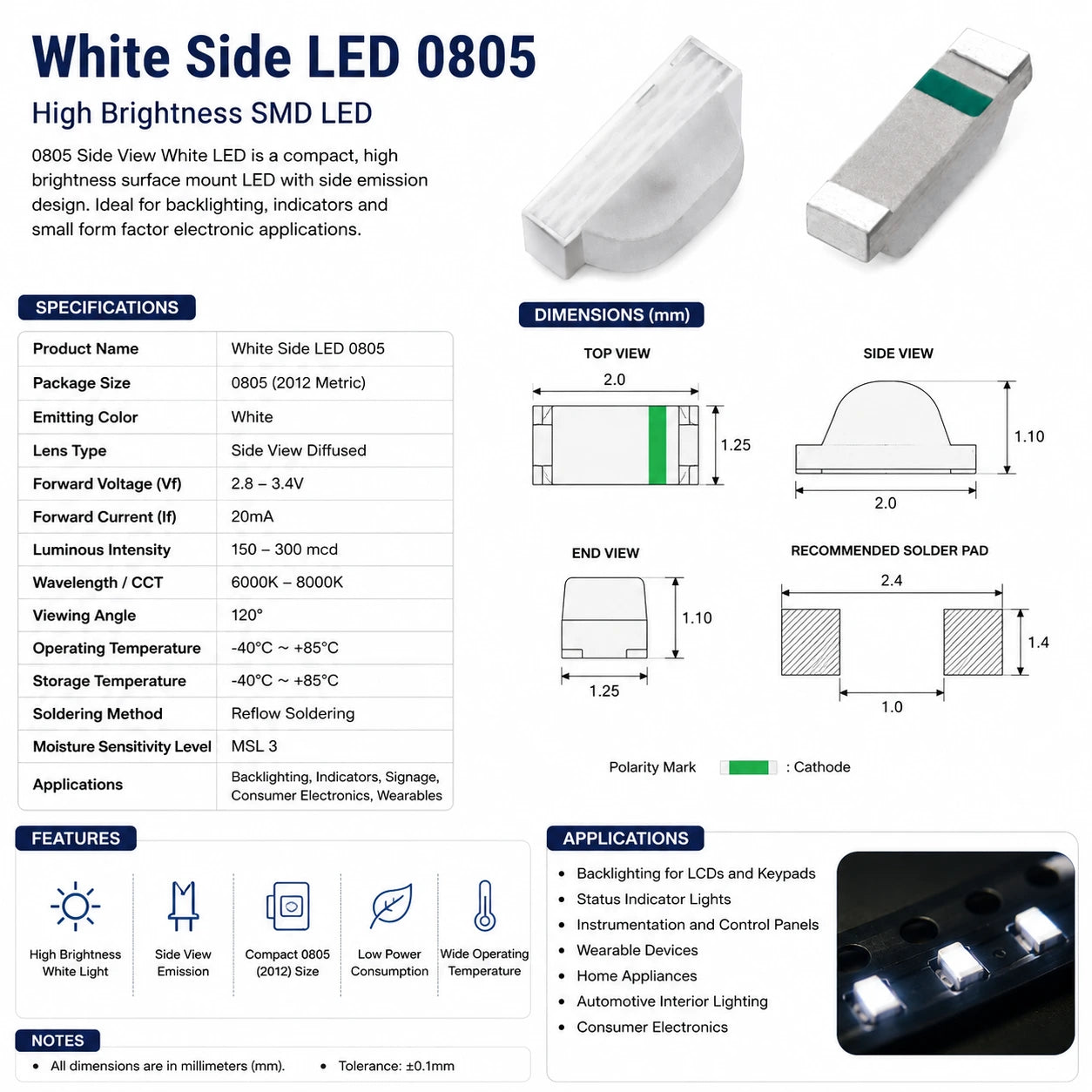

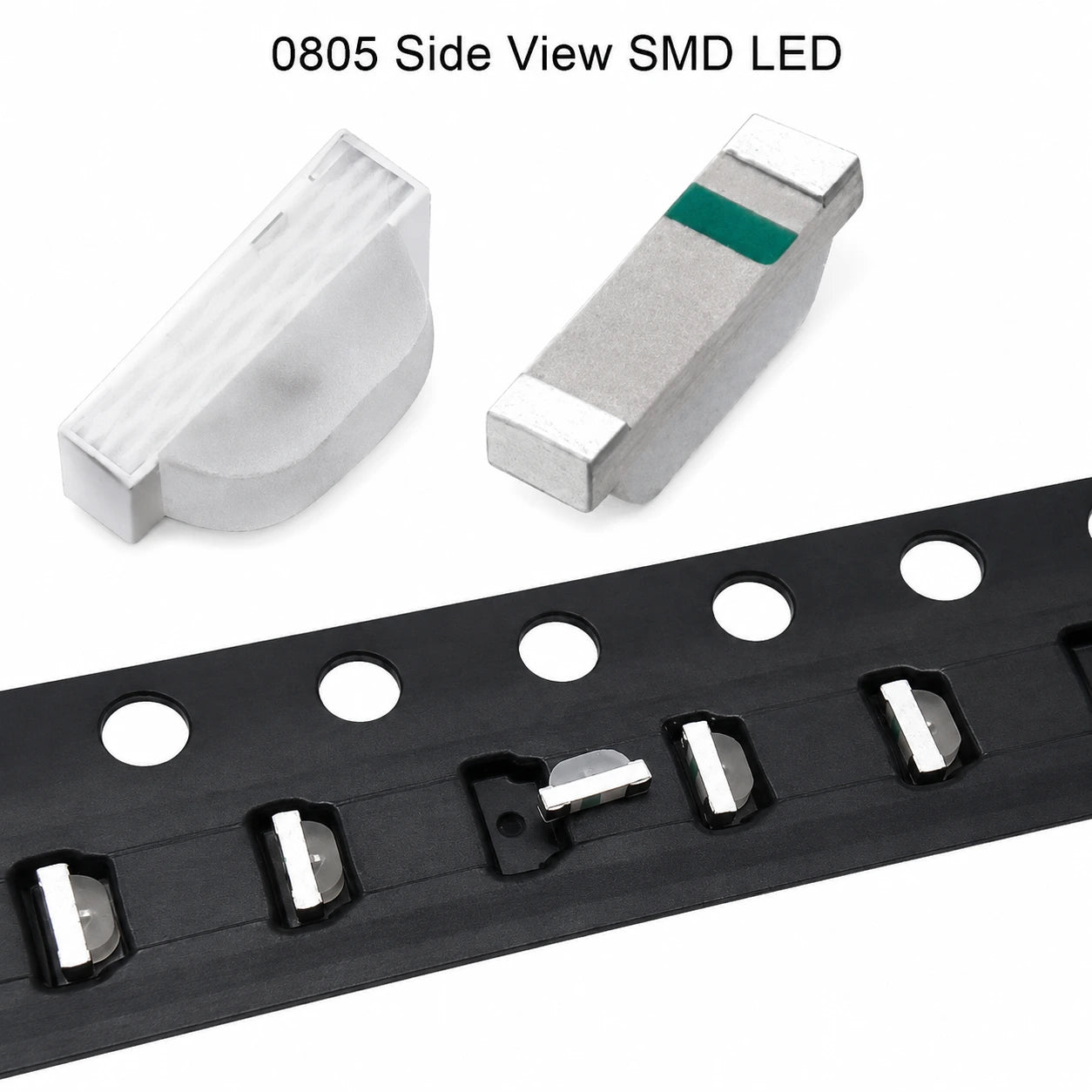

• Product Name: White Side LED 0805 SMD LED
• Package Size: 0805 Surface Mount Device (SMD)
• LED Color: Bright White
• Side-Emitting Design: Emits light from the side for edge-lighting applications
• Compact Size: Ideal for high-density PCB designs
• Low Power Consumption: Energy-efficient LED with reliable performance
• High Brightness: Delivers clear and uniform white illumination
• Wide Viewing Angle: Provides consistent light distribution
• Suitable for Automated Assembly: Compatible with standard SMT manufacturing processes
• Durable Construction: Designed for long operating life and stable performance
• Applications: Ideal for LCD backlighting, edge lighting, indicator lights, consumer electronics, automotive electronics, control panels, wearable devices, and DIY electronic projects.
