Diodes

The 15SQ045 Schottky diodes are high-efficiency components designed specifically for solar cell applications. Rated at 15 amps and 45 volts, these diodes provide reliable protection and efficient current flow in photovoltaic systems. Their low forward voltage drop ensures minimal power loss, making them ideal for improving overall solar panel performance. Compatible with a range of solar modules, these diodes support durable and stable energy conversion in renewable energy projects.

• 15A current rating supports high power solar circuits with consistent performance
• 45V maximum voltage ensures durable operation under typical solar system conditions
• Low forward voltage drop reduces energy losses, enhancing system efficiency
• Schottky diode technology offers fast switching and low leakage currents
• Compatible with various solar panel configurations for flexible use
• Compact design facilitates easy integration into solar cell assemblies
• Robust construction suitable for harsh outdoor environments

The 1N4007 General Purpose Rectifier Diode is the most commonly used rectifier diode. It is commonly used in rectifier circuits, protection circuits and regulator circuits. The lead near to the silver line is the cathode and the other lead is anode, current is allowed to flow only form anode to cathode. The specifications of the 1N4007 diode are:

• Reverse Voltage: 1000V (peak)
• Forward Current: 1A
• Peak Forward Current: 30A
• Reverse leakage current: 5uA

Applications of 1N4007 Diode:

• Prevent reverse polarity problem
• Current flow regulators
• Half Wave and Full Wave rectifiers
• Used as a protection device

The DB207S - 2A Diode Bridge in a surface-mount device (SMD) package is designed to efficiently convert alternating current (AC) into direct current (DC). This component is ideal for compact electronic circuits requiring reliable rectification with a maximum current capacity of 2 amps. Its compact design suits applications in power supplies, signal processing, and other components where space-saving and performance are essential. The DB207S offers durable performance with consistent electrical characteristics suitable for various industrial and consumer electronics.

• 2 ampere current rating ensures dependable rectification for moderate power requirements
• SMD packaging enables easy integration into compact and automated assembly processes
• Four diode configuration provides efficient AC to DC conversion with minimal voltage drop
• Compatible with a wide range of electronic circuits including power adapters and battery chargers
• High surge current capability supports transient loads without damage
• Robust construction offers reliable operation under varying temperature conditions
• Compact footprint reduces board space and supports high-density circuit design

The DB107S is a surface-mount 1A diode bridge designed to efficiently convert alternating current (AC) to direct current (DC) in compact electronic circuits. Its small outline package makes it ideal for space-constrained applications, while the 1-ampere current rating ensures reliable performance in low to moderate power scenarios. Compatible with various electronic components, this diode bridge is well-suited for power supplies, signal rectification, and other electronic circuit designs requiring steady DC output from AC input.

• 1A current capacity supports moderate power applications without overheating
• Surface-mount design reduces PCB space and simplifies automated assembly
• Compact footprint ideal for densely packed electronic devices
• Reliable AC to DC conversion ensuring smooth and stable output voltage
• Compatible with a wide range of electronic circuits including power supplies and signal processing modules
• Robust diode construction offers durable performance over extended use

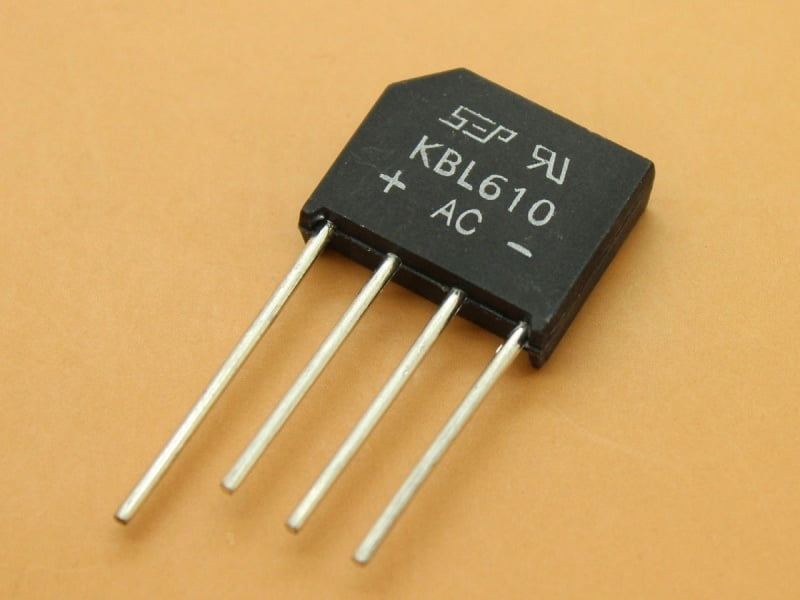

The KBL610 - 6A Diode Bridge is a robust electronic component designed to convert alternating current (AC) into direct current (DC) efficiently. Built to handle a current of up to 6 amperes, this diode bridge is ideal for power supply applications and circuits requiring reliable rectification. Its compact design allows easy integration into various electronic assemblies, supporting a wide range of devices where stable DC output is essential.

• 6 Ampere current rating ensures dependable performance in medium power circuits
• Compact footprint simplifies installation in space-sensitive electronic setups
• Efficient AC to DC conversion provides stable and consistent power output
• Durable construction offers long-lasting operation under standard electrical loads
• Versatile compatibility suitable for power supplies, battery chargers, and motor control systems
• Standardized pin configuration enables straightforward replacement and integration

The RS1M (FR107) SMA 1A 1000V is a reliable semiconductor component designed for efficient current rectification in electronic circuits. This diode boasts a 1 ampere forward current rating and can handle up to 1000 volts of reverse voltage, making it ideal for power supply and general-purpose applications. Its SMA package ensures easy integration into surface-mount technology (SMT) circuits, combining space-saving design with robust electrical performance.

• 1 ampere forward current capacity supports moderate power applications with consistent performance
• 1000 volts reverse voltage rating provides excellent protection against voltage spikes and surges
• SMA surface-mount package offers compactness and simplifies automated PCB assembly
• Fast recovery time enhances efficiency in switching and rectification tasks
• High reliability under varying electrical loads ensures stable circuit operation
• Compatible with a wide range of electronic devices including power supplies and converters

The SS210A SMA Schottky Diode is a high-performance semiconductor designed for efficient rectification in power supply circuits. Its low forward voltage drop and fast switching capabilities make it ideal for reducing power loss in high-frequency applications. This component fits standard SMA packages, ensuring easy integration into various electronic assemblies requiring reliable low-voltage rectification and protection.

• Low forward voltage drop minimizes energy dissipation, enhancing overall circuit efficiency.
• Fast switching speed supports high-frequency operations for improved performance in switching power supplies.
• Compact SMA package simplifies mounting and allows compatibility with space-constrained designs.
• High surge current capability provides robust protection under transient load conditions.
• Wide operating temperature range ensures stable operation in various environments.
• Excellent reverse leakage characteristics reduce power losses during off states.

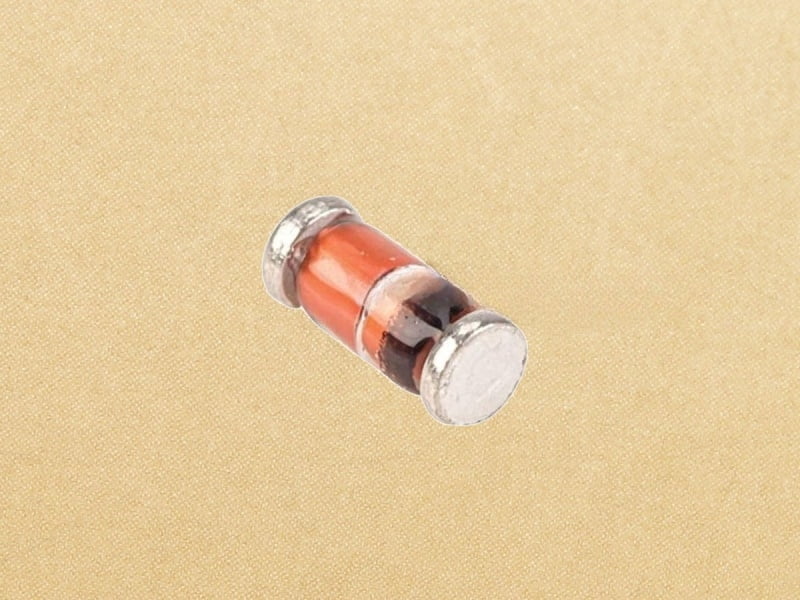

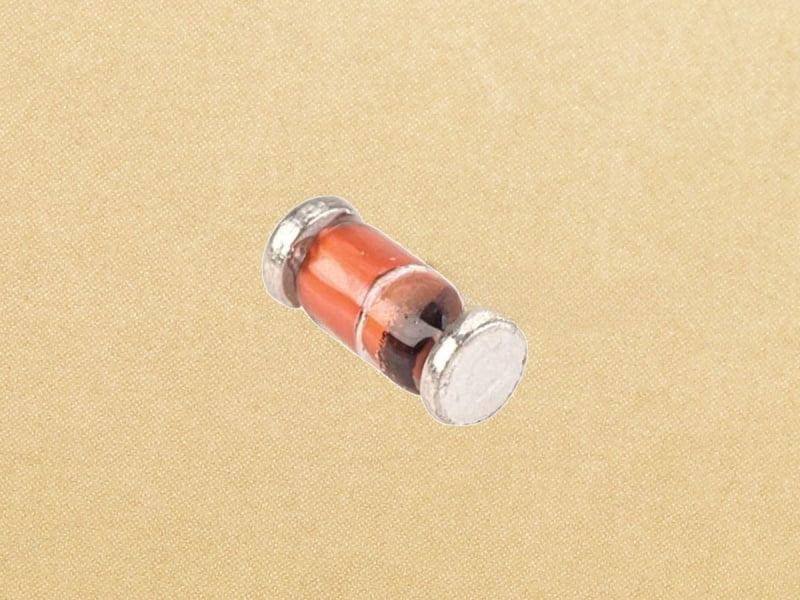

The 10V 0.5W BZV55C10 Zener diode housed in a glass package LL-34 SOD80 is designed for voltage regulation and protection in electronic circuits. This component ensures stable voltage at 10 volts with a power dissipation capacity of 0.5 watts, making it suitable for low-power applications. Its compact glass package offers durability and reliability, compatible with a wide range of electronic devices requiring precise voltage control.

• 10V voltage rating provides consistent voltage regulation for sensitive electronics.
• 0.5W power dissipation supports efficient performance in low-power circuit designs.
• The LL-34 SOD80 glass package delivers robust protection against environmental factors and physical stress.
• Ideal for integration in power supply circuits, voltage clamping, and reference voltage applications.
• Compact size enables use in space-constrained electronic assemblies without compromising reliability.
• Compatible with a broad range of semiconductor-based components for seamless circuit integration.

The 12V 0.5W BZV55C12 Zener diode housed in a glass package LL-34 SOD80 is designed for voltage regulation and reference applications within electronic circuits. Its robust glass encapsulation ensures reliable performance under varying conditions, while the 0.5-watt power rating supports moderate power dissipation. This component is suited for integration in compact assemblies requiring stable voltage control, making it ideal for precision circuits and electronic devices compatible with 12V Zener diodes.

• 12V Zener voltage ensures consistent voltage regulation for sensitive electronic components.
• 0.5W power rating balances compact size with effective heat dissipation capabilities.
• Glass package LL-34 SOD80 provides durable insulation and protection against environmental factors.
• Compact design suitable for integration in space-constrained electronic circuits.
• Reliable voltage reference for maintaining circuit stability in automotive and industrial applications.
• Compatible with standard 12V Zener diode circuit configurations for straightforward replacement or design implementation.

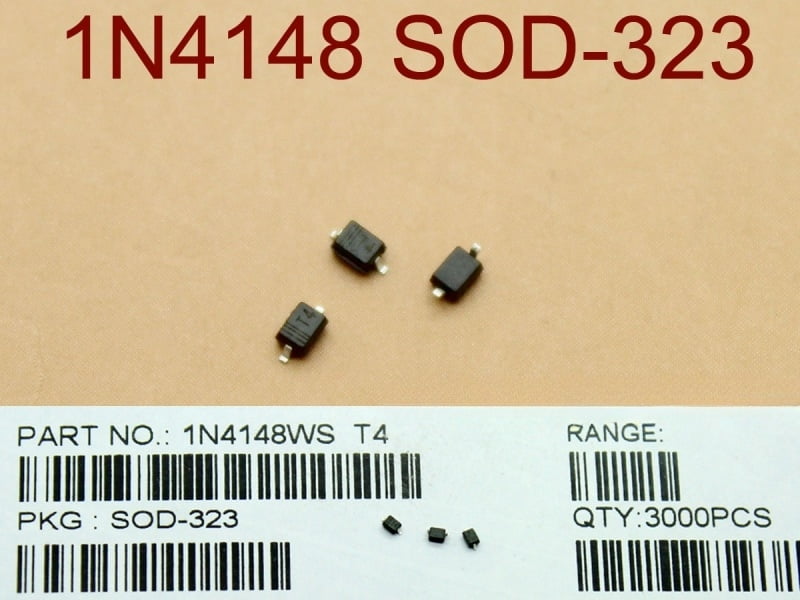

The 1N4148 - 1N4148WS - T4 SMD diode in SOD323 (0805) package is a reliable semiconductor component designed for high-speed switching applications. This surface-mount device is ideal for circuits requiring fast switching times and low forward voltage drop. Compatible with compact PCB layouts, it suits various electronic devices where space-saving and efficient performance are critical.

• Compact SOD323 (0805) package ensures easy integration in tight circuit designs
• Fast switching speed optimizes performance in high-frequency electronic circuits
• Low forward voltage drop reduces power loss and enhances circuit efficiency
• Surface-mount design facilitates automated assembly and reliable soldering
• Wide compatibility with various consumer and industrial electronic applications

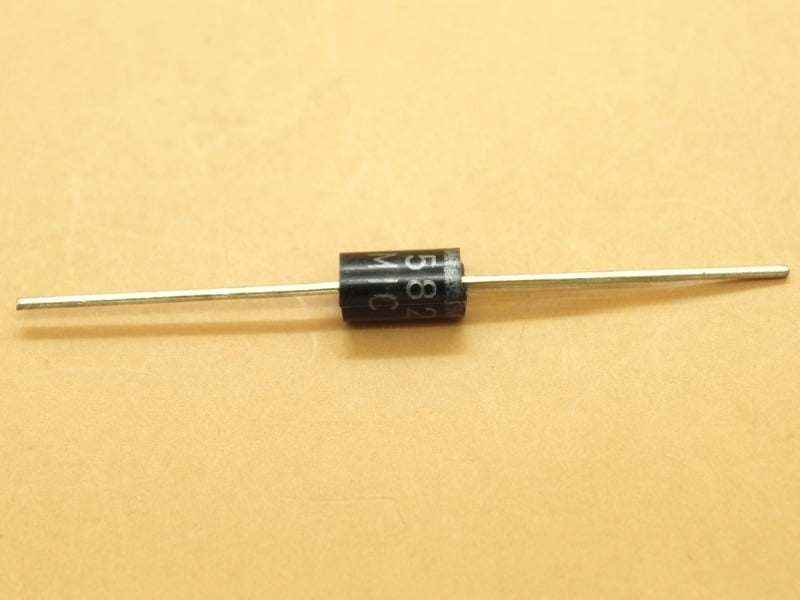

The 1N5822 is a high-performance Schottky diode designed for efficient rectification in electronic circuits. Its low forward voltage drop and fast switching capabilities make it ideal for power supply applications, enhancing energy efficiency and reducing heat generation. Compatible with various voltage systems, this component excels in providing reliable current flow control and protection for sensitive electronics.

• Low forward voltage drop improves overall circuit efficiency by minimizing power loss.
• Fast recovery time supports rapid switching, ideal for high-frequency applications.
• Robust design ensures reliable performance in demanding electrical environments.
• Wide voltage range compatibility allows use in diverse power supply configurations.
• Compact footprint facilitates integration into space-constrained circuit boards.
• Effective current handling supports stable operation under varying electrical loads.
• Enhanced thermal characteristics reduce overheating risks during prolonged use.

The 18V 0.5W BZV55C18 is a precision Zener diode designed for voltage regulation in electronic circuits. Encased in a reliable glass package with the LL-34 SOD80 form factor, this component offers stable voltage reference at 18 volts with a power rating of 0.5 watts. Ideal for integration in various electronic devices, it ensures dependable performance in applications requiring controlled voltage levels, compatible with standard component mounting and circuit designs.

• Maintains a consistent 18V Zener voltage for precise voltage regulation
• Compact LL-34 SOD80 glass package ensures durability and efficient heat dissipation
• Rated at 0.5 watts for moderate power handling in circuit protection
• Reliable semiconductor performance ideal for voltage clamping and reference in electronic components
• Designed for easy integration in various circuits with standard mounting compatibility
• Suitable for applications requiring stable voltage sources in power supplies and signal conditioning

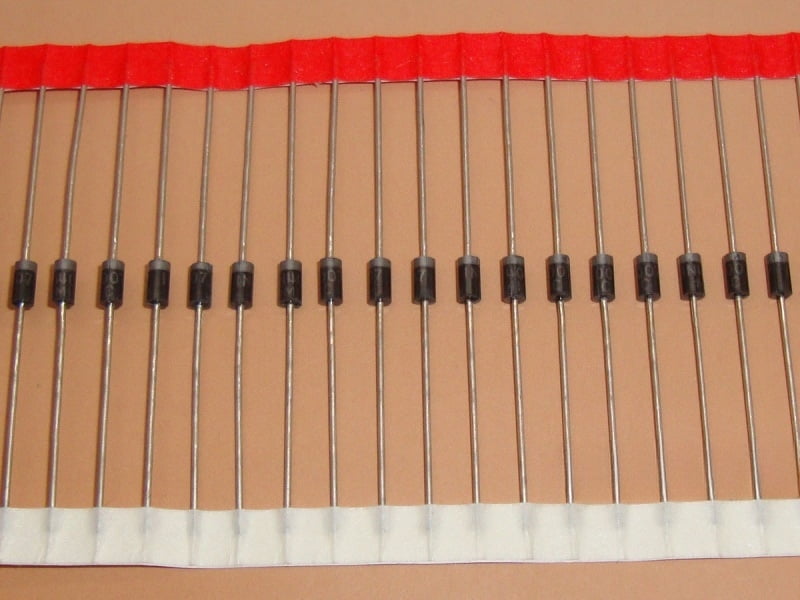

The 1N4007 diode is a reliable electronic component designed for rectification in power supplies and various electrical circuits. Rated at 1 amp and capable of withstanding up to 1,000 volts, this DO-41 package diode efficiently converts alternating current (AC) to direct current (DC). Its robust construction makes it compatible with a wide range of applications, including voltage regulation, signal demodulation, and protection circuits, ensuring stable performance in both industrial and consumer electronics.

• 1 ampere current capacity supports moderate power circuit demands with consistent reliability
• 1,000 volts peak repetitive reverse voltage allows operation in high-voltage environments without breakdown
• Compact DO-41 axial package simplifies installation in through-hole circuit boards
• Designed for general-purpose rectification, suitable for power supply and voltage regulation tasks
• Robust semiconductor material ensures durability across a broad temperature range and operating conditions
• Commonly used in consumer electronics, automotive circuits, and industrial equipment for reliable diode functionality

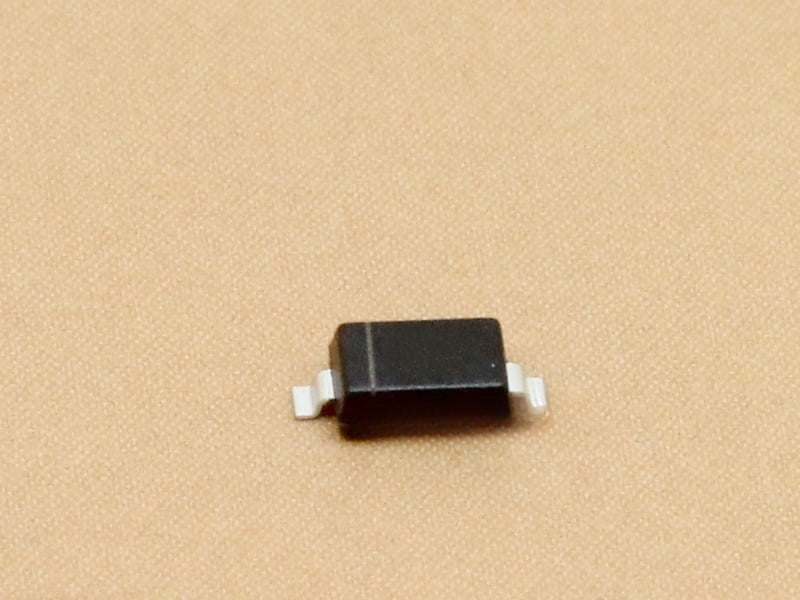

The 1N4148 - 1N4148WT is a surface-mount diode packaged in the compact SOD523 (0603) format, designed for fast switching applications. This component is ideal for high-speed signal processing and protection circuits, delivering reliable performance in a small footprint. Its compatibility with standard SMD assembly processes makes it suitable for various electronics projects requiring efficient switching and low capacitance characteristics.

• Fast switching speed ensures efficient performance in high-frequency circuits
• Compact SOD523 (0603) package saves board space while maintaining durability
• Designed for surface-mount technology, compatible with standard automated assembly
• Low capacitance supports signal integrity in sensitive applications
• Ideal for use in signal processing, switching, and protection circuits
• Durable construction provides reliable operation under various conditions
• Compatible with a wide range of electronic components and systems

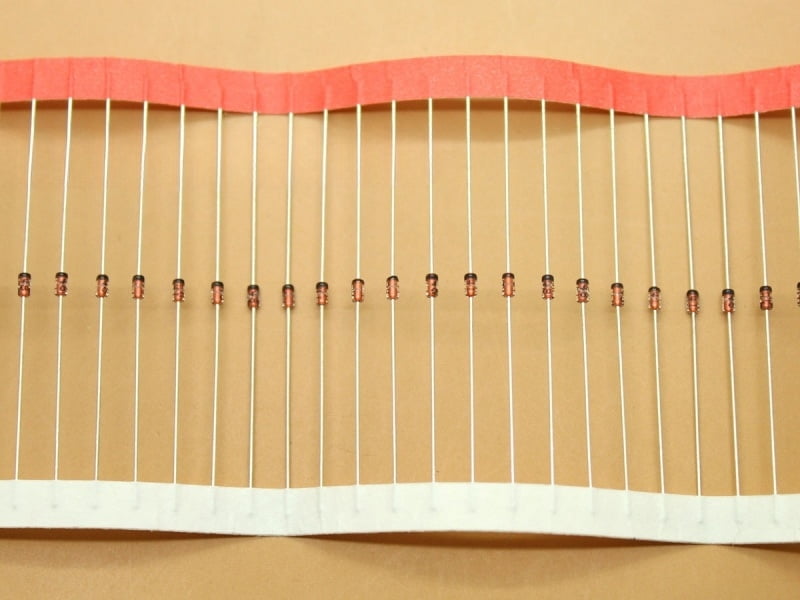

The 1N4148 diode is a high-speed switching component widely used in electronic circuits for fast signal processing. Known for its reliability and rapid response time, it excels in applications requiring quick switching and low leakage currents. This diode is compatible with a variety of electronic devices, including logic circuits, communication equipment, and digital switching systems, making it an essential part for engineers and hobbyists alike.

• High switching speed ensures efficient performance in rapid signal transitions.
• Low leakage current minimizes power loss and enhances circuit reliability.
• Universal compatibility with a range of electronic circuits and equipment.
• Compact size allows for easy integration into densely packed circuit boards.
• Robust construction guarantees long-term durability under various operating conditions.
• Standardized specifications make it a dependable choice for consistent circuit behavior.

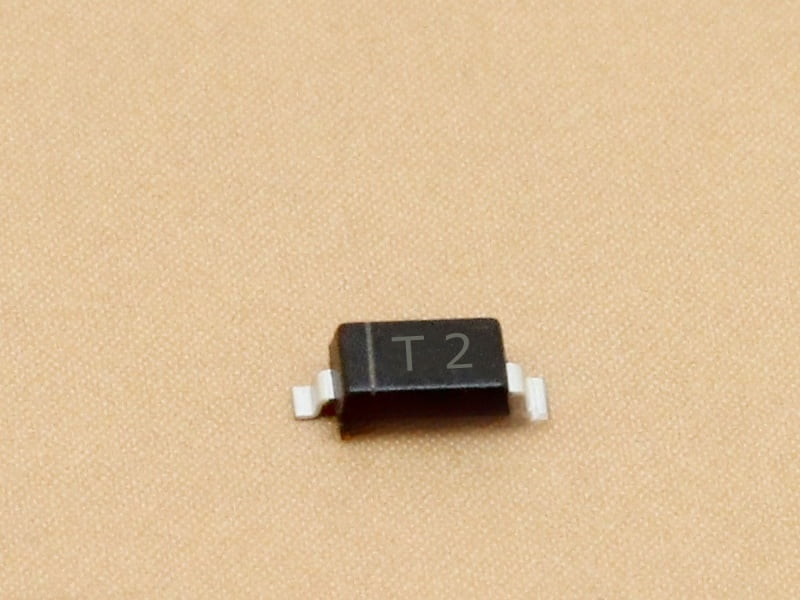

The 1SV215 - ISV215 - T2 varactor diode in a compact SOD323 (0805) package is designed for tuning and frequency control in electronic circuits. This component offers precise capacitance variation based on applied voltage, making it ideal for RF applications and signal modulation. Its small size ensures easy integration on densely populated circuit boards, compatible with standard surface-mount technology (SMT) assembly processes.

• Compact SOD323 (0805) form factor allows for efficient use of PCB space in modern electronic designs.
• Voltage-dependent capacitance enables fine-tuning of frequency and impedance characteristics in RF circuits.
• Reliable performance in high-frequency applications such as voltage-controlled oscillators and tunable filters.
• Surface-mount package suitable for automated manufacturing and consistent assembly quality.
• Stable operation across a range of voltages to maintain precise control over circuit parameters.
• Durable semiconductor construction ensures longevity and resistance to environmental factors.

The 2.4V 0.5W BZV55C2V4 is a precision Zener diode housed in a glass package LL-34 SOD80, designed to regulate voltage in various electronic circuits. With a voltage rating of 2.4 volts and a power dissipation of 0.5 watts, this component offers reliable voltage stabilization for sensitive applications. Its compact and robust glass encapsulation ensures durability and consistent performance, making it ideal for use in voltage reference, protection, and clipping circuits within a wide range of electronic devices.

• Voltage regulation at 2.4V provides stable reference voltage in precise applications
• 0.5W power rating supports low to moderate power dissipation needs effectively
• Robust glass LL-34 SOD80 package offers excellent durability and thermal stability
• Compact size suitable for space-constrained circuit designs
• Consistent performance for voltage clipping, protection, and reference tasks
• Compatible with various electronic components in consumer and industrial electronics

The 27V 0.5W BZV55C27 is a precision Zener diode housed in a durable glass package, designed for reliable voltage regulation in electronic circuits. With a 27-volt breakdown voltage and a power rating of 0.5 watts, it helps maintain stable voltage levels under varying electrical loads. Its LL-34 SOD80 format ensures easy integration into compact component assemblies, making it suitable for various applications in electronic devices requiring steady voltage references or protection.

• 27-volt Zener voltage ensures precise voltage stabilization for sensitive circuitry
• 0.5-watt power rating supports moderate power dissipation in low to medium current applications
• Glass package construction offers excellent thermal stability and long-term reliability
• LL-34 SOD80 package type facilitates seamless mounting in space-constrained electronic designs
• Ideal for voltage reference and overvoltage protection in consumer and industrial electronics
• Compatible with standard through-hole PCB layouts for straightforward assembly

The 3.3V 0.5W BZV55C3V3 Zener diode housed in a glass package LL-34 SOD80 is designed for precise voltage regulation and protection in electronic circuits. Offering a stable breakdown voltage of 3.3 volts with a power rating of 0.5 watts, this component is ideal for maintaining consistent voltage levels in sensitive components. Its compact glass package ensures reliability and durability, making it suitable for various applications such as voltage clamping, reference voltage generation, and surge protection in electronic devices.

• 3.3V breakdown voltage ensures accurate voltage regulation in circuits.
• 0.5W power rating supports moderate power dissipation for stable performance.
• Encased in a glass LL-34 SOD80 package for enhanced durability and thermal stability.
• Perfect for protecting components by clamping voltage surges and providing reference voltages.
• Compact form factor enables easy integration into tight circuit board layouts.
• Compatible with a wide range of electronic devices requiring precise voltage control.
• Engineered for reliable operation in both commercial and industrial electronic applications.

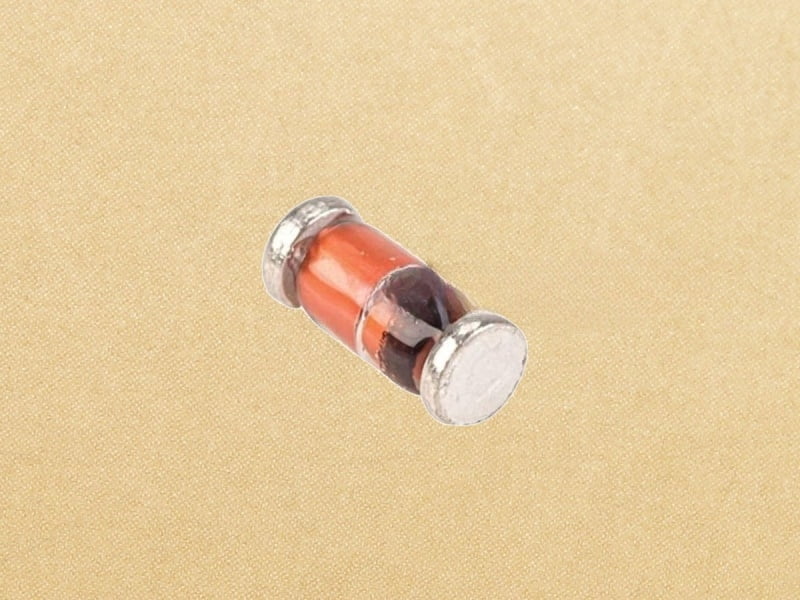

The 4.7V 0.5W BZV55C4V7 Zener diode in a glass package LL-34 SOD80 is designed for voltage regulation and protection in electronic circuits. With a precise breakdown voltage of 4.7 volts and a power rating of 0.5 watts, it offers reliable clamping and voltage stabilization. Its compact glass encapsulation ensures durability and efficient heat dissipation, making it an ideal choice for components requiring low-power Zener voltage references or over-voltage protection.

• Accurate 4.7V Zener voltage provides stable voltage regulation for sensitive electronics
• 0.5W power rating supports low power applications with consistent performance
• Glass package LL-34 SOD80 enhances thermal conductivity and physical protection
• Compact size suitable for space-constrained circuit boards
• Compatible with a wide range of electronic components requiring voltage clamping
• Ideal for use in voltage reference, waveform clipping, and surge suppression circuits
• Reliable operation across various temperature ranges and electrical conditions

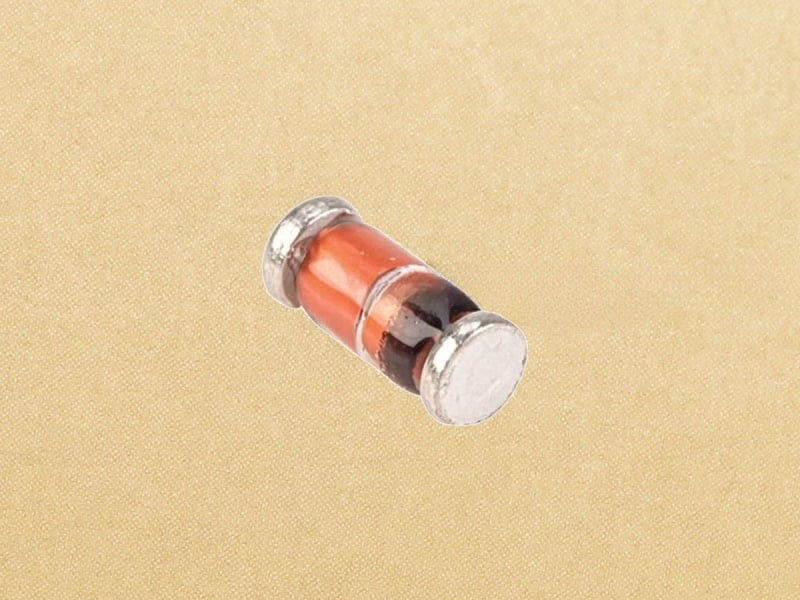

The 5.1V 0.5W BZV55C5V1 is a precision Zener diode housed in a durable glass LL-34 SOD80 package. Designed to provide stable voltage regulation, this component is ideal for protecting circuits by maintaining a constant 5.1-volt reference. Its low power dissipation of 0.5 watts ensures efficient thermal management, making it suitable for various electronic applications requiring reliable voltage clamping with minimal space consumption.

• 5.1V Zener voltage ensures consistent voltage stabilization for sensitive circuits
• 0.5W power rating supports low-power applications with efficient heat dissipation
• Robust glass LL-34 SOD80 package offers excellent durability and insulation
• Compact design fits easily into space-constrained component layouts
• Compatible with a wide range of electronic devices requiring voltage regulation
• Reliable performance for long-term circuit protection against voltage spikes

The 5.6V 0.5W BZV55C5V6 Zener diode housed in a glass package LL-34 SOD80 is designed for voltage regulation in electronic circuits. This component ensures stable voltage reference by maintaining a constant 5.6 volts across its terminals. Its low power rating of 0.5 watts fits compact designs while providing reliable performance. Ideal for use in various electronic devices, it offers compatibility with assemblies requiring precise voltage control and protection against voltage spikes.

• 5.6 volts Zener voltage guarantees accurate voltage stabilization for sensitive circuits
• 0.5 watt power rating supports efficient operation in low-power applications
• Glass package LL-34 SOD80 offers durability and excellent thermal conductivity
• Compact design simplifies integration into space-constrained electronic assemblies
• Effective protection against voltage surges helps enhance overall circuit longevity
• Widely compatible with various electronic components and systems requiring voltage regulation

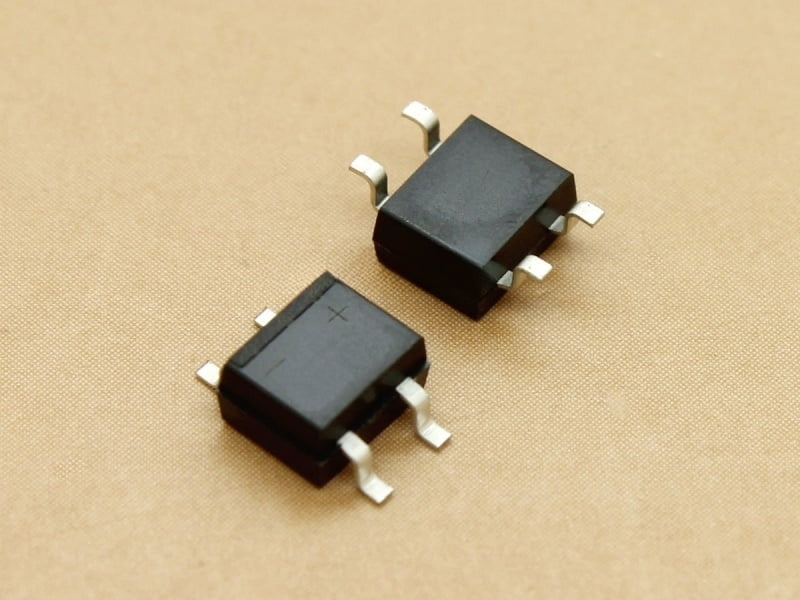

The ABS10 1A 1kV SMD Diode Bridge is a compact and reliable component designed for efficient AC to DC conversion in electronic circuits. Rated for 1 ampere and capable of withstanding up to 1,000 volts, this surface-mount device fits seamlessly into modern printed circuit boards. Ideal for a range of applications including power supplies and rectification tasks, it offers robust performance in a small package suitable for space-constrained designs.

• 1 ampere current rating ensures dependable operation in low to moderate power circuits
• 1,000 volts peak reverse voltage provides strong protection against voltage spikes
• Surface-mount design allows for efficient automated assembly and compact layouts
• Four-diode bridge configuration simplifies AC to DC conversion in a single component
• Compatible with a wide variety of electronic devices and systems requiring rectification
• Durable construction supports long-term reliability in demanding environments
• Compact size enables integration in densely populated circuit boards

The BAT54C KL3 SOT23 is a compact semiconductor component designed for efficient switching and signal rectification in electronic circuits. Its small SOT23 package ensures easy integration into various circuit boards, making it ideal for space-sensitive applications. This diode is suited for use in low-voltage electronic devices, providing reliable performance and compatibility with a wide range of components. Its robust construction supports stable operation in demanding environments.

• Small SOT23 package allows for efficient use of limited circuit board space
• Schottky diode design offers fast switching speeds and low forward voltage drop
• Compatible with various low-voltage electronic circuits, enhancing design flexibility
• Reliable performance in signal rectification and protection applications
• Ideal choice for compact consumer electronics and communication devices
• Durable construction ensures consistent operation under typical environmental stresses

The BAS16 SOT23 A6 is a small signal fast switching diode designed for efficient switching applications in electronic circuits. This compact component excels in high-speed operations, making it ideal for signal processing, rectification, and protection functions. Compatible with various semiconductor devices, it fits seamlessly in compact circuit designs requiring reliable performance and low power loss.

• Fast switching speed ensures minimal signal distortion and efficient circuit operation.
• Small SOT23 package provides space-saving integration in compact electronic assemblies.
• Optimized for handling low current signals, suitable for signal processing and switching tasks.
• Low forward voltage drop enhances energy efficiency and reduces heat generation.
• Compatible with a wide range of semiconductor devices, supporting versatile electronic designs.
• Robust construction guarantees stable performance in high-frequency applications.

The BAS21 JS SOT23 is a high-voltage switching diode designed for efficient electronic signal control in compact circuits. Its small SOT23 package makes it ideal for space-sensitive applications, ensuring reliable performance in switching tasks. This component supports high-voltage operations, making it suitable for a range of electronic devices requiring fast and dependable switching with minimal power loss.

• Compact SOT23 package allows for easy integration into tight circuit layouts without sacrificing performance.
• High-voltage capability supports switching tasks in demanding electronic environments.
• Fast switching speeds enhance circuit responsiveness and efficiency.
• Low forward voltage drop reduces energy loss, improving overall circuit performance.
• Designed to handle a variety of components, making it versatile across many electronic applications.

The BAV199 SOT23 Hottech Marking-52 Switching Diode is a reliable electronic component designed for precise switching applications. This small-signal diode excels in high-speed switching performance, making it ideal for signal processing and protection circuits. Packaged in a compact SOT23 casing, it offers excellent compatibility with various circuit boards and electronic devices, ensuring efficient operation in compact spaces.

• High-speed switching capability supports fast signal transitions in complex circuits.
• Compact SOT23 package allows for space-saving designs on densely populated circuit boards.
• Low forward voltage drop enhances energy efficiency and reduces power loss during operation.
• Robust Hottech Marking-52 identification simplifies component recognition and quality control.
• Versatile compatibility with a wide range of electronic assemblies and signal processing equipment.
• Designed for switching applications where rapid and reliable diode performance is crucial.

The BAV21W SOD123 (1206) T3 by Hottech is a surface-mount fast switching diode designed for efficient signal rectification and protection in electronic circuits. Its compact SOD123 package fits well in space-constrained assemblies, delivering reliable performance for switching applications. Compatible with a range of electronic components, this diode supports high-speed operation making it suitable for signal processing and power management tasks.

• Fast switching capability enhances circuit response times and reduces switching losses
• SOD123 (1206) surface-mount package enables easy integration on compact printed circuit boards
• High reliability in signal rectification ensures stable performance under varying electrical conditions
• Compact dimensions make it ideal for dense electronic assemblies and miniaturized devices
• Compatible with various electronic systems for versatile use in consumer and industrial applications
• Designed for low forward voltage drop to improve overall circuit efficiency

The BAS316 SOD323 switching diode is a compact semiconductor component designed for efficient signal switching and protection in electronic circuits. Featuring a small outline diode package, it offers low forward voltage drop and fast recovery time, making it ideal for high-speed switching applications. This diode is compatible with a wide range of circuit designs, including telecommunications, computing, and consumer electronics, providing reliable performance in compact devices.

• Small SOD323 package minimizes board space and supports high-density circuit designs
• Low forward voltage drop ensures energy-efficient operation and reduces heat generation
• Fast switching speed enables rapid signal processing in communication and control circuits
• High reliability under various electrical conditions enhances device durability
• Wide application range from signal switching to voltage protection in diverse electronic systems

The BAT54S KL4 SOT23 Hottech is a dependable semiconductor component designed for efficient switching and protection circuits. Featuring a compact SOT23 package, this diode array is ideal for integration into compact electronic devices requiring high-speed switching and low forward voltage drop. Its robust construction ensures reliable performance in various applications, including power management and signal processing, making it compatible with a wide range of electronic components.

• Compact SOT23 package allows for space-saving designs in modern electronic assemblies
• Dual diode configuration supports efficient rectification and protection tasks in circuits
• Low forward voltage drop minimizes power loss and improves overall circuit efficiency
• Fast switching speed enhances performance in high-frequency applications
• Reliable thermal stability ensures consistent operation under varying temperature conditions
• Wide compatibility with diverse electronic devices and power management systems
