Mosfets

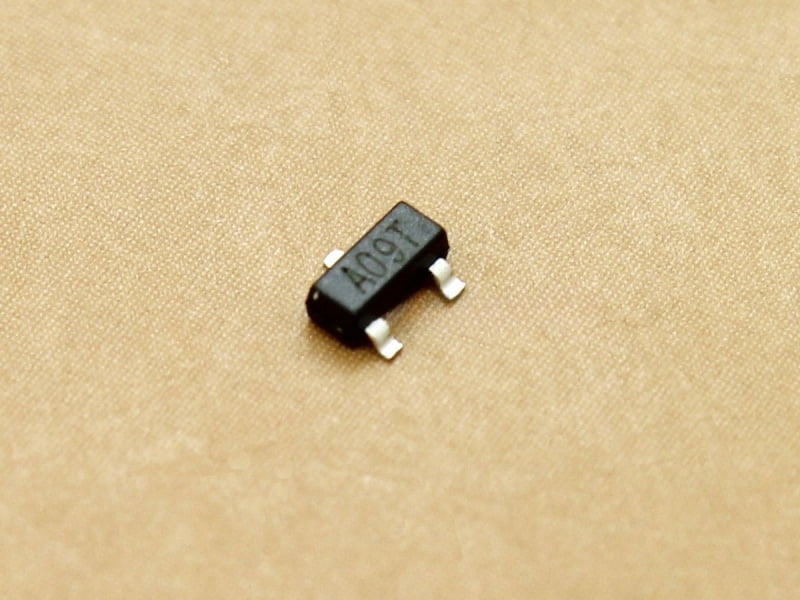

The AO3400 A09T is a high-performance N-channel MOSFET housed in a compact SOT-23 package, designed for efficient switching and amplification in electronic circuits. Ideal for various component applications, this MOSFET offers low on-resistance and fast switching capabilities that enhance power management and signal control. Its small footprint and reliable performance make it compatible with a wide range of portable and embedded devices, contributing to energy-efficient designs.

• Low on-resistance ensures minimal power loss and improved efficiency in switching tasks
• SOT-23 package provides a compact form factor suitable for space-constrained circuit boards
• N-channel design delivers fast switching speeds and high current capacity for versatile applications
• Robust electrical characteristics support stable operation under varying load conditions
• Ideal for power management in portable electronics, signal amplification, and switching circuits
• Compatible with standard PCB layouts, simplifying integration into existing designs

High-Performance N-Channel MOSFET for Electronic Components

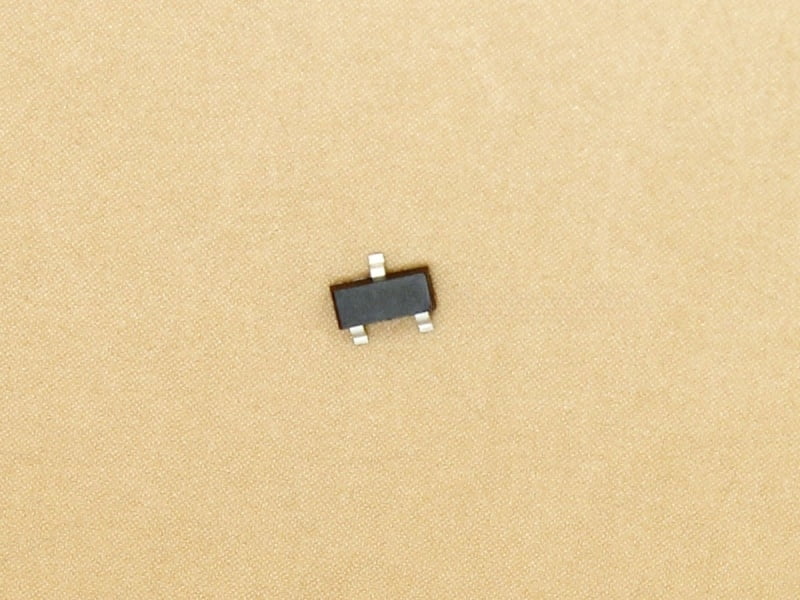

The BSS138 SOT23 is a compact N-Channel MOSFET designed for efficient switching and amplification in electronic circuits. This component is ideal for applications requiring low voltage and small form factor transistors. Its SOT23 package ensures easy integration into various circuit boards, providing reliable performance in signal processing and power management tasks. Compatible with a wide range of semiconductor devices, it suits hobbyist projects, prototyping, and industrial electronics.

Essential Features of the BSS138 SOT23 MOSFET

• Compact SOT23 package allows streamlined placement on densely packed circuit boards.
• N-Channel design optimizes current flow control for switching and amplification needs.
• Low gate threshold voltage ensures quick response and efficient switching at low voltages.
• High input impedance minimizes loading effects on preceding circuitry.
• Durable construction suitable for various electronic applications including signal switching and level shifting.
• Compatibility with diverse semiconductor components supports flexible design integration.
• Ideal for prototyping and small-scale production in both consumer and industrial electronic devices.

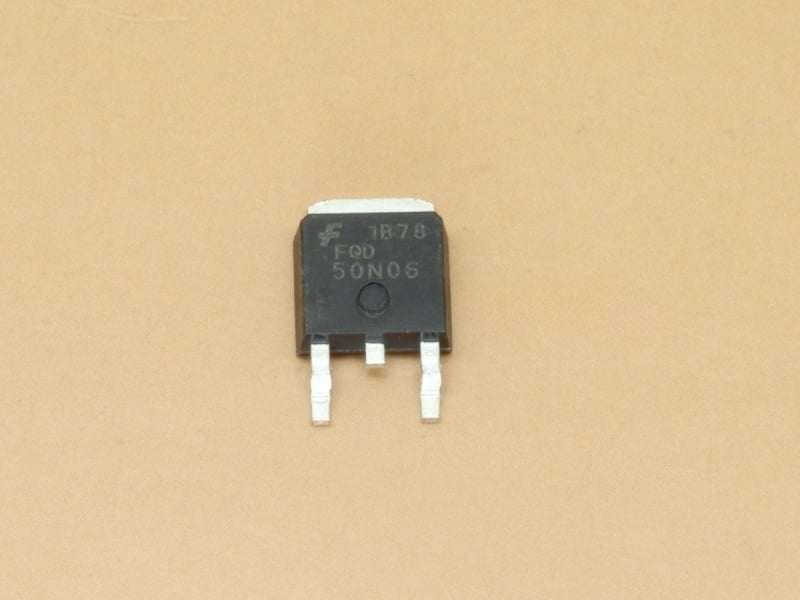

The FQD50N06 is a robust N-channel MOSFET designed for efficient switching applications. Rated at 50 amperes and 60 volts, this TO-252 packaged component is ideal for power management and motor control circuits. Its dependable performance supports various electronics projects requiring reliable high-current handling with low on-resistance, ensuring effective energy transfer and minimal heat generation.

• 50A current rating enables handling of substantial load currents with confidence
• 60V maximum voltage supports medium-voltage applications across diverse electronic systems
• TO-252 package offers compact size combined with excellent thermal dissipation properties
• N-channel design provides fast switching speeds suitable for efficient power conversion
• Low on-resistance reduces power loss and enhances overall circuit efficiency
• Compatible with a wide range of power control and amplification circuits
• Reliable performance in automotive, industrial, and consumer electronics applications

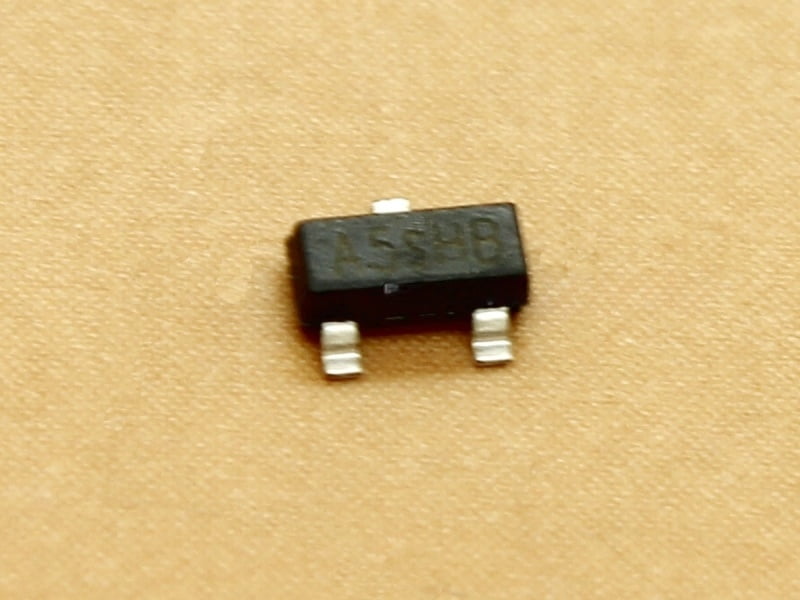

The SI2305 A5SHB is a P-channel MOSFET housed in a compact SOT23 package, designed for efficient switching in electronic circuits. This component is ideal for low-voltage applications requiring reliable power management and fast switching speeds. Its small form factor ensures compatibility with space-constrained circuit boards, making it suitable for portable and consumer electronics, as well as power supply designs.

• P-channel MOSFET configuration provides effective high-side switching capabilities
• Compact SOT23 package supports integration in densely packed circuit layouts
• Optimized for low-voltage power management with efficient conduction and minimal losses
• Suitable for applications such as battery-operated devices and portable electronics
• Designed to deliver fast switching performance for enhanced circuit responsiveness
• Compatible with a variety of electronic designs requiring precise control of power flow

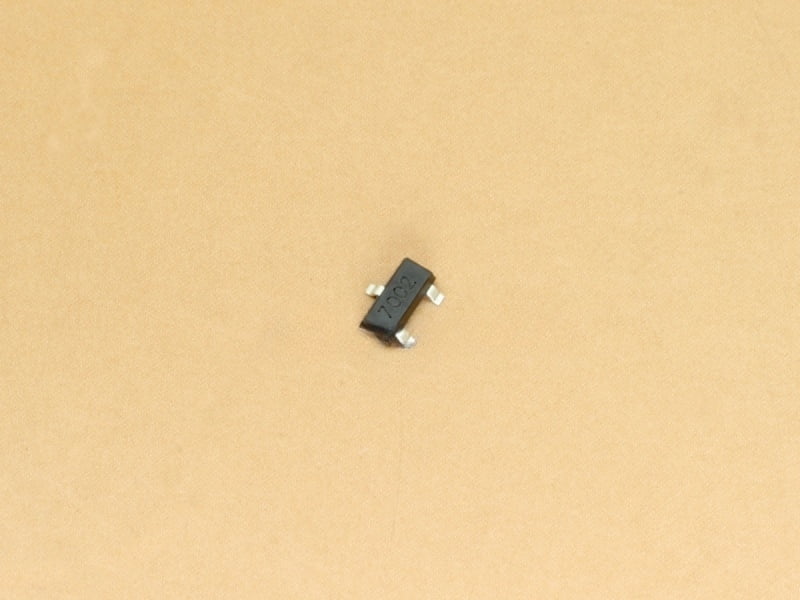

The 2N7002 SOT23 NXP is a reliable N-channel MOSFET designed for switching and amplification in electronic circuits. With a maximum voltage rating of 60V and a continuous current capacity of 300mA, this component suits a variety of low-power applications. Housed in the compact SOT23 package, it fits well in space-constrained designs and is compatible with standard PCB layouts for components. Its robust electrical characteristics make it a versatile choice for signal switching and small load driving tasks.

• 60V maximum drain-source voltage ensures safe operation in moderate-voltage circuits
• 300mA continuous drain current supports efficient control of low-power loads
• Compact SOT23 package enables integration in tight circuit board layouts
• N-channel MOSFET type provides fast switching and low on-resistance for improved performance
• Compatible with standard electronic components for seamless circuit design and replacement

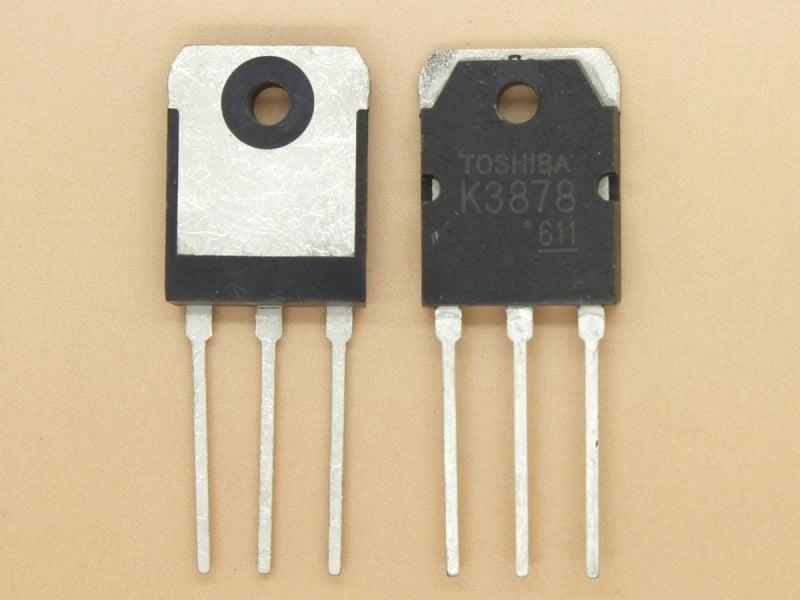

The 2SK3878 (K3878) TO-3P N-Channel MOSFET is a high-performance semiconductor component designed for efficient switching and amplification in electronic circuits. Known for its robust construction and reliable operation, this MOSFET is ideal for applications that demand precise control of electrical current. Its TO-3P package ensures excellent heat dissipation, making it suitable for power management tasks in various electronic devices.

• Durable TO-3P casing enhances thermal management for stable operation under high loads
• N-Channel architecture delivers fast switching speeds and low on-resistance
• Engineered for use in power amplification and switching circuits requiring precise control
• Compatible with a wide range of components in industrial and consumer electronics
• Offers reliable performance in demanding electronic environments

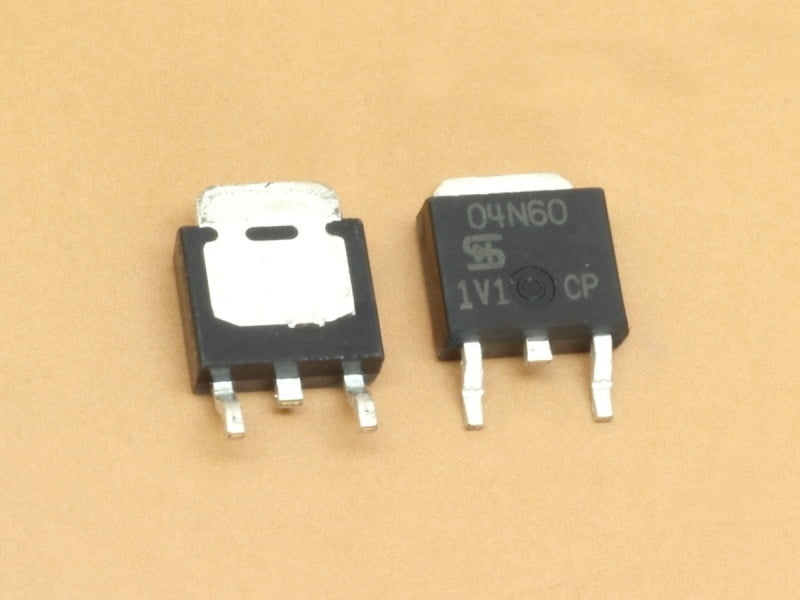

The 4N60 is a high-performance N-channel MOSFET designed for power switching applications. Encased in a TO252 (DPAK) package, this transistor supports a maximum drain current of 4 amperes and withstands voltages up to 600 volts. Its robust construction and efficient switching capabilities make it an excellent choice for use in power converters, motor drives, and various industrial controllers that require reliable, high-voltage operation.

• 600V voltage rating ensures reliable performance in high-voltage circuits
• 4A continuous drain current supports moderate power loads efficiently
• TO252 (DPAK) package offers compact size with effective heat dissipation
• N-channel configuration provides low on-resistance for energy-efficient switching
• Compatible with a wide range of power electronics and switching power supplies
• Designed for durability in demanding industrial and consumer electronics applications

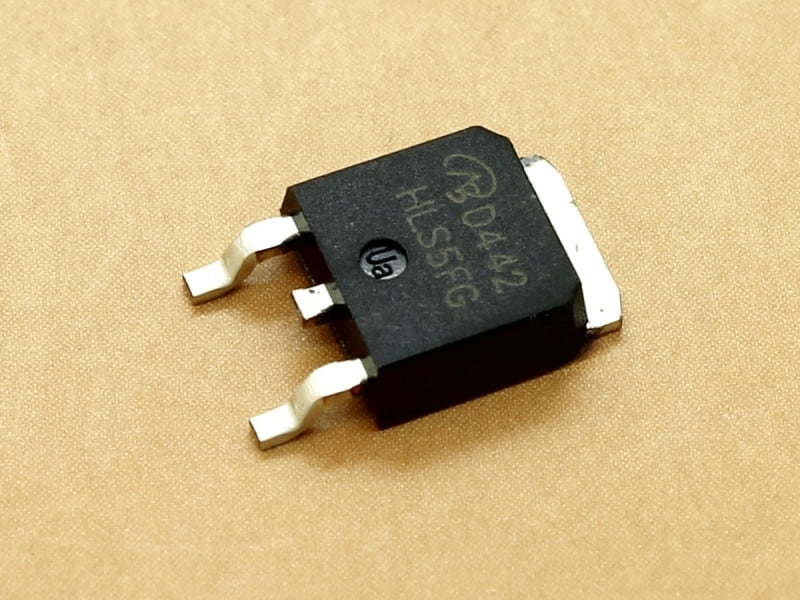

The AOD442 (D442) TO252 N-Channel MOSFET is a robust semiconductor component designed for efficient switching and amplification in electronic circuits. Housed in a TO252 package, this MOSFET offers reliable performance with its N-Channel configuration, making it suitable for power management and control applications. Its compact design ensures compatibility with various electronic assemblies, providing stable operation under demanding electrical conditions.

• TO252 package delivers a compact and space-saving form factor ideal for tight circuit layouts.
• The N-Channel MOSFET structure supports fast switching speeds for improved circuit efficiency.
• Engineered for high power handling, making it suitable for power regulation and amplification tasks.
• Compatible with a wide range of electronic components and systems requiring reliable semiconductor switching devices.
• Durable construction supports stable operation across varying temperature and voltage environments.

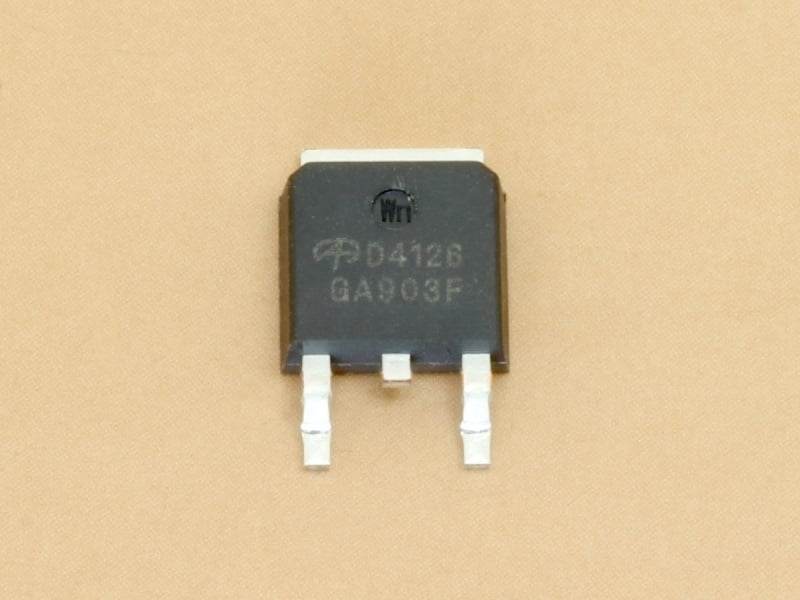

The AOD4126 (43A 100V D4126) TO252 N-Channel MOSFET is a robust semiconductor component designed for efficient switching and amplification in electronic circuits. With a maximum current rating of 43 amperes and a voltage tolerance of 100 volts, it suits power management applications requiring high-performance switching. Packaged in the TO252 format, this MOSFET is compatible with various power supply and motor control systems, delivering reliable conductivity and thermal stability for demanding environments.

• High current capacity of 43 amperes enables handling of substantial load currents without performance loss
• Voltage rating of 100 volts ensures compatibility with medium-voltage power circuits and applications
• TO252 package design offers efficient heat dissipation and easy mounting on printed circuit boards
• N-Channel configuration supports fast switching speeds and low on-resistance for optimized power efficiency
• Ideal for use in power supplies, motor drivers, and high-speed switching circuits where durability is critical
• Engineered to maintain stable operation under thermal stress, enhancing system reliability

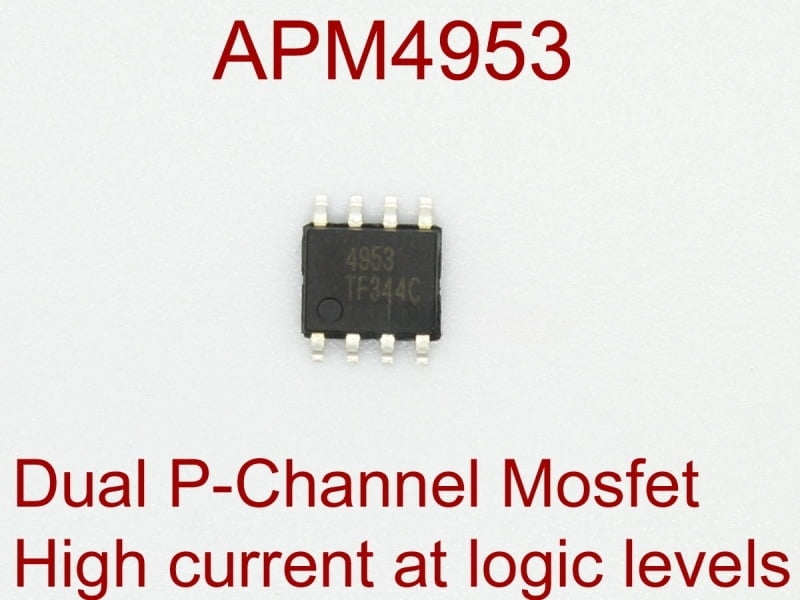

The APM4953 is a high-quality component designed for diverse industrial and electronic applications. Engineered to deliver reliable performance, this component integrates seamlessly into various systems requiring precision and durability. Its robust construction supports consistent operation under varying conditions, making it an essential part for technical assemblies that demand efficiency and stability.

• Precision-engineered for consistent and reliable functionality in complex systems
• Durable materials ensure long-lasting performance across different operating environments
• Versatile compatibility with a wide range of devices and assemblies
• Optimized design enhances integration and minimizes installation time
• Meets industry standards for quality and safety in component manufacturing

Reliable High-Power P-Channel MOSFET for Efficient Switching

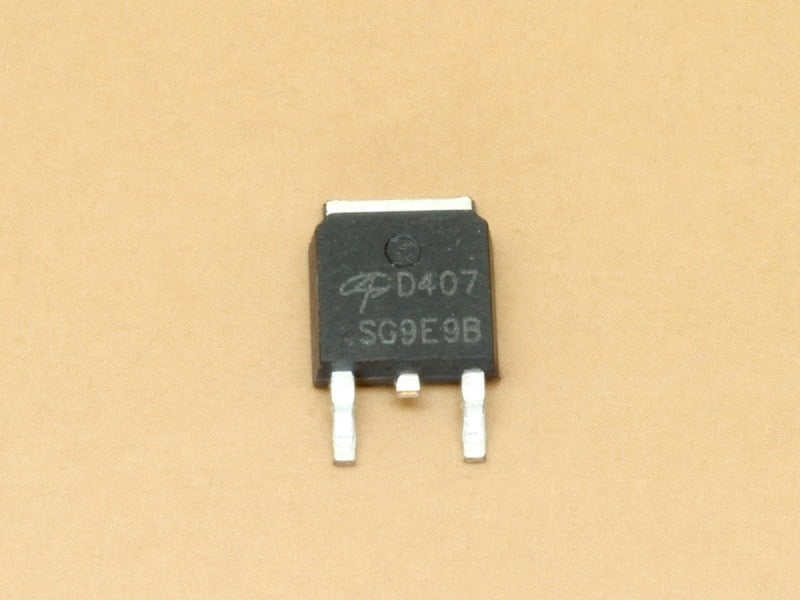

The AOD407 (12A 60V D407) TO252 P-CH MOSFET is a robust semiconductor component designed for power management and switching applications. Engineered to handle high currents up to 12 amps and voltages reaching 60 volts, this MOSFET excels in efficiency and durability. Its TO252 package ensures effective heat dissipation, making it suitable for automotive, industrial, and consumer electronic circuits requiring reliable P-channel switching performance.

Highlights of the AOD407 MOSFET

• Offers a maximum continuous current of 12 amps, supporting high-power circuit demands with ease
• Rated for 60 volts, enabling operation in moderate to high voltage environments
• Encased in a TO252 package that enhances thermal management and simplifies PCB integration
• Designed as a P-channel MOSFET for efficient load switching and reverse polarity protection
• Ideal for use in power converters, motor drivers, and battery management systems
• Compatible with a broad range of electronic components and circuit designs requiring stable switching behavior

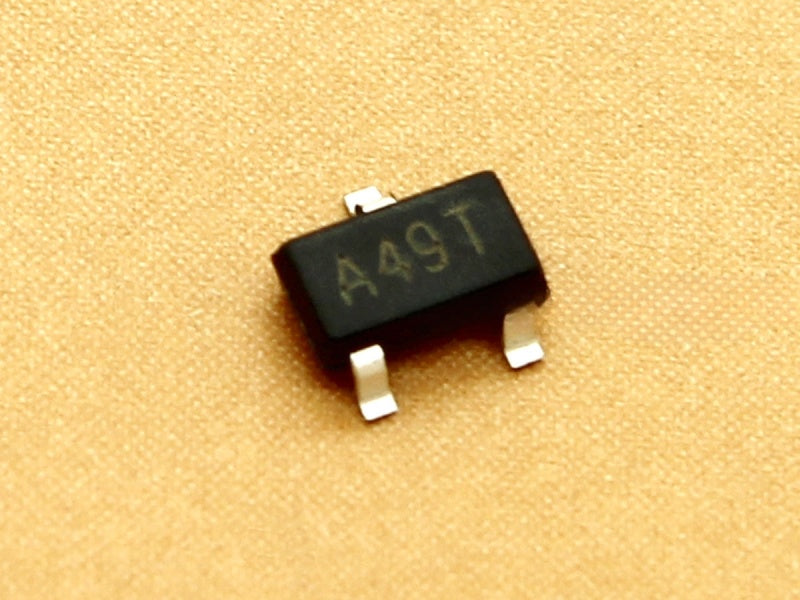

The AO3404 A49T is a compact N-channel MOSFET housed in a SOT23 package, designed for efficient switching and amplification in electronic circuits. This component excels in low-voltage applications, providing reliable performance with minimal power loss. Its small form factor and high switching speed make it ideal for integration into power management systems, battery-operated devices, and general-purpose electronic equipment.

• Compact SOT23 package enables easy placement in space-constrained circuit boards
• N-channel MOSFET structure ensures fast switching and efficient current control
• Optimized for low-voltage operations, supporting energy-efficient electronic designs
• Versatile compatibility with various components in power regulation and signal amplification
• Offers robust electrical characteristics suitable for battery-powered and portable devices

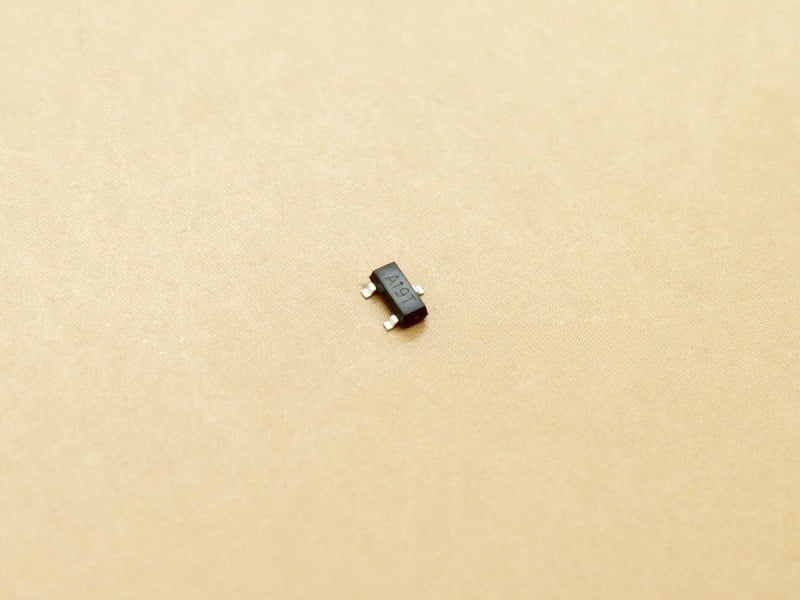

The AO3401 A19T SOT-23 P-Channel MOSFET is a compact semiconductor component designed for efficient switching and amplification in electronic circuits. Featuring a small SOT-23 package, it offers excellent performance with low on-resistance and fast switching capabilities. This MOSFET is ideal for power management applications, signal processing, and load switching where space and efficiency are critical. Its robust electrical characteristics ensure compatibility with a wide range of circuit designs and devices.

• Compact SOT-23 package optimizes space in tight circuit layouts.
• Low on-resistance reduces power loss and improves energy efficiency.
• P-Channel MOSFET design simplifies high-side switching applications.
• Fast switching speed supports high-frequency operation in dynamic circuits.
• Suitable for power management and load switching in portable and embedded systems.
• Compatible with various electronic components and circuit configurations.
• Reliable performance across a range of temperatures and electrical stresses.

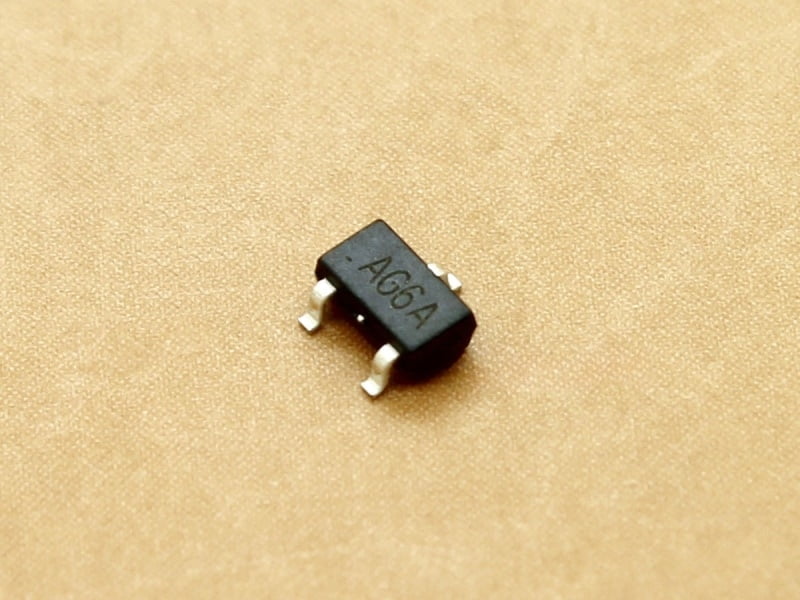

The AO3416 AG SOT23 N-CH MOSFET is a high-performance component designed for efficient switching and amplification in electronic circuits. This N-channel MOSFET is housed in a compact SOT23 package, making it ideal for space-sensitive applications. It offers reliable operation for low-voltage and low-current designs, ensuring compatibility with a range of modern electronic devices. Its technical build supports enhanced switching speed and low on-resistance, optimizing power management and signal control.

• Compact SOT23 package allows seamless integration into tight circuit layouts.
• Low on-resistance minimizes power loss and heat generation during operation.
• Fast switching capability enhances performance in high-frequency electronic applications.
• N-channel configuration provides efficient control for switching and amplification tasks.
• Suitable for use in power management, signal processing, and switching circuits.
• Designed to support low-voltage, low-current electronic devices with consistent reliability.
• Durable construction ensures stable performance under varying electrical conditions.

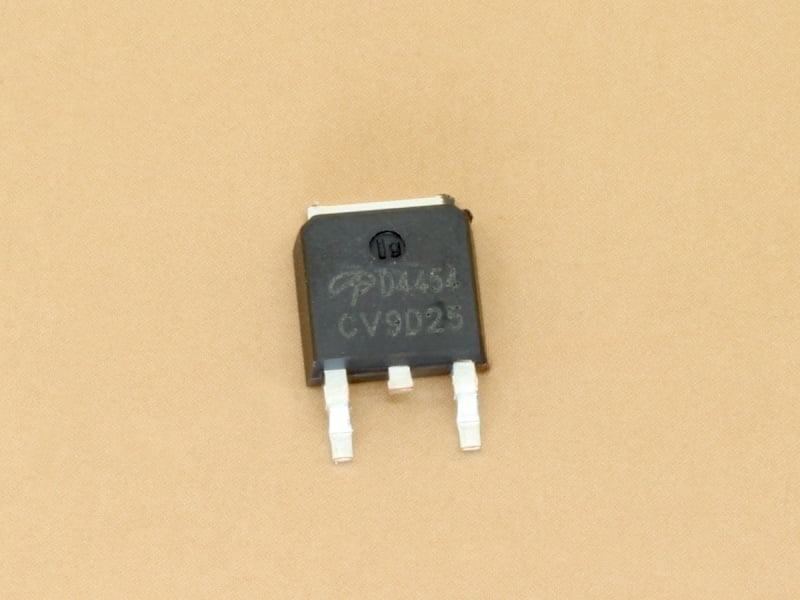

The AOD4454 is a high-performance N-channel MOSFET designed to handle up to 20 amps of continuous current at 150 volts. Packaged in a TO252 form factor, this transistor offers efficient switching capabilities and low on-resistance, making it ideal for power management applications. Its robust design ensures reliable operation in various electronic circuits where efficient power control is essential.

• 20A current rating supports demanding power applications with ease
• 150V maximum voltage accommodates high-voltage switching tasks
• TO252 package provides compact size and excellent thermal performance
• Low on-resistance enhances energy efficiency in switching circuits
• Optimized for rapid switching to improve overall circuit responsiveness
• Reliable N-channel configuration suitable for diverse electronic components
• Compatible with various power supply and motor control designs

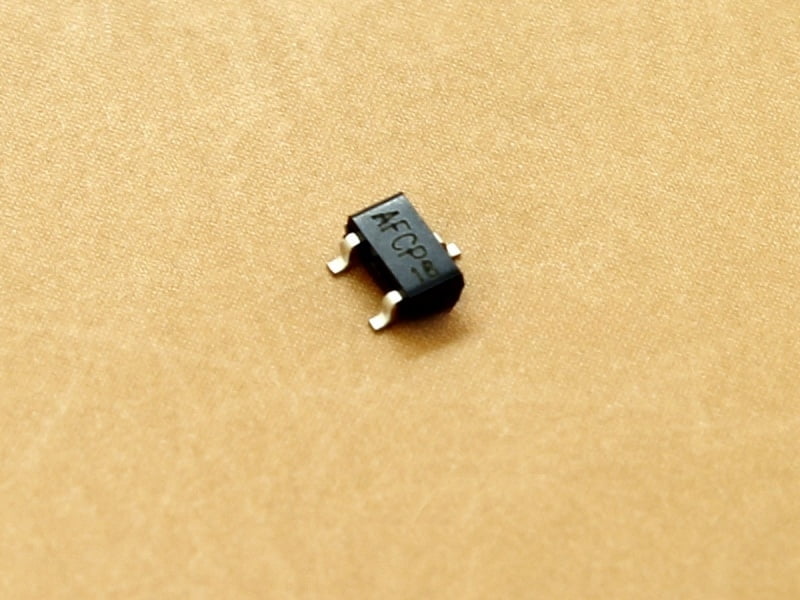

The AO3415 AF SOT23 P-CH MOSFET is a compact semiconductor component designed for efficient switching and amplification in electronic circuits. Its P-channel configuration allows for easy integration in low-voltage applications, offering reliable performance in a small SOT23 package. Ideal for use in power management, signal control, and other electronic designs, this MOSFET provides essential characteristics suited for compact and high-frequency circuit needs.

• Compact SOT23 package ensures space-saving installation in dense circuit layouts.
• P-channel MOSFET design delivers effective switching for low-voltage applications.
• High reliability under varying electrical conditions improves circuit durability.
• Wide compatibility with standard electronic devices and power control modules.
• Optimized for power efficiency to reduce energy loss in electronic systems.
• Suitable for signal amplification and switching in consumer and industrial electronics.

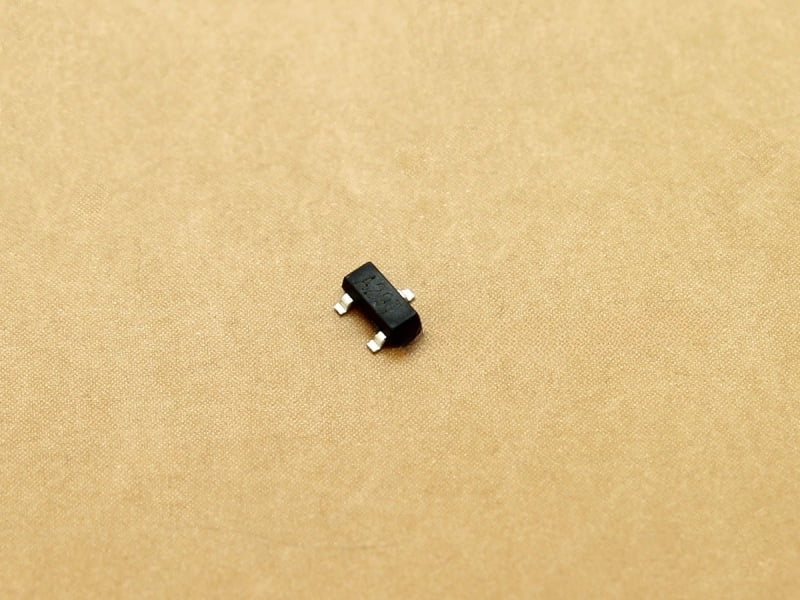

The AO3402 (A29T) SOT23 N-Channel MOSFET is a compact semiconductor device designed for efficient switching and amplification in electronic circuits. Ideal for use in power management, switching regulators, and load switching applications, this MOSFET offers reliable performance with low on-resistance and fast switching speed. Its SOT23 package ensures easy integration into space-constrained circuit designs, making it compatible with various consumer electronics and industrial equipment.

• Low on-resistance reduces power loss and enhances energy efficiency in switching operations.
• Fast switching capability supports high-frequency applications and improves overall circuit responsiveness.
• SOT23 package provides a compact footprint, suitable for densely populated circuit boards.
• N-Channel configuration enables efficient control of negative voltage loads in diverse electronic systems.
• Wide compatibility with power management modules and load switches across consumer and industrial devices.

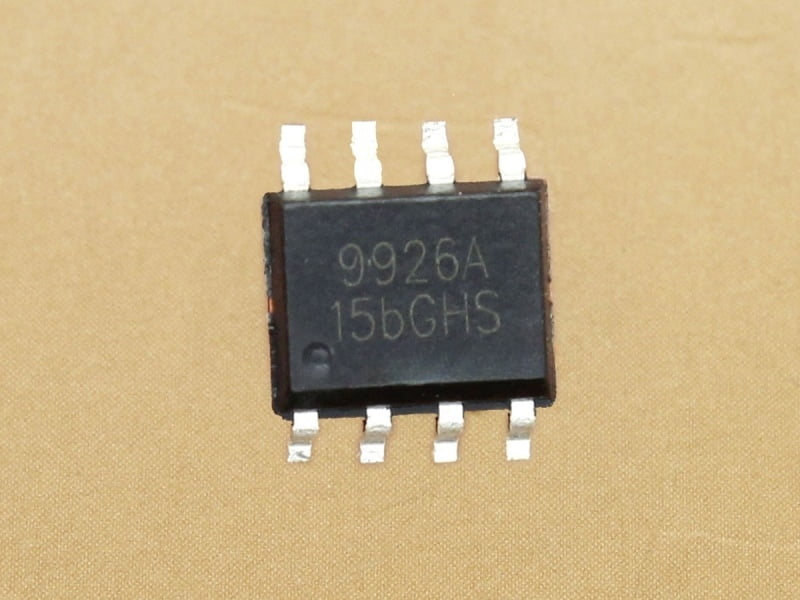

The APM9926A is a dual N-channel MOSFET housed in a compact SOIC8 package, designed for efficient switching and power management in electronic circuits. Ideal for use in low-voltage applications, this component offers reliable performance with minimal power loss. Its dual-channel configuration makes it suitable for compact designs requiring two MOSFETs in a single package, enhancing space efficiency and simplifying PCB layouts.

• Dual N-channel MOSFET design supports simultaneous switching tasks to optimize circuit performance.
• SOIC8 package ensures straightforward integration into surface-mount technology (SMT) assemblies.
• Engineered for low-voltage and low-power applications, making it ideal for compact and efficient power solutions.
• Designed to provide minimal on-resistance for enhanced energy efficiency and reduced heat generation.
• Supports a range of electronic components and modules requiring precise and reliable switching control.
• Compact footprint facilitates space-saving designs in modern electronic devices.

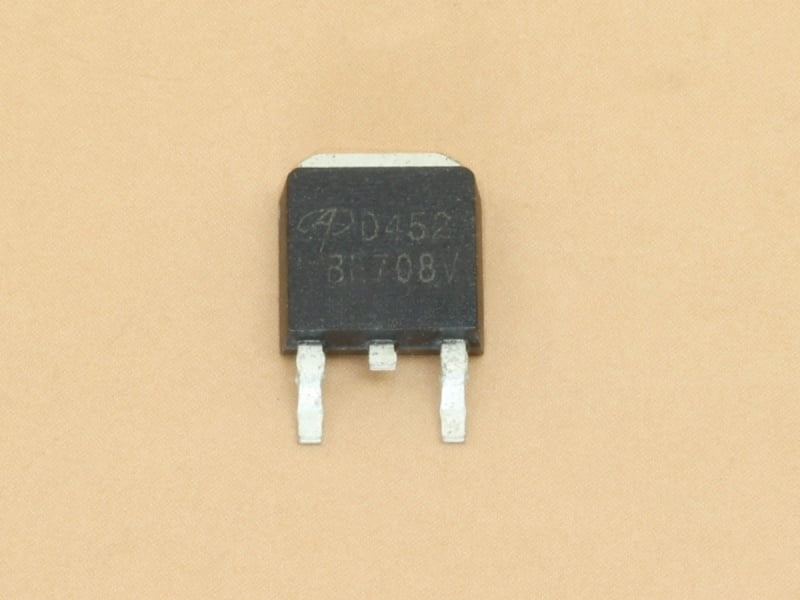

The AOD452A (25V 55A D452A) is a high-performance N-channel MOSFET designed for efficient power switching in electronic circuits. Packaged in a TO252 format, it supports a maximum voltage of 25 volts and continuous current of up to 55 amperes, making it ideal for applications requiring robust load handling. This component is well-suited for power management, motor control, and switching regulators, delivering reliable performance with low on-resistance and fast switching speeds.

• 25V maximum voltage rating allows for versatile use in low-voltage power applications
• 55A continuous drain current ensures high current capacity for demanding loads
• Compact TO252 package promotes efficient heat dissipation and easy PCB integration
• Low on-resistance minimizes power loss and improves overall circuit efficiency
• Compatible with a wide range of electronic designs requiring N-channel MOSFETs
• Optimized for fast switching to enhance performance in PWM and switching regulator circuits

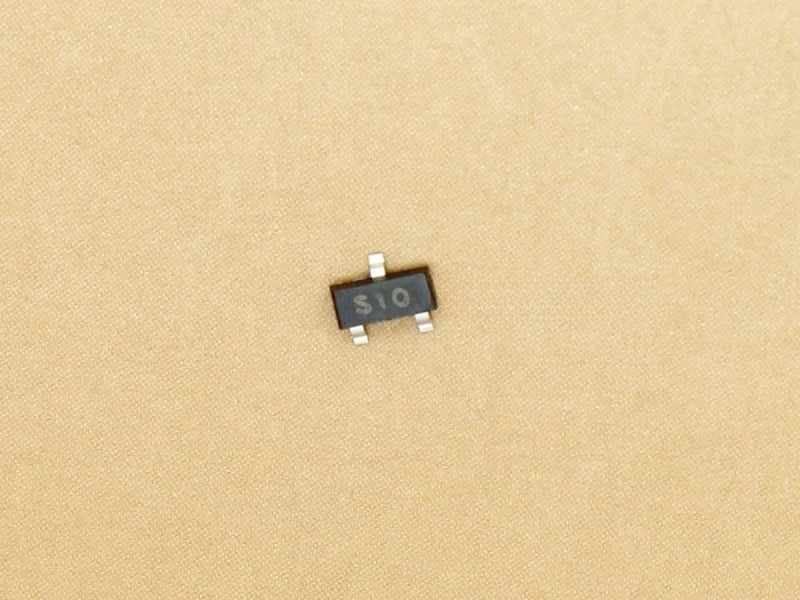

The CJ2310 S10 SOT23 N-CH MOSFET is a compact and efficient component designed for switching and amplification applications in electronic circuits. Its N-channel configuration allows for rapid switching speeds and low on-resistance, making it ideal for power management and signal processing tasks. Encased in the small SOT23 package, this MOSFET fits easily into densely populated circuit boards, ensuring compatibility with a wide range of compact electronic devices.

• Efficient N-channel design ensures fast switching and minimal power loss for improved circuit performance.
• SOT23 package offers a small footprint, perfect for space-constrained electronic assemblies.
• Low on-resistance reduces heat generation and increases energy efficiency in power-sensitive applications.
• Versatile compatibility with various electronic components and circuit designs for flexible integration.
• Reliable semiconductor quality guarantees consistent performance in switching and amplification roles.
• Ideal for compact electronics such as portable devices, power regulators, and signal amplifiers.

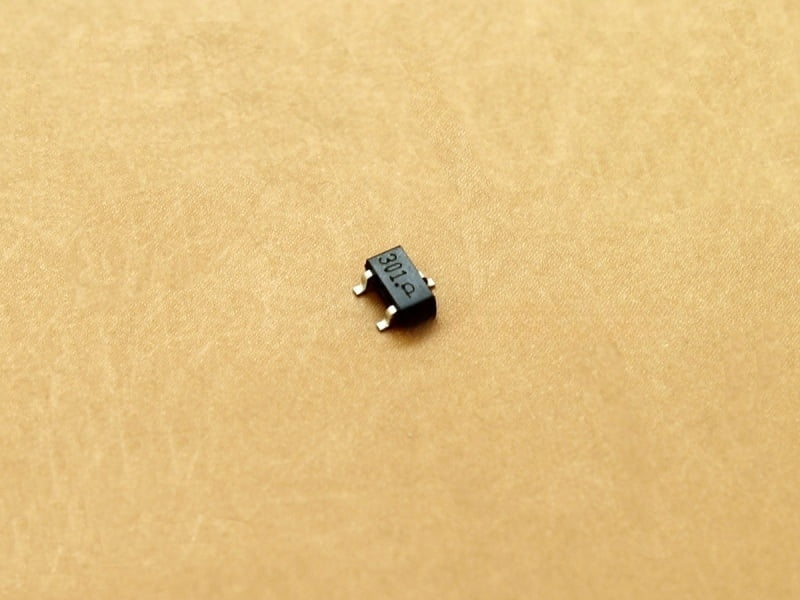

The FDV301N-NL is a high-performance N-channel MOSFET housed in a compact SOT23 package, ideal for various electronic applications. Designed to efficiently switch and amplify signals, this component offers reliable operation in low-voltage circuits. Its small footprint and robust electrical characteristics make it well-suited for integration in compact devices, enhancing performance in power management and signal control systems.

• Compact SOT23 package ensures space-saving design in tight circuit layouts
• N-channel MOSFET configuration provides efficient switching capabilities
• Optimized for low-voltage applications, improving energy efficiency
• Compatible with a wide range of electronic components and circuit designs
• Ideal for use in power management and signal amplification tasks
• Reliable electrical performance supports stable operation under varied conditions

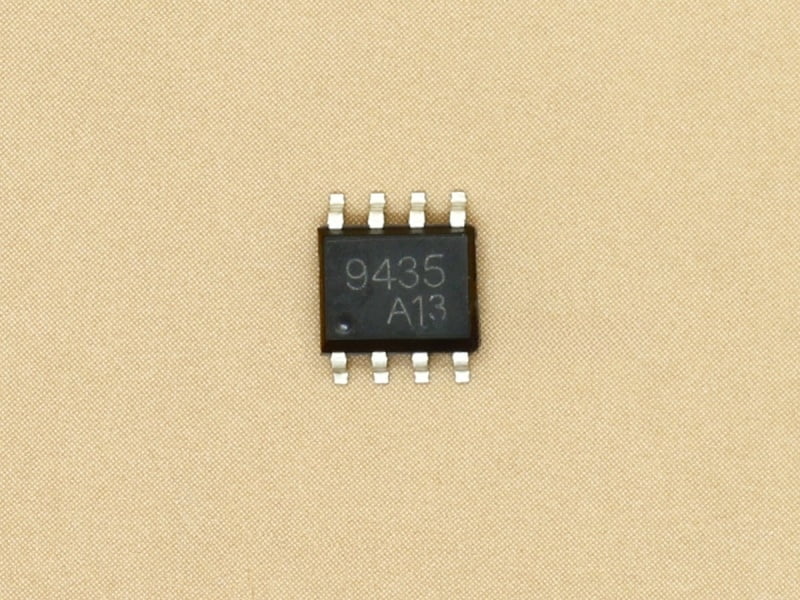

The FDS9435A (9435A) is a P-Channel MOSFET housed in a SOIC8 package, designed for efficient switching and amplification in electronic circuits. This component is ideal for power management applications requiring reliable performance in compact spaces. Its electrical characteristics support a wide range of compatibility with various circuit designs, making it a versatile choice for developers working on power control and regulation tasks.

• Compact SOIC8 package enables easy integration into space-constrained circuit boards.
• P-Channel MOSFET design provides efficient high-side switching capabilities.
• Low on-resistance ensures reduced power loss and improved energy efficiency.
• Robust electrical performance suitable for diverse power regulation applications.
• Compatible with a variety of electronic components to support flexible circuit configurations.
• Designed for reliable operation in demanding environments requiring steady current control.

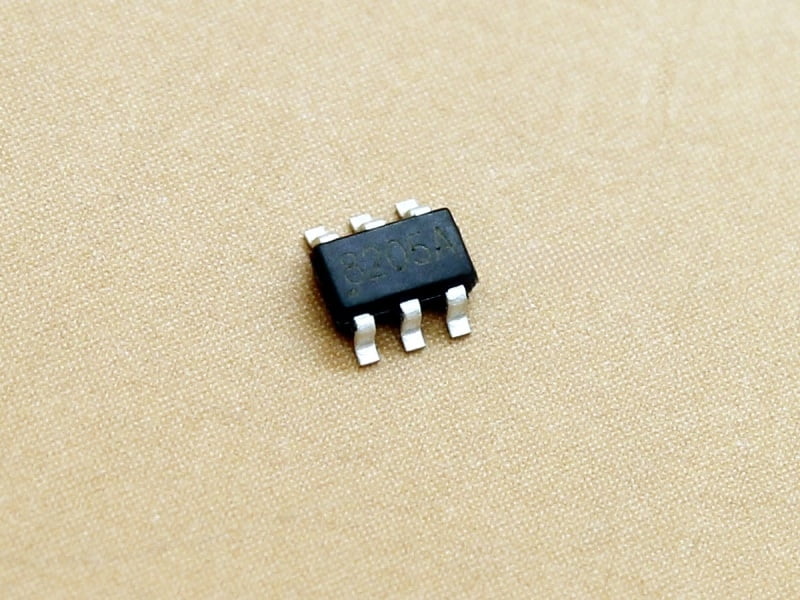

The FS8205A SOT23-6 is a compact electronic component designed for seamless integration into various circuit applications. This device offers reliable performance with a small footprint, making it ideal for space-constrained designs. It is compatible with a range of electronic assemblies, ensuring versatility for engineers and technicians. With its efficient design and dependable characteristics, the FS8205A supports optimized functionality in electronic projects requiring precision and consistency.

• Compact SOT23-6 package enables easy mounting on densely populated circuit boards.
• Designed to deliver stable performance in diverse electronic applications.
• Compatibility with multiple circuit configurations enhances design flexibility.
• Reliable electrical characteristics ensure consistent operation under varied conditions.
• Ideal for use in consumer electronics, communication devices, and industrial controls.
• Facilitates efficient space utilization while maintaining robust functionality.

The FQD2N60C is a robust N-channel MOSFET designed for efficient switching in various electronic circuits. With a voltage rating of 600V and a continuous current capability of 1.9A, this TO252 package transistor offers reliable performance in power management and amplification applications. Its construction ensures compatibility with common industrial and consumer electronics, making it ideal for use in power supplies, motor drives, and switching regulators.

• High voltage tolerance of 600V provides excellent durability under demanding electrical conditions
• Continuous current rating of 1.9A supports moderate power loads with stable conduction
• TO252 compact package optimizes space on circuit boards while maintaining effective heat dissipation
• N-channel configuration enables fast switching and high-speed operation in electronic designs
• Compatible with a wide range of industrial and consumer electronic applications, including power supply circuits and motor control
• Engineered for enhanced switching efficiency to reduce power losses during operation

The FQPF2N60C (2N60) is a TO220 package N-channel MOSFET designed for efficient switching and amplification in electronic circuits. This component features a robust construction suitable for power management applications, delivering reliable performance with low on-resistance and fast switching capabilities. Ideal for use in power supplies, motor control, and other high-speed switching applications, it ensures compatibility with a broad range of circuit designs requiring efficient power handling.

• Low on-resistance minimizes power loss, enhancing energy efficiency in your circuits.
• TO220 package allows easy mounting and effective heat dissipation for improved reliability.
• Designed as an N-channel MOSFET, it offers high-speed switching and excellent conductivity.
• Supports robust power handling, making it suitable for motor control and power supply applications.
• Compact design fits well in various electronic assemblies without sacrificing performance.
• Compatible with a wide range of circuits requiring efficient and stable power management.

The FQPF5N60C (5N60) is a high-performance N-channel MOSFET housed in a TO-220F package, designed for efficient power switching applications. This component is ideal for circuits requiring reliable high-voltage handling and low on-resistance. Its robust construction ensures compatibility with various electronic devices, making it a versatile choice for power management and conversion tasks. The MOSFET's key characteristics enable it to deliver precise control in demanding electrical environments.

• 600V maximum drain-source voltage supports high-voltage power switching with confidence
• Low on-resistance minimizes energy loss and improves overall circuit efficiency
• TO-220F package offers excellent thermal performance and easy mounting in power assemblies
• Fast switching capabilities enhance responsiveness in dynamic electrical systems
• N-channel design suitable for a wide range of power conversion and motor control applications
• Durable construction ensures long-lasting operation under demanding conditions

The FQD20N06 is a reliable N-channel MOSFET designed for efficient switching and amplification in electronic circuits. Rated for 20 amps and 60 volts, this TO252 package component excels in power management applications where moderate voltage and current handling are required. Its robust construction ensures compatibility with various power supply and motor control designs, making it a versatile choice for industrial and consumer electronics projects.

• 20A continuous current rating supports demanding load conditions effectively
• 60V maximum drain-source voltage ensures safe operation in medium-voltage circuits
• Compact TO252 package facilitates easy integration on PCBs with limited space
• Optimized for low on-resistance, enhancing efficiency and reducing heat generation
• Ideal for power switching applications including motor drivers and power supplies
• Robust construction enhances durability and reliability under electrical stress

The IRFB4115PBF is a high-performance N-channel MOSFET designed for efficient power switching applications. With a maximum voltage rating of 150V and a continuous current capacity of 104A, it is engineered to handle demanding electronic circuits. Packaged in a TO-220 case, this component offers excellent thermal management and ease of mounting. Ideal for use in power supplies, motor control, and other high-current switching environments, it balances durability and responsiveness for reliable operation.

• 150V voltage rating ensures robust performance in high-voltage applications
• 104A continuous drain current supports heavy load switching with minimal losses
• TO-220 package provides effective heat dissipation and convenient installation
• Optimized for power management roles such as motor drivers and DC-DC converters
• Low on-resistance enhances efficiency and reduces heat generation during operation
• Compatible with standard gate drive voltages for versatile integration into existing circuits

The IRF840 TO220 N-CH MOSFET is a high-voltage transistor designed for switching and amplification applications in electronic circuits. This component excels in managing high power loads with efficient switching capabilities. Its TO-220 package ensures excellent heat dissipation, making it suitable for power regulators, motor controls, and power supply circuits. Compatible with a wide range of electronic designs, it supports various industrial and hobbyist projects requiring reliable N-channel MOSFET performance.

• High voltage tolerance supports demanding power control tasks with reliability
• TO-220 package offers efficient thermal management for extended operation
• N-channel MOSFET design enables fast switching and low on-resistance
• Versatile compatibility with power regulation, motor drives, and amplifier circuits
• Durable construction ensures stable performance under varying electrical loads

The IRFZ44N TO220 N-Channel MOSFET is a reliable semiconductor component designed for switching and amplification applications. It features a TO220 package ideal for efficient heat dissipation and easy mounting. This MOSFET supports high-speed switching and handles significant current loads, making it suitable for power management in electronic circuits, including motor control, power supplies, and inverters. Its robust design ensures compatibility with various electronic projects requiring efficient and durable transistor performance.

• High current capability: Efficiently manages substantial electrical loads for demanding applications.
• TO220 package design: Provides excellent thermal conductivity and straightforward installation.
• N-channel configuration: Optimized for fast switching and low on-resistance.
• Versatile use: Ideal for power supplies, motor drivers, and general switching circuits.
• Durable construction: Ensures long-lasting performance in various electronic environments.
• Wide compatibility: Fits seamlessly into numerous component setups and circuit designs.
