Drone Gimbals

Drone Gimbals at Partsbaba.com – Stable Camera Mounts for Aerial Imaging

Explore Drone Gimbals at Partsbaba.com, designed to help provide stable camera positioning and smoother aerial footage for compatible drones, UAVs, and camera systems.

A gimbal is a mechanical camera-mounting system that helps compensate for unwanted drone movement, allowing the camera to remain more stable while the aircraft moves.

Explore Drone Gimbals

The Drone Gimbal collection can include:

• 2-Axis Drone Gimbals
• 3-Axis Drone Gimbals
• Brushless Gimbals
• Camera Gimbal Mounts
• FPV Gimbal Systems
• Gimbal Motors

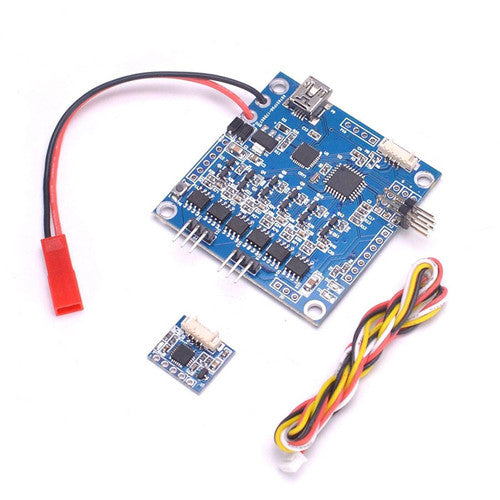

• Gimbal Controllers
• Gimbal Camera Mounts
• Replacement Gimbal Assemblies
• Gimbal Components

Compatibility Tip: Before purchasing a drone gimbal, check the camera weight, camera dimensions, number of axes, mounting configuration, voltage requirements, controller compatibility, and available space on the drone.

What Is a Drone Gimbal?

A drone gimbal is a mechanical stabilization system that holds a camera and compensates for unwanted movement.

A typical setup is:

Drone → Gimbal → Camera

The gimbal can counteract movements caused by:

• Drone vibration
• Pitch
• Roll
• Yaw
• Wind
• Aircraft movement

This helps keep the camera pointed in the desired direction.

How Does a Drone Gimbal Work?

A gimbal typically uses motors and sensors to detect and compensate for unwanted camera movement.

A simplified system is:

Motion Sensor → Gimbal Controller → Gimbal Motor → Camera Stabilization

The controller continuously adjusts the motors to keep the camera orientation stable.

Types of Drone Gimbals

2-Axis Gimbal

A 2-axis gimbal typically stabilizes two rotational axes, commonly pitch and roll.

It can be a lightweight option for applications where full three-axis stabilization isn't required.

3-Axis Gimbal

A 3-axis gimbal generally provides stabilization across:

• Pitch
• Roll
• Yaw

This configuration is widely used for aerial photography and video applications.

Brushless Gimbal

Brushless gimbals use brushless motors to provide precise camera movement and stabilization.

They are commonly used in lightweight and professional aerial camera systems.

Gimbal Camera Mount

A camera mount may provide a mechanical mounting solution without necessarily including a complete active stabilization system.

Drone Gimbal Specifications

How to Choose the Right Drone Gimbal?

1. Check Camera Compatibility

The gimbal must physically and electronically support your camera.

Check:

• Camera dimensions
• Camera weight
• Mounting points
• Lens clearance
• Cable routing

2. Check the Payload Capacity

The gimbal must be able to support the complete camera setup.

Consider the weight of:

• Camera body
• Lens
• Accessories
• Cables

3. Choose the Number of Axes

Choose a 2-axis gimbal for simpler stabilization requirements or a 3-axis gimbal when stabilization across pitch, roll, and yaw is required.

4. Check Power Requirements

Verify the gimbal's operating voltage and power requirements against the drone's power system.

5. Check Mounting Compatibility

Make sure the gimbal can be securely mounted to the drone frame.

6. Check Control Compatibility

Some gimbals can be controlled by:

• Flight controllers
• Remote controllers
• Dedicated gimbal controllers
• PWM interfaces
• Serial communication systems

Check the specific product requirements before purchase.

Drone Gimbal Applications

Drone gimbals can be used for:

• Aerial photography
• Videography
• FPV systems
• Inspection drones
• Surveying
• Mapping
• Real-estate photography
• Wildlife observation
• Industrial inspection
• DIY UAV projects
• Cinematic drone builds

Drone Gimbal vs FPV Camera

Explore Drone FPV Camera for FPV camera systems.

Drone Gimbal Components

A complete gimbal system may contain:

• Gimbal frame
• Brushless motors
• IMU/sensors
• Gimbal controller
• Camera mounting plate
• Vibration-damping components
• Wiring and connectors

Each component needs to work together for proper stabilization.

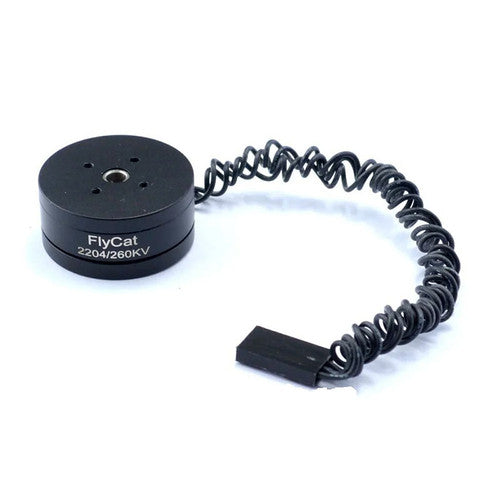

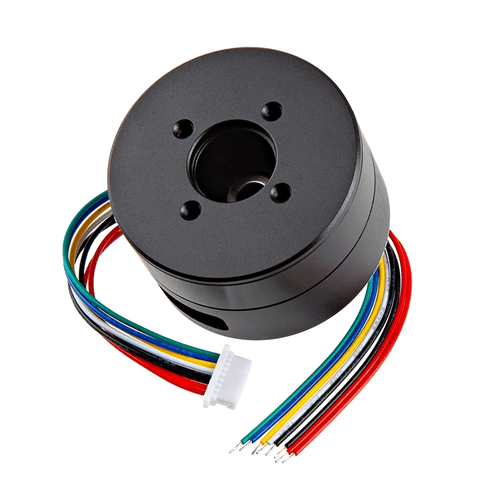

Gimbal Motors

Gimbal motors provide the mechanical movement required to compensate for unwanted camera motion.

The correct motor depends on:

• Camera weight
• Gimbal size
• Required torque
• Operating voltage
• Gimbal design

Explore Motors for related motor components.

Gimbal Installation

Step 1: Disconnect the Drone Battery

Always disconnect power before installing or wiring a gimbal.

Step 2: Mount the Gimbal

Secure the gimbal firmly to the drone's mounting structure.

Step 3: Install the Camera

Position the camera according to the gimbal manufacturer's instructions.

Step 4: Connect Power

Use the correct voltage and connector.

Step 5: Connect Control Wiring

Connect the gimbal to the appropriate controller or flight-control system if required.

Step 6: Balance the Camera

A properly balanced camera reduces the load on the gimbal motors.

Step 7: Configure the Gimbal

Complete any required calibration or controller configuration.

Step 8: Test Before Flight

Verify movement and stabilization while the drone is safely secured.

Safety Tip: Make sure the camera and gimbal are securely mounted before flight. Keep cables away from propellers and moving parts.

Why Does Gimbal Balance Matter?

A balanced camera allows the gimbal motors to operate more efficiently.

An unbalanced camera can cause:

• Excessive motor load
• Increased power consumption
• Reduced stabilization
• Motor heating
• Unwanted vibrations

Always follow the gimbal manufacturer's balancing instructions.

Common Drone Gimbal Problems

Drone Gimbal Maintenance

For reliable operation:

• Check mounting screws regularly.
• Keep gimbal motors free from obstructions.
• Inspect cables for damage.
• Keep moving parts clean.
• Check camera balance.
• Avoid impacts and hard landings.
• Calibrate when required.
• Check vibration-damping components.

Why Choose Drone Gimbals from Partsbaba.com?

• Suitable for compatible drone camera systems
• Options for different stabilization requirements
• Useful for drone repair and replacement
• Suitable for DIY UAV projects
• Camera mounting and stabilization applications
• Related drone electronics available
• Convenient online sourcing from Partsbaba.com

Explore Related Drone Collections

Find complementary drone products:

• Drone FPV Camera – Explore FPV cameras.
• Drone Boards – Browse drone PCBs and control boards.
• Drone Sensors – Find drone sensors.
• Drone Motors – Explore motors.
• Drone Remote – Browse remote controllers.
• Drone Connectors – Find drone connectors.
• Drone Frame – Explore drone frames.
• Drone Propeller – Browse drone propellers.

Frequently Asked Questions

What is a drone gimbal?

A drone gimbal is a camera mounting and stabilization system that uses mechanical movement to reduce unwanted camera motion during flight.

What is the difference between a 2-axis and 3-axis gimbal?

A 2-axis gimbal stabilizes two rotational axes, while a 3-axis gimbal generally stabilizes pitch, roll, and yaw.

Can any camera be installed on a drone gimbal?

No. The camera must fit the gimbal's payload capacity, mounting dimensions, balance requirements, and control/interface specifications.

Why does my drone gimbal shake?

Possible causes include poor camera balance, vibration, loose mounting, incorrect calibration, excessive motor load, or a mechanical problem.

Does a drone gimbal need power?

Active gimbals generally require electrical power to operate their motors and control electronics.

How do I choose a drone gimbal?

Check the camera weight, camera dimensions, number of axes, payload capacity, power requirements, mounting configuration, control interface, and drone compatibility.

Shop Drone Gimbals at Partsbaba.com

Find Drone Gimbals at Partsbaba.com for aerial photography, videography, inspection drones, FPV projects, UAV builds, and compatible camera-stabilization applications.

Explore Drone Gimbals at Partsbaba.com and find the right stabilization solution for your drone camera setup.
