USB Connectors

The USB 2.0 Female Printer Socket to 4-Pin 90 Degree Connector is a compact connector assembly designed for compatible computer, printer, and electronic applications. It combines a USB 2.0 female printer-style socket with a 4-pin connector in a 90-degree right-angle configuration, making it suitable for installations where connector orientation and available space are important. The right-angle design can help position the connection neatly within compact electronic assemblies and may be useful for replacement, repair, maintenance, or custom connection applications. Finished in black, this connector can be used in compatible printer interfaces, computer hardware, embedded electronics, and other devices requiring the specified USB socket and 4-pin connector arrangement. Before installation, verify the pin configuration, connector dimensions, mounting arrangement, and interface requirements of the original component or device to ensure proper compatibility.

Standard USB 2.0 female printer socket with a 4-pin 90-degree connector for seamless computer connections.

Widely used Plug and Play connector

Widely used Plug and Play connector

Standard Type-C USB female connector / USB Port / USB Interface for universal compatibility with various devices, ensuring smooth data transfer and charging efficiency.

The USB B-type Female Right Angle PCB Mount is designed to provide a reliable and space-efficient connection for USB interfaces on printed circuit boards. Its right angle configuration optimizes layout flexibility, making it ideal for compact electronic assemblies. Equipped with durable contacts and a secure mounting style, this component ensures stable data transfer and power delivery. Compatible with standard USB B-type connectors, it suits a broad range of applications including printers, external hard drives, and industrial control systems.

• The right angle design maximizes board space by allowing horizontal mounting of USB connections.
• Engineered for consistent electrical performance with robust contact materials.
• Secure PCB mount ensures strong mechanical stability during device operation.
• Compatible with standard USB B-type male plugs for versatile device integration.
• Ideal for use in environments requiring reliable data and power connectivity.

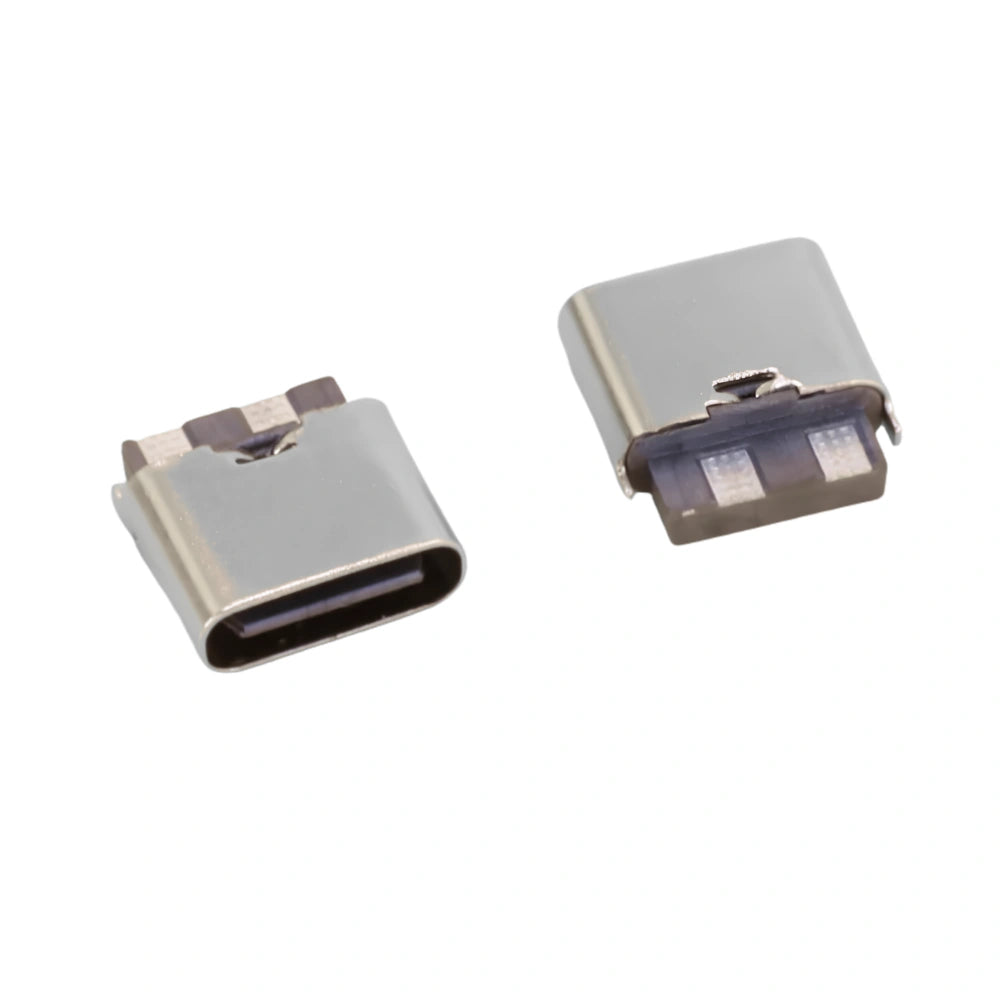

USB Type-C 2P Power Connector with Wire Solder Points – Power Only

The USB Type-C 2P Power Connector is a compact USB-C power socket designed specifically for power-only applications. With two solder points and a wire connection, it provides a simple way to add a USB Type-C power input to DIY electronics, custom devices, battery-powered projects, and other circuits that require a convenient USB-C power connection.

Unlike full-featured USB Type-C connectors designed for data communication, this 2P USB-C power connector is intended for basic power input applications. It is suitable when a project only requires power from a USB Type-C cable and does not need USB data transfer.

Key Features

• Power-Only Design: Intended for supplying electrical power and does not provide USB data connectivity.
• 2-Pin Configuration: Uses two solder connection points for the power circuit.
• USB Type-C Interface: Allows a compatible USB-C cable to be used as the external power source.
• Wire Solder Connection: Designed for direct soldering into compatible circuits or wiring.
• Compact Size: Suitable for small electronic devices and space-constrained DIY projects.
• Easy Integration: Useful for adding a USB-C power input to custom electronic circuits and enclosures.

Applications

The USB-C 2P power connector is suitable for applications where USB Type-C is being used only as a power input, including:

• DIY electronics projects
• Custom USB-C power inputs
• Battery-powered electronic devices
• Small charging and power projects
• LED and lighting projects
• Microcontroller projects requiring USB-C power
• Embedded electronics
• Custom electronic enclosures
• Repair and replacement applications

Power-Only USB-C Connection

This connector is designed for a straightforward power connection using a USB Type-C interface. The 2P configuration provides the necessary power connection for compatible circuits without implementing the complete set of contacts found in a full USB-C data connector.

This product does not support USB data transfer. It should be selected only when the application requires power input and does not require USB communication, USB data transfer, or advanced USB Type-C features.

Why Choose a 2P USB-C Power Connector?

USB Type-C cables are widely available, making them convenient power sources for DIY and custom electronics. A dedicated USB Type-C power-only socket allows designers and hobbyists to incorporate a modern USB-C input into a circuit without using a larger or more complex multi-pin connector.

The simple two-point solder configuration also makes the connector suitable for basic power wiring and custom electronics where only positive and negative power connections are required.

Product Specifications

Installation Information

Before installation, identify the positive and negative connections according to the product's pinout and your circuit requirements. Solder the connector carefully to the appropriate power connections and ensure that the joints are secure.

Always verify polarity, input voltage, current requirements, and cable compatibility before connecting a power source. Incorrect wiring can damage the connector or connected electronic components.

Because USB Type-C power systems can have specific electrical requirements, do not assume that every USB-C charger will provide the same voltage or current to a simple 2-pin power connector. Verify the requirements of your particular circuit before use.

Package Includes

• 1 × USB Type-C 2P Power Connector with Wire Solder Points

Frequently Asked Questions

What is a USB Type-C 2P connector?

A USB Type-C 2P connector is a simplified USB-C power connector using two connection points, intended for power-only applications.

Does this USB-C connector support data transfer?

No. This 2P version is designed for power only and should not be used when USB data communication is required.

Can I use this connector for DIY electronics?

Yes. It is suitable for compatible DIY electronics, embedded projects, custom devices, lighting projects, and other applications requiring a USB-C power input.

Does it support USB-C fast charging?

Do not assume that this connector supports USB-C Power Delivery or fast-charging protocols. The connector is intended for basic power-only applications, and the complete charging configuration depends on the circuit design.

How many solder points does this connector have?

This product uses a 2-pin configuration for the power connection.

Can I use any USB-C charger with it?

Compatibility depends on the electrical requirements of your circuit and the capabilities of the USB-C power source. Verify the required voltage, current, and charging configuration before use.

This USB 2.0 A-Type Female connector features a 4-pin design with a black casing, ideal for custom wire soldering projects. Designed to provide reliable connectivity for USB 2.0 devices, it supports standard data transfer rates and fits various DIY electronics applications. Its compact form factor ensures easy integration into a range of components requiring a robust and straightforward USB connection point.

• 4-pin configuration ensures compatibility with standard USB 2.0 wiring schemes for seamless data and power transmission.
• Durable black housing offers protection for soldered connections while maintaining a sleek appearance for custom builds.
• Engineered for DIY soldering, this connector provides flexibility for electronics enthusiasts and repair projects.
• Supports USB 2.0 data transfer speeds, suitable for peripherals requiring stable and efficient communication.
• Compact design fits easily into various component-level integrations, enhancing versatility in electronic assemblies.
• Reliable construction guarantees consistent performance in custom USB cable and device setups.

The USB 2.0 A-Type Plug Male with 4 pins is designed for DIY wire soldering projects, offering a reliable connection for various electronic devices. This black connector is suitable for custom cable assemblies, enabling users to create or repair USB cables with precision. Its compact design and standard USB 2.0 compatibility ensure broad use with many peripherals, combining ease of installation with durable performance for hobbyists and professionals alike.

• Standard USB 2.0 A-Type connector designed for straightforward DIY wire soldering applications
• Four-pin configuration supports reliable data transfer and power delivery
• Durable black casing provides protection and a sleek appearance
• Compatible with a wide range of USB peripherals including keyboards, mice, and external drives
• Ideal for custom cable repair and assembly allowing personalized electronic solutions
• Compact size facilitates easy integration within tight spaces

Widely used Plug and Play connector

Widely used Plug and Play connector

The USB 3.0 A-type Female Right Angle connector is a durable electronic component designed for PCB mounting with through-hole technology. Featuring 9 pins, this connector supports high-speed data transfer and reliable connectivity. Its right-angle design optimizes space on circuit boards, making it ideal for compact electronics and devices requiring efficient USB 3.0 interfaces. Compatible with standard USB 3.0 A-type plugs, it ensures seamless integration in various applications where robust USB connections are essential.

• Right-angle orientation conserves board space for compact electronic designs
• Through-hole mounting delivers strong mechanical stability on the PCB
• 9-pin configuration supports USB 3.0 high-speed data transmission
• Durable female connector ensures consistent and secure USB device connections
• Compatible with standard USB 3.0 A-type plugs for versatile device integration
• Ideal for embedded systems and custom electronic assemblies requiring USB ports

Widely used Plug and Play connector

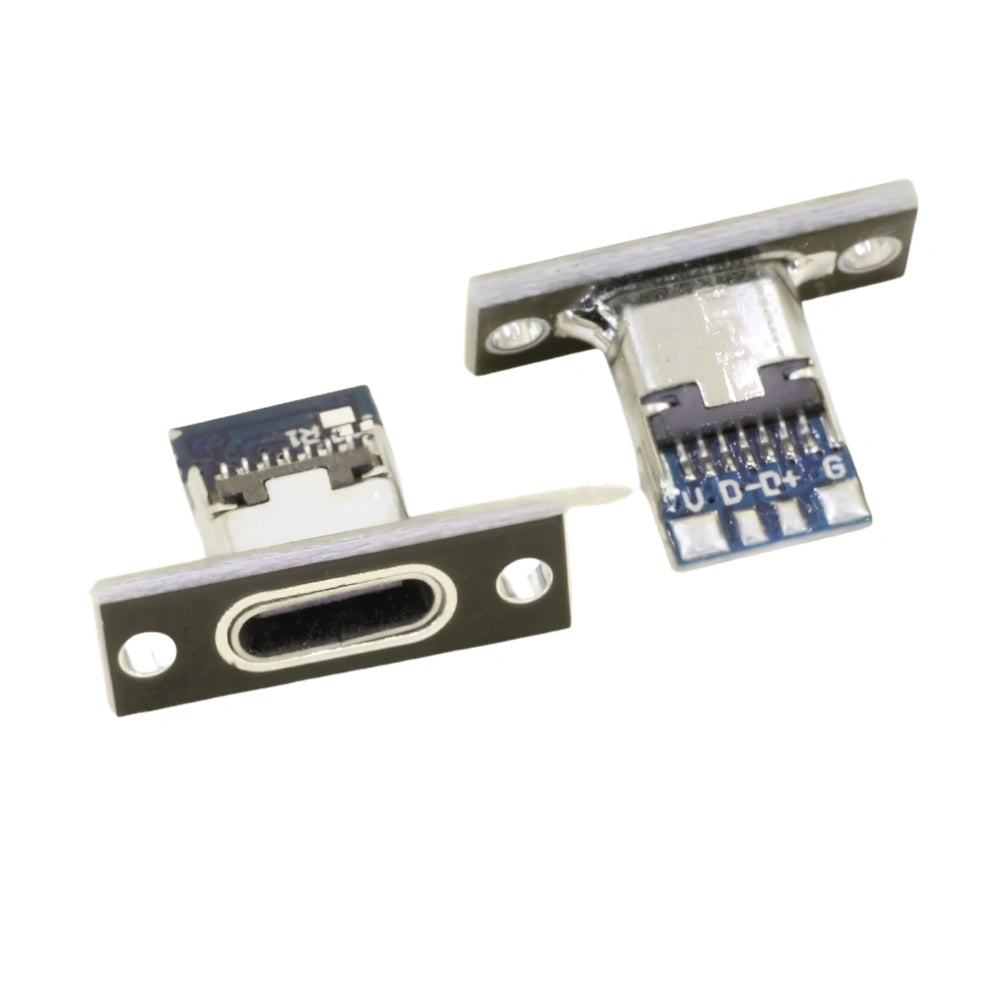

USB Type-C 4P Panel Mount Data + Power Connector

The USB Type-C 4P Panel Mount Connector is a compact USB-C socket designed for integrating a USB Type-C connection into custom enclosures, electronic equipment, DIY projects, control panels, and other applications where a panel-mounted data and power interface is required.

With a 4-pin (4P) configuration, this connector is intended for basic USB Type-C data and power connectivity in compatible electronic designs. Its panel-mount construction allows the USB-C interface to be positioned on the exterior of an enclosure while the connection is made to the internal circuit or wiring.

Key Features

• USB Type-C Interface: Provides a compact USB-C connection for compatible data and power applications.
• 4-Pin Configuration: Designed with a 4P contact arrangement for suitable basic USB-C circuit applications.
• Panel Mount Design: Allows the connector to be installed through an enclosure or panel.
• Data + Power Connection: Suitable for compatible projects requiring both electrical power and basic data connectivity.
• Compact Construction: Useful for space-constrained electronic enclosures and custom equipment.
• DIY Friendly: Suitable for electronics prototyping, repairs, custom enclosures, and embedded projects.

Applications

The USB-C panel mount connector can be used in a variety of electronic and DIY applications, including:

• Custom electronic enclosures
• DIY USB-C projects
• Embedded electronics
• Control panels and equipment enclosures
• Robotics and automation projects
• Portable electronic devices
• Charging and power interfaces
• Custom computer and electronics builds

Why Use a USB Type-C Panel Mount Connector?

Adding a USB Type-C port directly to an enclosure can make a custom electronic device easier to connect, power, or service. A USB Type-C panel mount socket provides a convenient external interface while keeping the internal circuit and wiring protected inside the enclosure.

The compact design is particularly useful for custom electronics where a standard USB cable needs to be connected from outside the housing. It can also help create a cleaner and more accessible connection point compared with routing a loose cable through an enclosure.

4P Configuration

This product uses a 4-pin configuration. Because USB Type-C connectors are available in many different configurations, a 4P connector should not automatically be assumed to support every USB-C function.

Before integrating this connector into a circuit, verify the pinout and electrical specifications of the exact product. In particular, confirm which contacts are intended for power, ground, and data, and ensure that the circuit design matches the connector configuration.

Product Specifications

Installation Information

Install the USB Type-C 4P panel mount connector securely in the appropriate enclosure or mounting panel. Connect the internal contacts according to the product's verified pinout and the requirements of your circuit.

Before connecting a power source, carefully check the wiring, polarity, grounding, and data connections. Incorrect wiring can damage the connector or connected electronic components.

For custom electronics, confirm the required USB functionality before installation. A 4-pin USB-C connector may not provide all features supported by a full-featured USB Type-C receptacle.

Package Includes

• 1 × USB Type-C 4P Panel Mount Data + Power Connector

Frequently Asked Questions

What is a USB Type-C 4P panel mount connector?

It is a USB Type-C female socket with a 4-pin configuration designed to be mounted through an electronic enclosure or panel for compatible data and power applications.

What does 4P mean?

4P refers to the connector's four-pin contact configuration. The exact functions of these pins should be confirmed from the product's pinout before wiring.

Can this connector be used for both data and power?

It is intended for data and power applications as specified for the product. However, the exact supported functions depend on its pin configuration and circuit design.

Can I use it for USB-C charging?

It may be suitable for compatible charging applications, but the supported voltage, current, USB-C charging configuration, and pinout should be verified before use.

Is this a panel-mount connector?

Yes. The connector is designed to provide a USB Type-C interface through an enclosure or mounting panel.

Does it support USB 3.0 or USB-C Power Delivery?

Do not assume that it supports USB 3.x speeds or USB Power Delivery. Those features require specific electrical and pin configurations. Verify the exact specifications of the connector before designing the circuit.

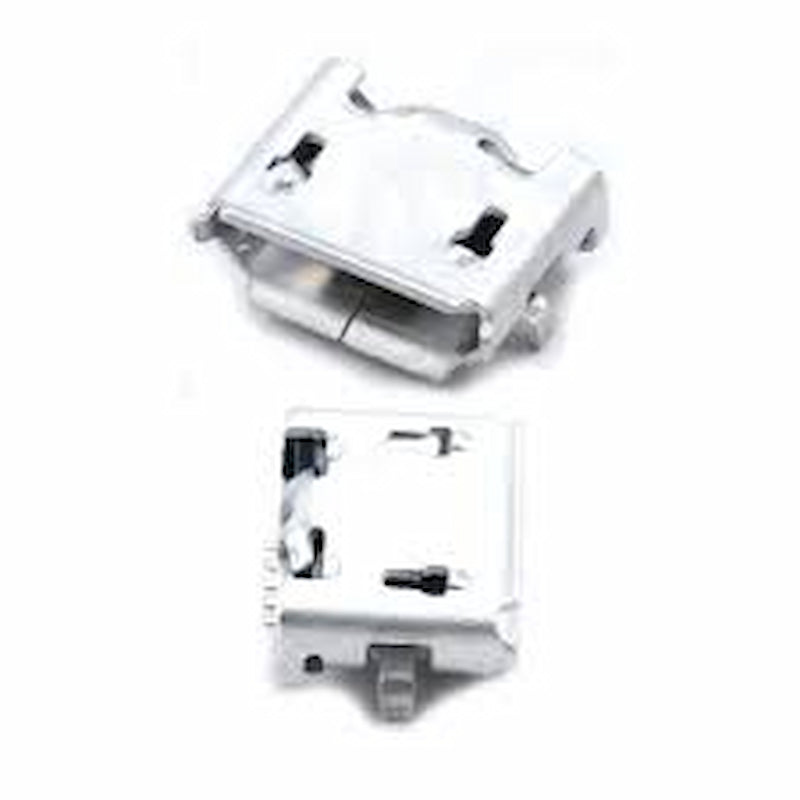

Micro Type-B USB 2.0 Micro USB Connector / Micro B Socket / SMD Micro USB / Micro Charging Port / Micro USB Jack / Mobile USB Port with a 4-pin SMD design, model U251-041N-4BSG86. Suitable for compact and embedded electronic applications.

The 14mm USB Type-A Female Connector features a compact right-angle design with four pins and two bent legs, making it ideal for secure and efficient connections in tight spaces. This connector serves as a reliable interface for USB devices requiring Type-A female ports, ensuring stable data transfer and power delivery. Its precise construction supports versatile applications in electronics and cable assemblies where durable connections are essential.

• 14mm width offers a compact form factor suitable for space-constrained installations
• The right-angle orientation allows for flexible cable routing and reduces strain on connections
• Four-pin configuration supports standard USB data and power transmission
• Two bent legs provide enhanced mechanical stability when mounted on circuit boards
• Compatible with a wide range of USB Type-A cables and devices
• Designed for reliable performance in various electronic and cable assembly projects

The Mini USB 5 Pin Vertical Straight Mounting connector is a compact component designed for reliable data transfer and charging in various electronic devices. Its vertical straight mounting style ensures a secure fit on circuit boards, making it ideal for compact assemblies. This connector supports standard Mini USB 5 pin configurations, offering compatibility with a wide range of peripherals and embedded systems. Its sturdy construction guarantees durability in demanding applications.

• Vertical straight mounting design facilitates easy integration into tight circuit board layouts
• 5-pin Mini USB configuration ensures broad compatibility with common devices and accessories
• Constructed to withstand frequent connections and disconnections without loss of performance
• Compact form factor saves space while maintaining reliable electrical contact
• Ideal for use in embedded systems, portable electronics, and data transfer applications

The USB A-Type Plug Male with 4 pins is designed for DIY wire soldering projects, providing a reliable and straightforward connection solution. This component is ideal for creating custom USB cables or repairing existing ones. Its compact plug fits standard USB-A ports, ensuring broad compatibility for a variety of electronic devices and applications requiring USB connectivity. The straightforward 4-pin design simplifies soldering and wiring tasks, making it suitable for hobbyists and technicians alike.

• Standard USB-A male plug designed for easy integration with USB ports on numerous devices
• Four-pin configuration allowing straightforward and secure wire soldering for custom cable creation
• Durable construction ensures long-lasting connectivity and solder joint stability
• Compact size supports use in tight spaces and custom electronics projects
• Compatible with typical USB wiring standards for seamless integration into various USB applications
• Ideal for DIY enthusiasts and repair tasks requiring precise soldering of USB connections

The USB B-Type Female PCB Straight connector is a reliable component designed for secure and efficient connections on printed circuit boards. This connector supports USB interfaces, facilitating effective data transmission and power supply between devices. Its straight configuration ensures easy integration into various electronic assemblies, making it ideal for applications requiring durable and stable USB connections. Compatible with standard USB B-Type plugs, it is a practical choice for device manufacturers and repair professionals.

• Durable USB B-Type female interface ensures consistent connectivity for USB devices
• Straight PCB mount design allows straightforward installation on circuit boards
• Compatible with standard USB B-Type plugs for versatile use in multiple electronics
• Compact form factor supports space-efficient device designs
• Reliable data and power transmission suitable for a wide range of USB applications

The USB Type-C 3.1 Female 6pin connector is designed for efficient power delivery and charging applications. This vertical, reversible component supports fast and reliable connections, making it ideal for integration in modern electronic devices. Its compact design ensures compatibility with various USB Type-C cables and accessories, providing seamless connectivity for power and data transmission.

• Reversible design allows easy insertion without worrying about orientation.
• 6-pin configuration supports stable power and charging performance.
• Vertical mounting suits compact device layouts and circuit boards.
• USB Type-C 3.1 standard ensures compatibility with wide range of devices and cables.
• Durable construction supports long-lasting reliable connections.
• Optimized for charging applications, providing efficient power delivery.

The Micro USB 10 pin Type B 3.0 SMD is a compact connector designed for seamless data transfer and charging applications. Engineered for surface-mount technology (SMT) installation, this connector supports USB 3.0 standards to ensure faster data rates and improved power delivery. Its 10-pin configuration is compatible with various electronic components requiring reliable and efficient connectivity, making it ideal for modern devices and embedded systems.

• USB 3.0 compliant for enhanced speed and performance over previous USB versions
• Compact 10-pin Type B layout suited for precise surface-mount assembly
• Designed to integrate easily into a wide range of electronic components and devices
• Supports Plug and Play functionality for quick and hassle-free connections
• Surface-mount design enables efficient PCB space utilization in compact builds
• Reliable data and power transfer suitable for embedded systems and peripherals

Widely used Plug and Play connector

• USB Type-C Male Connector: Provides a convenient USB Type-C interface for connecting devices, modules, and electronic circuits.
• 16-Pin Breakout Design: Breaks out the 16 pins of the Type-C connector for easy access and prototyping.
• Easy to Use: Designed for simple connection and testing without requiring complex PCB fabrication.
• PCB Mountable: Compact breakout board can be easily integrated into DIY projects, prototypes, and development setups.
• Convenient Pin Access: Clearly arranged breakout connections make soldering, wiring, and signal testing easier.
• Power & Data Applications: Suitable for USB Type-C power, charging, and data communication projects, depending on the circuit design.
• Compact & Lightweight: Small form factor helps save space in electronic projects and prototypes.
• Versatile Applications: Ideal for Arduino, ESP32, microcontroller projects, DIY electronics, USB interfaces, and custom circuits.
• Prototype Friendly: Useful for engineers, students, makers, and electronics hobbyists for quick USB Type-C experimentation.
• Easy Integration: Can be connected to jumper wires, headers, or other components for flexible project development.

The 14mm Female USB A Connector with 2 straight legs and 4 pins is designed for reliable data and power connections in compact electronic assemblies. Featuring a durable iron body and a right-angle design, this connector ensures secure fitting in tight spaces while maintaining stable electrical performance. Ideal for use in various cable assemblies, it supports straightforward integration with USB A interfaces, making it suitable for a wide range of devices and component setups.

• The 14mm female USB A form factor fits standard USB A connections for versatile compatibility.
• A sturdy iron body guarantees long-lasting durability and resistance to wear.
• Right-angle construction with 2 straight legs and 4 pins allows for neat and compact circuit board layouts.
• Designed to provide secure and stable electrical contacts for consistent data transfer.
• Suitable for integration in cable assemblies requiring space-efficient connectors.
• Compatible with a variety of USB A cable and device configurations for flexible use.

The Micro USB 2.0 - 5 pin DIY Wire Solder in white is a versatile electronic component designed for custom wiring projects and repairs. Ideal for hobbyists and professionals alike, this connector supports standard Micro USB 2.0 connectivity with five pins to ensure reliable data transfer and power delivery. Its straightforward soldering design makes it compatible with various DIY applications, including charging cables, data cables, and embedded device connections.

• Features a compact 5-pin Micro USB 2.0 interface for dependable connection quality
• White casing offers a clean, professional look suitable for visible wiring setups
• Designed for easy soldering, making it perfect for custom cable creation and repair tasks
• Supports standard Micro USB 2.0 specifications, ensuring broad compatibility across devices
• Durable construction built to maintain stable electrical performance during frequent use
• Ideal for electronics projects requiring secure and compact USB connections

The USB Type-C 6P USB 180 DIP 10.5mm connector is designed for reliable, high-speed data transmission and power delivery in electronic devices. With its 6-pin configuration and sturdy DIP mounting style, it ensures a secure connection for USB Type-C applications. This component is ideal for compact setups requiring a precise 10.5mm pitch, supporting modern USB standards and versatile device compatibility.

• 6-pin layout optimized for efficient USB Type-C data and power transfer
• 180-degree DIP design allows easy PCB mounting with enhanced mechanical stability
• 10.5mm pitch ensures precise fit for compact electronic assemblies
• Built to support current USB protocols, accommodating a wide range of devices
• Durable construction designed to maintain consistent connections in demanding environments
• Compact form factor suitable for integration in space-constrained hardware

Widely used Plug and Play connector

Widely used Plug and Play connector

USB Type-C 2P Vertical TH Power Connector – Power Only

The USB Type-C 2P Vertical TH Power Connector is a compact USB-C socket designed for power-only applications on printed circuit boards. Its vertical through-hole (TH) mounting configuration allows the connector to be soldered directly onto a compatible PCB, making it suitable for DIY electronics, embedded systems, custom devices, and PCB-based power projects.

This 2P USB Type-C connector is designed for basic power input rather than USB data communication. It provides a convenient USB Type-C interface for projects that require a compact power connection while keeping the connector mounted directly to the circuit board.

Key Features

• USB Type-C Interface: Provides a modern USB-C connection for compatible power-input applications.
• 2-Pin Configuration: Designed for basic two-point power connection.
• Vertical Through-Hole Mounting: Designed to be soldered directly into compatible PCB holes.
• Power Only: Intended for power input and does not provide USB data-transfer functionality.
• PCB Mount Design: Provides a secure board-mounted connection for custom electronics.
• Compact Construction: Suitable for space-conscious PCB designs and small electronic devices.

Applications

The USB-C 2P vertical TH connector can be used in a variety of power-only electronic applications, including:

• DIY electronics projects
• Custom PCB designs
• Embedded electronic devices
• Microcontroller projects
• Battery-powered electronics
• LED and lighting projects
• Small charging and power circuits
• Custom electronic enclosures
• PCB repair and replacement applications

What Does Vertical TH Mean?

TH stands for Through-Hole. Unlike surface-mount connectors, this connector is designed with terminals that pass through holes in the PCB and are soldered on the opposite side.

The vertical mounting orientation positions the USB Type-C interface perpendicular to the PCB surface. This configuration can be useful when the USB-C port needs to face outward from a PCB or enclosure.

Power-Only USB Type-C Connector

This product is specifically intended for power-only applications. The 2P configuration does not provide the complete pin configuration required for standard USB data communication.

It should therefore be used when a project requires USB Type-C as a convenient power-input interface rather than a full USB data connection.

Do not assume that this connector supports USB 3.x, USB 2.0 data transfer, USB Power Delivery, or fast-charging protocols. Those functions require additional electrical and circuit configurations.

Product Specifications

Installation Information

Install the connector into the corresponding PCB through-holes and solder the terminals securely. Make sure the connector is correctly aligned with the PCB footprint before soldering.

Before connecting a USB-C power source, verify the positive and negative connections, PCB layout, input voltage, and current requirements of the circuit. Incorrect wiring or an incompatible PCB footprint can result in malfunction or component damage.

For a reliable installation, ensure that the connector is mechanically secure and that there are no unintended solder bridges between adjacent contacts.

Package Includes

• 1 × USB Type-C 2P Vertical TH Power Connector

Frequently Asked Questions

What is a USB Type-C 2P Vertical TH connector?

It is a two-pin USB Type-C connector designed for power-only applications and vertical through-hole mounting on a PCB.

What does TH mean?

TH means Through-Hole. The connector's terminals pass through holes in the PCB and are soldered to the board.

Is this connector for power only?

Yes. This 2P version is intended for power applications and does not provide standard USB data-transfer functionality.

What is the benefit of vertical mounting?

Vertical mounting positions the USB-C port perpendicular to the PCB, which can be useful when the connector needs to face outward from a circuit board or enclosure.

Does this connector support USB-C Power Delivery?

Do not assume USB Power Delivery or fast charging support. This is a 2P power-only connector and should be used according to the electrical design and specifications of the complete circuit.

Can I use this connector on any PCB?

No. The PCB must have a compatible through-hole footprint and electrical layout. Check the connector dimensions and pin configuration before designing or modifying the PCB.

Widely used Plug and Play connector
