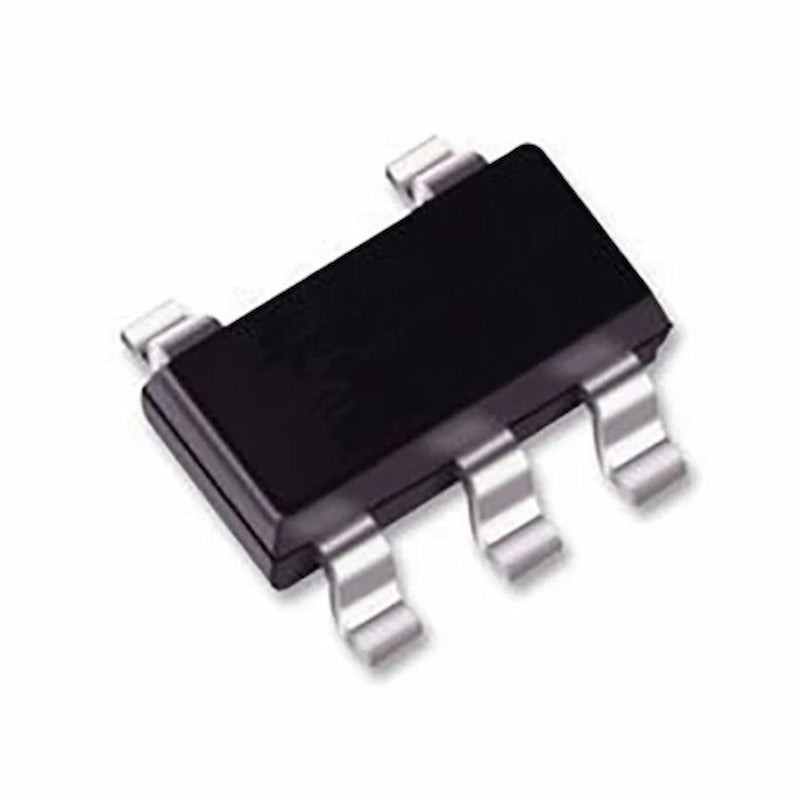

The DW01 is a compact and efficient battery protection IC designed for single-cell Lithium-ion and Lithium-polymer batteries. It plays a crucial role in safeguarding battery packs by monitoring voltage and current conditions, ensuring safe charging and discharging operations.

Key Features:

• Comprehensive Battery Protection: Protects against overcharge, over-discharge, overcurrent, and short-circuit conditions
• Accurate Voltage Detection: Ensures precise control over battery charging and discharging thresholds
• Low Standby Current: Minimizes power consumption, making it ideal for battery-powered devices
• Automatic Recovery: Resumes normal operation once fault conditions are removed
• SOT-23-6 Package: Small and lightweight, perfect for compact PCB layouts
• External MOSFET Control: Works with external MOSFETs for complete protection circuit implementation

Applications:

• Single-cell Li-ion / Li-Po battery packs
• Mobile phones and tablets
• Power banks and portable chargers
• Bluetooth devices and wearables
• Consumer electronics and DIY battery projects

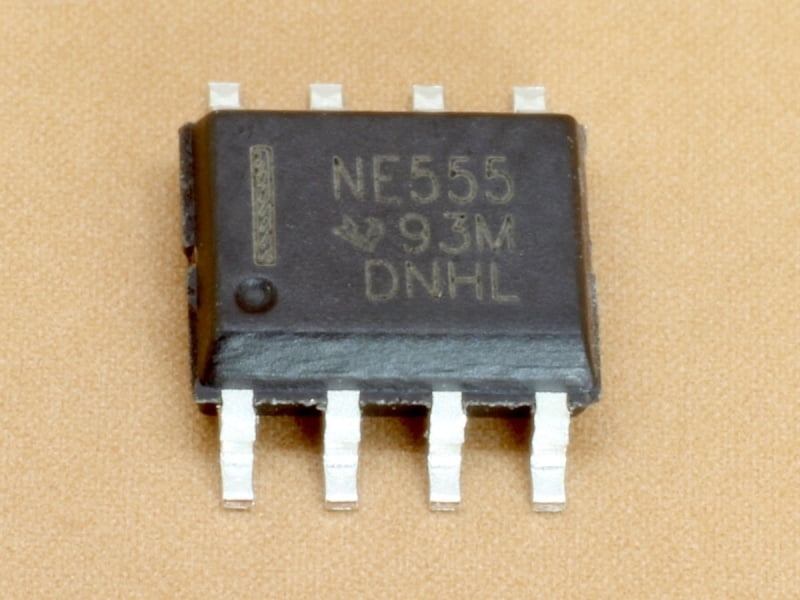

The NE555 NE555DR SOIC8 is a versatile integrated circuit timer designed for precision timing and pulse generation in a compact SOIC8 package. Ideal for a wide range of electronic applications, this component offers reliable performance in oscillators, timers, and pulse generation circuits. Its compatibility with standard 555 timer configurations makes it suitable for both hobbyist and professional projects requiring stable timing solutions.

• Compact SOIC8 package ensures easy integration on printed circuit boards with limited space.
• Offers precise timing control for oscillators and pulse generation, enhancing circuit accuracy.
• Compatible with standard 555 timer configurations, supporting a wide variety of electronic designs.
• Reliable operation across various voltage and temperature ranges, suitable for diverse environments.
• Widely used in applications such as timers, pulse generators, and waveform generators for flexible use.

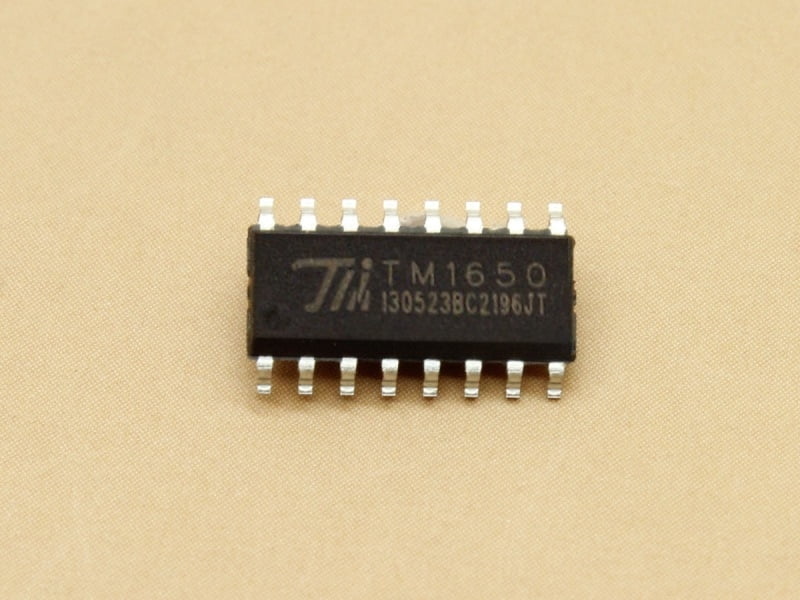

The TM1650 is a versatile LED display and keypad driver designed for seamless integration in various electronic components. It efficiently manages both the LED display and keypad interface, making it ideal for devices requiring user interaction and clear visual feedback. Compatible with a wide range of microcontrollers, this component supports applications in consumer electronics, industrial controls, and communication devices, delivering reliable performance and straightforward connectivity.

• Integrates LED display control and keypad scanning into a single compact chip
• Supports multiple display types for flexible design options
• Offers easy interfacing with common microcontroller platforms
• Enhances user experience with accurate keypad detection and visual output
• Reduces system complexity by combining two functions in one component
• Optimized for low power consumption in embedded systems

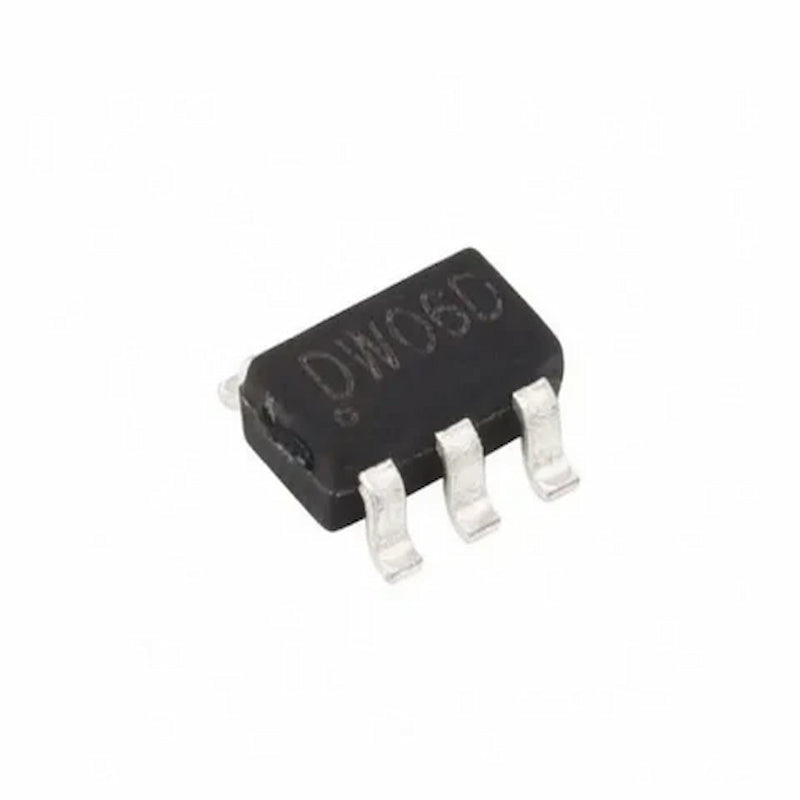

The DW06D is a highly reliable battery protection IC designed specifically for single-cell Lithium-ion and Lithium-polymer battery packs. It provides essential safety features by protecting batteries from overcharge, over-discharge, overcurrent, and short-circuit conditions, ensuring longer battery life and safe operation.

Key Features:

• Complete Battery Protection: Safeguards against overcharge, over-discharge, overcurrent, and short circuits
• Precision Voltage Detection: Accurate threshold levels for reliable battery management
• Low Power Consumption: Optimized for energy-efficient battery-powered applications
• Automatic Recovery Function: Restores normal operation once safe conditions are met
• Compact SOT-23-6 Package: Ideal for space-constrained PCB designs
• High Stability & Reliability: Designed for long-term use in portable electronics

Applications:

• Single-cell Li-ion / Li-Po battery packs
• Power banks and portable chargers
• Mobile phones and handheld devices
• Bluetooth devices and wearables
• DIY battery protection circuits

High Performance with the STM8S 001J3 microcontroller

Designing compact embedded systems often requires a balance between power and size. Many developers struggle because standard chips consume too much space or energy. The STM8S 001J3 microcontroller solves this issue by offering a powerful 16MHz CPU in a tiny 8-pin package. Since it integrates essential peripherals, you can reduce your overall component count significantly.

Efficient Processing with an 8-bit MCU

This STM8S 001J3 microcontroller features a robust 8KB flash memory for reliable data storage. While it is small, this 8-bit MCU also provides high efficiency for complex automation tasks. Specifically, the SOIC-8 package ensures easy soldering on high-density boards. Also, the 16MHz internal clock allows for rapid instruction execution without needing external oscillators.

Versatile Embedded Solutions

The internal architecture is designed for low power consumption without sacrificing performance. It handles diverse electronic development tasks while maintaining thermal stability. This component is ideal for modern automation where space is at a premium.

• 16MHz CPU Speed – Delivers fast processing power for real-time control applications.

• 8KB Flash Memory – Provides ample space for firmware and critical system data.

• 8-Pin SOIC Package – Minimizes PCB footprint so you can design smaller devices.

• Low Power Consumption – Extends battery life in portable or remote electronic sensors.

• Integrated Peripherals – Includes timers and communication interfaces for flexible system integration.

Component Specifications

Compatibility Table

Choosing the Right 8-bit MCU for Your Project

The STM8S 001J3 microcontroller is perfect for developers who need reliability in a small form factor. Because this 8-bit MCU supports various communication protocols, it integrates easily into existing networks. Purchase the STM8S 001J3 microcontroller today to start your next high-efficiency electronic development project.

The TP4066-4.2V is a compact and efficient linear charging IC designed for single-cell Lithium-ion and Lithium-polymer batteries. Housed in a DFN-8-EP package, this IC provides a complete constant-current/constant-voltage (CC/CV) charging solution with precise 4.2V regulation, making it ideal for portable and space-constrained electronic devices.

Key Features:

• Fixed 4.2V Charging Voltage: Optimized for standard Li-ion/Li-Po batteries
• Integrated Charging Control: Constant current and constant voltage operation
• Programmable Charging Current: Adjustable via external resistor
• No External MOSFET Required: Simplifies circuit design
• Thermal Regulation: Prevents overheating during charging
• Automatic Charge Termination: Stops charging when the battery is fully charged
• Recharge Function: Automatically resumes charging when battery voltage drops
• DFN-8-EP Package: Compact form factor with enhanced thermal performance

Applications:

• Mobile phones and handheld devices
• Power banks and portable chargers
• Bluetooth devices and wearables
• Embedded systems and IoT devices
• DIY battery charging modules

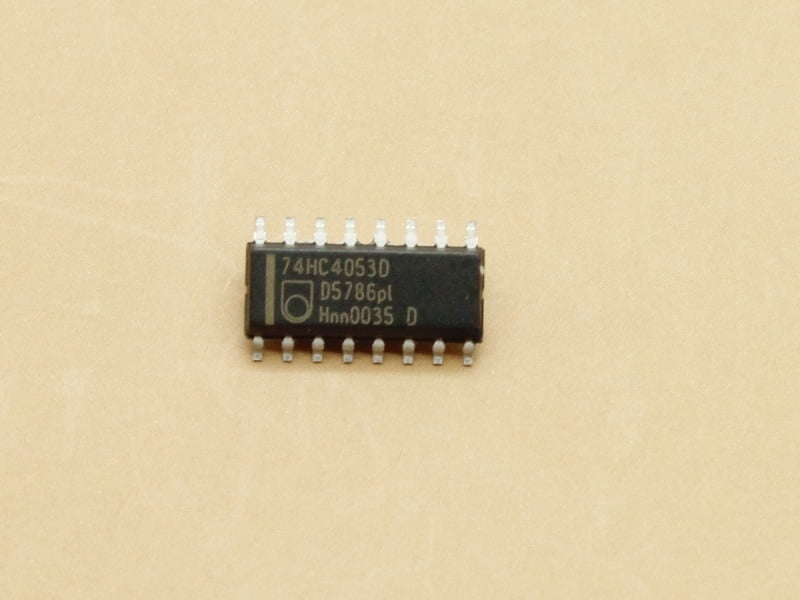

The 74HC4053 SMD is a versatile integrated circuit designed for switching applications in electronic projects. This component functions as a triple 2-channel analog multiplexer/demultiplexer, supporting efficient routing of analog or digital signals. Its surface-mount package ensures easy integration into compact circuit boards, making it suitable for various signal processing and multiplexing needs. Compatible with standard 5V logic systems, the 74HC4053 SMD is ideal for applications requiring precise signal control and switching in automation, communication, and instrumentation devices.

• Provides three independent 2-channel analog multiplexers for flexible signal routing
• Surface-mount device (SMD) format enables compact and efficient PCB layouts
• Operates reliably at standard 5V logic levels for broad compatibility
• Low ON resistance ensures minimal signal distortion during switching
• Suitable for analog and digital signal multiplexing in control and communication circuits
• High switching speed supports rapid signal changes without lag
• Designed for easy integration in automated and instrumentation systems

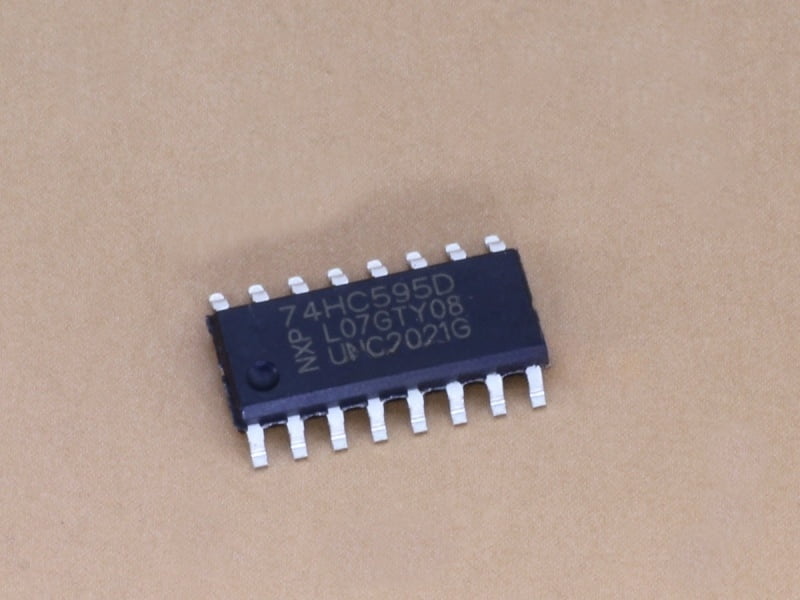

The 74HC595D NXP SO16 SMD is a versatile shift register component designed for digital electronics applications. It functions as an 8-bit serial-in, serial or parallel-out shift register, enabling efficient data storage and transfer. This surface-mount device (SMD) comes in a compact SO16 package, making it ideal for space-constrained circuit boards. Its compatibility with various microcontrollers and digital systems makes it suitable for extending output pins, LED driving, and other control applications in embedded system designs.

• 8-bit serial-in, parallel-out configuration offers flexible data handling for digital signals
• SO16 surface-mount package ensures compact integration on modern circuit boards
• High-speed CMOS technology supports efficient switching and low power consumption
• Compatible with common microcontrollers for seamless integration in embedded projects
• Simple cascading capability extends output lines for larger applications
• Reliable data storage facilitates consistent signal transmission and timing control
• Ideal for LED driving and display multiplexing in control and indicator circuits

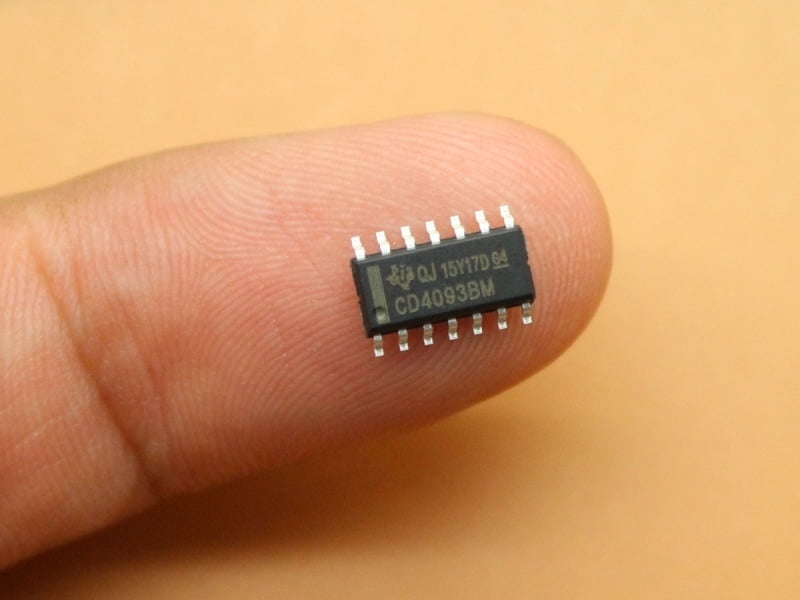

The CD4093 SMD is a versatile quad 2-input NAND Schmitt trigger integrated circuit designed for digital logic applications. Its primary function is to provide reliable NAND gate logic with built-in Schmitt trigger inputs, which offer enhanced noise immunity and signal conditioning. This component is ideal for use in timing circuits, waveform shaping, and switch debouncing. Compatible with standard CMOS voltage levels, the CD4093 SMD suits a wide range of electronic projects that require stable and precise logic operations.

• Four independent 2-input NAND gates with Schmitt trigger inputs improve signal stability and noise rejection.
• The SMD package enables compact circuit designs and easy surface mounting on printed circuit boards.
• Operating voltage range supports typical CMOS logic levels for broad compatibility across devices.
• Enhanced switching characteristics make it suitable for timing, pulse generation, and waveform shaping.
• Low power consumption supports efficient energy use in battery-powered applications.
• Wide temperature range ensures reliable operation in various environmental conditions.
• Ideal for debouncing mechanical switches and cleaning noisy input signals.

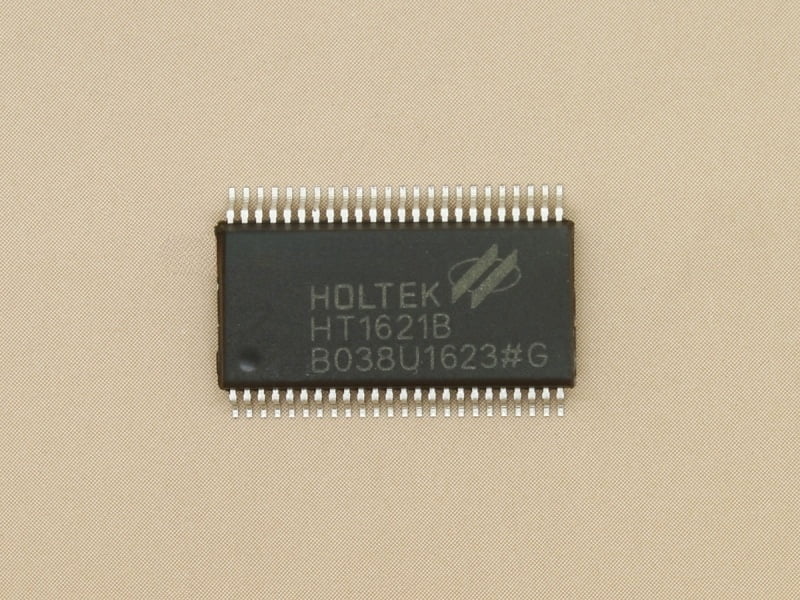

The HT1621B SSOP-48 Glass COG LCD Driver is a specialized electronic component designed to efficiently control glass COG LCD displays. It is tailored for integration in various display applications, managing segment and common driver signals to deliver clear and stable visuals. This driver supports multiple interface modes, ensuring broad compatibility with microcontrollers and other control units. Its compact SSOP-48 package facilitates easy incorporation into compact electronic systems where reliable LCD management is crucial.

• Supports glass COG LCD technology for crisp and reliable display performance
• Compatible with various interface modes, enhancing integration flexibility
• SSOP-48 packaging promotes compact and efficient circuit design
• Optimized for segment and common driver control in LCD applications
• Designed to maintain stable visual output in embedded systems
• Suitable for a wide range of electronic devices requiring LCD interaction

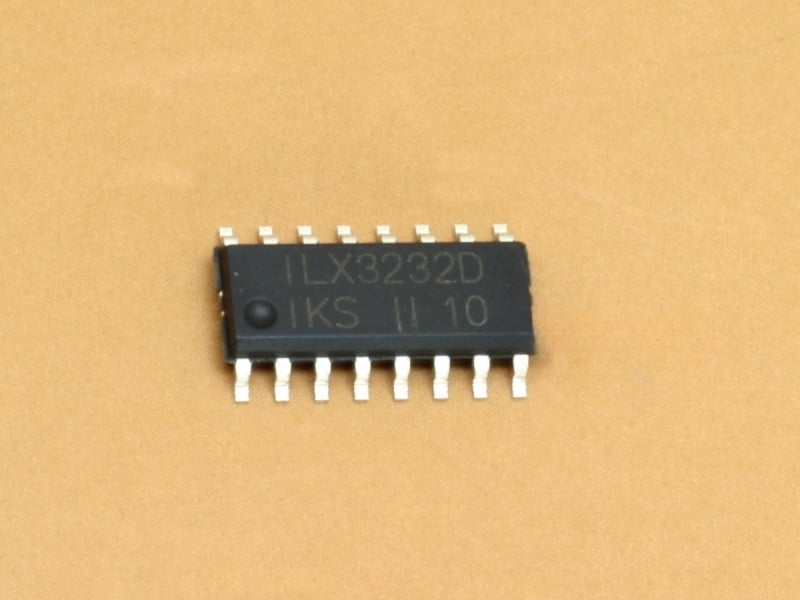

The ILX3232DT SOIC16 SMD RS232 Driver is a compact and reliable integrated circuit designed for efficient serial communication. Operating within a voltage range of 3.3 to 5 volts, this driver facilitates seamless data transmission by converting logic-level signals to RS232 voltage levels. Its surface-mount SOIC16 package ensures easy integration into modern electronic assemblies, making it suitable for a wide range of communication and control applications that require robust RS232 interfacing.

• Wide voltage compatibility supports operation from 3.3V to 5V, offering flexibility for various system designs.
• Compact SOIC16 package enables space-saving surface-mount assembly on printed circuit boards.
• Reliable RS232 signaling ensures stable data transmission for serial communication protocols.
• Low power consumption optimizes energy efficiency in embedded systems and portable devices.
• Integrated driver and receiver components simplify circuit design by consolidating functions into a single chip.
• Wide application range suitable for use in industrial control, networking equipment, and communication devices.

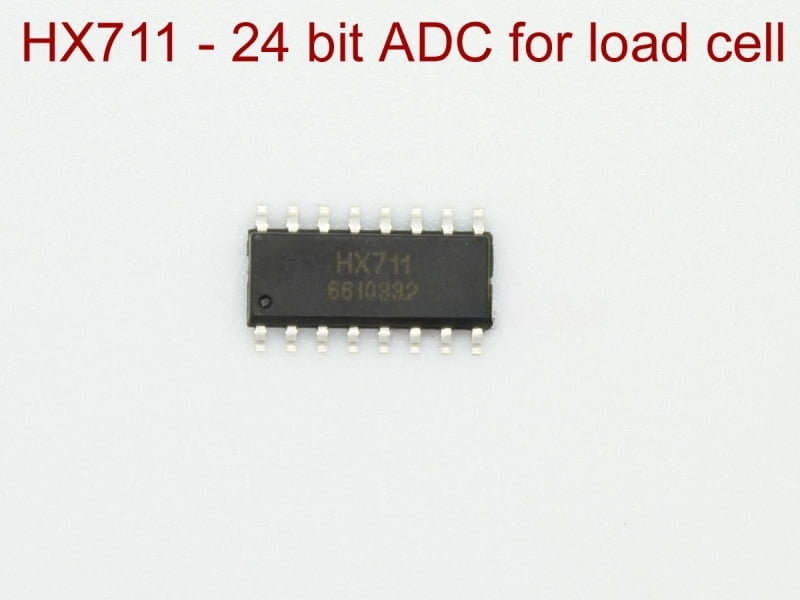

The HX711 SOIC16 is a 24-bit analog-to-digital converter designed specifically for precision load cell measurements. This compact IC excels in converting analog signals from strain gauges into high-resolution digital data, making it ideal for weighing scale applications and industrial sensors. Its compatibility with a wide range of load cells and straightforward integration with microcontrollers ensures reliable and accurate force measurement in embedded systems.

• 24-bit resolution provides highly precise digital conversion for load cell outputs.
• The SOIC16 package offers efficient space-saving integration into circuit designs.
• Optimized for bridge sensors, ensuring accurate amplification of strain gauge signals.
• Compatible with common microcontroller interfaces for seamless data acquisition.
• Designed for low noise and stable readings under varying environmental conditions.

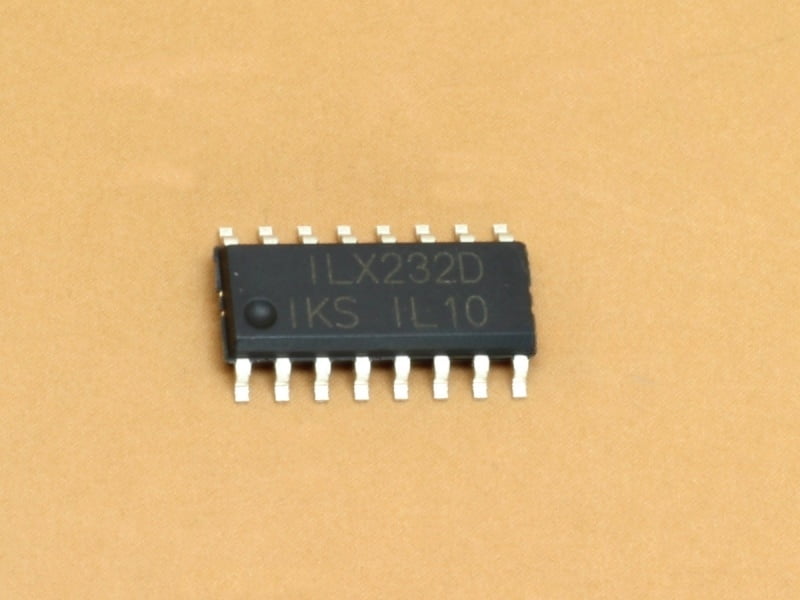

The ILX232DT SOIC16 is a highly reliable RS232 driver designed for surface-mount device (SMD) applications. Operating with a 5V supply voltage, it serves as an equivalent replacement for the MAX232, ensuring seamless communication between microcontrollers and RS232 serial devices. This component is ideal for embedded systems requiring efficient voltage level conversion and robust signal integrity in compact spaces.

• Operates at a standard 5V VCC to provide consistent RS232 signal levels suitable for most serial communication needs.
• SOIC16 surface-mount package allows for compact PCB designs and easy integration into modern electronics.
• Designed as a drop-in replacement for the MAX232, ensuring compatibility with existing designs and reducing development time.
• Facilitates reliable voltage level shifting between TTL and RS232 interfaces for stable data transmission.
• Supports a broad range of embedded and industrial applications requiring serial communication.
• Incorporates internal charge pumps to eliminate the need for external power supplies, simplifying circuit design.
• Ensures enhanced noise immunity and signal protection in demanding environments.

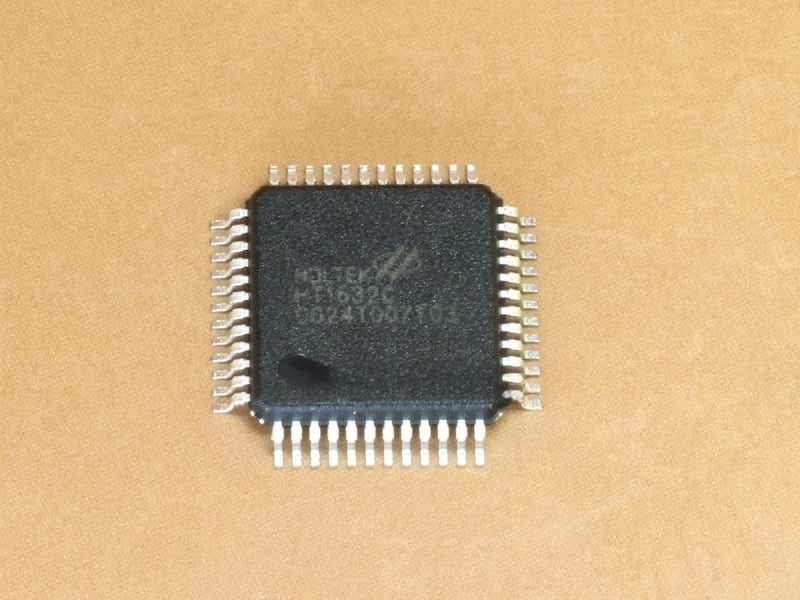

The HT1632C LQFP48 is a high-performance LED matrix driver designed for precise control of LED displays with a 7x7mm pitch and 0.5mm spacing. Built by Holtek, this compact component enables efficient driving of LED matrices, making it ideal for applications requiring detailed visual output. Its compatibility with various embedded systems ensures seamless integration for custom display projects and electronic designs.

• Compact LQFP48 package offers space-saving integration on circuit boards.
• Designed to drive LED matrices with a 0.5mm pitch, supporting fine display resolution.
• Delivers reliable control for 7x7mm pitch LED arrays, enhancing visual clarity.
• Optimized for compatibility with diverse electronic components and systems.
• Supports efficient power management to maintain system stability during operation.
• Ideal for embedded applications requiring detailed LED matrix control and display precision.

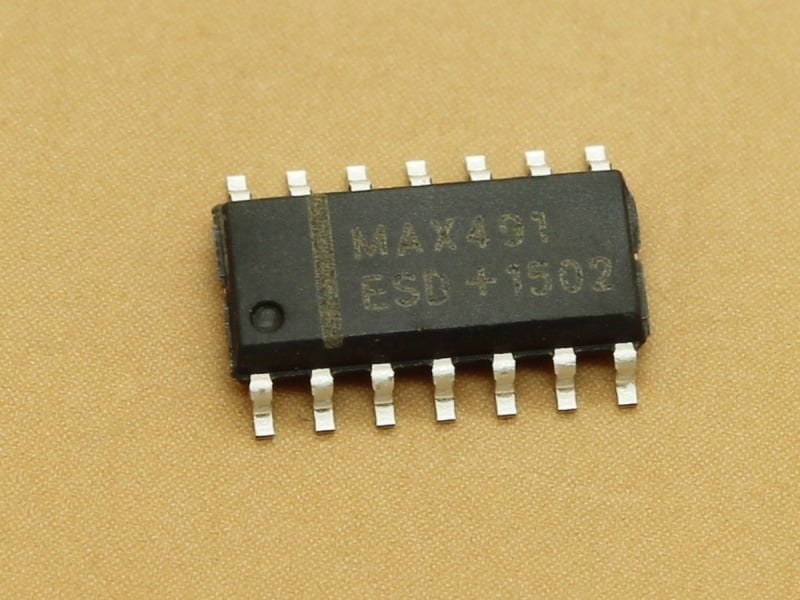

The MAX491 MAX491CSD MAX491ESD is a versatile SOIC14 transceiver designed for reliable RS485 and RS422 communication. Engineered for robust signal transmission in industrial and automotive environments, this component facilitates differential data transfer with high noise immunity. Its compatibility with standard RS485 and RS422 protocols makes it ideal for multi-point bus architectures, ensuring efficient and stable connectivity across diverse applications requiring balanced data communication.

• SOIC14 package offers a compact footprint that eases integration into various circuit designs.
• Supports both RS485 and RS422 standards to accommodate a wide range of communication needs.
• Delivers enhanced noise rejection, ensuring data integrity in electrically noisy environments.
• Optimized for multi-point network configurations, allowing multiple devices on the same bus.
• Designed to handle balanced differential signaling for improved transmission distance and reliability.
• Compatible with a broad array of industrial and embedded system applications requiring robust serial communication.

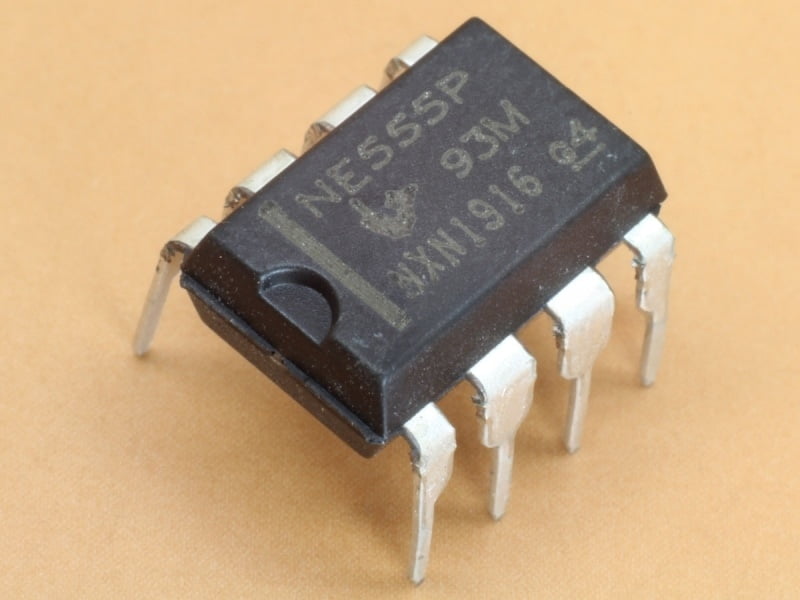

The NE555 NE555P DIP8 timer IC is a versatile and reliable component widely used in electronic circuits for generating precise time delays and oscillations. Encased in an 8-pin dual in-line package (DIP8), this integrated circuit offers compatibility with a broad range of applications such as timers, pulse generators, and oscillators. Its robust design supports stable operation in both monostable and astable modes, making it an essential building block for timing functions in various embedded and hobbyist projects.

• 8-pin DIP package ensures easy integration into standard breadboards and circuit boards
• Highly stable timing accuracy supports reliable delay generation and pulse width modulation
• Operates efficiently in both monostable and astable configurations for flexible timing control
• Compatible with a wide range of power supply voltages for diverse circuit designs
• Widely recognized and documented for straightforward implementation in electronics projects
• Ideal for use in oscillators, timers, and pulse generation across consumer and industrial devices

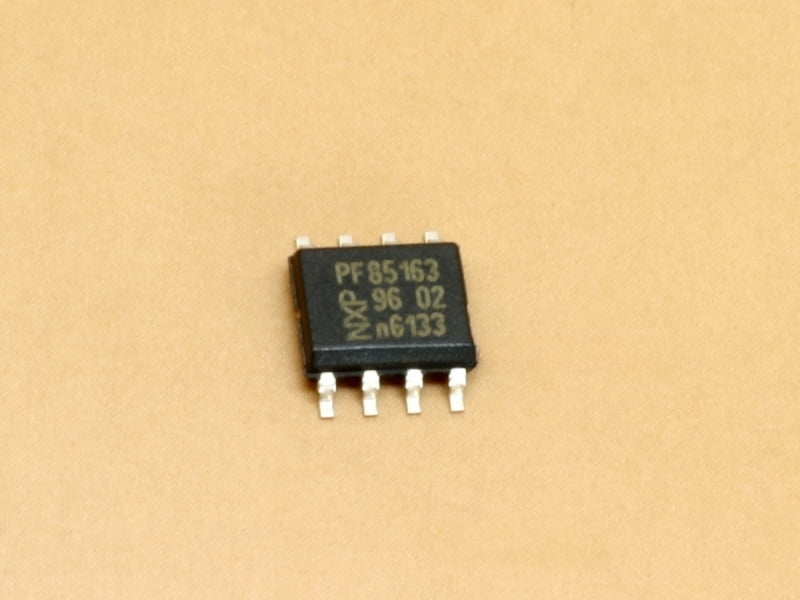

The PCF85163 SOIC8 from NXP is a reliable real-time clock (RTC) component designed as an equivalent to the PCF8563 model. This compact device ensures accurate timekeeping for embedded systems and microcontroller applications. Featuring low power consumption and a standard SOIC8 package, it integrates smoothly into a wide range of electronic circuits requiring precise calendar and clock functionality.

• Low power operation extends battery life in portable and embedded designs
• SOIC8 package allows for easy mounting on standard PCB layouts
• Compatible with microcontrollers needing real-time clock functionality for scheduling and time tracking
• Maintains accurate time and calendar data with minimal drift
• Designed to replace PCF8563 without hardware modification, ensuring seamless integration

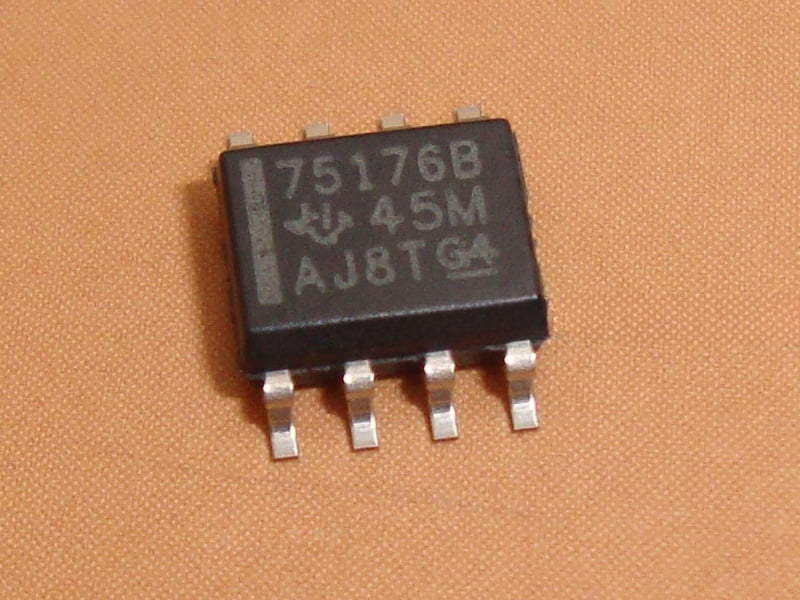

The SN75176 - SMD is a compact, surface-mount device designed for reliable data communication in industrial and commercial applications. It operates as a differential bus transceiver, facilitating balanced data transmission over long distances with enhanced noise immunity. This component supports half-duplex communication protocols and is compatible with various digital systems requiring robust signal integrity. Ideal for RS-485 and RS-422 standard implementations, the SN75176 - SMD ensures stable performance in diverse environments.

• Surface-mount package allows for efficient PCB layout and automated assembly
• Supports half-duplex differential data transmission to minimize noise and signal degradation
• Compatible with RS-485 and RS-422 communication standards for versatile networking applications
• Enhanced drive capability ensures reliable operation over extended cable lengths
• Designed to maintain signal integrity in electrically noisy environments
• Low power consumption supports energy-efficient system designs
• Wide voltage tolerance adapts to various power supply conditions

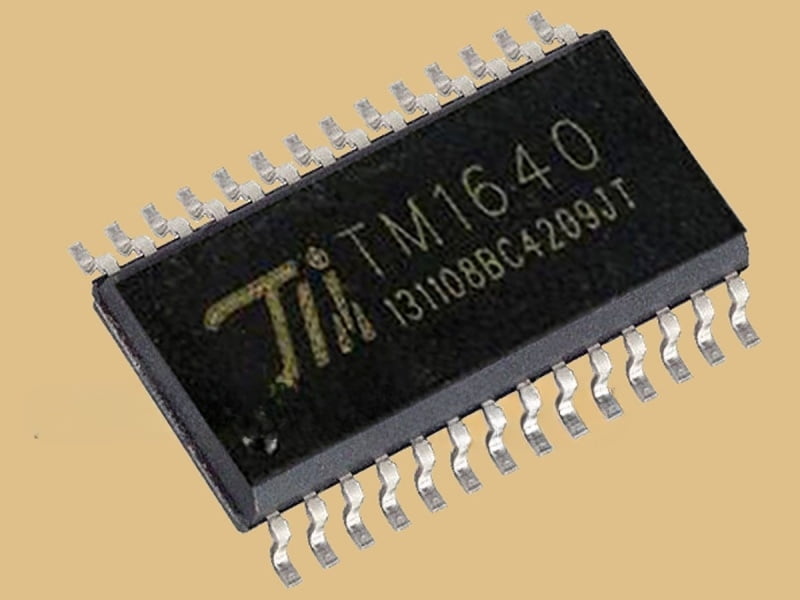

The TM1640 SOIC28 component is a versatile LED display and keypad driver designed to streamline user interface implementations. Engineered for efficient control of LED segments and key scanning, this driver integrates smoothly within electronic projects requiring reliable display and input management. Its compact SOIC28 package ensures easy PCB integration, making it ideal for embedded systems and consumer electronics where precise LED and keypad interaction is critical.

• Integrated LED and keypad control simplifies circuit design by combining display and input functions in a single chip.
• SOIC28 package offers compact size and straightforward mounting for space-constrained applications.
• Supports a wide range of LED segment configurations, accommodating diverse display layouts.
• Efficient scanning mechanism reduces power consumption during keypad monitoring.
• Compatible with common microcontroller interfaces for seamless communication and control.
• Built to enhance responsiveness and reliability in user interaction devices.

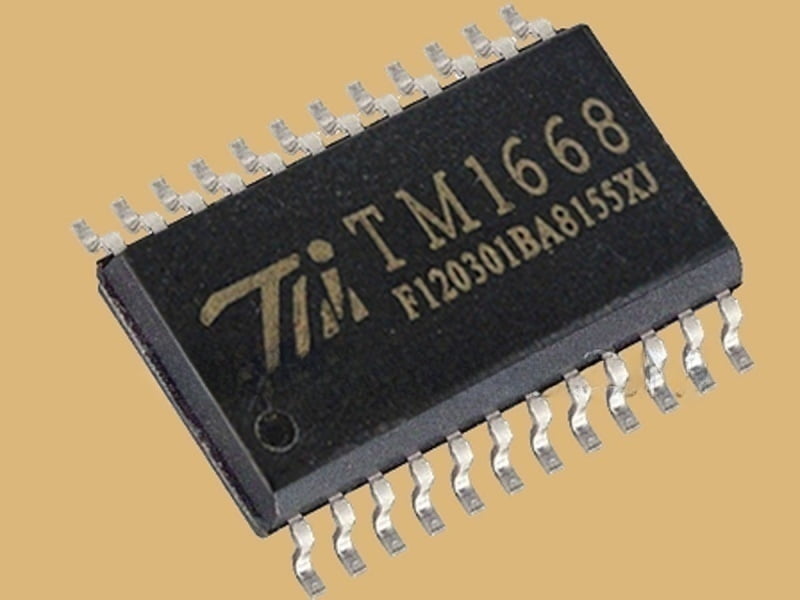

The TM1668 is a versatile SOIC24 LED display and keypad driver designed for embedded system applications. This component manages LED displays and keypads efficiently, ensuring seamless user interface control. Compatible with various microcontrollers, it supports multiple display types and keypad configurations, making it ideal for control panels, instrumentation, and consumer electronics. The device includes integrated timing and scanning functions that simplify circuit design and improve performance.

• SOIC24 package offers compact size for easy PCB integration
• Supports multiple LED display types, enabling flexible visual output solutions
• Integrated keypad scanning reduces microcontroller workload and simplifies wiring
• Compatible with a wide range of microcontrollers for versatile application use
• Built-in timing control enhances display stability and refresh rates
• Efficient power management designed to optimize energy consumption
• Ideal for applications in control panels, home appliances, and industrial devices

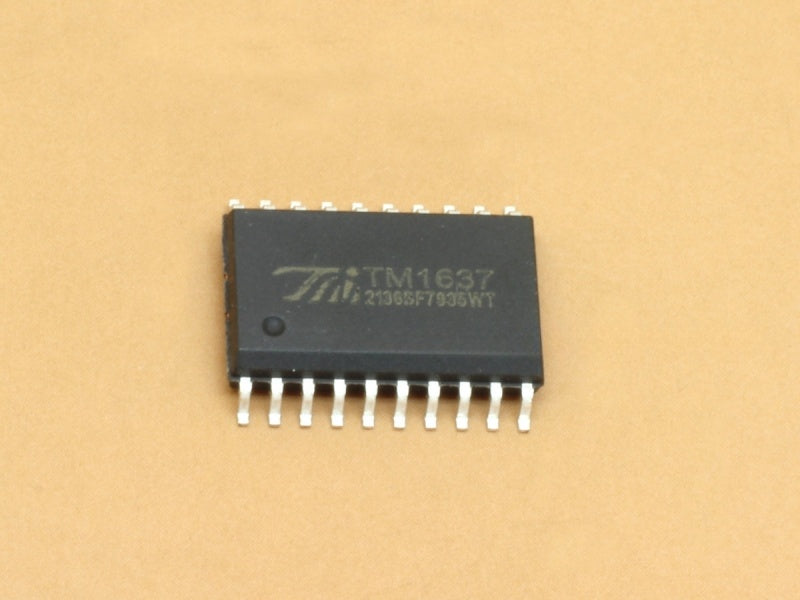

The TM1637 SOIC20 is a compact LED display and keypad driver integrated circuit designed for efficient control of 7-segment LED displays and matrix keypads. This IC simplifies the interface between microcontrollers and display/keypad modules, supporting multiple applications requiring clear visual feedback and user input. Its SOIC20 package ensures easy integration into various electronic devices, making it ideal for embedded systems and consumer electronics.

• The TM1637 provides seamless control for 7-segment LED displays, enhancing visual clarity and performance.
• Integrated keypad driver functionality supports matrix keypad input without additional hardware complexity.
• Compact SOIC20 packaging allows for straightforward PCB mounting, optimizing space in hardware designs.
• Efficient communication protocol reduces microcontroller pin usage, streamlining system wiring.
• Supports multiple display and keypad configurations, offering flexibility in diverse electronics projects.
• Designed for compatibility with common microcontrollers, enabling quick and reliable integration.
• Ideal for applications such as digital clocks, counters, and user interfaces requiring LED display and keypad interaction.

The ULN2003A - DIP is a versatile component designed for controlling high-voltage and high-current loads from standard logic-level inputs. Ideal for interfacing between microcontrollers and relays, motors, or lamps, this integrated circuit features seven Darlington transistor arrays. Its compact DIP package ensures easy integration into various electronic projects and compatible circuits, making it an essential choice for developers seeking reliable switching performance.

• Seven Darlington transistor arrays provide efficient high-current load driving capability.
• DIP package allows straightforward installation on standard breadboards and PCBs.
• Compatible with typical logic-level signals, simplifying control from microcontrollers and digital circuits.
• Offers built-in flyback diodes to protect against voltage spikes from inductive loads.
• Supports a wide range of applications including relay driving, stepper motor control, and lamp switching.
• Robust design ensures reliable operation under demanding electrical conditions.

The ULN2803 - DIP is a robust integrated circuit designed to drive high-voltage loads from low-voltage logic signals. This component is ideal for interfacing microcontrollers and digital logic with devices such as relays, lamps, and stepper motors. Its compact DIP package ensures easy integration on standard circuit boards, making it suitable for a variety of electronic applications requiring reliable switching and amplification of digital outputs.

• Eight Darlington transistor arrays provide high current gain to efficiently control loads.
• Compatible with TTL and CMOS logic levels, ensuring broad usability with common microcontrollers.
• Protective diodes included for safe operation with inductive loads like relays and motors.
• Compact DIP packaging offers straightforward installation into breadboards and PCBs.
• Capable of sinking up to 500mA per channel, supporting medium-power devices.
• High voltage tolerance up to 50V accommodates a wide range of external components.
• Ideal for automation, robotics, and control systems requiring reliable load switching.

The ULN2003A in a SOIC16 surface-mount package is a versatile integrated circuit designed for driving high-current loads from standard logic levels. Ideal for controlling relays, motors, and lamps, this component features seven Darlington transistor arrays to amplify input signals efficiently. Its compact SOIC16 form factor makes it compatible with various PCB designs requiring reliable, space-saving solutions in industrial and hobbyist electronics.

• Seven Darlington pairs deliver high current gain for switching loads up to 500mA each
• Built-in flyback diodes protect against voltage spikes when driving inductive loads
• Compatible with TTL and CMOS logic levels for seamless integration with microcontrollers
• SOIC16 surface-mount package offers compact size for modern circuit boards
• Wide operating voltage range from 5V to 12V supports diverse applications
• Common-cathode clamp diodes enhance durability in inductive load environments
• Efficient thermal design ensures reliable operation under continuous load conditions

The ULN2803A / ULN2803 SOIC-18 Wide is a versatile integrated circuit designed for switching and driving applications. This component features eight Darlington transistor arrays, enabling it to handle high-voltage, high-current loads with ease. It's widely used in interfacing logic-level signals to relays, lamps, motors, and other inductive loads. The SOIC-18 wide package supports easy integration into various electronic designs and is compatible with standard logic families, making it a reliable choice for industrial and hobbyist projects alike.

• Contains eight Darlington transistor pairs for efficient high-current switching
• Designed to drive loads such as relays, lamps, and motors with ease
• SOIC-18 wide package offers compact footprint and straightforward PCB mounting
• Compatible with standard TTL and CMOS logic levels for broad application use
• Built-in flyback diodes protect against voltage spikes from inductive loads
• Ideal for industrial control systems and embedded electronics requiring multiple outputs
• Ensures reliable performance in high-voltage and high-current environments

TXS0108E High Speed Full Duplex 8 Way Level Conversion IC. From 8, each channel has auto direction detection and you can even use either 1 channel or up to all 8 channels.
