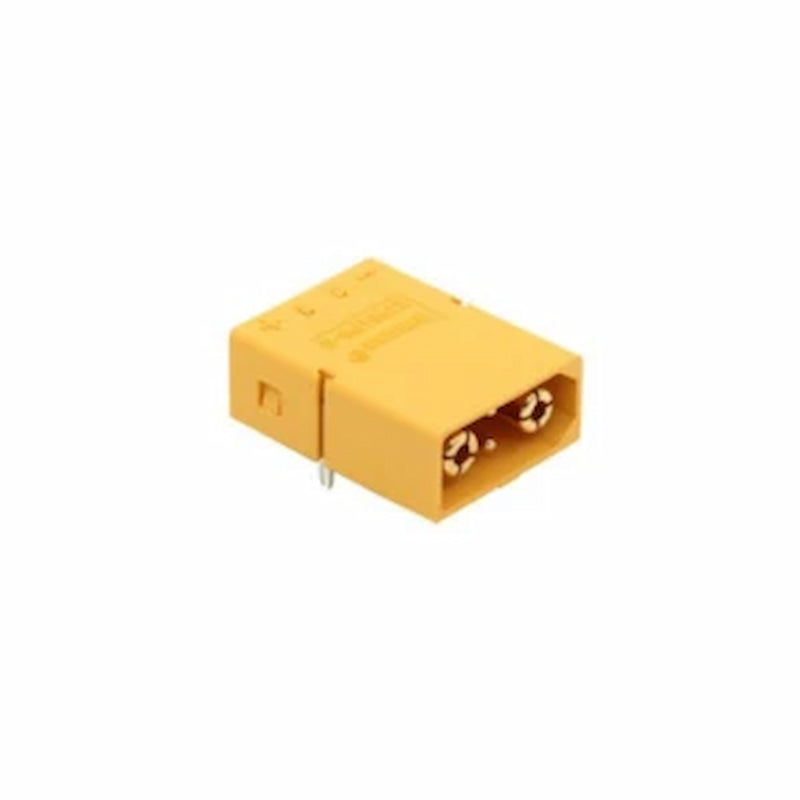

Amass XT90PW(2+2) Male Connector – XT90(2+2)PW-M.G.Y Drone Connectors

Product Description

The Amass XT90PW(2+2) Male Connector (XT90(2+2)PW-M.G.Y) is a premium right-angle PCB-mounted hybrid power and signal connector designed for applications that require high-current power transmission and integrated signal communication through a single compact interface. Manufactured by Amass, a globally trusted leader in connector technology, this connector is ideal for agriculture drones, industrial UAVs, smart battery systems, Battery Management Systems (BMS), robotics, electric vehicles, power distribution boards, and industrial automation equipment. Its 2+2 pin configuration combines two high-current power contacts with two auxiliary signal pins, reducing wiring complexity while improving system reliability.

The XT90PW(2+2)-M.G.Y Male Connector features precision gold-plated brass contacts that provide excellent electrical conductivity, ultra-low contact resistance, and efficient current transfer. The gold plating minimizes voltage drop and heat generation while offering superior resistance to oxidation and corrosion, ensuring dependable long-term electrical performance even in demanding operating environments.

Designed for right-angle PCB mounting, the connector utilizes a through-hole (THT) mounting configuration, allowing it to be securely soldered directly onto printed circuit boards. The 90-degree design enables horizontal cable routing, optimizes PCB space, and reduces mechanical stress on solder joints. The integrated signal pins support battery communication, telemetry, battery identification, temperature sensing, and BMS data transmission, eliminating the need for separate signal connectors.

The XT90PW(2+2) connector is rated for 45A continuous current on the power contacts and 1A on each signal pin, with a maximum voltage rating of 500V DC. Its compact yet rugged construction makes it ideal for intelligent battery systems, UAV electronics, industrial controllers, and embedded power distribution applications.

Constructed from high-temperature PA66 (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, the housing provides excellent insulation, thermal stability, and mechanical durability. The connector withstands vibration, mechanical shock, and continuous electrical loading, making it suitable for demanding commercial and industrial environments. With a mechanical life of approximately 200 mating cycles (100×2), it offers reliable long-term performance.

Whether you're designing a UAV power distribution board, integrating a smart battery pack, developing an industrial robotics platform, or building advanced embedded electronics, the Amass XT90PW(2+2) Male Connector delivers professional-grade reliability, efficient power transfer, and integrated signal connectivity.

Key Features

• Genuine Amass XT90(2+2)PW-M.G.Y Male Connector
• Right-angle PCB-mounted hybrid power and signal connector
• 2 high-current power contacts + 2 signal pins
• Through-hole (THT) PCB mounting
• Premium gold-plated brass contacts
• Low contact resistance for efficient power transfer
• Rated for 45A continuous current
• Signal pins rated for 1A
• Rated for 500V DC
• High-temperature PA66 (Polyamide/Nylon) UL94 V-0 flame-retardant housing
• Excellent resistance to heat, vibration, and corrosion
• Compact 90° design for space-saving PCB layouts

Applications & Use Cases

The Amass XT90PW(2+2) Male Connector is widely used in:

• Agriculture drones and industrial UAVs
• Smart lithium battery packs
• Battery Management Systems (BMS)
• Power Distribution Boards (PDBs)
• Electric vehicles (EVs) and e-bikes
• Robotics and industrial automation
• Battery charging systems
• Industrial power distribution equipment
• Embedded electronic systems
• Telemetry-enabled battery systems
• DIY electronics and custom PCB projects
• High-current applications with integrated signal communication

Technical Specifications

• Brand: Amass
• Model: XT90(2+2)PW-M.G.Y
• Connector Type: Male
• Series: XT90PW (2+2)
• Pin Configuration: 2 Power + 2 Signal Pins
• Mounting Type: Right-angle PCB Through-Hole (THT)
• Contact Material: Gold-plated brass
• Housing Material: PA66 (Polyamide/Nylon), UL94 V-0 flame-retardant
• Rated Current (Power Contacts): 45A Continuous
• Signal Pin Rating: 1A per pin
• Rated Voltage: 500V DC
• Contact Resistance: ≤0.4mΩ
• Recommended Wire Size: 8–12 AWG
• Mechanical Life: Approximately 200 mating cycles (100×2)
• Operating Temperature: -20°C to 120°C
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT90PW(2+2) Male Connector is an excellent choice for engineers and manufacturers who require a compact right-angle PCB-mounted connector capable of carrying both high-current power and low-current communication signals. Its 2+2 hybrid design simplifies PCB layouts, reduces cable clutter, and improves installation efficiency while ensuring reliable electrical performance.

Compared to conventional PCB power connectors, the XT90PW(2+2) series offers integrated power and signal connectivity, premium gold-plated contacts, space-saving right-angle mounting, and rugged flame-retardant construction, making it ideal for smart battery systems, commercial drones, robotics, and industrial electronic equipment.

Package Includes

• 1 × Amass XT90PW(2+2) Male Connector – XT90(2+2)PW-M.G.Y
