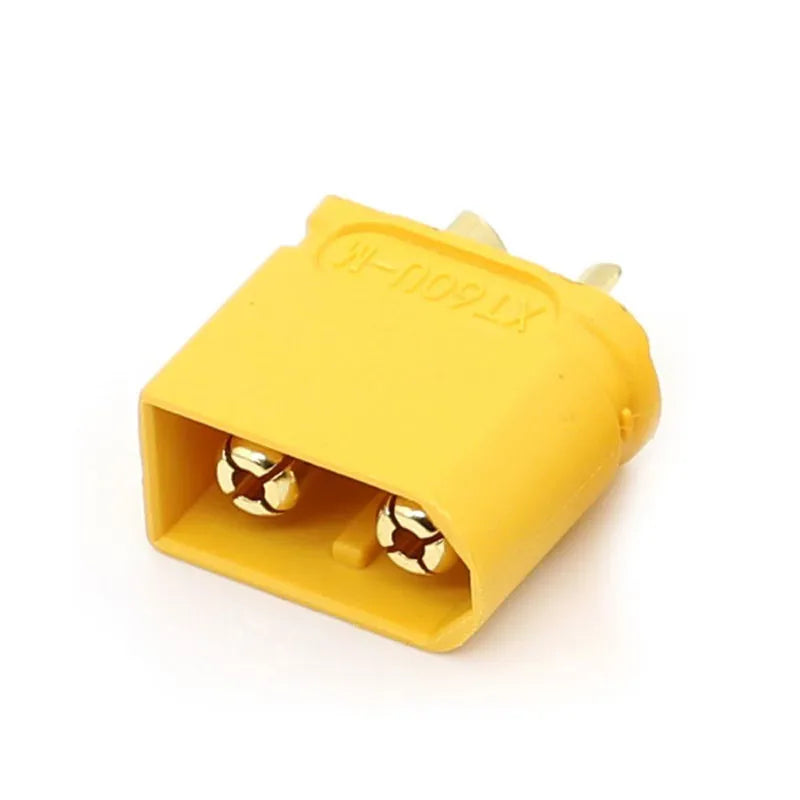

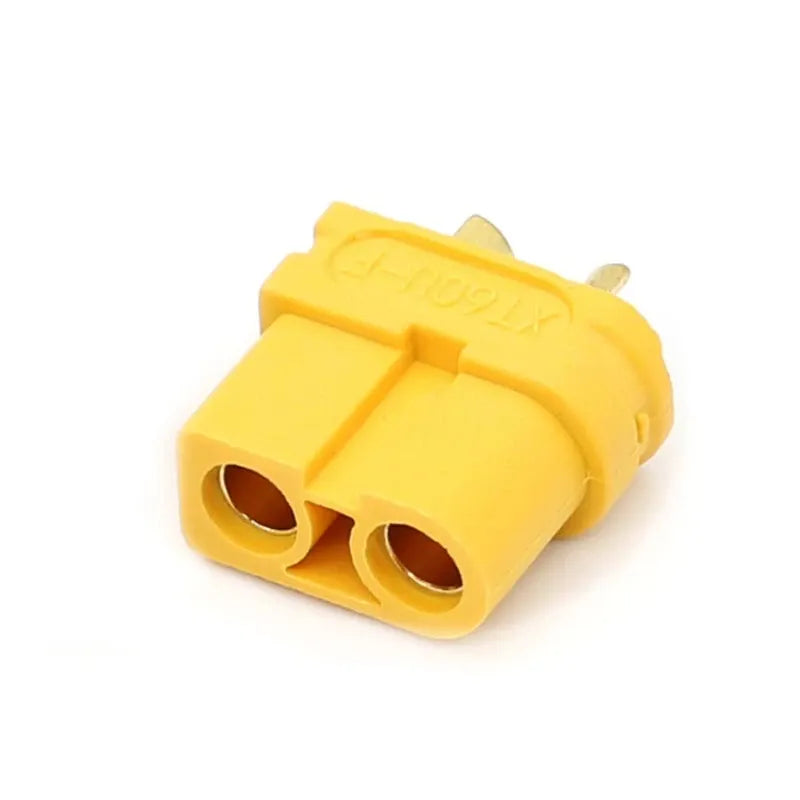

Amass XT60U-F XT60U-M Connector Plug Male Female

Product Description

The Amass XT60U-F / XT60U-M Connector Plug Set is a premium high-current DC power connector pair designed for reliable power transmission in FPV drones, RC aircraft, robotics, battery packs, ESC systems, and DIY electronics projects. Manufactured by Amass, a globally trusted connector brand, the XT60U series is widely used for its secure locking design, compact size, and excellent electrical performance, making it a standard choice in drone and RC power systems.

The XT60U Male Connector (XT60U-M) and XT60U Female Connector (XT60U-F) feature gold-flash plated brass contacts, which provide excellent conductivity, low contact resistance, and strong resistance to oxidation and corrosion. This ensures stable power delivery with minimal heating even under continuous load conditions.

Designed for cable-mounted solder termination, both connectors support 12–14 AWG wires, allowing secure integration into lithium battery packs, ESCs, and power distribution systems. The polarized housing ensures correct connection alignment, preventing reverse polarity and improving safety in high-current setups.

The XT60U series is rated for 30A continuous current with a 500V DC rating, and supports momentary higher surge currents, making it suitable for medium-power drone and RC applications.

The housing is made from high-temperature PA (Nylon/Polyamide) with UL94 V-0 flame-retardant rating, offering strong insulation, mechanical durability, and resistance to vibration and impact. The connector design is optimized for long service life, typically supporting around 1000 mating cycles.

Whether you're building a drone battery system, upgrading an RC vehicle, or designing a compact robotics power setup, the Amass XT60U Male-Female Connector Set provides a reliable, widely standardized, and durable power connection solution.

Key Features:

• Original Amass XT60U connector set
• Includes male and female connector plugs
• Gold-plated brass terminals for low resistance
• High-current carrying capability
• Heat-resistant nylon housing
• Secure and stable connection design
• Durable and long-lasting performance
• Easy soldering and installation
• Suitable for RC and power applications

Applications:

• RC cars and airplanes
• Drone and UAV battery connections
• LiPo battery packs
• Battery chargers and ESCs
• Robotics and automation projects
• DIY electronics and power systems
• Industrial power distribution

Specifications:

Why Choose This Connector?

The XT60U connector pair is one of the most widely used drone and RC power connectors because it balances size, safety, and current handling. It offers a strong, secure fit, reliable soldering characteristics, and consistent performance in medium-power systems where efficiency and durability matter more than ultra-high current capacity.

Package Includes

• 1 × Amass XT60U-M Male Connector
• 1 × Amass XT60U-F Female Connector
