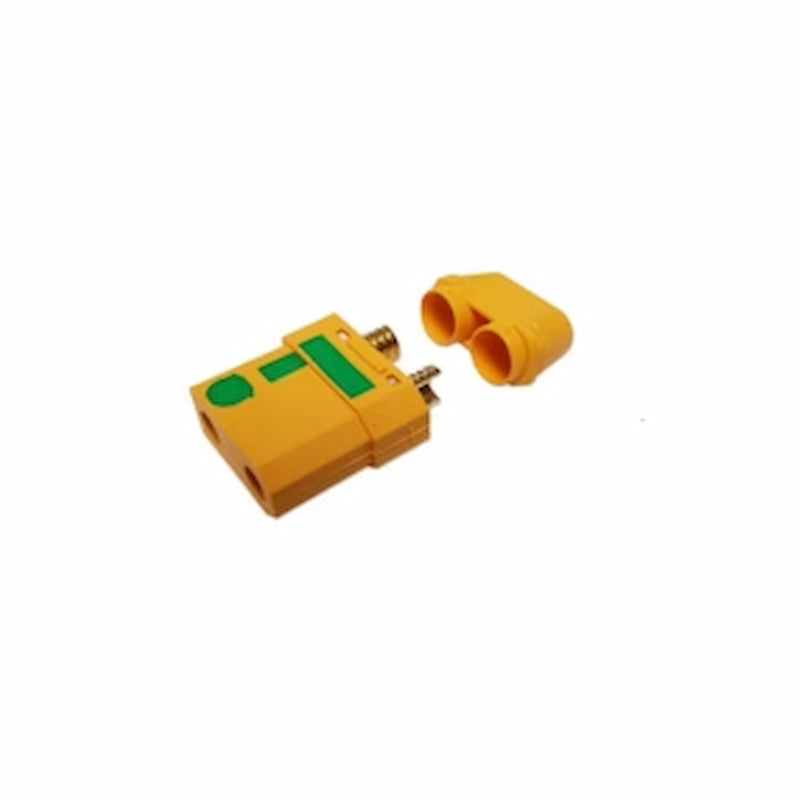

Amass XT90S Anti Spark Connector with Housing-Female – XT90S-F.G.Y

Product Description

The Amass XT90S Anti Spark Connector with Housing – Female (XT90S-F.G.Y) is a premium high-current anti-spark DC power connector engineered for safe and reliable power transmission in agriculture drones, industrial UAVs, electric vehicles, robotics, RC aircraft, battery packs, portable power stations, and high-power electronic systems. Manufactured by Amass, a globally trusted leader in connector technology, the XT90S series enhances the standard XT90 design by incorporating a built-in anti-spark resistor, eliminating the large inrush spark that occurs when connecting high-voltage battery packs.

The XT90S-F.G.Y Female Connector features high-quality gold-plated brass spring contacts that provide excellent electrical conductivity, low contact resistance, and efficient power transfer. The gold plating minimizes voltage drop and heat generation while offering outstanding resistance to oxidation and corrosion, ensuring stable electrical performance and long service life even in demanding operating environments.

One of the standout features of the XT90S series is its integrated anti-spark technology, which suppresses the initial inrush current generated when connecting high-capacity lithium batteries. This protects sensitive electronic components such as ESCs, flight controllers, and battery management systems while reducing connector wear and extending service life. Unlike external anti-spark modules, the XT90S integrates this functionality directly into the connector, resulting in a cleaner, more reliable installation.

The connector includes an integrated protective housing (solder cover) that provides improved insulation, strain relief, and protection for solder joints. This housing also enhances cable management while reducing the risk of accidental short circuits during installation and operation. The XT90S Female Connector is fully compatible with standard XT90 male connectors, making upgrades simple without changing the entire power system.

Constructed from high-temperature Nylon (PA) with a UL94 V-0 flame-retardant rating, the housing offers excellent mechanical strength, thermal stability, and resistance to vibration and impact. The connector supports up to 90A continuous current, operates at 500V DC, and accepts up to 8 AWG wire, making it ideal for high-current power applications.

Whether you're assembling a professional UAV, building a high-capacity battery pack, upgrading an electric vehicle, or designing industrial power systems, the Amass XT90S Anti Spark Female Connector with Housing delivers professional-grade safety, reliability, and efficient power transmission.

Key Features

• Genuine Amass XT90S-F.G.Y Female Connector with Housing
• Built-in anti-spark technology for safe battery connections
• High-current DC power connector
• Premium gold-plated brass spring contacts
• Low contact resistance for efficient power transfer
• Supports 90A+ continuous current
• Rated for 500V DC
• Integrated housing provides strain relief and solder joint protection
• High-temperature Nylon (PA) UL94 V-0 flame-retardant housing
• Compatible with standard XT90 connectors
• Supports up to 8 AWG wire
• Easy solder-type wire termination

Applications & Use Cases

The Amass XT90S Female Connector is widely used in:

• Agriculture drones and spraying UAVs
• Heavy-lift commercial drones
• FPV drone battery systems
• Lithium-ion and LiPo battery packs
• Electronic Speed Controllers (ESCs)
• Electric vehicles (EVs) and e-bikes
• Robotics and industrial automation
• RC aircraft, helicopters, boats, and cars
• Portable power stations
• Solar energy storage systems
• High-current charging systems
• DIY electronics and battery projects

Technical Specifications

• Brand: Amass
• Model: XT90S-F.G.Y
• Connector Type: Female
• Series: XT90S
• Number of Pins: 2
• Contact Material: Gold-plated brass
• Housing Material: High-temperature Nylon (PA), UL94 V-0 flame-retardant
• Rated Current: 90A+ Continuous
• Rated Voltage: 500V DC
• Connector Size: 4.5 mm
• Recommended Wire Size: Up to 8 AWG
• Operating Temperature: -20°C to 120°C
• Mounting Type: Cable mount
• Electrical Connection: Solder termination
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT90S Anti Spark Female Connector with Housing is ideal for professionals and hobbyists who require a safe, high-current, and reliable power connector for lithium battery systems. Its integrated anti-spark circuit eliminates damaging connection sparks, protecting expensive electronics while extending connector lifespan. Combined with gold-plated contacts, a flame-retardant nylon housing, and compatibility with standard XT90 connectors, it offers a superior solution for demanding drone, EV, robotics, and industrial applications.

Package Includes

• 1 × Amass XT90S Anti Spark Connector with Housing – Female (XT90S-F.G.Y)
