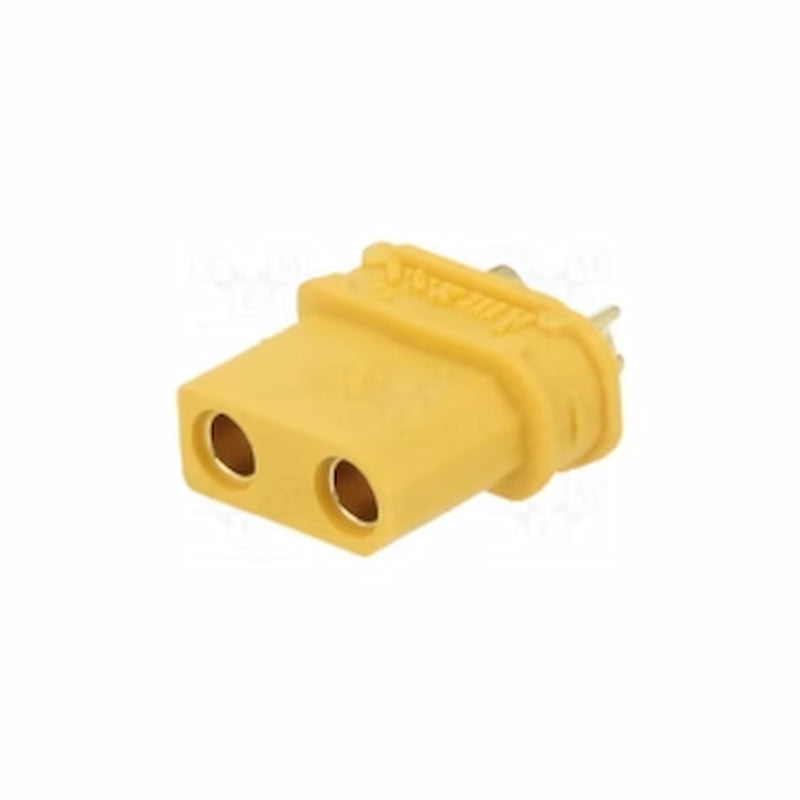

Amass XT30UW-F.G.Y – XT30UW Female Connector (Gold-Plated, Yellow)

Product Description

The Amass XT30UW-F.G.Y (XT30UW Female Connector – Gold-Plated, Yellow) is a premium compact right-angle high-current DC power connector designed for reliable power transmission in FPV drones, RC aircraft, robotics, battery packs, electronic speed controllers (ESCs), portable electronics, and DIY electronic projects. Manufactured by Amass, a globally trusted connector manufacturer, the XT30UW series features a 90-degree wire exit design, making it ideal for applications where space optimization, improved cable routing, and strain reduction are essential. It delivers dependable electrical performance in compact, high-performance power systems.

The XT30UW-F.G.Y Female Connector features gold-plated brass contacts that provide excellent electrical conductivity, low contact resistance, and superior corrosion resistance. The gold plating minimizes voltage drop and heat generation while ensuring reliable power transfer and extended service life even under demanding operating conditions.

Designed for cable-mounted applications, the connector utilizes a solder-type wire termination and supports 14–18 AWG wires. Its right-angle (90°) cable exit allows cleaner wiring inside compact drone frames and electronic enclosures while reducing stress on solder joints and improving cable management. The polarized housing prevents reverse polarity and ensures secure mating with compatible XT30UW male connectors.

The connector is rated for 20A continuous current and 500V DC, making it suitable for FPV drones, RC models, lithium battery packs, robotics, and embedded electronic systems where compact size and dependable performance are critical.

The housing is manufactured from high-temperature yellow PA (Nylon/Polyamide) with a UL94 V-0 flame-retardant rating, providing excellent thermal stability, electrical insulation, and mechanical durability. It withstands vibration, impact, and demanding operating environments while offering approximately 1,000 mating cycles for long-term reliability.

Whether you're assembling an FPV drone, building a compact battery pack, upgrading an RC vehicle, or designing a lightweight robotics project, the Amass XT30UW-F.G.Y Female Connector delivers reliable power transmission, space-saving cable routing, and durable construction.

Key Features

• Genuine Amass XT30UW-F.G.Y Female Connector
• Compact right-angle (90°) high-current DC power connector
• Premium gold-plated brass contacts
• Low contact resistance for efficient power transfer
• Rated for 20A continuous current
• Rated for 500V DC
• Right-angle cable exit for improved cable management
• High-temperature yellow PA (Nylon) UL94 V-0 flame-retardant housing
• Polarized design prevents reverse polarity
• Supports 14–18 AWG wire
• Solder-type wire termination
• Excellent resistance to heat, vibration, and corrosion

Applications & Use Cases

The Amass XT30UW-F.G.Y Female Connector is widely used in:

• FPV drones and racing drones
• RC aircraft and helicopters
• RC cars and boats
• Electronic Speed Controllers (ESCs)
• Lithium-ion and LiPo battery packs
• Robotics and automation projects
• Portable electronic devices
• Battery charging systems
• Power distribution modules
• DIY electronics and embedded systems

Technical Specifications

• Brand: Amass
• Model: XT30UW-F.G.Y
• Connector Type: Female
• Series: XT30UW
• Number of Pins: 2
• Contact Material: Gold-plated brass
• Housing Material: High-temperature PA (Nylon/Polyamide), UL94 V-0 flame-retardant
• Rated Current: 20A Continuous
• Rated Voltage: 500V DC
• Recommended Wire Size: 14–18 AWG
• Mechanical Life: 1,000 mating cycles
• Operating Temperature: -20°C to 120°C
• Mounting Type: Cable mount
• Electrical Connection: Solder termination
• Cable Exit: Right-angle (90°)
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT30UW-F.G.Y Female Connector is an excellent choice for drone builders, RC enthusiasts, and electronics professionals who require a compact, lightweight, and right-angle high-current connector. Its 90-degree cable exit enables cleaner wiring and improved space utilization, while the gold-plated contacts provide efficient power transfer and long-term reliability.

Compared to standard straight XT30 connectors, the XT30UW series offers improved cable routing, reduced wire strain, and easier installation in compact electronic assemblies, making it ideal for FPV drones, robotics, battery systems, and portable electronic devices.

Package Includes

• 1 × Amass XT30UW-F.G.Y – XT30UW Female Connector (Gold-Plated, Yellow)
