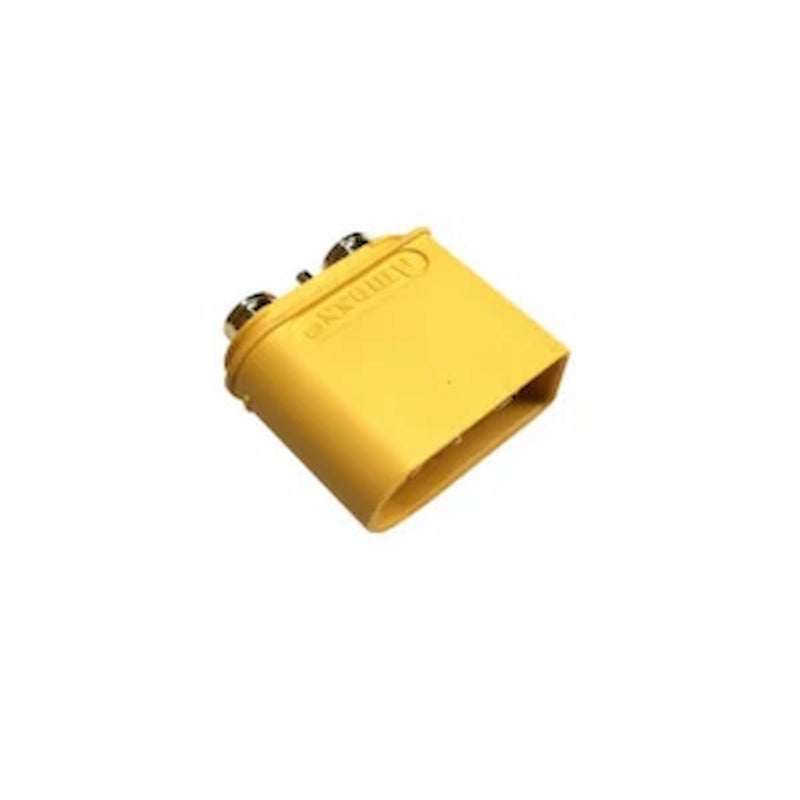

Amass XT90PB(2+2)-M GOLD PLATED YELLOW – XT90(2+2)PB-M.G.Y

Product Description

The Amass XT90PB(2+2) Male Connector (XT90(2+2)PB-M.G.Y) is a premium PCB-mounted hybrid power and signal connector engineered for applications that require high-current power transmission and integrated signal communication through a single compact interface. Manufactured by Amass, a globally trusted leader in connector technology, this connector is designed for agriculture drones, industrial UAVs, smart battery systems, Battery Management Systems (BMS), robotics, electric vehicles, charging systems, and industrial automation equipment. Its 2+2 pin configuration combines two high-current power contacts with two auxiliary signal pins, simplifying wiring while improving system reliability.

The XT90PB(2+2)-M.G.Y Male Connector features precision gold-plated brass contacts that provide excellent electrical conductivity, low contact resistance, and efficient power transfer. The premium gold plating minimizes voltage drop and heat generation while offering excellent resistance to oxidation and corrosion, ensuring dependable long-term electrical performance in demanding environments.

Designed for PCB-mounted applications, the connector utilizes a vertical through-hole (THT) mounting configuration, allowing it to be directly soldered onto printed circuit boards. This design provides excellent mechanical stability while simplifying the integration of high-current battery connections into power distribution boards, battery management systems, charging stations, and embedded electronic equipment. The additional signal pins support battery communication, telemetry, battery identification, and monitoring functions without requiring separate connectors.

The XT90PB(2+2) connector is rated for 30A continuous current on the main power contacts and supports up to 60A instantaneous current, with a rated voltage of 500V DC. Each signal pin is rated for 3A, making the connector ideal for intelligent battery systems where both power delivery and signal transmission are required.

The housing is manufactured from high-temperature PA66 (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, providing excellent insulation, thermal stability, and mechanical durability. Its rugged construction withstands vibration, mechanical shock, and continuous electrical loading, making it suitable for commercial drones, industrial robotics, electric mobility systems, and other demanding applications. The connector is designed for approximately 100 mating cycles, ensuring reliable long-term operation.

Whether you're designing a UAV power distribution board, integrating a smart lithium battery system, building an industrial controller, or developing advanced embedded electronics, the Amass XT90PB(2+2) Male Connector delivers professional-grade reliability, efficient power transfer, and integrated signal connectivity.

Key Features

• Genuine Amass XT90(2+2)PB-M.G.Y Male Connector
• PCB-mounted hybrid power and signal connector
• 2 high-current power contacts + 2 signal pins
• Vertical through-hole (THT) PCB mounting
• Premium gold-plated brass contacts
• Low contact resistance for efficient power transfer
• Rated for 30A continuous current
• Supports 60A instantaneous current
• Signal pins rated for 3A
• Rated for 500V DC
• High-temperature PA66 (Polyamide/Nylon) UL94 V-0 flame-retardant housing
• Excellent resistance to heat, vibration, and corrosion

Applications & Use Cases

The Amass XT90PB(2+2) Male Connector is widely used in:

• Agriculture drones and industrial UAVs
• Smart lithium battery packs
• Battery Management Systems (BMS)
• Power Distribution Boards (PDBs)
• Electric vehicles (EVs) and e-bikes
• Robotics and industrial automation
• Battery charging systems
• Industrial power distribution equipment
• Embedded electronic systems
• Telemetry-enabled battery systems
• DIY electronics and custom PCB projects
• High-current applications with integrated signal communication

Technical Specifications

• Brand: Amass
• Model: XT90(2+2)PB-M.G.Y
• Connector Type: Male
• Series: XT90PB (2+2)
• Pin Configuration: 2 Power + 2 Signal Pins
• Mounting Type: PCB Through-Hole (Vertical/THT)
• Contact Material: Gold-plated brass
• Housing Material: PA66 (Polyamide/Nylon), UL94 V-0 flame-retardant
• Rated Current (Power Contacts): 30A Continuous
• Instantaneous Current: 60A
• Signal Pin Rating: 3A per pin
• Rated Voltage: 500V DC
• Contact Resistance: ≤0.40mΩ (Power Contacts)
• Recommended Wire Size: Equivalent PCB design for 8–12 AWG systems
• Mechanical Life: 100 mating cycles
• Operating Temperature: -20°C to 120°C
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT90PB(2+2) Male Connector is an excellent solution for engineers and manufacturers who require a PCB-mounted connector capable of carrying high-current power while simultaneously transmitting communication signals. Its 2+2 hybrid design reduces cable clutter, simplifies PCB layouts, and improves overall system reliability.

Compared to conventional PCB power connectors, the XT90PB(2+2) series offers integrated power and signal connectivity, premium gold-plated contacts, flame-retardant construction, and reliable high-current performance, making it an ideal choice for smart battery systems, commercial drones, robotics, and industrial electronic equipment.

Package Includes

• 1 × Amass XT90PB(2+2) Male Connector – XT90(2+2)PB-M.G.Y
