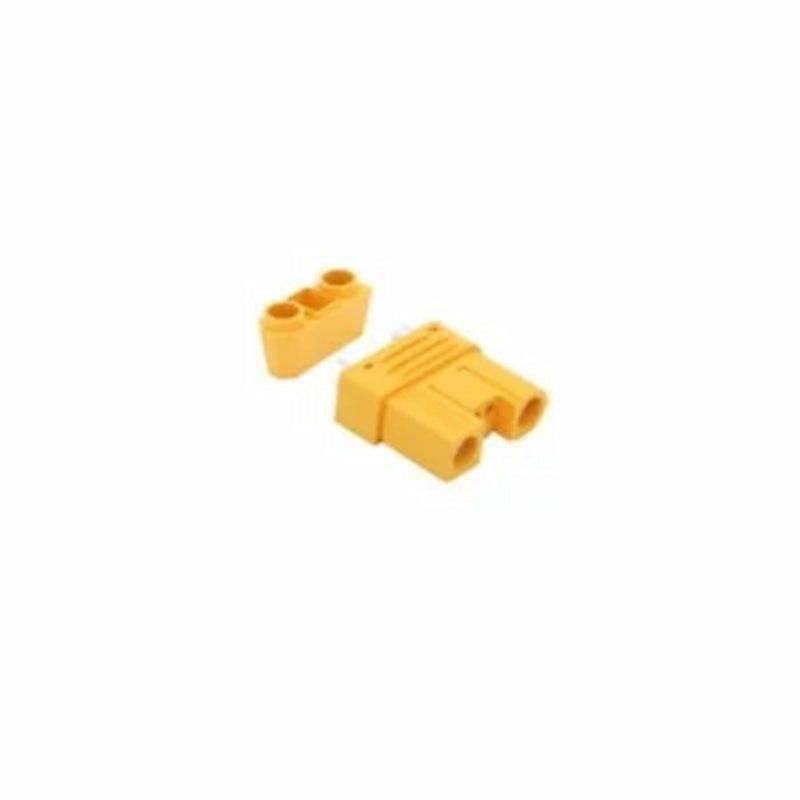

Amass XT120(2+2) Female Connector – XT120(2+2)-F.S.Y + Original Drone Connectors

Product Description

The Amass XT120(2+2) Female Connector (XT120(2+2)-F.S.Y) is a premium hybrid high-current power and signal connector designed for applications requiring high-current power delivery and integrated signal communication through a single connector. Manufactured by Amass, a globally trusted leader in connector technology, this connector is ideal for agriculture drones, industrial UAVs, electric vehicles, robotics, smart battery systems, Battery Management Systems (BMS), power distribution systems, and industrial automation equipment. Its 2+2 pin configuration combines two high-current power contacts with two auxiliary signal pins, reducing wiring complexity while improving system reliability.

The XT120(2+2)-F.S.Y Female Connector features silver-plated main power contacts for maximum conductivity and lower contact resistance, along with gold-plated signal pins for stable, low-current communication. This combination ensures efficient power transmission, reduced heat generation, and reliable signal integrity even in demanding operating conditions.

Designed for high-power battery and controller systems, the connector integrates two power terminals for DC power transmission and two signal terminals for battery communication, telemetry, battery identification, or BMS monitoring. This hybrid design minimizes cable clutter, simplifies installation, and enhances overall electrical reliability.

The XT120(2+2) connector is rated for 60A continuous current on the power contacts and 5A on the signal pins, with a rated voltage of up to 500V DC. It supports 8–12 AWG wires and is suitable for demanding high-current applications such as commercial drones, battery packs, industrial robotics, and electric mobility systems.

The housing is manufactured from high-temperature PA (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, providing excellent insulation, thermal stability, and mechanical durability. The connector withstands vibration, mechanical shock, and harsh operating environments while offering approximately 100 mating cycles for dependable long-term use.

Whether you're assembling a commercial UAV, integrating a smart lithium battery pack, designing an EV battery system, or building industrial automation equipment, the Amass XT120(2+2) Female Connector delivers professional-grade reliability, efficient power transmission, and integrated signal connectivity.

Key Features

• Genuine Amass XT120(2+2)-F.S.Y Female Connector
• Hybrid power and signal connector
• 2 high-current power contacts + 2 signal pins
• Silver-plated power contacts for superior conductivity
• Gold-plated signal pins for reliable communication
• Rated for 60A continuous current
• Signal pins rated for 5A
• Rated for 500V DC
• High-temperature PA (Polyamide/Nylon) UL94 V-0 flame-retardant housing
• Supports 8–12 AWG wire
• Solder-type wire termination
• Excellent resistance to heat, vibration, and corrosion

Applications & Use Cases

The Amass XT120(2+2) Female Connector is widely used in:

• Agriculture drones and industrial UAVs
• Smart lithium battery packs
• Battery Management Systems (BMS)
• Electric vehicles (EVs) and e-bikes
• Robotics and industrial automation
• Power distribution systems
• Battery charging systems
• Industrial controllers
• Embedded electronic systems
• Telemetry-enabled battery systems
• DIY electronics and custom battery projects
• High-current applications with integrated signal communication

Technical Specifications

• Brand: Amass
• Model: XT120(2+2)-F.S.Y
• Connector Type: Female
• Series: XT120 (2+2)
• Pin Configuration: 2 Power + 2 Signal Pins
• Contact Material: Silver-plated copper alloy (Power), Gold-plated brass (Signal)
• Housing Material: PA (Polyamide/Nylon), UL94 V-0 flame-retardant
• Rated Current (Power Contacts): 60A Continuous
• Peak Current: 120A
• Signal Pin Rating: 5A per pin
• Rated Voltage: 500V DC (600V DC withstand)
• Contact Resistance: ≤0.40mΩ (Power Contacts)
• Insulation Resistance: ≥2000MΩ
• Recommended Wire Size: 8–12 AWG
• Mechanical Life: 100 mating cycles
• Operating Temperature: -20°C to 120°C
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT120(2+2) Female Connector is an excellent solution for engineers and manufacturers who require high-current power delivery with integrated signal communication in a single compact connector. Its silver-plated power contacts provide superior electrical conductivity, while the gold-plated signal pins ensure reliable communication for smart battery systems and industrial electronics.

Compared to conventional power connectors, the XT120(2+2) series offers higher current capacity, integrated signal functionality, flame-retardant construction, and outstanding reliability, making it an ideal choice for professional UAVs, electric vehicles, robotics, and industrial automation.

Package Includes

• 1 × Amass XT120(2+2) Female Connector – XT120(2+2)-F.S.Y
