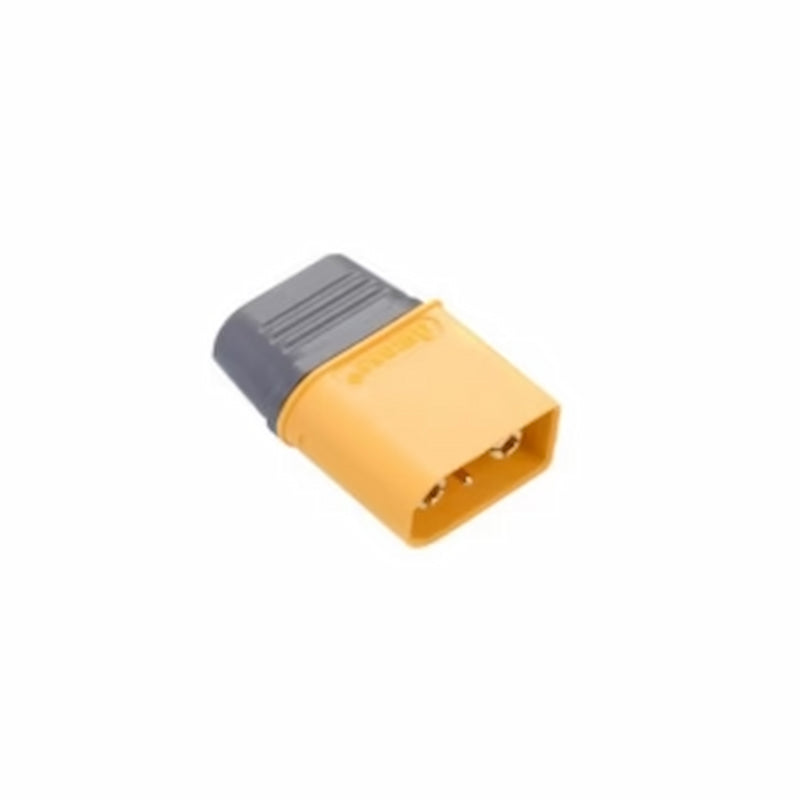

Amass XT90(2+2) Male Connector – XT90(2+2)-M.G.Y Original Drone Connectors

Product Description

The Amass XT90(2+2) Male Connector (XT90(2+2)-M.G.Y) is a premium hybrid high-current power and signal connector engineered for applications that require high-current power transmission along with integrated signal communication. Manufactured by Amass, a globally trusted leader in connector technology, this connector is ideal for agriculture drones, industrial UAVs, electric vehicles, robotics, smart battery systems, battery management systems (BMS), RC aircraft, and industrial automation equipment. It combines two high-current power contacts with two auxiliary signal pins, enabling both power and communication through a single compact connector.

The XT90(2+2)-M.G.Y Male Connector features precision gold-plated brass contacts that deliver excellent electrical conductivity, low contact resistance, and efficient power transfer. The gold-plated contacts minimize voltage drop and heat generation while providing excellent resistance to oxidation and corrosion, ensuring stable electrical performance even in demanding environments.

Designed specifically for high-power battery systems, the connector integrates two power terminals for DC power transmission and two signal terminals for battery communication, telemetry, battery identification, or BMS data transfer. This hybrid design significantly reduces wiring complexity, simplifies installation, and improves overall system reliability in advanced electronic applications.

The XT90(2+2) connector is rated for 45A continuous current on the power terminals (using 10 AWG wire) and supports up to 90A peak current, with a rated voltage of 150V DC. Each signal pin is rated for 1A, making it suitable for low-current communication functions while maintaining excellent electrical isolation between power and signal circuits.

Constructed from high-temperature PA (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, the housing offers outstanding insulation, mechanical durability, and thermal stability. The connector withstands vibration, mechanical shock, and harsh operating conditions, making it suitable for commercial drones, electric mobility systems, and industrial automation equipment. With an expected mechanical life of approximately 1,000 mating cycles, it provides dependable long-term performance.

Whether you're building a commercial UAV, integrating a smart battery pack, designing an electric vehicle power system, or developing industrial robotics, the Amass XT90(2+2) Male Connector delivers professional-grade reliability, efficient power transmission, and integrated signal connectivity.

Key Features

• Genuine Amass XT90(2+2)-M.G.Y Male Connector
• Hybrid power and signal connector
• 2 high-current power contacts + 2 signal pins
• Premium gold-plated brass contacts
• Low contact resistance for efficient power transfer
• Rated for 45A continuous current
• Supports 90A peak current
• Signal pins rated for 1A
• Rated for 150V DC
• High-temperature PA (Polyamide/Nylon) UL94 V-0 flame-retardant housing
• Supports 10 AWG wire
• Solder-type wire termination
• Excellent resistance to heat, vibration, and corrosion

Applications & Use Cases

The Amass XT90(2+2) Male Connector is widely used in:

• Agriculture drones and industrial UAVs
• Smart lithium battery packs
• Battery Management Systems (BMS)
• Electric vehicles (EVs) and e-bikes
• Robotics and industrial automation
• RC aircraft and helicopters
• Battery charging systems
• Industrial power distribution equipment
• Telemetry-enabled battery systems
• Embedded electronic systems
• DIY electronics and custom battery projects
• High-current power applications with integrated signal communication

Technical Specifications

• Brand: Amass
• Model: XT90(2+2)-M.G.Y
• Connector Type: Male
• Series: XT90 (2+2)
• Pin Configuration: 2 Power + 2 Signal Pins
• Contact Material: Gold-plated brass
• Housing Material: PA (Polyamide/Nylon), UL94 V-0 flame-retardant
• Rated Current: 45A Continuous (10 AWG)
• Peak Current: 90A
• Signal Pin Rating: 1A per pin
• Rated Voltage: 150V DC
• Contact Resistance: ≤1.2mΩ
• Insulation Resistance: ≥2000MΩ
• Recommended Wire Size: 10 AWG
• Mechanical Life: Approximately 1,000 mating cycles
• Operating Temperature: -20°C to 120°C
• Mounting Type: Cable mount, solder termination

Why Choose This Connector?

The Amass XT90(2+2) Male Connector is an ideal solution for professionals who require high-current power delivery together with integrated signal communication. Its 2+2 pin architecture simplifies wiring by combining power and data transmission into a single connector, reducing cable clutter while improving installation efficiency and system reliability.

Compared to standard XT90 connectors, the XT90(2+2) series offers the added advantage of integrated communication pins, making it particularly suitable for smart batteries, commercial UAVs, robotics, electric vehicles, and industrial automation systems where both power and signal connectivity are essential.

Package Includes

• 1 × Amass XT90(2+2) Male Connector – XT90(2+2)-M.G.Y
