Product Description

The Amass AS150 Female Connector (AS150-F.G.R) is a high-performance single-pin high-current DC power connector designed for reliable and efficient power transmission in demanding applications such as agriculture drones, industrial UAVs, RC systems, electric vehicles, robotics, and high-capacity lithium battery packs. Manufactured by Amass, a globally trusted brand in connector technology, the AS150 series is widely used in systems that require stable high-current flow, low resistance, and long-term durability.

The AS150-F.G.R Female Connector features a precision-machined brass contact with gold plating, ensuring excellent electrical conductivity and very low contact resistance. This helps minimize power loss and heat generation even under continuous high-load conditions. The gold plating also provides strong resistance to oxidation and corrosion, ensuring consistent performance over repeated connection cycles.

Designed for high-current battery-to-ESC and power distribution applications, the connector supports up to 75A continuous current (with suitable 8 AWG wiring) and is rated for 500V DC systems, making it suitable for both professional UAV systems and industrial electronics.

Its secure friction-fit locking design ensures a stable mechanical connection that resists vibration, shock, and accidental disconnection—an essential requirement for drones and mobile robotic systems. The connector housing is made from high-temperature PA66 (nylon) thermoplastic with UL94 V-0 flame-retardant rating, offering excellent insulation, mechanical strength, and thermal stability in harsh environments.

The AS150 series is also valued for its compact yet high-power design, making it easier to integrate into tight drone frames, battery packs, and power modules without compromising performance. It is widely chosen in professional UAV builds where reliability is more important than size convenience alone.

Whether you're assembling a high-power drone, building a lithium battery pack, designing robotics systems, or working on industrial power electronics, the Amass AS150 Female Connector delivers dependable performance, low resistance power transfer, and long operational life.

Key Features

• Genuine Amass AS150-F.G.R Female Connector
• High-current single-pin power connector design
• Gold-plated brass contact for excellent conductivity
• Low contact resistance for efficient energy transfer
• Rated up to 75A continuous current (system dependent)
• High-voltage capability up to 500V DC
• High-temperature PA66 UL94 V-0 flame-retardant housing
• Secure friction-fit connection for vibration resistance
• Excellent corrosion and oxidation resistance
• Compact, rugged design for professional applications
• Easy solder-type wire termination

Applications & Use Cases

• Agriculture drones and spraying UAVs
• Heavy-lift industrial drones (VTOL systems)
• Lithium-ion and LiPo battery packs
• Battery-to-ESC power connections
• RC cars, boats, and aircraft
• Robotics and automation systems
• Industrial power distribution systems
• High-current charging systems
• Electric vehicles and mobility systems
• DIY electronics and prototyping projects

Technical Specifications

• Brand: Amass
• Model: AS150-F.G.R
• Connector Type: Female
• Series: AS150
• Contact Material: Gold-plated brass
• Housing Material: PA66 (Nylon), UL94 V-0 flame-retardant
• Rated Current: 75A max (8 AWG, temperature dependent)
• Rated Voltage: 500V DC
• Wire Compatibility: Up to 8 AWG
• Mechanical Life: ~100 mating cycles
• Operating Temperature: -20°C to 120°C
• Mounting Type: Solder wire connection
• Protection Rating: IP40

Why Choose This Connector?

The Amass AS150 Female Connector is built for users who need high reliability under high current loads, especially in drone and UAV power systems. Its gold-plated contacts ensure minimal energy loss, while the rugged housing ensures safe operation even in vibration-heavy environments.

Compared to standard RC connectors, the AS150 series provides higher current capacity, better thermal stability, and stronger mechanical locking, making it a trusted choice for professional-grade power systems.

Package Includes

• 1 × Amass AS150 Female Connector (AS150-F.G.R)

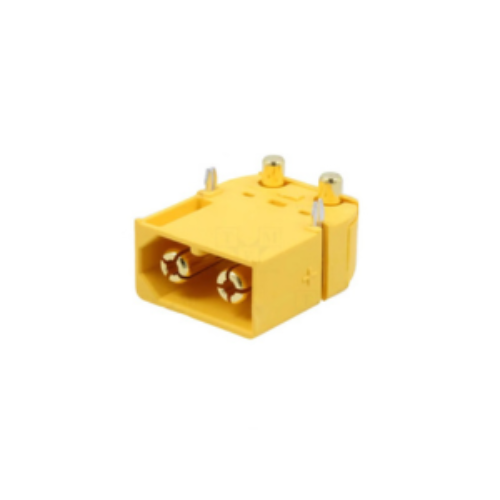

Product Description

The Amass XT60PW30 Male Connector (XT60PW-M.G.Y) is a premium-quality 2-pin right-angle PCB-mounted high-current DC power connector designed for secure and efficient power delivery in drones, RC vehicles, robotics, battery packs, Electronic Speed Controllers (ESCs), and industrial electronic systems. Manufactured by Amass, a globally trusted leader in connector technology, the XT60PW series is widely used in compact electronic designs where strong PCB integration, clean wiring, and reliable high-current performance are required.

The XT60PW-M.G.Y Male Connector features precision gold-plated brass contacts, ensuring excellent electrical conductivity and low contact resistance. This helps reduce power loss and heat generation during continuous operation, making it ideal for high-current applications such as drone propulsion systems and battery power distribution units. The gold plating also improves resistance to oxidation and corrosion, ensuring long-term durability and stable electrical performance.

Designed in a 90° right-angle PCB mount configuration, the XT60PW connector allows cables to be routed sideways instead of vertically, making it extremely useful in tight drone frames and compact electronics enclosures. This design improves PCB layout efficiency, reduces strain on wires, and helps maintain a clean, professional assembly in space-constrained systems.

The housing is made from high-temperature PA (Polyamide) thermoplastic with UL94 V-0 flame-retardant rating, providing excellent insulation, mechanical strength, and thermal stability. It is engineered to withstand vibration, shock, and continuous electrical stress, making it suitable for demanding UAV and industrial applications.

As a PCB-mounted variant of the popular XT60 series, the XT60PW connector maintains the same electrical reliability while offering better structural integration for direct board soldering. It is commonly used in power distribution boards (PDBs), ESC controllers, battery interfaces, and embedded power systems, where secure board-level mounting is essential.

Whether you're designing a drone flight controller system, building a battery-powered robot, or developing industrial electronics, the Amass XT60PW30 Male Connector delivers dependable performance, compact integration, and long-term electrical stability.

Key Features

• Genuine Amass XT60PW-M.G.Y Male Connector
• 2-pin high-current PCB-mounted power connector
• 90° right-angle design for space-efficient wiring
• Gold-plated brass contacts for excellent conductivity
• Low contact resistance for efficient power transfer
• High-temperature PA (Polyamide) UL94 V-0 housing
• Secure friction-fit connection system
• Designed for direct PCB through-hole soldering
• Excellent vibration and shock resistance
• Compact design ideal for drone and embedded systems
• Long service life with stable performance

Applications & Use Cases

• FPV racing drones and UAV systems
• Agricultural and industrial drones
• Power Distribution Boards (PDBs)
• Electronic Speed Controllers (ESCs)
• Lithium battery management systems (BMS)
• RC cars, boats, and aircraft
• Robotics and automation systems
• Embedded power electronics
• Battery charging circuits
• DIY electronics and prototyping
• Industrial control systems

Technical Specifications

• Brand: Amass
• Model: XT60PW-M.G.Y
• Connector Type: Male
• Series: XT60PW
• Number of Pins: 2
• Mounting Type: PCB Through Hole (THT), 90° right-angle
• Contact Material: Gold-plated brass
• Housing Material: PA (Polyamide), UL94 V-0 flame-retardant
• Rated Current: 30A continuous
• Rated Voltage: 500V DC
• Mechanical Life: ~1000 mating cycles
• Operating Temperature: -20°C to 120°C
• Application Type: PCB power connector

Why Choose This Connector?

The Amass XT60PW Male Connector is ideal for engineers and drone builders who need a space-saving PCB-mounted alternative to traditional XT60 wire connectors. Its right-angle design significantly improves cable routing and reduces mechanical stress on solder joints.

Compared to standard XT60 connectors, the XT60PW series provides better PCB integration, cleaner assembly layouts, and improved structural stability, making it a preferred choice for professional drone electronics and compact power systems.

Package Includes

• 1 × Amass XT60PW30 Male Connector (XT60PW-M.G.Y)

Product Description

The Amass XT60H Male Connector with Housing (XT60H-M.G.Y) is a next-generation high-current 2-pin DC power connector designed for safe, reliable, and efficient power delivery in drones, RC vehicles, robotics, battery packs, electric vehicles, and industrial electronic systems. Manufactured by Amass, a globally trusted leader in connector technology, the XT60H series is an upgraded version of the classic XT60, offering improved ergonomics, better safety, and enhanced mechanical durability.

The XT60H-M.G.Y Male Connector features precision gold-plated brass contacts, ensuring excellent electrical conductivity and very low contact resistance. This helps reduce power loss and heat generation during high-current operation, making it suitable for demanding applications such as UAV propulsion systems and lithium battery power distribution. The gold plating also provides strong resistance to oxidation and corrosion, ensuring consistent long-term performance.

A key improvement in the XT60H design is its integrated protective housing (“H” series design), which not only strengthens the connector body but also protects solder joints and improves handling. The ergonomic grip makes plugging and unplugging easier and more secure, especially in field applications like drone maintenance and RC setups.

The housing is made from high-temperature PA (Polyamide) thermoplastic with UL94 V-0 flame-retardant rating, ensuring excellent insulation, mechanical strength, and thermal stability. This rugged construction allows the connector to withstand vibration, shock, and continuous electrical stress in harsh operating environments.

Designed for high-current battery systems, the XT60H connector typically supports up to 60A peak current (with lower continuous ratings depending on wire and cooling conditions) and operates safely in up to 500V DC systems. It is widely used in drone power systems, ESC connections, and lithium battery packs where stable and compact power delivery is essential.

Whether you're building an FPV drone, assembling a robotics platform, or working on battery-powered electronics, the Amass XT60H Male Connector with Housing delivers a reliable balance of performance, safety, and compact design.

Key Features

• Genuine Amass XT60H-M.G.Y Male Connector
• Upgraded XT60 series with protective housing design
• Gold-plated brass contacts for excellent conductivity
• Low contact resistance for efficient power transfer
• Integrated grip housing for easy handling
• High-temperature PA (Polyamide) UL94 V-0 flame-retardant shell
• Secure friction-fit connection system
• Improved protection for solder joints
• Compact and lightweight design
• Excellent vibration and heat resistance
• Long service life with stable performance

Applications & Use Cases

• FPV racing drones and UAV systems
• Agricultural and industrial drones
• Lithium battery packs (LiPo/Li-ion)
• Electronic Speed Controllers (ESCs)
• Power Distribution Boards (PDBs)
• RC cars, boats, and aircraft
• Robotics and automation systems
• DIY electronics and prototyping
• Battery charging systems
• Embedded power electronics
• Industrial control systems

Technical Specifications

• Brand: Amass
• Model: XT60H-M.G.Y
• Connector Type: Male
• Series: XT60H
• Number of Pins: 2
• Contact Material: Gold-plated brass
• Housing Material: PA (Polyamide), UL94 V-0 flame-retardant
• Rated Voltage: 500V DC
• Current Rating: ~30A continuous / up to ~60A peak (application dependent)
• Wire Compatibility: 12–14 AWG
• Operating Temperature: -20°C to 120°C
• Mechanical Life: ~100 mating cycles (typical)
• Mounting Type: Solder wire connection

Why Choose This Connector?

The Amass XT60H Male Connector is ideal for users who need a safer and more user-friendly upgrade over the standard XT60 connector. Its integrated housing improves handling, protects solder joints, and reduces wear during repeated use.

Compared to older XT60 designs, the XT60H series offers better ergonomics, improved mechanical protection, and more reliable real-world performance, making it a preferred choice for modern drone and battery-powered systems.

Package Includes

• 1 × Amass XT60H Male Connector with Housing (XT60H-M.G.Y)

Product Description

The Amass XT150 Female Connector (XT150-F.G.BL) is a premium high-current single-pin DC power connector designed for demanding applications such as agriculture drones, industrial UAV systems, RC vehicles, electric mobility solutions, robotics, and high-capacity lithium battery packs. Manufactured by Amass, a globally recognized leader in connector technology, the XT150 series is engineered for stable high-current transfer, low resistance, and long-term durability in harsh operating environments.

The XT150-F.G.BL Female Connector features a precision-machined brass contact with gold flash plating, ensuring excellent electrical conductivity and very low contact resistance. This helps reduce energy loss and heat generation during continuous high-load operation, making it suitable for professional UAV and battery power systems. The gold plating also improves resistance to oxidation and corrosion, ensuring consistent performance over repeated mating cycles.

Designed for high-power DC applications, the XT150 connector supports approximately 60A continuous current (depending on wire gauge and thermal conditions) and can handle high peak currents for short bursts, making it suitable for drone propulsion systems and heavy battery loads. It is rated for up to 500V DC systems, allowing compatibility with a wide range of industrial and UAV electronics.

The housing is made from high-temperature PA (Polyamide) thermoplastic with UL94 V-0 flame-retardant rating, providing excellent insulation, mechanical strength, and thermal stability. This rugged construction ensures safe operation under vibration, shock, and continuous electrical stress, which is critical for UAVs and mobile robotic platforms.

A key advantage of the XT150 series is its large contact surface area design, which improves current handling capability and reduces resistance compared to smaller connector types. This makes it especially useful for high-power battery packs and ESC connections where efficiency and thermal management are important.

Whether you're building an agricultural drone, assembling a high-capacity battery system, or working on industrial electronics, the Amass XT150 Female Connector delivers reliable performance, strong mechanical durability, and efficient power transmission.

Key Features

• Genuine Amass XT150-F.G.BL Female Connector
• High-current single-pin DC power connector
• Gold flash plated brass contact for excellent conductivity
• Low contact resistance for efficient energy transfer
• Supports ~60A continuous current (application dependent)
• Rated for up to 500V DC systems
• High-temperature PA (Polyamide) UL94 V-0 flame-retardant housing
• Secure friction-fit connection for vibration resistance
• Large contact surface for improved current handling
• Durable construction for long service life
• Easy solder-type wire termination

Applications & Use Cases

• Agriculture drones and spraying UAVs
• Heavy-lift industrial UAV systems
• Lithium-ion and LiPo battery packs
• Battery-to-ESC power connections
• RC cars, boats, and aircraft
• Robotics and automation systems
• Industrial power distribution systems
• Electric vehicles and mobility systems
• High-current charging systems
• DIY electronics and prototyping

Technical Specifications

• Brand: Amass
• Model: XT150-F.G.BL
• Connector Type: Female
• Series: XT150
• Contact Material: Brass, gold flash plated
• Housing Material: PA (Polyamide), UL94 V-0 flame-retardant
• Rated Current: ~60A continuous
• Rated Voltage: 500V DC
• Wire Compatibility: Up to 8 AWG
• Mechanical Life: ~1000 mating cycles
• Operating Temperature: -20°C to 120°C
• Mounting Type: Solder wire connection
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT150 Female Connector is designed for users who need a high-current, low-loss, and mechanically strong power connector for professional applications. Its large contact design ensures stable current flow, while the rugged housing ensures durability in demanding environments.

Compared to smaller XT-series connectors, the XT150 offers higher current capacity, better thermal handling, and stronger mechanical robustness, making it ideal for heavy-duty drone and power systems.

Package Includes

• 1 × Amass XT150 Female Connector (XT150-F.G.BL)

Product Description

The Amass XT60L Male Connector (XT60L-M.G.Y) is a high-performance 2-pin DC power connector designed for secure and efficient power transmission in drones, RC vehicles, robotics, battery packs, electric vehicles, and industrial electronic systems. Manufactured by Amass, a globally trusted brand in connector technology, the XT60L series is engineered as a compact, improved variant of the standard XT60, offering reliable connectivity, strong mechanical durability, and stable electrical performance.

The XT60L-M.G.Y Male Connector features precision gold-flash plated brass contacts, ensuring excellent conductivity and low contact resistance. This helps reduce power loss and heat buildup during high-current operation, making it suitable for UAV power systems, lithium battery packs, and ESC connections. The gold plating also provides corrosion resistance, ensuring long-term stability even under repeated connection cycles and outdoor usage conditions.

The XT60L series is known for its streamlined body design with improved grip and reduced size profile, making it easier to install in compact drone frames and tightly packed electronics. It maintains full compatibility with the XT60 ecosystem while offering a slightly more efficient mechanical layout for modern UAV and RC builds.

The housing is made from high-temperature PA (Polyamide) thermoplastic with UL94 V-0 flame-retardant rating, providing excellent insulation, mechanical strength, and thermal stability. This ensures safe operation under vibration, shock, and continuous electrical load conditions commonly found in drones and robotics.

Designed for medium-to-high current applications, the XT60L connector supports approximately 35A continuous current (depending on wire gauge and cooling conditions) and operates safely in up to 500V DC systems, making it ideal for drone propulsion systems and battery interfaces.

Whether you're building an FPV drone, assembling a robotics platform, or designing battery-powered electronics, the Amass XT60L Male Connector offers a dependable balance of size, performance, and durability.

Key Features

• Genuine Amass XT60L-M.G.Y Male Connector
• Compact XT60 series variant with improved design
• Gold-flash plated brass contacts for excellent conductivity
• Low contact resistance for efficient power transfer
• High-temperature PA (Polyamide) UL94 V-0 housing
• Secure friction-fit connection system
• Compact and lightweight body for tight installations
• Resistant to vibration, shock, and heat
• Compatible with XT60 ecosystem connectors
• Easy solder-type wire termination
• Long service life with stable performance

Applications & Use Cases

• FPV racing drones and UAV systems
• Agricultural and industrial drones
• Lithium battery packs (LiPo/Li-ion)
• Electronic Speed Controllers (ESCs)
• Power distribution systems (PDBs)
• RC cars, boats, and aircraft
• Robotics and automation systems
• DIY electronics and prototyping
• Battery charging systems
• Embedded power electronics
• Industrial control systems

Technical Specifications

• Brand: Amass
• Model: XT60L-M.G.Y
• Connector Type: Male
• Series: XT60L
• Number of Pins: 2
• Contact Material: Brass, gold-flash plated
• Housing Material: PA (Polyamide), UL94 V-0 flame-retardant
• Rated Current: 35A max (12AWG, thermal dependent)
• Rated Voltage: 500V DC
• Wire Compatibility: Up to 12–14 AWG
• Operating Temperature: -20°C to 120°C
• Mechanical Life: ~100 mating cycles
• Mounting Type: Solder wire connection
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT60L Male Connector is ideal for users who want a compact and reliable alternative to standard XT60 connectors, especially in space-constrained drone and robotics builds. It delivers stable current handling with improved mechanical design and long-term durability.

Compared to generic connectors, the XT60L series offers better build quality, safer electrical performance, and stronger reliability, making it a preferred choice for professional UAV and electronics applications.

Package Includes

• 1 × Amass XT60L Male Connector (XT60L-M.G.Y)

Product Description

The Amass XT60L Female Connector (XT60L-F.G.Y) is a high-quality 2-pin DC power connector designed for efficient, secure, and reliable power transmission in drones, RC vehicles, robotics, battery packs, electric vehicles, and industrial electronic systems. Manufactured by Amass, a globally trusted connector brand, the XT60L series is an upgraded and compact variant of the standard XT60, offering improved mechanical design and consistent electrical performance for modern UAV and electronics applications.

The XT60L-F.G.Y Female Connector features precision gold-flash plated brass contacts, ensuring excellent conductivity and low contact resistance. This helps reduce power loss and heat generation during high-current operation, making it suitable for UAV propulsion systems, lithium battery packs, and ESC power connections. The gold flash plating also provides strong resistance to oxidation and corrosion, ensuring long-term reliability even under frequent use and harsh environmental conditions.

Designed as part of the XT60L compact series, this connector offers a space-optimized body structure while maintaining full compatibility with XT60 systems. Its streamlined design makes it ideal for installations where space is limited, such as compact drone frames, tight battery compartments, and embedded electronic assemblies.

The housing is made from high-temperature PA (Polyamide) thermoplastic with UL94 V-0 flame-retardant rating, providing excellent insulation, mechanical strength, and thermal stability. This ensures safe operation under vibration, shock, and continuous electrical load conditions commonly found in UAV and robotics applications.

The XT60L connector is commonly rated for around 30A continuous current and up to 500V DC systems, depending on wire gauge and thermal conditions, making it suitable for medium-power drone and battery applications. Its reliable friction-fit design ensures a secure connection while still allowing easy disconnection when needed.

Whether you're building an FPV drone, assembling a robotics system, or working on battery-powered electronics, the Amass XT60L Female Connector provides a dependable balance of compact size, durability, and efficient power handling.

Key Features

• Genuine Amass XT60L-F.G.Y Female Connector
• Compact XT60 series variant with optimized body design
• Gold-flash plated brass contacts for high conductivity
• Low contact resistance for efficient power transfer
• High-temperature PA (Polyamide) UL94 V-0 flame-retardant housing
• Secure friction-fit connection system
• Space-saving design for compact electronics
• Resistant to vibration, heat, and mechanical stress
• Compatible with XT60 ecosystem connectors
• Easy solder-type wire termination
• Long service life with stable electrical performance

Applications & Use Cases

• FPV racing drones and UAV systems
• Agricultural and industrial drones
• Lithium battery packs (LiPo/Li-ion)
• Electronic Speed Controllers (ESCs)
• Power distribution systems (PDBs)
• RC cars, boats, and aircraft
• Robotics and automation systems
• DIY electronics and prototyping
• Battery charging systems
• Embedded power electronics
• Industrial control systems

Technical Specifications

• Brand: Amass
• Model: XT60L-F.G.Y
• Connector Type: Female
• Series: XT60L
• Number of Pins: 2
• Contact Material: Brass, gold-flash plated
• Housing Material: PA (Polyamide), UL94 V-0 flame-retardant
• Rated Current: ~30A continuous (application dependent)
• Rated Voltage: 500V DC
• Wire Compatibility: 12–14 AWG
• Operating Temperature: -20°C to 120°C
• Mechanical Life: ~100–1000 mating cycles (typical)
• Mounting Type: Solder wire connection
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT60L Female Connector is ideal for users who want a compact, reliable, and efficient alternative to standard XT60 connectors. It provides stable current handling while improving space efficiency and mechanical integration in modern drone and electronics designs.

Compared to generic connectors, the XT60L series offers better build quality, consistent conductivity, and improved durability, making it a strong choice for professional UAV and embedded power systems.

Package Includes

• 1 × Amass XT60L Female Connector (XT60L-F.G.Y)

Product Description

The Amass XT60IE-M Battery Connector (XT60IE-M.G.B) is a high-quality 2-pin DC power connector with integrated panel-mount and safety-oriented design, built for reliable power transmission in drones, RC systems, robotics, battery packs, electric vehicles, and industrial electronic applications. Manufactured by Amass, a globally trusted leader in connector technology, the XT60IE series is engineered to deliver stable current flow, low resistance, and secure mechanical installation for professional electronic systems.

The XT60IE-M.G.B Male Connector features precision gold-flash plated brass contacts, ensuring excellent conductivity and reduced contact resistance. This helps minimize power loss and heat generation during operation, making it suitable for medium-to-high power UAV systems and lithium battery applications. The gold plating also enhances corrosion resistance, ensuring long-term reliability even in harsh outdoor environments.

The XT60IE series is a panel-mount variant of the XT60 family, designed with a 3-pin (2+1 structure in some variants) and flange mounting system, allowing secure installation onto enclosures, battery housings, or power distribution units. This makes it especially useful for systems where a fixed, stable power input/output port is required rather than loose inline connectors.

The housing is made from high-temperature PA (Polyamide) thermoplastic with UL94 V-0 flame-retardant rating, ensuring excellent insulation, mechanical strength, and thermal stability. It is designed to withstand vibration, shock, and continuous electrical stress, which is critical for drones and robotics applications.

The XT60IE series is typically rated for around 30A continuous current and up to 500V DC operation, depending on configuration and wiring conditions, making it suitable for UAV power systems and medium-load battery interfaces.

Whether you're designing a drone power input port, building a robotics charging interface, or assembling an embedded power system, the Amass XT60IE-M Battery Connector provides a reliable, safe, and professional-grade solution for fixed power connectivity.

Key Features

• Genuine Amass XT60IE-M.G.B Battery Connector
• Panel-mount XT60 series connector with flange design
• 2-pin / 3-pin (2+1 structure depending on variant) design
• Gold-flash plated brass contacts for high conductivity
• Low contact resistance for efficient power transfer
• High-temperature PA (Polyamide) UL94 V-0 flame-retardant housing
• Secure screw/flange mounting for stable installation
• Resistant to vibration and mechanical stress
• Compact and lightweight panel interface design
• Easy solder-type wire termination
• Long service life with consistent performance

Applications & Use Cases

• Drone battery input/output ports
• UAV charging and power distribution systems
• RC cars, boats, and aircraft
• Robotics and automation systems
• Battery management systems (BMS)
• Power distribution panels and chargers
• Embedded electronics and control systems
• DIY electronics and prototyping projects
• Industrial power interfaces
• Lithium battery pack connectors

Technical Specifications

• Brand: Amass
• Model: XT60IE-M.G.B
• Connector Type: Male
• Series: XT60IE (Panel Mount)
• Contact Material: Brass, gold-flash plated
• Housing Material: PA (Polyamide), UL94 V-0 flame-retardant
• Rated Current: 30A continuous (application dependent)
• Rated Voltage: 0.6kV / 500V DC
• Wire Compatibility: Up to 12 AWG
• Mechanical Life: ~1000 mating cycles
• Operating Temperature: -20°C to 120°C
• Mounting Type: Panel mount (flange with screw holes)
• Electrical Connection: Solder termination

Why Choose This Connector?

The Amass XT60IE-M Battery Connector is ideal for users who need a fixed, panel-mounted XT60-style power interface with strong mechanical stability and professional integration. Unlike inline connectors, it is designed for permanent installation in systems where safety, durability, and clean wiring are important.

It offers the reliability of the XT60 family combined with the structural advantages of a panel-mount design, making it a preferred choice for drone charging ports and embedded power systems.

Package Includes

• 1 × Amass XT60IE-M.G.B Battery Connector

Product Description

The Amass XT60PW(2+1) Male Connector (XT60IPW-M.G.O) is a high-performance panel-mount PCB power connector with an integrated 2+1 pin configuration, designed for reliable power and signal transmission in drones, RC systems, robotics, UAV control boards, battery packs, and industrial electronics. Manufactured by Amass, a globally trusted connector brand, this XT60PW variant is engineered for applications where both high-current power delivery and additional signal/communication lines are required in a compact footprint.

The XT60IPW-M.G.O Male Connector features a 2 power + 1 signal pin architecture (2+1 design), allowing simultaneous transmission of power and control signals through a single connector. This reduces wiring complexity, improves system integration, and enhances reliability in advanced drone and robotics systems.

It uses precision gold-flash plated brass contacts, ensuring excellent electrical conductivity and low contact resistance. This helps minimize power loss and heat buildup during operation, making it suitable for UAV propulsion systems, ESC control circuits, and smart battery systems. The gold plating also improves corrosion resistance for long-term durability in outdoor and industrial environments.

The connector is built in a 90° PCB-mounted (right-angle) configuration, designed for direct soldering onto printed circuit boards. This allows clean PCB layout design and compact integration inside drone flight controllers, power distribution boards, and smart battery management systems.

The housing is made from high-temperature PA (Polyamide) thermoplastic with UL94 V-0 flame-retardant rating, ensuring excellent insulation, mechanical strength, and thermal stability under high-load conditions. It is designed to withstand vibration, shock, and continuous electrical stress common in UAV and robotics applications.

The XT60PW(2+1) connector typically supports around 30A continuous current and up to 500V DC, depending on wiring and thermal conditions, making it suitable for medium-power drone systems and integrated electronic platforms.

Whether you're designing a smart UAV power system, building an advanced robotics controller, or developing compact embedded electronics, the Amass XT60PW(2+1) Male Connector provides a smart combination of power delivery, signal integration, and PCB-level mounting convenience.

Key Features

• Genuine Amass XT60IPW-M.G.O (XT60PW 2+1) Male Connector
• 2 power pins + 1 signal pin integrated design
• Supports combined power and communication lines
• Gold-flash plated brass contacts for high conductivity
• Low contact resistance for efficient power transfer
• PCB-mounted 90° right-angle design
• High-temperature PA (Polyamide) UL94 V-0 housing
• Strong vibration and mechanical stability
• Compact and space-saving PCB integration
• Designed for solder-type PCB installation
• Long service life with stable performance

Applications & Use Cases

• Advanced UAV and drone flight systems
• Smart battery packs with communication lines
• Power Distribution Boards (PDBs)
• ESC control and telemetry systems
• Robotics and automation systems
• Industrial embedded electronics
• RC vehicles and aircraft systems
• IoT and smart power modules
• DIY electronics and prototyping
• Battery-powered control systems

Technical Specifications

• Brand: Amass
• Model: XT60IPW-M.G.O
• Connector Type: Male
• Series: XT60PW (2+1)
• Pin Configuration: 2 power + 1 signal
• Mounting Type: PCB Through Hole (90° right-angle)
• Contact Material: Brass, gold-flash plated
• Housing Material: PA (Polyamide), UL94 V-0 flame-retardant
• Rated Current: 30A continuous
• Rated Voltage: 500V DC
• Mechanical Life: ~1000 mating cycles
• Operating Temperature: -20°C to 120°C
• Application Type: Power + signal PCB connector

Why Choose This Connector?

The Amass XT60PW(2+1) Male Connector is ideal for systems that require both power and signal transmission in a single compact connector. Unlike standard XT60 connectors, it reduces wiring complexity and improves system integration, especially in smart UAV and robotics platforms.

Its combination of PCB mounting, dual-function design, and Amass-grade reliability makes it a preferred choice for advanced electronic systems.

Package Includes

• 1 × Amass XT60IPW-M.G.O (XT60PW 2+1) Male Connector

Product Description

The Amass XT150 Male Connector (XT150-M.G.BL) is a premium-grade high-current single-pin DC power connector designed for demanding applications such as agriculture drones, industrial UAV systems, RC vehicles, robotics, electric mobility systems, and high-capacity lithium battery packs. Manufactured by Amass, a globally trusted connector brand, the XT150 series is engineered for ultra-low resistance, stable high-current transmission, and long-term durability in harsh operating environments.

The XT150-M.G.BL Male Connector features a precision-machined brass contact with gold flash plating, ensuring excellent conductivity and minimal contact resistance. This enables efficient power transfer with reduced voltage drop and heat generation, even under continuous high-load operation. The gold plating also improves corrosion resistance, making the connector suitable for outdoor drone and industrial applications.

Designed for high-power DC systems, the XT150 connector supports approximately 60A continuous current and up to 500V DC operation, making it suitable for UAV propulsion systems and heavy battery discharge applications. In peak conditions, it can handle significantly higher short-duration currents depending on system design and wiring.

The housing is made from high-temperature PA (Polyamide) thermoplastic with UL94 V-0 flame-retardant rating, providing excellent insulation, mechanical strength, and thermal stability. This rugged construction ensures safe operation under vibration, shock, and continuous electrical stress—common conditions in drones, robotics, and electric vehicles.

A key design advantage of the XT150 series is its large contact surface area (bullet-style high-power interface), which reduces resistance and improves current-carrying efficiency compared to smaller XT connectors. This makes it especially suitable for high-load battery packs, ESC connections, and power distribution systems where stability is critical.

Whether you're building a professional agricultural drone, assembling a high-capacity battery system, or designing industrial electronics, the Amass XT150 Male Connector delivers reliable performance, strong mechanical durability, and efficient power handling.

Key Features

• Genuine Amass XT150-M.G.BL Male Connector
• High-current single-pin DC power connector
• Gold flash plated brass contact for excellent conductivity
• Low contact resistance for efficient energy transfer
• Supports ~60A continuous current (application dependent)
• Rated for up to 500V DC systems
• High-temperature PA (Polyamide) UL94 V-0 flame-retardant housing
• Large contact surface for improved current flow
• Strong vibration and mechanical resistance
• Durable design for long service life
• Easy solder-type wire termination
• Reliable connection for high-power systems

Applications & Use Cases

• Agriculture drones and spraying UAVs
• Heavy-lift industrial drones (VTOL systems)
• Lithium-ion and LiPo battery packs
• Battery-to-ESC power connections
• RC cars, boats, and aircraft
• Robotics and automation systems
• Industrial power distribution systems
• Electric vehicles and mobility systems
• High-current charging systems
• DIY electronics and prototyping projects

Technical Specifications

• Brand: Amass
• Model: XT150-M.G.BL
• Connector Type: Male
• Series: XT150
• Contact Material: Brass, gold flash plated
• Housing Material: PA (Polyamide), UL94 V-0 flame-retardant
• Rated Current: ~60A continuous
• Rated Voltage: 500V DC
• Wire Compatibility: Up to 8 AWG
• Mechanical Life: ~1000 mating cycles
• Operating Temperature: -20°C to 120°C
• Mounting Type: Solder wire connection
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT150 Male Connector is ideal for users who need a robust high-current connector with minimal power loss and strong mechanical reliability. Its large contact design ensures stable current delivery, while the rugged housing ensures long-term performance in demanding environments.

Compared to smaller XT-series connectors, the XT150 offers higher current handling capability, better thermal stability, and superior durability, making it a preferred choice for professional UAV and industrial power systems.

Package Includes

• 1 × Amass XT150 Male Connector (XT150-M.G.BL)

Product Description

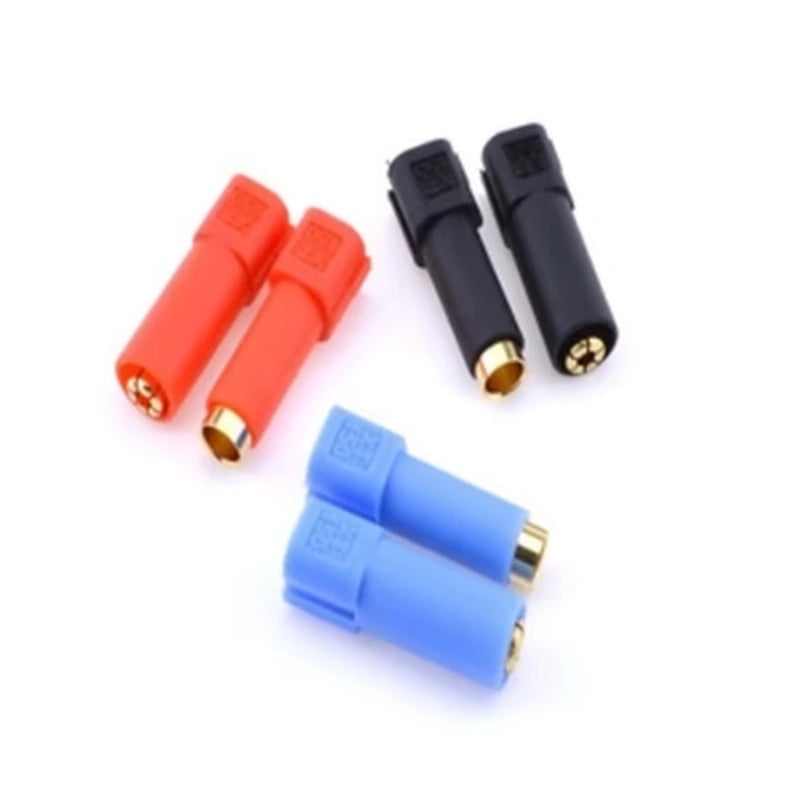

The Amass XT150 Gold Plated Male Connector – Black (XT150-M.G.B) is a premium high-current single-pole DC power connector engineered for reliable and efficient power transmission in agriculture drones, industrial UAVs, RC vehicles, electric vehicles, robotics, battery packs, and high-power electronic systems. Manufactured by Amass, a globally trusted connector brand, the XT150 series is designed to provide low-resistance electrical performance, high current handling capability, and exceptional mechanical durability for demanding applications.

The XT150-M.G.B Male Connector features a precision-machined brass contact with premium gold plating, ensuring superior electrical conductivity and minimal contact resistance. The gold-plated contact significantly reduces voltage drop and heat generation while providing excellent resistance to oxidation and corrosion, ensuring reliable performance over extended periods of use.

Designed for high-current DC power systems, the XT150 connector is rated for 60A continuous current and up to 130A peak current, depending on wire gauge and operating conditions. It also supports 500V DC systems, making it an excellent choice for professional drone power systems, battery packs, motor controllers, and industrial electronics.

One of the key advantages of the XT150 series is its large 6mm bullet contact design, which provides a significantly larger contact surface than standard connectors. This design lowers electrical resistance, improves heat dissipation, and enables efficient high-current transfer. The detachable black housing also allows users to combine multiple XT150 connectors using the integrated dovetail locking system, making it easy to build custom battery connectors for different applications.

The housing is manufactured from high-temperature PA (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, providing outstanding insulation, mechanical strength, and thermal stability. Its rugged construction resists vibration, impact, and continuous electrical stress, making it ideal for outdoor UAV operations and industrial environments.

Whether you're assembling a heavy-lift drone, upgrading an RC vehicle, building a high-capacity lithium battery pack, or designing industrial power systems, the Amass XT150 Gold Plated Male Connector delivers professional-grade reliability, efficient power transfer, and long-lasting performance.

Key Features

• Genuine Amass XT150-M.G.B Gold Plated Male Connector
• High-current single-pole DC power connector
• Premium gold-plated brass contact for maximum conductivity
• Low contact resistance for efficient power transfer
• Rated for 60A continuous current
• Supports 130A peak current
• Rated for 500V DC
• Large 6mm bullet contact for improved current handling
• High-temperature PA (Nylon) UL94 V-0 flame-retardant housing
• Detachable housing with dovetail locking design
• Excellent resistance to heat, vibration, and corrosion
• Easy solder-type wire termination

Applications & Use Cases

The Amass XT150 Gold Plated Male Connector is widely used in:

• Agriculture drones and spraying UAVs
• Heavy-lift commercial drones
• FPV drone battery systems
• Lithium-ion and LiPo battery packs
• Electronic Speed Controllers (ESCs)
• Brushless motor power connections
• RC cars, boats, helicopters, and aircraft
• Electric vehicles (EVs) and e-bikes
• Robotics and industrial automation
• High-current battery charging systems
• Solar energy storage systems
• DIY electronics and custom battery projects

Technical Specifications

• Brand: Amass
• Model: XT150-M.G.B
• Connector Type: Male
• Series: XT150
• Number of Poles: 1
• Contact Material: Gold-plated brass
• Housing Material: PA (Polyamide/Nylon), UL94 V-0
• Rated Current: 60A Continuous
• Peak Current: 130A
• Rated Voltage: 500V DC
• Contact Resistance: ≤0.20mΩ
• Recommended Wire Size: 8 AWG
• Mechanical Life: 1000 mating cycles
• Operating Temperature: -20°C to 120°C
• Mounting Type: Cable mount, solder termination
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT150 Gold Plated Male Connector is an excellent choice for engineers, drone manufacturers, robotics professionals, and RC enthusiasts who require safe, efficient, and reliable high-current power connections. Its large gold-plated contact surface minimizes power loss while maximizing current capacity, making it ideal for demanding electrical systems.

Compared to conventional bullet connectors, the XT150 series offers higher current capability, lower resistance, superior thermal performance, and a rugged flame-retardant housing, ensuring dependable operation in professional and industrial applications.

Package Includes

• 1 × Amass XT150 Gold Plated Male Connector – Black (XT150-M.G.B)

Product Description

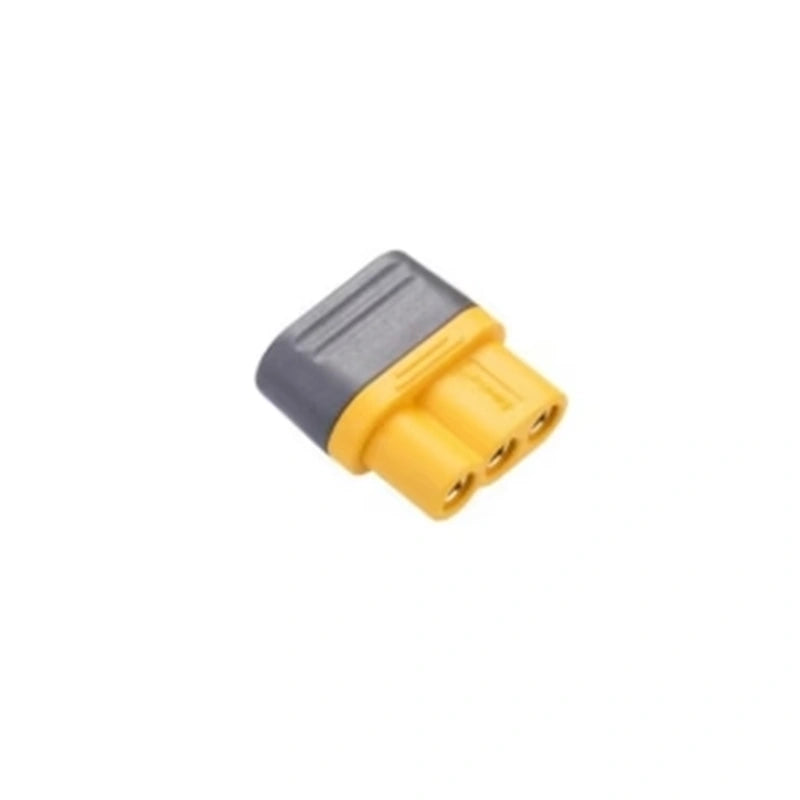

The Amass MR60 Female Connector (MR60-F.G.Y) is a premium 3-pin high-current DC power connector designed for reliable motor-to-ESC and power connections in FPV drones, UAVs, RC aircraft, RC cars, robotics, industrial automation, and brushless motor applications. Manufactured by Amass, a globally recognized leader in connector technology, the MR60 series combines three gold-plated bullet connectors into a single insulated housing, providing a safer, cleaner, and more reliable alternative to individual bullet connectors.

The MR60-F.G.Y Female Connector features three precision-machined gold flash plated brass contacts, offering excellent electrical conductivity and ultra-low contact resistance. This minimizes power loss and heat generation while ensuring stable current delivery during continuous operation. The gold plating also provides outstanding resistance to oxidation and corrosion, extending the connector's service life even in demanding outdoor environments.

Designed specifically for 3-phase brushless motor connections, the MR60 connector eliminates wiring confusion by integrating all three motor phase wires into a single compact connector. This significantly simplifies installation, improves cable management, and reduces the possibility of incorrect wiring during assembly or maintenance.

The connector is manufactured using high-temperature PA66 (Nylon) thermoplastic with a UL94 V-0 flame-retardant rating, providing excellent insulation, mechanical strength, and heat resistance. Its rugged housing withstands vibration, mechanical shock, and continuous electrical loading, making it ideal for high-performance drone and robotics applications.

The MR60 series is rated for 30A continuous current and up to 500V DC, depending on wire size and operating conditions. It supports 12 AWG wire and utilizes solder-type termination for secure electrical connections. With a mechanical durability of approximately 1,000 mating cycles, it delivers dependable long-term performance in both commercial and hobby-grade applications.

Whether you're assembling an FPV racing drone, building an industrial UAV, wiring a brushless motor, or upgrading an RC vehicle, the Amass MR60 Female Connector delivers professional-grade power transmission, reliable electrical performance, and exceptional durability.

Key Features

• Genuine Amass MR60-F.G.Y Female Connector
• 3-pin integrated connector for brushless motors
• Gold flash plated brass contacts for superior conductivity
• Low contact resistance for efficient power transfer
• Rated for 30A continuous current
• Supports up to 500V DC
• High-temperature PA66 (Nylon) UL94 V-0 flame-retardant housing
• Integrated housing simplifies motor wiring
• Excellent resistance to vibration, heat, and corrosion
• Supports up to 12 AWG wire
• Solder-type wire termination
• Long mechanical life of approximately 1,000 mating cycles

Applications & Use Cases

The Amass MR60 Female Connector is widely used in:

• FPV racing drones
• Commercial and industrial UAVs
• Brushless motor to ESC connections
• RC airplanes and helicopters
• RC cars and boats
• Robotics and automation systems
• Agricultural drones
• Electric skateboards and e-mobility projects
• Industrial motor controllers
• DIY electronics and prototyping
• Battery-powered motor systems
• Embedded power distribution systems

Technical Specifications

• Brand: Amass
• Model: MR60-F.G.Y
• Connector Type: Female
• Series: MR60
• Number of Pins: 3
• Contact Material: Brass, gold flash plated
• Housing Material: PA66 (Nylon), UL94 V-0 flame-retardant
• Rated Current: 30A Continuous
• Rated Voltage: 500V DC
• Wire Size: Up to 12 AWG
• Mechanical Life: 1,000 mating cycles
• Operating Temperature: -20°C to 120°C
• Mounting Type: Cable mount
• Electrical Connection: Solder termination
• Contact Plating: Gold flash

Why Choose This Connector?

The Amass MR60 Female Connector is engineered for professionals, drone builders, RC enthusiasts, and robotics developers who need a compact, high-current, and highly reliable 3-phase motor connector. Its integrated three-pin design reduces wiring complexity, improves installation speed, and provides a cleaner, more secure connection than individual bullet connectors.

Compared to conventional motor connectors, the MR60 series offers excellent conductivity, rugged construction, superior vibration resistance, and long-lasting durability, making it an ideal solution for demanding drone, robotics, and industrial applications.

Package Includes

• 1 × Amass MR60 Female Connector (MR60-F.G.Y)

Product Description

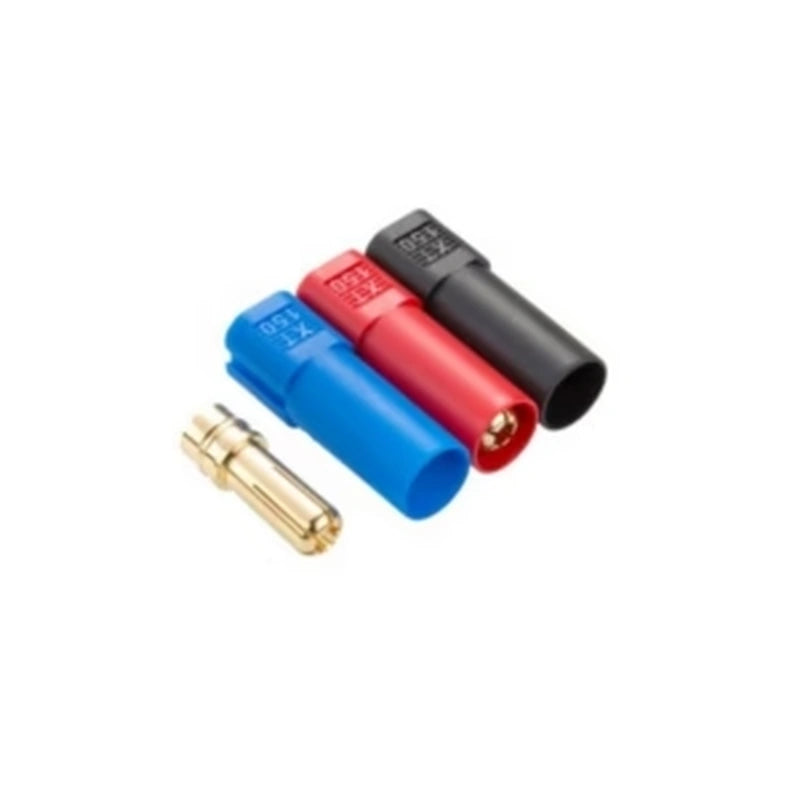

The Amass XT150 Male Connector (XT150-M.G.R) is a premium high-current single-pole DC power connector designed for demanding applications such as agriculture drones, industrial UAVs, RC aircraft, RC cars, robotics, electric vehicles, battery packs, and industrial power systems. Manufactured by Amass, a globally recognized leader in connector technology, the XT150 series is engineered to deliver low-resistance power transmission, exceptional current-carrying capability, and long-term reliability in high-power electrical applications.

The XT150-M.G.R Male Connector features a precision-machined brass contact with premium gold plating, ensuring excellent electrical conductivity and minimal contact resistance. This results in reduced voltage drop, lower heat generation, and efficient energy transfer even during continuous high-current operation. The gold-plated contact also provides excellent resistance against corrosion and oxidation, ensuring dependable performance over extended periods of use.

Designed for high-current DC power systems, the XT150 connector is rated for 60A continuous current and can safely handle up to 130A peak current, depending on wire size and operating conditions. It supports 500V DC systems, making it an excellent choice for professional UAV power systems, high-capacity lithium battery packs, motor controllers, and industrial electronics.

One of the standout features of the XT150 series is its large 6mm spring-loaded bullet contact, which provides a significantly larger contact surface than conventional connectors. This design improves current flow, minimizes resistance, and enhances heat dissipation during demanding applications. The red high-temperature nylon (PA) housing incorporates a dovetail interlocking design, allowing multiple XT150 connectors to be combined into custom multi-pole configurations for battery packs and power distribution systems.

Manufactured using UL94 V-0 flame-retardant Polyamide (PA), the housing offers outstanding insulation, mechanical strength, and resistance to vibration, shock, and elevated temperatures. With support for 8 AWG wire and approximately 1,000 mating cycles, the connector is built for professional use in harsh operating environments.

Whether you're assembling a heavy-lift drone, upgrading an RC vehicle, building a high-capacity battery pack, or designing industrial power equipment, the Amass XT150 Male Connector delivers professional-grade performance, maximum reliability, and efficient power transmission.

Key Features

• Genuine Amass XT150-M.G.R Male Connector
• High-current single-pole DC power connector
• Premium gold-plated brass contact for superior conductivity
• Large 6mm spring-loaded bullet contact
• Low contact resistance for efficient power transfer
• Rated for 60A continuous current
• Supports 130A peak current
• Rated for 500V DC
• High-temperature PA (Polyamide) UL94 V-0 flame-retardant housing
• Dovetail interlocking housing for custom multi-pin configurations
• Excellent resistance to heat, vibration, and corrosion
• Easy solder-type wire termination

Applications & Use Cases

The Amass XT150 Male Connector is widely used in:

• Agriculture drones and spraying UAVs
• Heavy-lift commercial drones
• FPV drone battery systems
• Lithium-ion and LiPo battery packs
• Electronic Speed Controllers (ESCs)
• Brushless motor power connections
• RC cars, boats, helicopters, and aircraft
• Electric vehicles (EVs) and e-bikes
• Robotics and industrial automation
• High-current battery charging systems
• Solar energy storage systems
• DIY electronics and custom battery projects

Technical Specifications

• Brand: Amass
• Model: XT150-M.G.R
• Connector Type: Male
• Series: XT150
• Number of Poles: 1
• Contact Material: Gold-plated brass
• Housing Material: PA (Polyamide/Nylon), UL94 V-0 flame-retardant
• Rated Current: 60A Continuous
• Peak Current: 130A
• Rated Voltage: 500V DC
• Contact Resistance: ≤0.20mΩ
• Recommended Wire Size: 8 AWG
• Mechanical Life: 1,000 mating cycles
• Operating Temperature: -20°C to 120°C
• Mounting Type: Cable mount, solder termination
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT150 Male Connector is designed for engineers, drone manufacturers, RC enthusiasts, and industrial professionals who require safe, efficient, and dependable high-current power connections. Its large gold-plated contact minimizes electrical losses while maximizing current capacity, making it ideal for demanding power systems.

Compared to conventional bullet connectors, the XT150 series provides higher current handling, superior thermal performance, rugged flame-retardant construction, and long service life, making it the preferred choice for professional drone, EV, and industrial applications.

Package Includes

• 1 × Amass XT150 Male Connector – XT150-M.G.R

Product Description

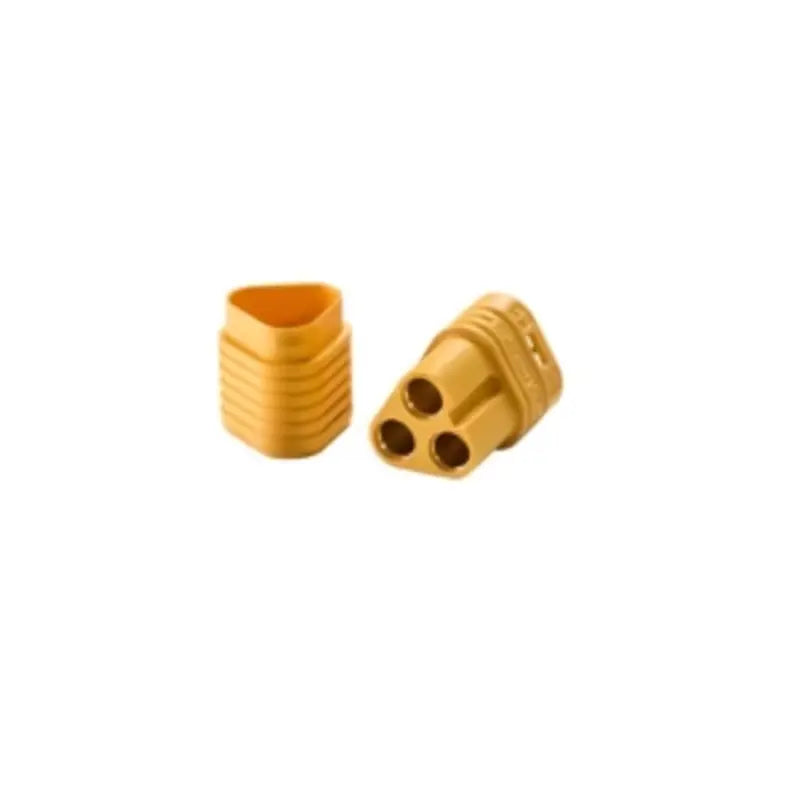

The Amass MT60 3 Pin Female Connector (MT60-F.G.Y) is a premium 3-pole high-current motor and power connector designed for secure and efficient electrical connections in FPV drones, multirotor UAVs, RC aircraft, robotics, brushless motor systems, and industrial electronic applications. Manufactured by Amass, a globally trusted leader in connector technology, the MT60 series combines three gold-plated bullet connectors into a single compact housing, providing a reliable, organized, and vibration-resistant solution for 3-phase brushless motor connections.

The MT60-F.G.Y Female Connector features three precision-machined 3.5mm gold flash plated brass contacts, delivering excellent electrical conductivity and low contact resistance. This minimizes voltage drop and heat generation while ensuring stable current transfer during continuous operation. The gold-plated contacts also provide excellent resistance against oxidation and corrosion, ensuring dependable long-term performance in demanding outdoor and industrial environments.

Designed specifically for brushless motor-to-ESC connections, the MT60 connector simplifies wiring by integrating all three motor phase wires into a single insulated connector. This reduces installation time, improves cable management, prevents incorrect wiring, and enhances overall system reliability. Its compact design makes it particularly suitable for multirotor drones, FPV racing drones, electric aircraft, and robotic systems where space is limited.

The connector housing is manufactured from high-temperature PA66 (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, providing excellent insulation, mechanical strength, and heat resistance. Its rugged construction resists vibration, mechanical shock, and continuous electrical loading, making it ideal for high-performance drone propulsion systems and industrial automation equipment.

The MT60 series is rated for 30A continuous current and 500V DC, depending on wire size and operating conditions. It supports 12 AWG wire and features solder-type wire termination for secure electrical connections. With a mechanical durability of approximately 1,000 mating cycles, it delivers reliable long-term performance in both professional and hobby-grade applications.

Whether you're building a racing drone, assembling a UAV propulsion system, designing a robotic platform, or upgrading an RC aircraft, the Amass MT60 Female Connector offers professional-grade reliability, excellent electrical efficiency, and simplified 3-phase motor connectivity.

Key Features

• Genuine Amass MT60-F.G.Y Female Connector
• 3-pin integrated connector for brushless motors
• Three 3.5mm gold flash plated brass contacts
• Low contact resistance for efficient power transfer
• Rated for 30A continuous current
• Supports 500V DC operation
• High-temperature PA66 (Nylon) UL94 V-0 flame-retardant housing
• Compact design for clean cable management
• Strong vibration and shock resistance
• Supports up to 12 AWG wire
• Solder-type wire termination
• Approximately 1,000 mating cycles for long service life

Applications & Use Cases

The Amass MT60 Female Connector is widely used in:

• FPV racing drones
• Commercial and industrial UAVs
• Brushless motor to ESC connections
• Multirotor drone propulsion systems
• RC airplanes and helicopters
• RC boats and cars
• Robotics and automation systems
• Agricultural drones
• Industrial motor controllers
• DIY electronics and prototyping
• Electric mobility projects
• Battery-powered motor systems

Technical Specifications

• Brand: Amass
• Model: MT60-F.G.Y
• Connector Type: Female
• Series: MT60
• Number of Pins: 3
• Connector Size: 3.5mm bullet contacts
• Contact Material: Brass, gold flash plated
• Housing Material: PA66 (Polyamide/Nylon), UL94 V-0 flame-retardant
• Rated Current: 30A Continuous
• Rated Voltage: 500V DC
• Wire Size: Up to 12 AWG
• Mechanical Life: Approximately 1,000 mating cycles
• Operating Temperature: -20°C to 120°C
• Mounting Type: Cable mount
• Electrical Connection: Solder termination

Why Choose This Connector?

The Amass MT60 Female Connector is engineered for drone builders, RC enthusiasts, robotics developers, and industrial professionals who require a compact, reliable, and high-performance 3-phase connector. Its integrated three-pin design simplifies wiring, reduces clutter, and provides a more secure and organized connection than individual bullet connectors.

Compared to conventional motor connectors, the MT60 series offers excellent conductivity, rugged flame-retardant construction, superior vibration resistance, and long-lasting durability, making it an ideal choice for professional drone, robotics, and industrial applications.

Package Includes

• 1 × Amass MT60 3 Pin Female Connector (MT60-F.G.Y)

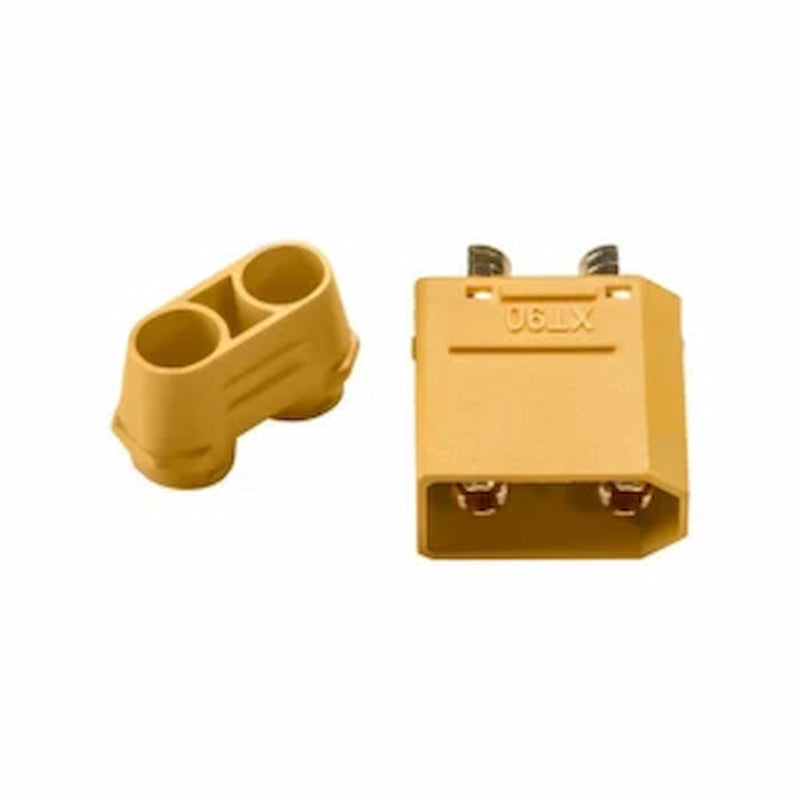

The Amass XT90 Male Connector with Housing is a reliable drone part designed for secure electrical connections. This single piece features a sturdy housing that protects the XT90 male connector, ensuring efficient power delivery and resistance to wear. Perfect for drone enthusiasts, it supports seamless integration with compatible XT90 connectors, making it ideal for various drone assembly and repair tasks.

• Durable housing shields the male connector from damage and environmental factors for longer component life
• Standard XT90 male connector provides a dependable connection with XT90 female counterparts
• Compact design fits easily into drone builds without adding unnecessary bulk
• High current capacity supports efficient power transfer essential for drone performance
• Compatibility ensures seamless integration with a wide range of drone components using XT90 connectors

Product Description

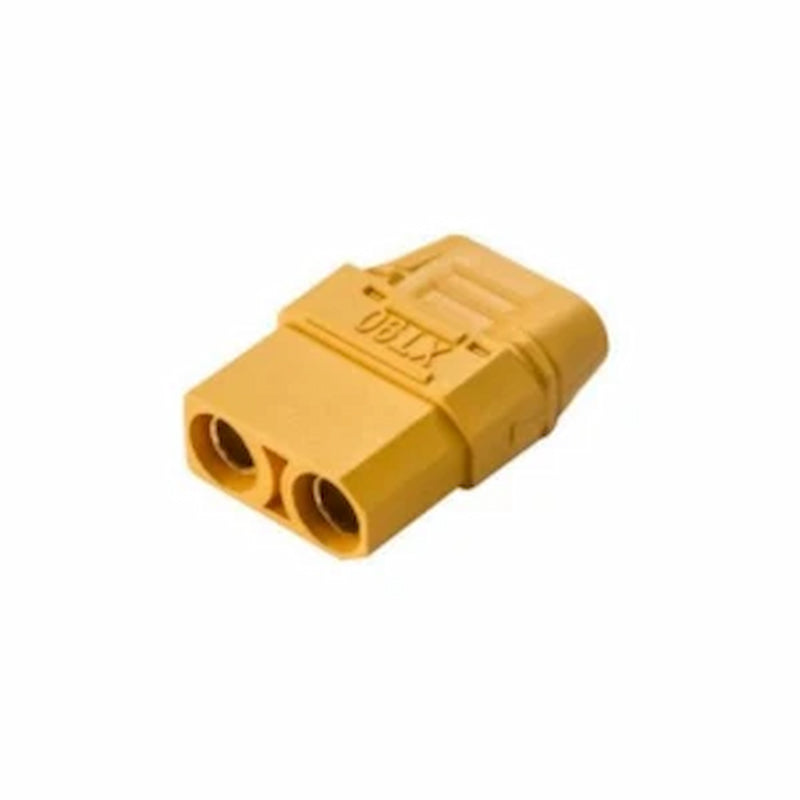

The Amass XT90 Female Connector with Housing (XT90H-F.G.Y) is a premium high-current DC power connector designed for reliable and efficient power transmission in agriculture drones, industrial UAVs, RC aircraft, electric vehicles, robotics, battery packs, and high-power electronic systems. Manufactured by Amass, a globally recognized leader in connector technology, the XT90H series is engineered to deliver safe, low-resistance, and high-current electrical connections for demanding applications.

The XT90H-F.G.Y Female Connector features precision-machined gold-plated brass contacts that provide excellent electrical conductivity and extremely low contact resistance. The gold plating minimizes voltage drop and heat generation while offering superior resistance to corrosion and oxidation, ensuring reliable long-term performance even in harsh operating environments.

One of the key advantages of the XT90H series is its integrated protective housing (end cap), which provides enhanced insulation, strain relief, and improved cable management. The housing protects solder joints from mechanical stress while giving the finished assembly a cleaner and more professional appearance. It also helps reduce the risk of accidental short circuits during installation and operation.

Designed for high-current DC power systems, the XT90H connector supports up to 90A continuous current (application dependent) and operates at up to 500V DC, making it suitable for high-capacity LiPo battery packs, UAV propulsion systems, ESCs, and industrial power equipment.

The connector housing is manufactured from high-temperature PA (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, providing excellent insulation, heat resistance, and mechanical durability. Its rugged construction withstands vibration, impact, and continuous electrical loading, making it ideal for demanding outdoor and industrial applications.

Whether you're assembling a professional drone, building a high-capacity battery pack, upgrading an RC vehicle, or designing industrial power systems, the Amass XT90H Female Connector with Housing delivers professional-grade reliability, efficient power transfer, and long service life.

Key Features

• Genuine Amass XT90H-F.G.Y Female Connector with Housing
• High-current DC power connector with protective housing
• Premium gold-plated brass contacts for superior conductivity
• Low contact resistance for efficient power transfer
• Supports up to 90A continuous current
• Rated for 500V DC
• Integrated housing provides strain relief and cable protection
• High-temperature PA (Nylon) UL94 V-0 flame-retardant housing
• Excellent resistance to heat, vibration, and corrosion
• Supports 10 AWG wire
• Solder-type wire termination
• Durable construction with long mechanical life

Applications & Use Cases

The Amass XT90H Female Connector is widely used in:

• Agriculture drones and spraying UAVs
• Heavy-lift commercial drones
• FPV drone battery systems
• Lithium-ion and LiPo battery packs
• Electronic Speed Controllers (ESCs)
• RC cars, boats, helicopters, and aircraft
• Electric vehicles (EVs) and e-bikes
• Robotics and industrial automation
• Portable power stations
• Solar energy storage systems
• High-current charging systems
• DIY electronics and battery projects

Technical Specifications

• Brand: Amass
• Model: XT90H-F.G.Y
• Connector Type: Female
• Series: XT90H
• Number of Pins: 2
• Contact Material: Gold-plated brass
• Housing Material: PA (Polyamide/Nylon), UL94 V-0 flame-retardant
• Rated Current: Up to 90A continuous (application dependent)
• Rated Voltage: 500V DC
• Recommended Wire Size: 10 AWG
• Mechanical Life: Approximately 1,000 mating cycles
• Operating Temperature: -20°C to 120°C
• Mounting Type: Cable mount
• Electrical Connection: Solder termination
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT90H Female Connector with Housing is ideal for professionals and hobbyists who require a safe, high-current, and highly reliable power connector. Its integrated housing protects solder joints, improves cable management, and enhances connector durability, while the gold-plated contacts ensure maximum electrical efficiency and dependable long-term performance.

Compared to standard XT90 connectors, the XT90H version offers better cable protection, improved mechanical strength, cleaner installation, and enhanced reliability, making it an excellent choice for professional drones, robotics, electric vehicles, and industrial power systems.

Package Includes

• 1 × Amass XT90 Female Connector with Housing (XT90H-F.G.Y)

Product Description

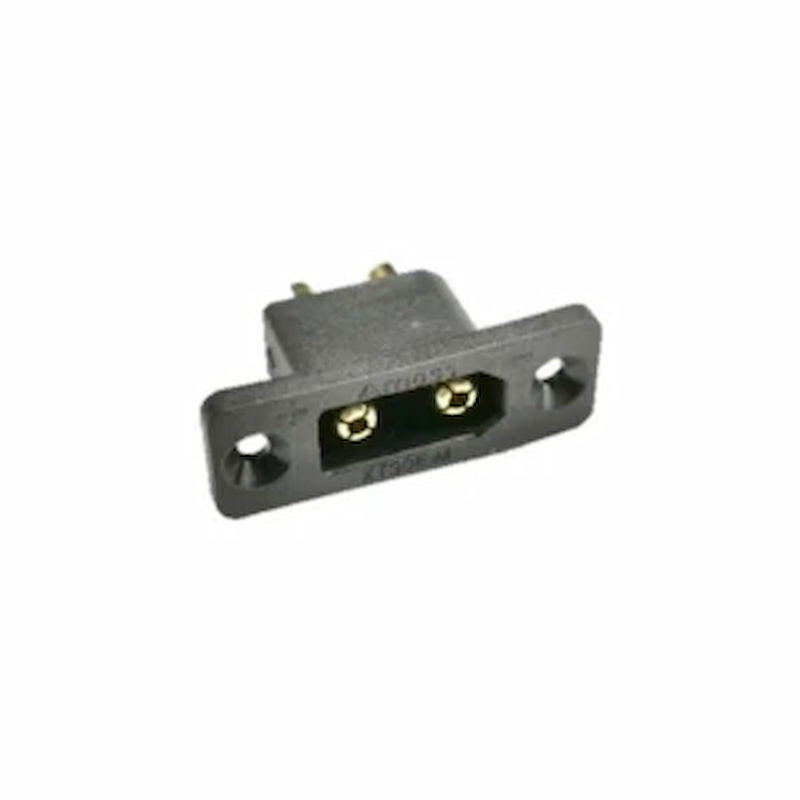

The Amass XT90E-M Gold Plated Black Connector (XT90E-M.G.B) is a premium panel-mount high-current DC power connector designed for secure and efficient power transmission in agriculture drones, industrial UAVs, robotics, RC aircraft, electric vehicles, battery packs, charging stations, and industrial electronic systems. Manufactured by Amass, a globally trusted connector manufacturer, the XT90E series combines the proven XT90 electrical interface with a flange-mounted housing, making it ideal for fixed installations where a robust panel-mounted power connection is required.

The XT90E-M.G.B Male Connector features precision gold-plated copper alloy contacts that provide excellent electrical conductivity, ultra-low contact resistance, and efficient current transfer. The gold plating minimizes voltage drop and heat generation while offering outstanding resistance to oxidation and corrosion, ensuring dependable long-term performance even in demanding operating environments.

Designed for panel-mounted power distribution systems, the XT90E-M connector incorporates a two-hole flange mounting design, allowing it to be securely fixed onto enclosures, charging stations, battery cases, and equipment panels. This provides a stable connection while simplifying installation and maintenance in professional electronic systems.

The connector supports 30A continuous current and operates at up to 500V DC, making it suitable for medium- to high-power electrical systems. It accommodates 8–12 AWG wires through solder-type termination, ensuring strong electrical and mechanical connections for high-current applications.

The housing is manufactured from high-temperature PA (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, providing excellent insulation, heat resistance, and mechanical durability. Its rugged construction withstands vibration, impact, and continuous electrical loading, making it suitable for outdoor drone operations and industrial automation systems.

Whether you're designing a professional UAV, building a battery charging station, integrating an industrial power distribution system, or developing a robotics platform, the Amass XT90E-M Gold Plated Black Connector delivers reliable power transmission, secure panel mounting, and long-lasting performance.

Key Features

• Genuine Amass XT90E-M.G.B Male Connector
• Panel-mount high-current DC power connector
• Premium gold-plated copper alloy contacts
• Low contact resistance for efficient power transfer
• Rated for 30A continuous current
• Supports 500V DC operation
• Two-hole flange design for secure panel mounting
• High-temperature PA (Nylon) UL94 V-0 flame-retardant housing
• Excellent resistance to heat, vibration, and corrosion
• Supports 8–12 AWG wire
• Solder-type wire termination
• Long mechanical life with reliable performance

Applications & Use Cases

The Amass XT90E-M Male Connector is widely used in:

• Agriculture drones and industrial UAVs
• Battery charging stations
• Lithium-ion and LiPo battery packs
• Electric vehicles (EVs) and e-bikes
• Robotics and automation systems
• RC aircraft, helicopters, boats, and cars
• Industrial power distribution panels
• Portable power stations
• Solar energy storage systems
• Embedded electronic equipment
• DIY electronics and custom battery projects
• High-current charging systems

Technical Specifications

• Brand: Amass
• Model: XT90E-M.G.B
• Connector Type: Male
• Series: XT90E
• Number of Pins: 2
• Contact Material: Gold-plated copper alloy
• Housing Material: PA (Polyamide/Nylon), UL94 V-0 flame-retardant
• Rated Current: 30A Continuous
• Rated Voltage: 500V DC
• Recommended Wire Size: 8–12 AWG
• Contact Resistance: ≤0.4mΩ
• Mechanical Life: Approximately 1,000 mating cycles
• Operating Temperature: -20°C to 120°C
• Mounting Type: Panel mount (2-hole flange)
• Electrical Connection: Solder termination
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT90E-M Gold Plated Black Connector is an excellent choice for engineers, drone manufacturers, and industrial professionals who require a secure panel-mounted high-current connector with dependable electrical performance. Its flange-mounted design provides stable installation, while the gold-plated contacts ensure efficient power transfer and long service life.

Compared to standard cable-mounted XT90 connectors, the XT90E series offers easier panel integration, improved mechanical stability, and a cleaner installation, making it ideal for battery enclosures, charging systems, UAVs, robotics, and industrial electronic equipment.

Package Includes

• 1 × Amass XT90E-M Gold Plated Black Connector (XT90E-M.G.B)

Product Description

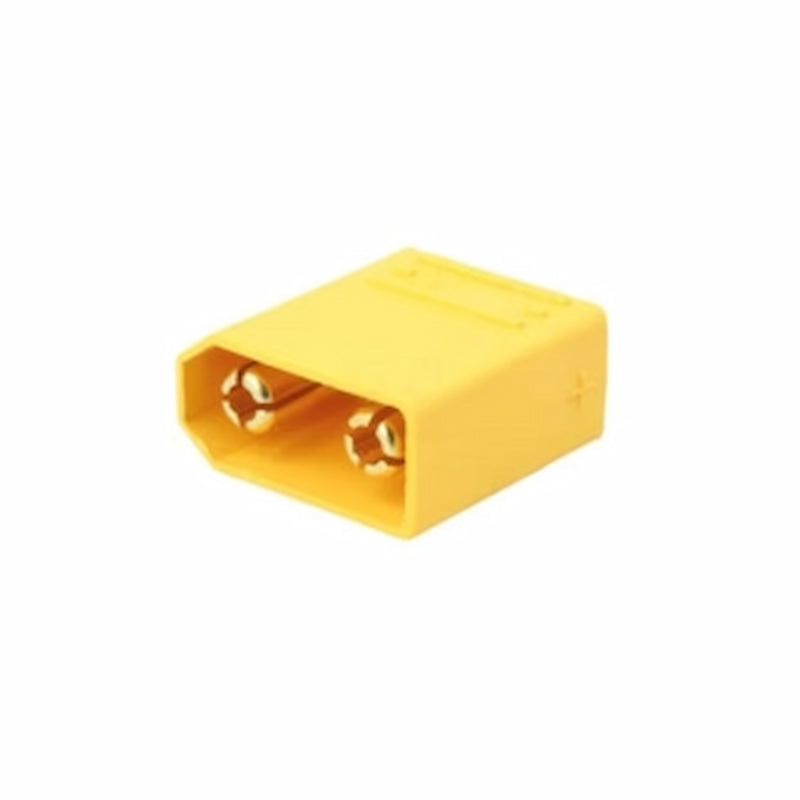

The Amass XT90PB30 Male Connector (XT90PB-M.G.Y) is a premium PCB-mounted high-current DC power connector designed for reliable power transmission in agriculture drones, industrial UAVs, robotics, battery management systems, RC vehicles, electric mobility systems, and industrial electronic equipment. Manufactured by Amass, a globally trusted connector brand, the XT90PB series combines the proven XT90 interface with a vertical PCB mounting design, making it ideal for applications requiring a secure board-mounted high-power connection.

The XT90PB-M.G.Y Male Connector features precision gold-plated brass contacts, providing excellent electrical conductivity, low contact resistance, and efficient power transfer. The premium gold plating minimizes voltage drop and heat generation while offering superior resistance to oxidation and corrosion, ensuring dependable long-term performance in demanding environments.

Designed for PCB-mounted power systems, the XT90PB30 connector uses a through-hole vertical (THT) mounting configuration, allowing direct installation onto printed circuit boards. This design provides a strong mechanical connection, simplifies PCB assembly, and is ideal for power distribution boards, charging stations, battery management systems, and embedded electronic equipment.

The connector supports 40A continuous current and operates at up to 500V DC, making it suitable for medium- to high-power applications such as drone power systems, industrial automation, and lithium battery integration. Its compact yet rugged construction provides excellent electrical efficiency while maintaining reliable performance under continuous operation.

The housing is manufactured from high-temperature PA (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, providing excellent insulation, heat resistance, and mechanical durability. Its robust construction resists vibration, mechanical shock, and continuous electrical loading, making it suitable for demanding outdoor and industrial environments.

Whether you're designing a professional UAV, developing a battery charging system, building a power distribution board, or integrating industrial automation equipment, the Amass XT90PB30 Male Connector delivers professional-grade reliability, efficient power transfer, and secure PCB mounting.

Key Features

• Genuine Amass XT90PB-M.G.Y Male Connector
• PCB-mounted high-current DC power connector
• Vertical through-hole (THT) PCB mounting
• Premium gold-plated brass contacts
• Low contact resistance for efficient power transfer
• Rated for 40A continuous current
• Supports 500V DC operation
• High-temperature PA (Polyamide/Nylon) UL94 V-0 flame-retardant housing
• Excellent resistance to heat, vibration, and corrosion
• Secure PCB mounting for reliable installation
• Long mechanical life of approximately 1,000 mating cycles
• Compact and durable construction

Applications & Use Cases

The Amass XT90PB30 Male Connector is widely used in:

• Agriculture drones and industrial UAVs
• Battery Management Systems (BMS)
• Power Distribution Boards (PDBs)
• Lithium-ion and LiPo battery systems
• Electric vehicles (EVs) and e-bikes
• Robotics and automation systems
• Industrial power supplies
• Battery charging stations
• Embedded electronic equipment
• RC aircraft, boats, cars, and helicopters
• DIY electronics and custom PCB projects
• High-current power distribution systems

Technical Specifications

• Brand: Amass
• Model: XT90PB-M.G.Y
• Connector Type: Male
• Series: XT90PB30
• Number of Pins: 2
• Mounting Type: PCB Through-Hole (Vertical/THT)
• Contact Material: Brass, gold flash plated
• Housing Material: PA (Polyamide/Nylon), UL94 V-0 flame-retardant
• Rated Current: 40A Continuous
• Rated Voltage: 500V DC
• Contact Resistance: ≤0.4mΩ
• Mechanical Life: Approximately 1,000 mating cycles
• Operating Temperature: -20°C to 120°C
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT90PB30 Male Connector is an excellent choice for engineers, drone manufacturers, and electronics professionals who require a compact, PCB-mounted high-current connector with dependable electrical performance. Its vertical PCB mounting simplifies board integration, while the gold-plated contacts ensure efficient power transfer and long service life.

Compared to conventional cable-mounted XT90 connectors, the XT90PB series offers cleaner PCB integration, improved mechanical stability, and simplified assembly, making it an ideal solution for battery management systems, power distribution boards, industrial electronics, and professional UAV applications.

Package Includes

• 1 × Amass XT90PB30 Male Connector (XT90PB-M.G.Y)

Product Description

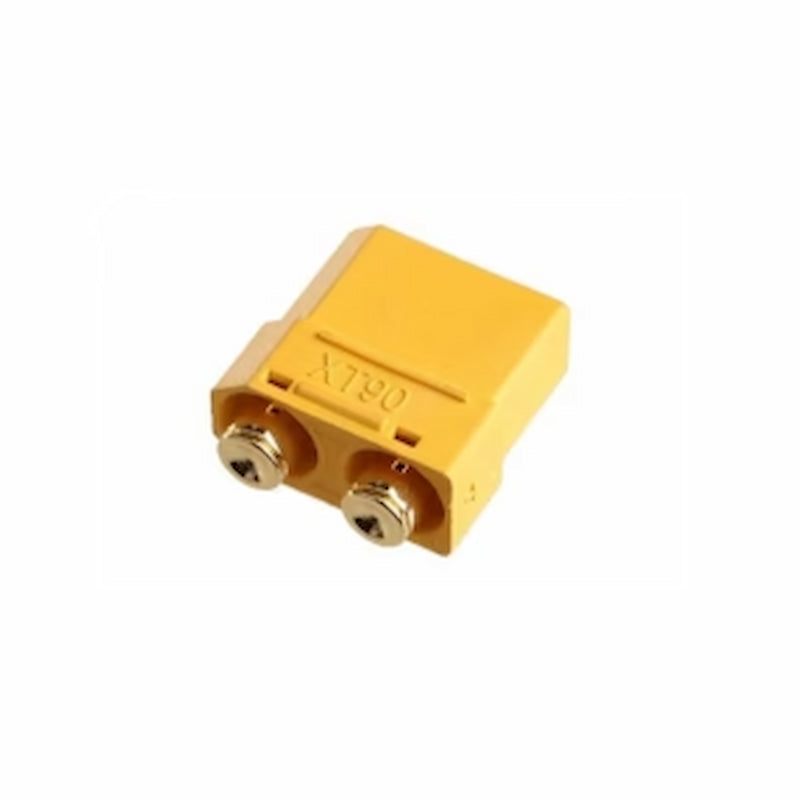

The Amass XT90PB30 Female Connector (XT90PB-F.G.Y) is a premium PCB-mounted high-current DC power connector designed for reliable and efficient power transmission in agriculture drones, industrial UAVs, robotics, battery management systems, RC aircraft, electric vehicles, power distribution boards, and industrial electronic equipment. Manufactured by Amass, a globally recognized leader in connector technology, the XT90PB series combines the proven XT90 interface with a vertical through-hole PCB mounting design, making it ideal for applications that require a secure board-mounted high-current power connection.

The XT90PB-F.G.Y Female Connector features precision gold-plated brass contacts that provide excellent electrical conductivity and ultra-low contact resistance. The gold-plated contacts reduce voltage drop and heat generation while offering outstanding resistance to corrosion and oxidation, ensuring stable electrical performance and long service life even under demanding operating conditions.

Designed for PCB-mounted power systems, the XT90PB30 connector uses a vertical through-hole (THT) mounting configuration, allowing it to be directly soldered onto printed circuit boards. This design provides excellent mechanical stability while simplifying PCB assembly for battery management systems, charging stations, power distribution boards, and embedded electronic devices.

The connector is rated for 40A continuous current and supports 500V DC operation, making it suitable for medium- to high-power electrical applications. Its compact yet rugged design ensures efficient current transfer while maintaining excellent thermal performance during continuous operation. The connector pairs with compatible XT90 male PCB or cable connectors to provide a secure, vibration-resistant electrical connection.

The housing is manufactured from high-temperature PA66 (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, providing outstanding insulation, heat resistance, and mechanical durability. Its robust construction withstands vibration, mechanical shock, and harsh operating environments, making it suitable for professional drone systems, industrial automation equipment, and electric mobility applications.

Whether you're designing a UAV power distribution board, integrating a lithium battery system, building an industrial control unit, or developing custom power electronics, the Amass XT90PB30 Female Connector delivers professional-grade reliability, efficient power transfer, and secure PCB integration.

Key Features

• Genuine Amass XT90PB-F.G.Y Female Connector
• PCB-mounted high-current DC power connector
• Vertical through-hole (THT) PCB mounting
• Premium gold-plated brass contacts
• Low contact resistance for efficient power transfer
• Rated for 40A continuous current
• Supports 500V DC operation
• High-temperature PA66 (Polyamide/Nylon) UL94 V-0 flame-retardant housing
• Excellent resistance to heat, vibration, and corrosion
• Secure PCB mounting for reliable installation
• Long mechanical life of approximately 1,000 mating cycles
• Compact and durable construction

Applications & Use Cases

The Amass XT90PB30 Female Connector is widely used in:

• Agriculture drones and industrial UAVs
• Battery Management Systems (BMS)
• Power Distribution Boards (PDBs)
• Lithium-ion and LiPo battery systems
• Electric vehicles (EVs) and e-bikes
• Robotics and automation systems
• Industrial power supplies
• Battery charging stations
• Embedded electronic equipment
• RC aircraft, boats, cars, and helicopters
• DIY electronics and custom PCB projects
• High-current power distribution systems

Technical Specifications

• Brand: Amass
• Model: XT90PB-F.G.Y
• Connector Type: Female
• Series: XT90PB30
• Number of Pins: 2
• Mounting Type: PCB Through-Hole (Vertical/THT)
• Contact Material: Brass, gold flash plated
• Housing Material: PA66 (Polyamide/Nylon), UL94 V-0 flame-retardant
• Rated Current: 40A Continuous
• Rated Voltage: 500V DC
• Contact Resistance: ≤0.4mΩ
• Mechanical Life: Approximately 1,000 mating cycles
• Operating Temperature: -20°C to 120°C
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT90PB30 Female Connector is an excellent choice for engineers, drone manufacturers, and electronics professionals who require a compact, PCB-mounted high-current connector with dependable electrical performance. Its vertical PCB mounting simplifies board integration, while the gold-plated contacts ensure efficient power transfer and long-term reliability.

Compared to conventional cable-mounted XT90 connectors, the XT90PB series offers cleaner PCB integration, improved mechanical stability, and simplified assembly, making it an ideal solution for battery management systems, power distribution boards, industrial electronics, and professional UAV applications.

Package Includes

• 1 × Amass XT90PB30 Female Connector (XT90PB-F.G.Y)

Product Description

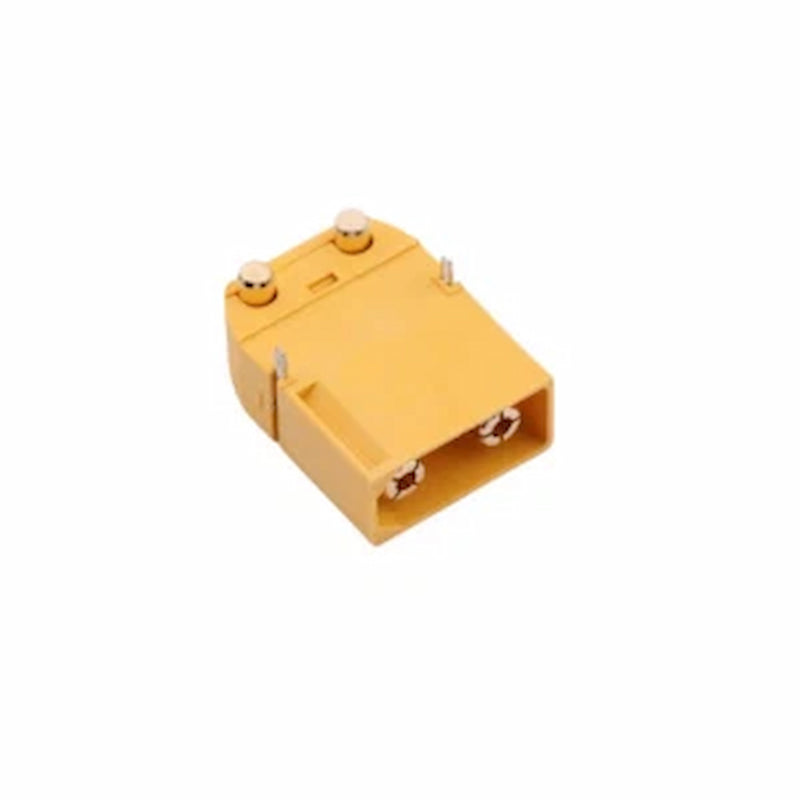

The Amass XT90PW30 Male Connector (XT90PW-M.G.Y) is a premium PCB-mounted right-angle high-current DC power connector designed for secure and efficient power transmission in agriculture drones, industrial UAVs, robotics, battery management systems, RC aircraft, electric vehicles, power distribution boards, and industrial electronic equipment. Manufactured by Amass, a globally recognized leader in connector technology, the XT90PW series combines the trusted XT90 interface with a 90-degree PCB mounting design, making it ideal for compact electronic systems where space optimization and reliable power delivery are essential.

The XT90PW-M.G.Y Male Connector features precision gold-plated brass contacts that provide excellent electrical conductivity, ultra-low contact resistance, and efficient current transfer. The premium gold plating minimizes voltage drop and heat generation while offering superior resistance to oxidation and corrosion, ensuring stable electrical performance and long service life even in demanding operating environments.

Designed for right-angle PCB mounting, the XT90PW30 connector uses a through-hole (THT) solder mounting configuration, allowing it to be securely installed directly onto printed circuit boards. The right-angle design enables horizontal cable routing, improves space utilization inside compact enclosures, and reduces mechanical stress on PCB-mounted connectors. This makes it an excellent solution for battery management systems, charging stations, UAV electronics, embedded systems, and industrial control equipment.

The connector is rated for 30A continuous current and supports up to 90A peak current with a 500V DC voltage rating, making it suitable for medium- and high-power applications. It accommodates 8–12 AWG wire and provides reliable, low-loss power transmission for battery packs, ESCs, power distribution boards, and high-performance electronic systems.

The housing is manufactured from high-temperature PA (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, providing excellent insulation, heat resistance, and mechanical durability. Its rugged construction resists vibration, impact, and continuous electrical loading, making it suitable for demanding outdoor and industrial environments. With approximately 1,000 mating cycles, the XT90PW connector offers dependable long-term performance.

Whether you're designing a UAV power distribution board, integrating a lithium battery system, building an industrial controller, or developing custom power electronics, the Amass XT90PW30 Male Connector delivers professional-grade reliability, efficient power transfer, and space-saving PCB integration.

Key Features

• Genuine Amass XT90PW-M.G.Y Male Connector
• Right-angle PCB-mounted high-current DC power connector
• Through-hole (THT) PCB mounting
• Premium gold-plated brass contacts
• Low contact resistance for efficient power transfer
• Rated for 30A continuous current
• Supports 90A peak current
• Rated for 500V DC
• High-temperature PA (Polyamide/Nylon) UL94 V-0 flame-retardant housing
• Supports 8–12 AWG wire
• Excellent resistance to heat, vibration, and corrosion
• Long mechanical life of approximately 1,000 mating cycles

Applications & Use Cases

The Amass XT90PW30 Male Connector is widely used in:

• Agriculture drones and industrial UAVs
• Battery Management Systems (BMS)
• Power Distribution Boards (PDBs)
• Lithium-ion and LiPo battery systems
• Electric vehicles (EVs) and e-bikes
• Robotics and industrial automation
• Industrial power supplies
• Battery charging stations
• Embedded electronic equipment
• RC aircraft, boats, cars, and helicopters
• DIY electronics and custom PCB projects
• High-current power distribution systems

Technical Specifications

• Brand: Amass
• Model: XT90PW-M.G.Y
• Connector Type: Male
• Series: XT90PW30
• Number of Pins: 2
• Mounting Type: Right-angle PCB Through-Hole (THT)
• Contact Material: Gold-plated brass
• Housing Material: PA (Polyamide/Nylon), UL94 V-0 flame-retardant
• Rated Current: 30A Continuous
• Peak Current: 90A
• Rated Voltage: 500V DC
• Recommended Wire Size: 8–12 AWG
• Contact Resistance: ≤0.4mΩ
• Mechanical Life: Approximately 1,000 mating cycles
• Operating Temperature: -20°C to 120°C
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT90PW30 Male Connector is an excellent choice for engineers, drone manufacturers, and electronics professionals who require a compact right-angle PCB-mounted high-current connector with dependable electrical performance. Its space-saving 90-degree design simplifies PCB layouts while the gold-plated contacts ensure efficient power transfer and long-term reliability.

Compared to standard cable-mounted XT90 connectors, the XT90PW series offers cleaner PCB integration, optimized cable routing, improved mechanical stability, and simplified assembly, making it an ideal solution for battery management systems, industrial electronics, robotics, and professional UAV applications.

Package Includes

• 1 × Amass XT90PW30 Male Connector (XT90PW-M.G.Y)
