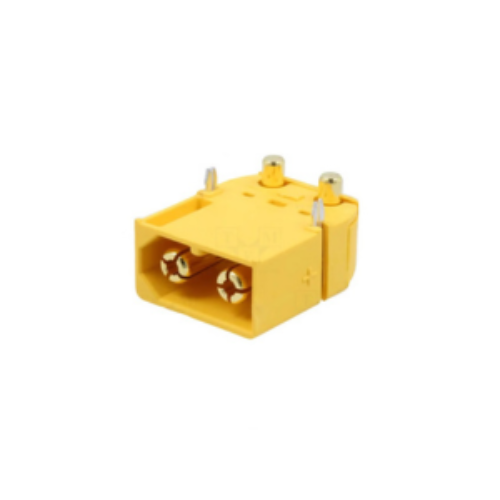

Amass XT60PW30 Male Connector – XT60PW-M.G.Y Original Drone Connectors

Product Description

The Amass XT60PW30 Male Connector (XT60PW-M.G.Y) is a premium-quality 2-pin right-angle PCB-mounted high-current DC power connector designed for secure and efficient power delivery in drones, RC vehicles, robotics, battery packs, Electronic Speed Controllers (ESCs), and industrial electronic systems. Manufactured by Amass, a globally trusted leader in connector technology, the XT60PW series is widely used in compact electronic designs where strong PCB integration, clean wiring, and reliable high-current performance are required.

The XT60PW-M.G.Y Male Connector features precision gold-plated brass contacts, ensuring excellent electrical conductivity and low contact resistance. This helps reduce power loss and heat generation during continuous operation, making it ideal for high-current applications such as drone propulsion systems and battery power distribution units. The gold plating also improves resistance to oxidation and corrosion, ensuring long-term durability and stable electrical performance.

Designed in a 90° right-angle PCB mount configuration, the XT60PW connector allows cables to be routed sideways instead of vertically, making it extremely useful in tight drone frames and compact electronics enclosures. This design improves PCB layout efficiency, reduces strain on wires, and helps maintain a clean, professional assembly in space-constrained systems.

The housing is made from high-temperature PA (Polyamide) thermoplastic with UL94 V-0 flame-retardant rating, providing excellent insulation, mechanical strength, and thermal stability. It is engineered to withstand vibration, shock, and continuous electrical stress, making it suitable for demanding UAV and industrial applications.

As a PCB-mounted variant of the popular XT60 series, the XT60PW connector maintains the same electrical reliability while offering better structural integration for direct board soldering. It is commonly used in power distribution boards (PDBs), ESC controllers, battery interfaces, and embedded power systems, where secure board-level mounting is essential.

Whether you're designing a drone flight controller system, building a battery-powered robot, or developing industrial electronics, the Amass XT60PW30 Male Connector delivers dependable performance, compact integration, and long-term electrical stability.

Key Features

• Genuine Amass XT60PW-M.G.Y Male Connector
• 2-pin high-current PCB-mounted power connector
• 90° right-angle design for space-efficient wiring
• Gold-plated brass contacts for excellent conductivity
• Low contact resistance for efficient power transfer
• High-temperature PA (Polyamide) UL94 V-0 housing
• Secure friction-fit connection system
• Designed for direct PCB through-hole soldering
• Excellent vibration and shock resistance
• Compact design ideal for drone and embedded systems
• Long service life with stable performance

Applications & Use Cases

• FPV racing drones and UAV systems
• Agricultural and industrial drones
• Power Distribution Boards (PDBs)
• Electronic Speed Controllers (ESCs)
• Lithium battery management systems (BMS)
• RC cars, boats, and aircraft
• Robotics and automation systems
• Embedded power electronics
• Battery charging circuits
• DIY electronics and prototyping
• Industrial control systems

Technical Specifications

• Brand: Amass
• Model: XT60PW-M.G.Y
• Connector Type: Male
• Series: XT60PW
• Number of Pins: 2
• Mounting Type: PCB Through Hole (THT), 90° right-angle
• Contact Material: Gold-plated brass
• Housing Material: PA (Polyamide), UL94 V-0 flame-retardant
• Rated Current: 30A continuous
• Rated Voltage: 500V DC
• Mechanical Life: ~1000 mating cycles
• Operating Temperature: -20°C to 120°C
• Application Type: PCB power connector

Why Choose This Connector?

The Amass XT60PW Male Connector is ideal for engineers and drone builders who need a space-saving PCB-mounted alternative to traditional XT60 wire connectors. Its right-angle design significantly improves cable routing and reduces mechanical stress on solder joints.

Compared to standard XT60 connectors, the XT60PW series provides better PCB integration, cleaner assembly layouts, and improved structural stability, making it a preferred choice for professional drone electronics and compact power systems.

Package Includes

• 1 × Amass XT60PW30 Male Connector (XT60PW-M.G.Y)
