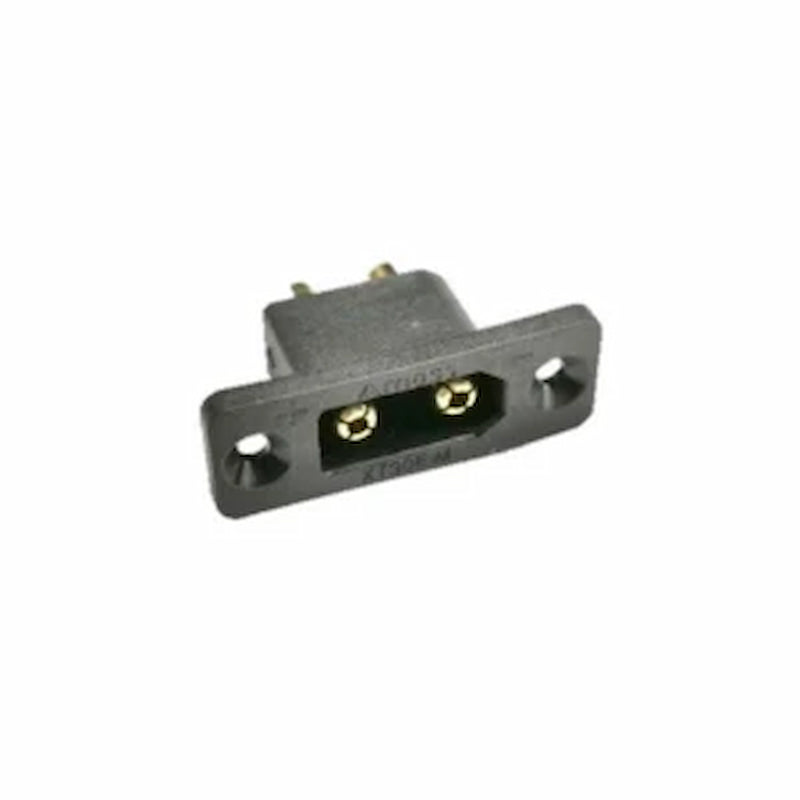

Amass XT90E-M GOLD PLATED BLACK – XT90E-M.G.B Original Drone Connectors

Product Description

The Amass XT90E-M Gold Plated Black Connector (XT90E-M.G.B) is a premium panel-mount high-current DC power connector designed for secure and efficient power transmission in agriculture drones, industrial UAVs, robotics, RC aircraft, electric vehicles, battery packs, charging stations, and industrial electronic systems. Manufactured by Amass, a globally trusted connector manufacturer, the XT90E series combines the proven XT90 electrical interface with a flange-mounted housing, making it ideal for fixed installations where a robust panel-mounted power connection is required.

The XT90E-M.G.B Male Connector features precision gold-plated copper alloy contacts that provide excellent electrical conductivity, ultra-low contact resistance, and efficient current transfer. The gold plating minimizes voltage drop and heat generation while offering outstanding resistance to oxidation and corrosion, ensuring dependable long-term performance even in demanding operating environments.

Designed for panel-mounted power distribution systems, the XT90E-M connector incorporates a two-hole flange mounting design, allowing it to be securely fixed onto enclosures, charging stations, battery cases, and equipment panels. This provides a stable connection while simplifying installation and maintenance in professional electronic systems.

The connector supports 30A continuous current and operates at up to 500V DC, making it suitable for medium- to high-power electrical systems. It accommodates 8–12 AWG wires through solder-type termination, ensuring strong electrical and mechanical connections for high-current applications.

The housing is manufactured from high-temperature PA (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, providing excellent insulation, heat resistance, and mechanical durability. Its rugged construction withstands vibration, impact, and continuous electrical loading, making it suitable for outdoor drone operations and industrial automation systems.

Whether you're designing a professional UAV, building a battery charging station, integrating an industrial power distribution system, or developing a robotics platform, the Amass XT90E-M Gold Plated Black Connector delivers reliable power transmission, secure panel mounting, and long-lasting performance.

Key Features

• Genuine Amass XT90E-M.G.B Male Connector
• Panel-mount high-current DC power connector
• Premium gold-plated copper alloy contacts
• Low contact resistance for efficient power transfer
• Rated for 30A continuous current
• Supports 500V DC operation
• Two-hole flange design for secure panel mounting
• High-temperature PA (Nylon) UL94 V-0 flame-retardant housing
• Excellent resistance to heat, vibration, and corrosion
• Supports 8–12 AWG wire
• Solder-type wire termination
• Long mechanical life with reliable performance

Applications & Use Cases

The Amass XT90E-M Male Connector is widely used in:

• Agriculture drones and industrial UAVs
• Battery charging stations
• Lithium-ion and LiPo battery packs
• Electric vehicles (EVs) and e-bikes
• Robotics and automation systems
• RC aircraft, helicopters, boats, and cars
• Industrial power distribution panels
• Portable power stations
• Solar energy storage systems
• Embedded electronic equipment
• DIY electronics and custom battery projects
• High-current charging systems

Technical Specifications

• Brand: Amass
• Model: XT90E-M.G.B
• Connector Type: Male
• Series: XT90E
• Number of Pins: 2
• Contact Material: Gold-plated copper alloy
• Housing Material: PA (Polyamide/Nylon), UL94 V-0 flame-retardant
• Rated Current: 30A Continuous
• Rated Voltage: 500V DC
• Recommended Wire Size: 8–12 AWG
• Contact Resistance: ≤0.4mΩ
• Mechanical Life: Approximately 1,000 mating cycles
• Operating Temperature: -20°C to 120°C
• Mounting Type: Panel mount (2-hole flange)
• Electrical Connection: Solder termination
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT90E-M Gold Plated Black Connector is an excellent choice for engineers, drone manufacturers, and industrial professionals who require a secure panel-mounted high-current connector with dependable electrical performance. Its flange-mounted design provides stable installation, while the gold-plated contacts ensure efficient power transfer and long service life.

Compared to standard cable-mounted XT90 connectors, the XT90E series offers easier panel integration, improved mechanical stability, and a cleaner installation, making it ideal for battery enclosures, charging systems, UAVs, robotics, and industrial electronic equipment.

Package Includes

• 1 × Amass XT90E-M Gold Plated Black Connector (XT90E-M.G.B)
