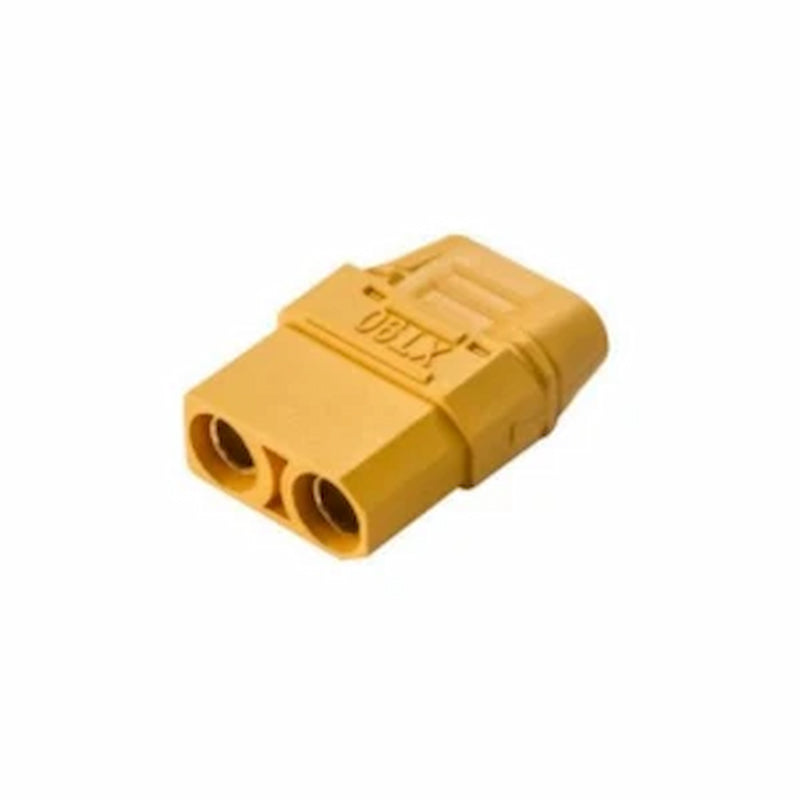

Amass XT90 Female Connector with Housing-1pcs- XT90H-F.G.Y

Product Description

The Amass XT90 Female Connector with Housing (XT90H-F.G.Y) is a premium high-current DC power connector designed for reliable and efficient power transmission in agriculture drones, industrial UAVs, RC aircraft, electric vehicles, robotics, battery packs, and high-power electronic systems. Manufactured by Amass, a globally recognized leader in connector technology, the XT90H series is engineered to deliver safe, low-resistance, and high-current electrical connections for demanding applications.

The XT90H-F.G.Y Female Connector features precision-machined gold-plated brass contacts that provide excellent electrical conductivity and extremely low contact resistance. The gold plating minimizes voltage drop and heat generation while offering superior resistance to corrosion and oxidation, ensuring reliable long-term performance even in harsh operating environments.

One of the key advantages of the XT90H series is its integrated protective housing (end cap), which provides enhanced insulation, strain relief, and improved cable management. The housing protects solder joints from mechanical stress while giving the finished assembly a cleaner and more professional appearance. It also helps reduce the risk of accidental short circuits during installation and operation.

Designed for high-current DC power systems, the XT90H connector supports up to 90A continuous current (application dependent) and operates at up to 500V DC, making it suitable for high-capacity LiPo battery packs, UAV propulsion systems, ESCs, and industrial power equipment.

The connector housing is manufactured from high-temperature PA (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, providing excellent insulation, heat resistance, and mechanical durability. Its rugged construction withstands vibration, impact, and continuous electrical loading, making it ideal for demanding outdoor and industrial applications.

Whether you're assembling a professional drone, building a high-capacity battery pack, upgrading an RC vehicle, or designing industrial power systems, the Amass XT90H Female Connector with Housing delivers professional-grade reliability, efficient power transfer, and long service life.

Key Features

• Genuine Amass XT90H-F.G.Y Female Connector with Housing
• High-current DC power connector with protective housing
• Premium gold-plated brass contacts for superior conductivity
• Low contact resistance for efficient power transfer
• Supports up to 90A continuous current
• Rated for 500V DC
• Integrated housing provides strain relief and cable protection
• High-temperature PA (Nylon) UL94 V-0 flame-retardant housing
• Excellent resistance to heat, vibration, and corrosion
• Supports 10 AWG wire
• Solder-type wire termination
• Durable construction with long mechanical life

Applications & Use Cases

The Amass XT90H Female Connector is widely used in:

• Agriculture drones and spraying UAVs
• Heavy-lift commercial drones
• FPV drone battery systems
• Lithium-ion and LiPo battery packs
• Electronic Speed Controllers (ESCs)
• RC cars, boats, helicopters, and aircraft
• Electric vehicles (EVs) and e-bikes
• Robotics and industrial automation
• Portable power stations
• Solar energy storage systems
• High-current charging systems
• DIY electronics and battery projects

Technical Specifications

• Brand: Amass
• Model: XT90H-F.G.Y
• Connector Type: Female
• Series: XT90H
• Number of Pins: 2
• Contact Material: Gold-plated brass
• Housing Material: PA (Polyamide/Nylon), UL94 V-0 flame-retardant
• Rated Current: Up to 90A continuous (application dependent)
• Rated Voltage: 500V DC
• Recommended Wire Size: 10 AWG
• Mechanical Life: Approximately 1,000 mating cycles
• Operating Temperature: -20°C to 120°C
• Mounting Type: Cable mount
• Electrical Connection: Solder termination
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT90H Female Connector with Housing is ideal for professionals and hobbyists who require a safe, high-current, and highly reliable power connector. Its integrated housing protects solder joints, improves cable management, and enhances connector durability, while the gold-plated contacts ensure maximum electrical efficiency and dependable long-term performance.

Compared to standard XT90 connectors, the XT90H version offers better cable protection, improved mechanical strength, cleaner installation, and enhanced reliability, making it an excellent choice for professional drones, robotics, electric vehicles, and industrial power systems.

Package Includes

• 1 × Amass XT90 Female Connector with Housing (XT90H-F.G.Y)
