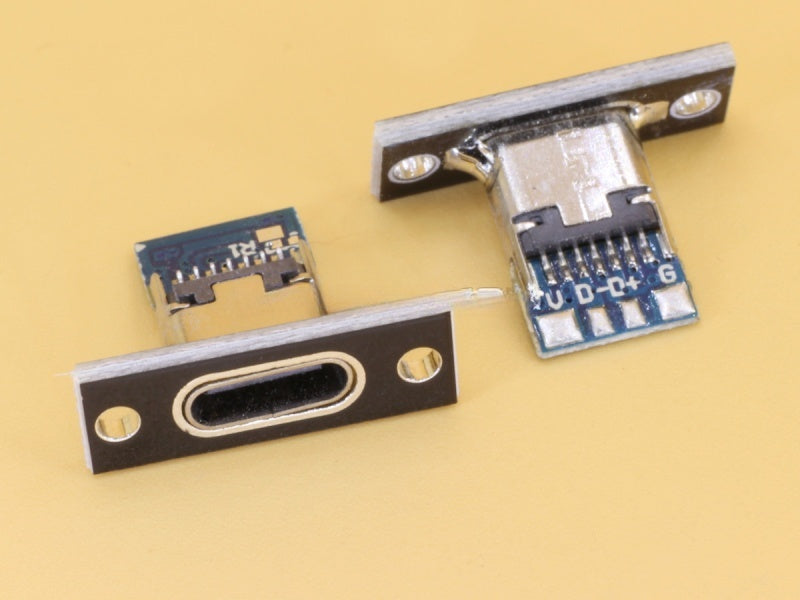

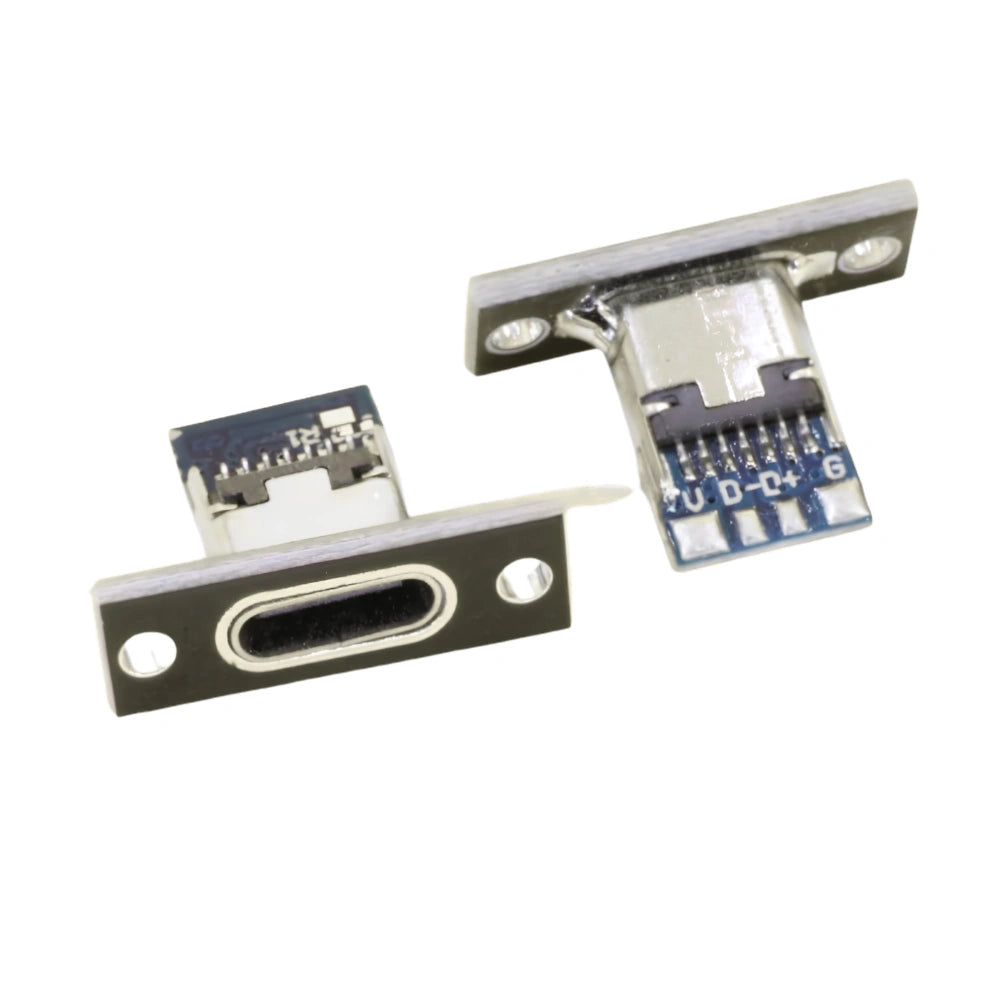

USB Type-C 4P Panel Mount Data + Power Connector

The USB Type-C 4P Panel Mount Connector is a compact USB-C socket designed for integrating a USB Type-C connection into custom enclosures, electronic equipment, DIY projects, control panels, and other applications where a panel-mounted data and power interface is required.

With a 4-pin (4P) configuration, this connector is intended for basic USB Type-C data and power connectivity in compatible electronic designs. Its panel-mount construction allows the USB-C interface to be positioned on the exterior of an enclosure while the connection is made to the internal circuit or wiring.

Key Features

• USB Type-C Interface: Provides a compact USB-C connection for compatible data and power applications.
• 4-Pin Configuration: Designed with a 4P contact arrangement for suitable basic USB-C circuit applications.
• Panel Mount Design: Allows the connector to be installed through an enclosure or panel.
• Data + Power Connection: Suitable for compatible projects requiring both electrical power and basic data connectivity.
• Compact Construction: Useful for space-constrained electronic enclosures and custom equipment.
• DIY Friendly: Suitable for electronics prototyping, repairs, custom enclosures, and embedded projects.

Applications

The USB-C panel mount connector can be used in a variety of electronic and DIY applications, including:

• Custom electronic enclosures
• DIY USB-C projects
• Embedded electronics
• Control panels and equipment enclosures
• Robotics and automation projects
• Portable electronic devices
• Charging and power interfaces
• Custom computer and electronics builds

Why Use a USB Type-C Panel Mount Connector?

Adding a USB Type-C port directly to an enclosure can make a custom electronic device easier to connect, power, or service. A USB Type-C panel mount socket provides a convenient external interface while keeping the internal circuit and wiring protected inside the enclosure.

The compact design is particularly useful for custom electronics where a standard USB cable needs to be connected from outside the housing. It can also help create a cleaner and more accessible connection point compared with routing a loose cable through an enclosure.

4P Configuration

This product uses a 4-pin configuration. Because USB Type-C connectors are available in many different configurations, a 4P connector should not automatically be assumed to support every USB-C function.

Before integrating this connector into a circuit, verify the pinout and electrical specifications of the exact product. In particular, confirm which contacts are intended for power, ground, and data, and ensure that the circuit design matches the connector configuration.

Product Specifications

Installation Information

Install the USB Type-C 4P panel mount connector securely in the appropriate enclosure or mounting panel. Connect the internal contacts according to the product's verified pinout and the requirements of your circuit.

Before connecting a power source, carefully check the wiring, polarity, grounding, and data connections. Incorrect wiring can damage the connector or connected electronic components.

For custom electronics, confirm the required USB functionality before installation. A 4-pin USB-C connector may not provide all features supported by a full-featured USB Type-C receptacle.

Package Includes

• 1 × USB Type-C 4P Panel Mount Data + Power Connector

Frequently Asked Questions

What is a USB Type-C 4P panel mount connector?

It is a USB Type-C female socket with a 4-pin configuration designed to be mounted through an electronic enclosure or panel for compatible data and power applications.

What does 4P mean?

4P refers to the connector's four-pin contact configuration. The exact functions of these pins should be confirmed from the product's pinout before wiring.

Can this connector be used for both data and power?

It is intended for data and power applications as specified for the product. However, the exact supported functions depend on its pin configuration and circuit design.

Can I use it for USB-C charging?

It may be suitable for compatible charging applications, but the supported voltage, current, USB-C charging configuration, and pinout should be verified before use.

Is this a panel-mount connector?

Yes. The connector is designed to provide a USB Type-C interface through an enclosure or mounting panel.

Does it support USB 3.0 or USB-C Power Delivery?

Do not assume that it supports USB 3.x speeds or USB Power Delivery. Those features require specific electrical and pin configurations. Verify the exact specifications of the connector before designing the circuit.
