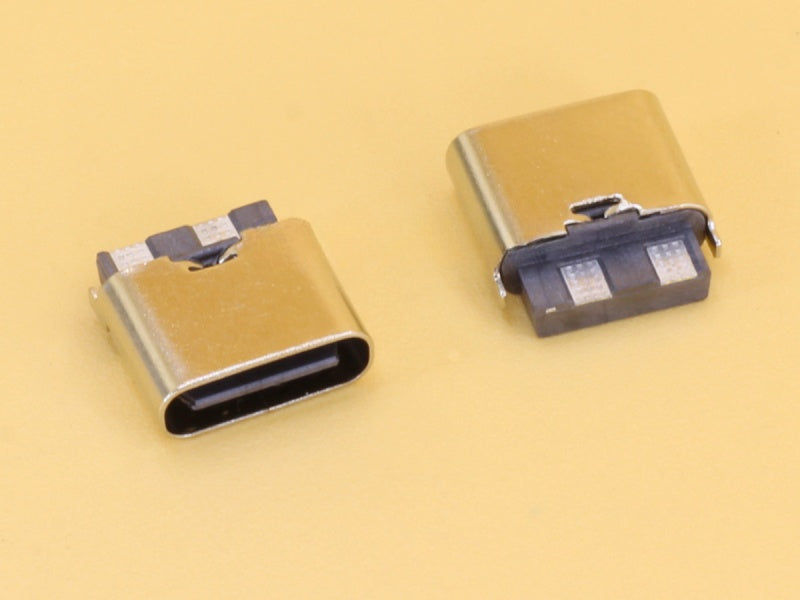

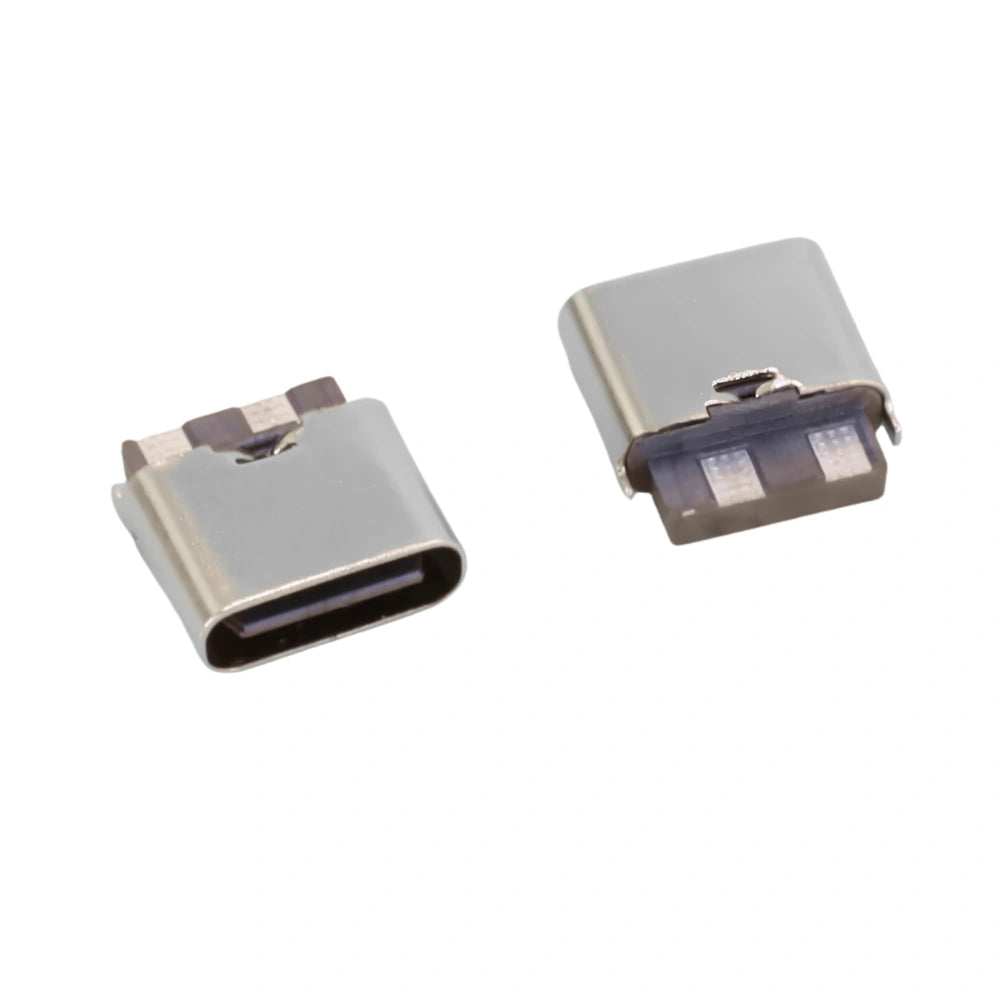

USB Type-C 2P wire solder points for power only

USB Type-C 2P Power Connector with Wire Solder Points – Power Only

The USB Type-C 2P Power Connector is a compact USB-C power socket designed specifically for power-only applications. With two solder points and a wire connection, it provides a simple way to add a USB Type-C power input to DIY electronics, custom devices, battery-powered projects, and other circuits that require a convenient USB-C power connection.

Unlike full-featured USB Type-C connectors designed for data communication, this 2P USB-C power connector is intended for basic power input applications. It is suitable when a project only requires power from a USB Type-C cable and does not need USB data transfer.

Key Features

• Power-Only Design: Intended for supplying electrical power and does not provide USB data connectivity.
• 2-Pin Configuration: Uses two solder connection points for the power circuit.
• USB Type-C Interface: Allows a compatible USB-C cable to be used as the external power source.
• Wire Solder Connection: Designed for direct soldering into compatible circuits or wiring.
• Compact Size: Suitable for small electronic devices and space-constrained DIY projects.
• Easy Integration: Useful for adding a USB-C power input to custom electronic circuits and enclosures.

Applications

The USB-C 2P power connector is suitable for applications where USB Type-C is being used only as a power input, including:

• DIY electronics projects
• Custom USB-C power inputs
• Battery-powered electronic devices
• Small charging and power projects
• LED and lighting projects
• Microcontroller projects requiring USB-C power
• Embedded electronics
• Custom electronic enclosures
• Repair and replacement applications

Power-Only USB-C Connection

This connector is designed for a straightforward power connection using a USB Type-C interface. The 2P configuration provides the necessary power connection for compatible circuits without implementing the complete set of contacts found in a full USB-C data connector.

This product does not support USB data transfer. It should be selected only when the application requires power input and does not require USB communication, USB data transfer, or advanced USB Type-C features.

Why Choose a 2P USB-C Power Connector?

USB Type-C cables are widely available, making them convenient power sources for DIY and custom electronics. A dedicated USB Type-C power-only socket allows designers and hobbyists to incorporate a modern USB-C input into a circuit without using a larger or more complex multi-pin connector.

The simple two-point solder configuration also makes the connector suitable for basic power wiring and custom electronics where only positive and negative power connections are required.

Product Specifications

Installation Information

Before installation, identify the positive and negative connections according to the product's pinout and your circuit requirements. Solder the connector carefully to the appropriate power connections and ensure that the joints are secure.

Always verify polarity, input voltage, current requirements, and cable compatibility before connecting a power source. Incorrect wiring can damage the connector or connected electronic components.

Because USB Type-C power systems can have specific electrical requirements, do not assume that every USB-C charger will provide the same voltage or current to a simple 2-pin power connector. Verify the requirements of your particular circuit before use.

Package Includes

• 1 × USB Type-C 2P Power Connector with Wire Solder Points

Frequently Asked Questions

What is a USB Type-C 2P connector?

A USB Type-C 2P connector is a simplified USB-C power connector using two connection points, intended for power-only applications.

Does this USB-C connector support data transfer?

No. This 2P version is designed for power only and should not be used when USB data communication is required.

Can I use this connector for DIY electronics?

Yes. It is suitable for compatible DIY electronics, embedded projects, custom devices, lighting projects, and other applications requiring a USB-C power input.

Does it support USB-C fast charging?

Do not assume that this connector supports USB-C Power Delivery or fast-charging protocols. The connector is intended for basic power-only applications, and the complete charging configuration depends on the circuit design.

How many solder points does this connector have?

This product uses a 2-pin configuration for the power connection.

Can I use any USB-C charger with it?

Compatibility depends on the electrical requirements of your circuit and the capabilities of the USB-C power source. Verify the required voltage, current, and charging configuration before use.
