USB Type-C 2P Vertical TH for power only

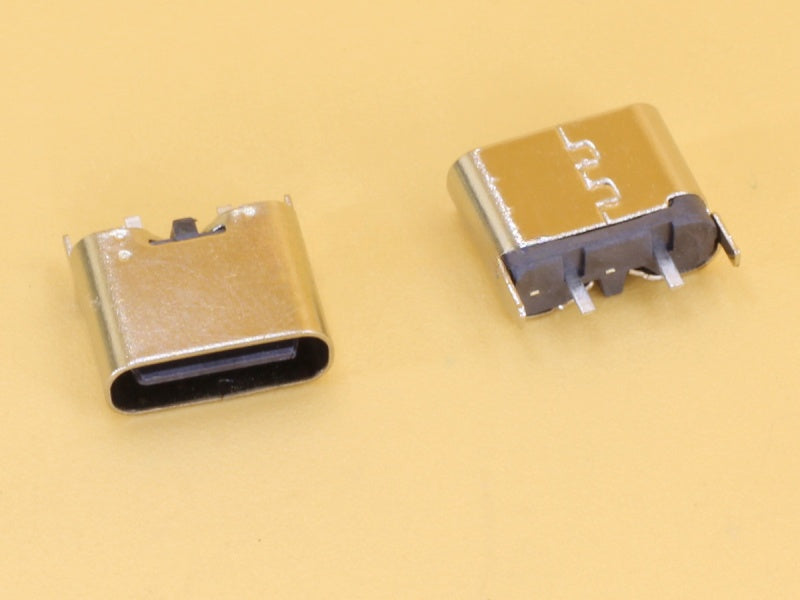

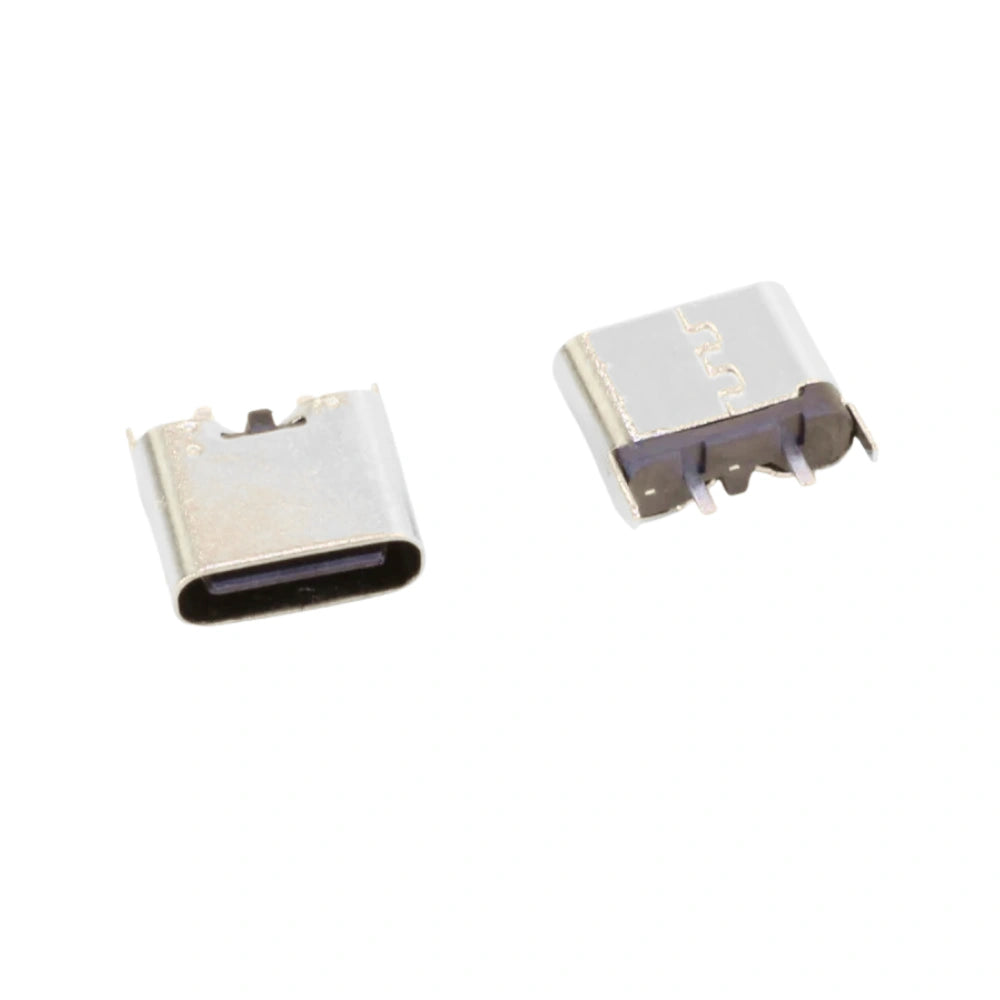

USB Type-C 2P Vertical TH Power Connector – Power Only

The USB Type-C 2P Vertical TH Power Connector is a compact USB-C socket designed for power-only applications on printed circuit boards. Its vertical through-hole (TH) mounting configuration allows the connector to be soldered directly onto a compatible PCB, making it suitable for DIY electronics, embedded systems, custom devices, and PCB-based power projects.

This 2P USB Type-C connector is designed for basic power input rather than USB data communication. It provides a convenient USB Type-C interface for projects that require a compact power connection while keeping the connector mounted directly to the circuit board.

Key Features

• USB Type-C Interface: Provides a modern USB-C connection for compatible power-input applications.
• 2-Pin Configuration: Designed for basic two-point power connection.
• Vertical Through-Hole Mounting: Designed to be soldered directly into compatible PCB holes.
• Power Only: Intended for power input and does not provide USB data-transfer functionality.
• PCB Mount Design: Provides a secure board-mounted connection for custom electronics.
• Compact Construction: Suitable for space-conscious PCB designs and small electronic devices.

Applications

The USB-C 2P vertical TH connector can be used in a variety of power-only electronic applications, including:

• DIY electronics projects
• Custom PCB designs
• Embedded electronic devices
• Microcontroller projects
• Battery-powered electronics
• LED and lighting projects
• Small charging and power circuits
• Custom electronic enclosures
• PCB repair and replacement applications

What Does Vertical TH Mean?

TH stands for Through-Hole. Unlike surface-mount connectors, this connector is designed with terminals that pass through holes in the PCB and are soldered on the opposite side.

The vertical mounting orientation positions the USB Type-C interface perpendicular to the PCB surface. This configuration can be useful when the USB-C port needs to face outward from a PCB or enclosure.

Power-Only USB Type-C Connector

This product is specifically intended for power-only applications. The 2P configuration does not provide the complete pin configuration required for standard USB data communication.

It should therefore be used when a project requires USB Type-C as a convenient power-input interface rather than a full USB data connection.

Do not assume that this connector supports USB 3.x, USB 2.0 data transfer, USB Power Delivery, or fast-charging protocols. Those functions require additional electrical and circuit configurations.

Product Specifications

Installation Information

Install the connector into the corresponding PCB through-holes and solder the terminals securely. Make sure the connector is correctly aligned with the PCB footprint before soldering.

Before connecting a USB-C power source, verify the positive and negative connections, PCB layout, input voltage, and current requirements of the circuit. Incorrect wiring or an incompatible PCB footprint can result in malfunction or component damage.

For a reliable installation, ensure that the connector is mechanically secure and that there are no unintended solder bridges between adjacent contacts.

Package Includes

• 1 × USB Type-C 2P Vertical TH Power Connector

Frequently Asked Questions

What is a USB Type-C 2P Vertical TH connector?

It is a two-pin USB Type-C connector designed for power-only applications and vertical through-hole mounting on a PCB.

What does TH mean?

TH means Through-Hole. The connector's terminals pass through holes in the PCB and are soldered to the board.

Is this connector for power only?

Yes. This 2P version is intended for power applications and does not provide standard USB data-transfer functionality.

What is the benefit of vertical mounting?

Vertical mounting positions the USB-C port perpendicular to the PCB, which can be useful when the connector needs to face outward from a circuit board or enclosure.

Does this connector support USB-C Power Delivery?

Do not assume USB Power Delivery or fast charging support. This is a 2P power-only connector and should be used according to the electrical design and specifications of the complete circuit.

Can I use this connector on any PCB?

No. The PCB must have a compatible through-hole footprint and electrical layout. Check the connector dimensions and pin configuration before designing or modifying the PCB.
