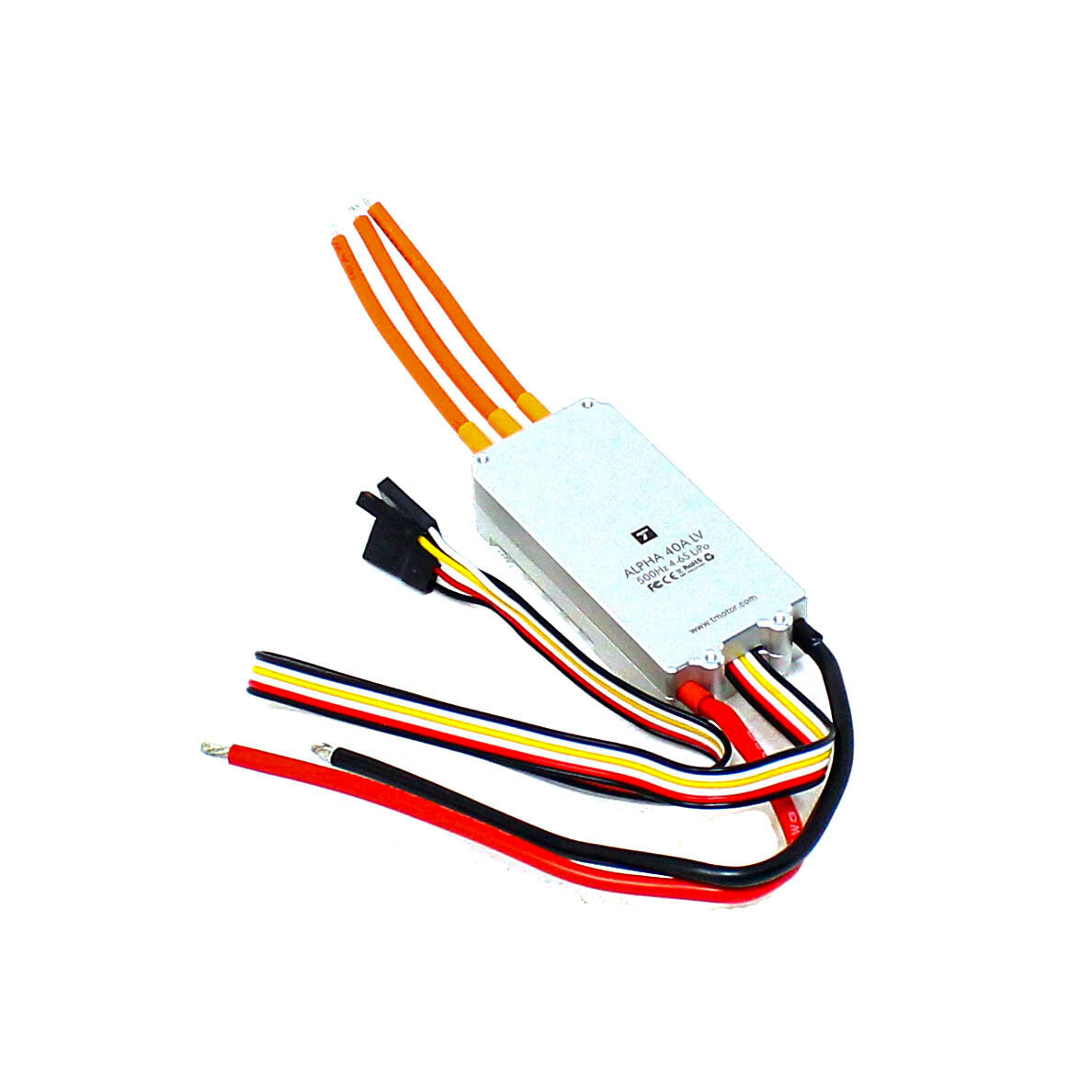

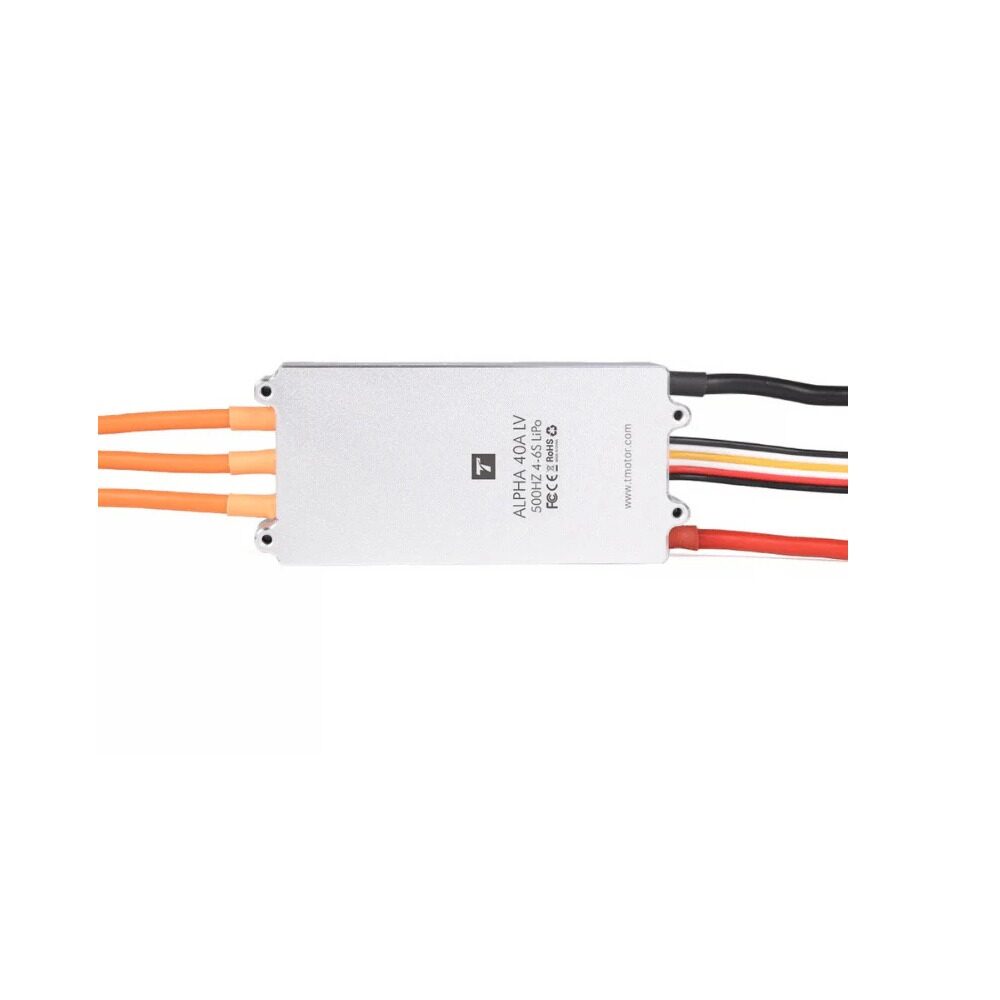

T-Motor Alpha 40A 6S Brushless Electronic Speed Controller (ESC) for FPV Racing & Freestyle Drones

Looking for a reliable T-Motor Alpha 40A 6S ESC in India? Buy the genuine T-Motor Alpha 40A 6S Electronic Speed Controller from Zbotic with fast shipping, secure payment options, and expert technical support.

Product Description

The T-Motor Alpha 40A 6S ESC is a premium electronic speed controller engineered for FPV racing drones, freestyle quadcopters, aerial photography platforms, and professional multirotor UAVs. Designed with advanced FOC (Field-Oriented Control) sine wave driving, it delivers smoother motor operation, lower noise levels, faster throttle response, and improved flight efficiency compared to conventional ESCs.

Built to handle continuous currents up to 40A, this ESC supports 4S to 6S LiPo batteries (18V–25.2V), making it suitable for a wide range of drone applications. Its optimized firmware ensures precise throttle control and rapid motor response for stable and accurate flight performance.

An independent Stabilivolt IC provides clean power to the microprocessor, reducing signal interference and improving overall reliability. The ESC continuously monitors voltage, current, and temperature to optimize performance while protecting critical components.

With an IP55-rated enclosure, the Alpha ESC offers excellent resistance against dust and water splashes, making it dependable for outdoor operations. Additionally, its lightweight design reduces overall aircraft weight without sacrificing durability.

Key Features

• Supports 4S–6S LiPo batteries (18V–25.2V)

• 40A continuous current output

• Advanced FOC sine wave drive for smoother and quieter motor operation

• Ultra-fast throttle response with excellent linear control

• Optimized firmware for multirotor flight controllers

• Independent Stabilivolt IC for enhanced anti-interference performance

• Real-time monitoring of voltage, current, RPM, ESC temperature, and MOSFET temperature

• 30kHz PWM switching frequency for efficient motor control

• RPM and error status signal output

• Online firmware upgrade support via Data Link

• Comprehensive protection against:

  • Over-current

  • Motor lock

  • Short circuit

  • Low voltage

• IP55-rated dust and water resistance

• Lightweight design for improved flight efficiency

Applications

The T-Motor Alpha 40A 6S ESC is ideal for:

• FPV racing drones

• Freestyle quadcopters

• Professional aerial photography drones

• Industrial inspection UAVs

• Mapping and surveying drones

• Heavy-lift multirotor platforms

• DIY drone projects

• Educational and research UAV systems

How to Install

1. Mount the ESC securely on your drone frame.

2. Solder the motor wires to the ESC outputs.

3. Connect the battery leads to the ESC power input.

4. Attach the signal cable to the flight controller.

5. Configure the throttle range (1100–1940 μs) within your flight controller software.

6. Verify motor rotation before your first flight.

Package Includes

• 1 × T-Motor Alpha 40A 6S ESC

• 1 × User Manual

Why Buy from Zbotic?

• 100% Genuine T-Motor Products

• Fast Shipping Across India

• Secure Payments (UPI, Cards, Net Banking & COD)

• Expert Technical Support

• Easy Replacement for Manufacturing Defects

• Competitive Pricing

Frequently Asked Questions

What battery does the T-Motor Alpha 40A 6S ESC support?

The ESC is compatible with 4S to 6S LiPo batteries, operating between 18V and 25.2V.

What protection features are included?

It includes protection against over-current, motor lock-up, short circuits, and low-voltage conditions, helping extend the lifespan of both the ESC and the motor.

What is the advantage of FOC sine wave control?

FOC (Field-Oriented Control) provides smoother motor operation, quieter performance, lower torque ripple, improved efficiency, and more accurate throttle response compared to traditional square-wave ESCs.

Can the firmware be updated?

Yes. The ESC supports online firmware upgrades using the compatible T-Motor Data Link programming tool.

Is this ESC suitable for FPV drones?

Yes. The Alpha 40A 6S ESC is an excellent choice for FPV racing, freestyle drones, cinematic builds, and professional multirotor applications where fast response and reliable performance are essential.
