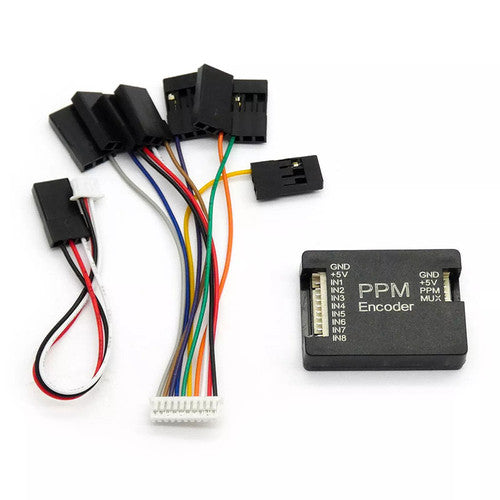

PPM Encoder V1.3 with Case

ReadytoSky PPM Encoder V1.3 – High-Precision PWM to PPM Signal Converter

Simplify your flight controller wiring and resolve receiver compatibility issues with the ReadytoSky PPM Encoder V1.3. This essential module is designed for pilots using older PWM receivers (which use one wire per channel) with modern flight controllers like Pixhawk, APM, or Paparazzi that require a single-wire PPM input.

By encoding up to 8 individual PWM channels into a single, streamlined PPM composite signal, this encoder significantly reduces "cable clutter" and frees up valuable I/O ports on your autopilot. Housed in a protective plastic case, the V1.3 is pre-flashed and mission-ready out of the box.

Key Highlights:

• 8-Channel Signal Aggregation: Capable of reading up to 8 individual PWM input channels and merging them into one precise PPM output stream.

• Plug-and-Play Firmware: Comes pre-flashed with the latest stable firmware, requiring no complex software setup for standard UAV operations.

• Programmable & Customizable: Advanced users can re-flash the onboard ATmega328P via an AVR ISP programmer to invert PPM signals or adjust specific fail-safe values.

• Protective Hard Case: Includes a durable, lightweight enclosure that shields the sensitive electronics from dust, moisture, and mechanical stress during flight.

• Broad Autopilot Support: The industry-standard solution for connecting PWM-only receivers to Pixhawk 2.4.8, APM 2.8, and other modern 32-bit flight stacks.

• Low Latency Conversion: High-speed processing ensures that your control inputs remain responsive with minimal signal delay.

Technical Specifications

What’s in the Box:

• 1x PPM Encoder Module (with Case)

• 1x 10-pin Input Cable (PWM side)

• 1x 3-pin Output Cable (PPM side)

Pro-Builder Tip:

If you are transitioning to an autonomous flight stack like ArduPilot, using a PPM encoder is the most reliable way to maintain your current RC transmitter setup. Ensure that your receiver is powered through the encoder's input rail, and double-check your channel mapping in Mission Planner after the first connection to ensure all 8 channels are moving correctly!

Partsbaba Authenticity Guarantee: All ReadytoSky electronics are 100% genuine and original. We offer a 14-day replacement warranty against manufacturing defects, so you can integrate this encoder into your UAV with complete confidence.
