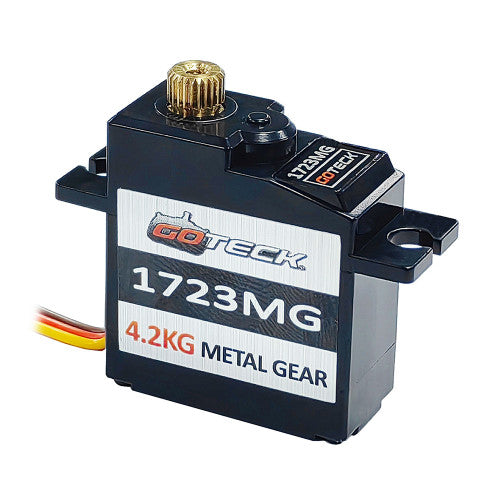

The GS-1723MG Digital Servo Motor is a compact metal-gear servo designed for compatible RC fixed-wing aircraft, helicopters, drones, cars, boats, robotics, and other precision motion-control applications. It operates from 4.8V to 6V DC and provides 3.8 kg·cm of torque at 4.8V and 4.2 kg·cm at 6V. The servo offers a no-load speed of approximately 0.14 seconds per 60° at 4.8V and 0.12 seconds per 60° at 6V, with an operating travel of 180° ±10°. It uses a metal gear train, digital control system, FET drive, and a plastic housing. With dimensions of approximately 28 × 13.2 × 29.6mm and a listed weight of 21g without the splined horn, it provides a compact solution for RC control surfaces and other mechanical actuation applications. The servo uses a 1520µs neutral position, 333Hz refresh rate, and 300mm 28AWG connector cable.
| Specification | Details |
|---|---|
| Product Name | GS-1723MG Digital Servo Motor |
| Brand | DYS |
| Model | GS-1723MG |
| Product Type | Digital Servo Motor |
| Operating Voltage | 4.8V – 6V DC |
| Torque | 3.8 kg·cm @ 4.8V / 4.2 kg·cm @ 6V |
| No-Load Speed | 0.14 sec/60° @ 4.8V / 0.12 sec/60° @ 6V |
| Operating Travel | 180° ±10° |
| Gear Type | Metal Gear |
| Motor Type | DC Motor |
| Control System | Digital PWM |
| Dimensions | 28 × 13.2 × 29.6mm |
| Weight | Approx. 21g |
| Case Material | Plastic |
| Refresh Rate | 333Hz |
| Connector Cable | 300mm, 28AWG |
| Application | RC Aircraft, Helicopters, Drones & Robotics |
| Use | Control, Actuation & Replacement |
