FT6560M - 7.4V 60kg 210deg Digital Servo Motor

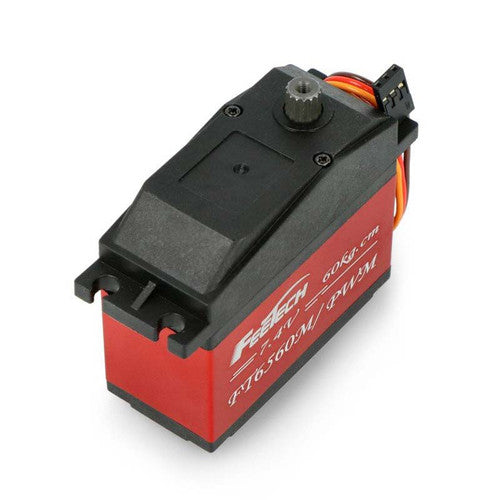

Feetech FT6560M Giant Scale Digital Servo – 60kg.cm Ultra-High Torque

Command extreme power with the Feetech FT6560M, a giant-scale digital servo engineered for the most demanding RC and industrial robotics applications. Delivering a massive peak stall torque of up to 60kg.cm (at high voltage), this servo is the ultimate solution for 1/5 scale vehicles, large-scale UAV control surfaces, and heavy-duty robotic actuators.

The FT6560M features a hybrid Aluminium and Engineering Plastic case to provide superior heat dissipation and structural rigidity. Inside, a full Metal Gear drivetrain supported by dual ball bearings ensures that every ounce of torque is delivered with precision and minimal mechanical play.

Key Highlights:

• Industrial-Grade Torque: Capable of handling loads up to 60kg.cm, providing the raw strength needed for steering heavy-duty RC trucks or moving large robotic limbs.

• Reinforced Metal Drivetrain: Equipped with high-strength metal gears to prevent stripping under extreme stress, ensuring long-term reliability in high-impact environments.

• Advanced Hybrid Housing: The CNC-machined aluminium center section acts as a heatsink to keep the motor cool during prolonged use, while high-grade engineering plastics keep the overall weight optimized.

• Extended 210° Motion: Offers a generous 210° limit angle, providing significantly more mechanical range than standard servos for specialized linkages and wide-angle articulation.

• High-Voltage Compatibility: Supports a wide 4V to 8.4V range, allowing you to run directly from a 2S LiPo battery for maximum speed and holding power.

• Precision Digital Control: Features a high-resolution digital comparator for lightning-fast response times and an incredible "locked-in" centering accuracy.

Technical Specifications

Pro-Builder Tip:

The FT6560M is a high-current device with a stall current of 2400mA. When using this in a giant-scale RC car or a large robot, ensure your power distribution board or BEC is capable of handling high burst currents to prevent voltage drops that could affect your receiver or flight controller.

Partsbaba Quality Commitment: All Feetech digital servos are 100% genuine and original. We provide a 14-day replacement warranty against manufacturing defects, so you can build your heavy-duty projects with absolute confidence.
