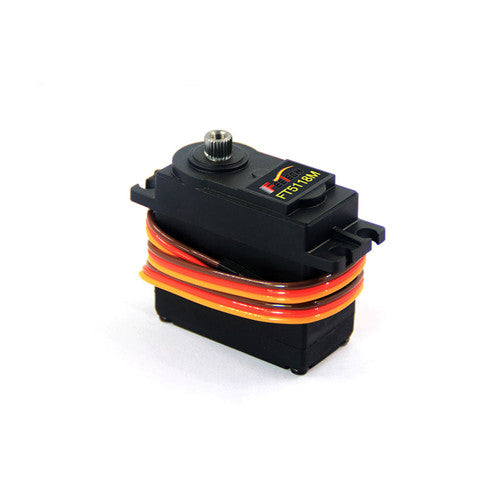

FT5118M - 7.4V 17kg 280deg Digital Servo Motor

The FT5118M Digital Servo Motor is a high-torque servo designed for demanding RC, robotics, steering, and mechanical control applications. It operates across a 4.0V–8.4V input range, making it suitable for 7.4V systems, and provides a peak stall torque of approximately 17.5 kg·cm at 6V. The servo features a steel gear train, core motor, dual ball bearings, and a PA+fiberglass housing for a robust construction. It offers up to 280° of rotation using a 500–2500µsec control pulse range and uses a 25T, 5.9mm spline output shaft. With dimensions of approximately 40.1 × 20.1 × 38.9mm and a weight of about 65g, it is suitable for compatible RC cars, helicopters, aircraft, robotics, and other applications requiring high torque and extended rotational movement. The servo has a no-load speed of approximately 0.167 sec/60° at 6V. Before installation, verify the required voltage, mounting dimensions, spline type, torque requirements, and controller compatibility.
