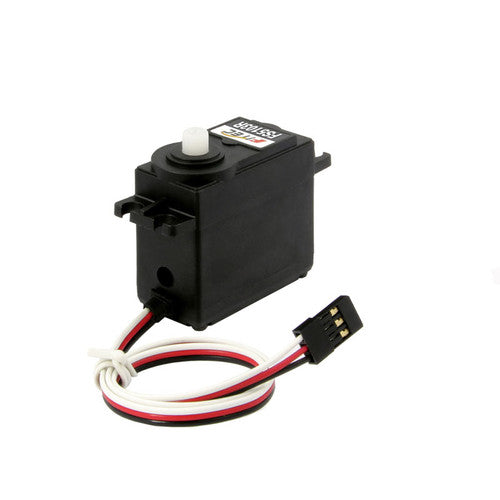

FS5103R - 6V 3Kg.cm 360deg Analog Continuous Rotation Servo Motor

SKU: PBDR478

₹ 623.83 ₹ 1,088.00

-43%

Limited Time: Get Free GIFT On Order Above ₹2000

In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

In stock and ready to ship

15 days Replacement guarantee

Feel free to contact us on WhatsApp at +91-9217663605 for product enquiries, pricing, and expert assistance.

The standard delivery charges are based on your order value:

FREE shipping on orders above ₹1000.
₹125 shipping charge on orders under ₹200.
₹79 shipping charge on orders under ₹1000.

We know that you expect your drone parts to be delivered safely and efficiently. That’s why at PartsBaba.com, we make it a priority to process and deliver your orders as smoothly as possible.

Drone parts orders are delivered within 15 days of placing the order.
Delivery timelines may vary slightly depending on product availability and shipping location.
Orders are processed promptly to ensure timely dispatch.
Our team works closely with trusted delivery partners to get your order to you as quickly as possible.
You will receive updates once your order has been processed and shipped.

FS5103R - 6V 3Kg.cm 360deg Analog Continuous Rotation Servo Motor

₹ 623.83 ₹ 1,088.00

Free Shipping

On Order Above Rs 1000/-

Delivery

Drone Parts Delivery in 15 Days

Technical Specifications

Brand: Feetech
Operating Temperature: -15°C to 70°C
Storage Temperature: -30°C to 80°C
Dimensions: 40.15 × 20.15 × 37.2 mm
Weight: 41.5 ± 1 g
Gear Material: Plastic
Rotation Type: Continuous (360°)
Bearing Type: Ball Bearings
Spline Type: 25T / 5.9 mm
Horn Material: Plastic
Cable Length: 300 mm
Motor Type: Core Motor

Electrical Specifications

Operating Voltage: 4V – 8.4V
Idle Current: 6 mA @ 6V
No-load Speed: 0.125 sec / 60° @ 6V
No-load Current: 210 mA @ 6V
Rated Torque: 1.0 kg·cm @ 6V
Maximum Stall Torque: 3.2 kg·cm @ 6V
Stall Current: 1.1 A @ 6V

Control & Performance

Rotation Direction: Counterclockwise (1500 → 1800 μs)
Control Signal: PWM (Pulse Width Modulation)
Control System: Analog comparator

Product Overview

Enhance your robotics and automation builds with the FS5103R 6V Continuous Rotation Servo Motor, designed for smooth and consistent motion control. This servo is ideal for applications that require continuous rotation rather than fixed positioning, making it perfect for wheels, drive systems, and rotating mechanisms.

Built to serve both beginners and experienced developers, the FS5103R offers dependable performance with a balance of speed, torque, and efficiency. Its wide voltage compatibility ensures flexibility across different power setups, while the compact design allows easy integration into various projects.

Key Features

Continuous 360° Rotation
Enables uninterrupted movement, ideal for mobile robots, conveyor systems, and rotating platforms.
Strong Torque Output
Provides up to 3.2 kg·cm torque at 6V, suitable for handling moderate mechanical loads.
Wide Voltage Support
Operates efficiently within a 4V to 8.4V range, making it adaptable to different power sources.
Durable Construction
Equipped with high-quality plastic (POM) gears and a reinforced PA + fiber housing for extended lifespan.
Accurate Control Response
Uses an analog comparator with a tight dead band (≤18 μs) for precise and stable motion control.
