D2826 930KV Brushless Motor CW/CCW For Fixed-wing/MultiCopter/QuadCopter Drone

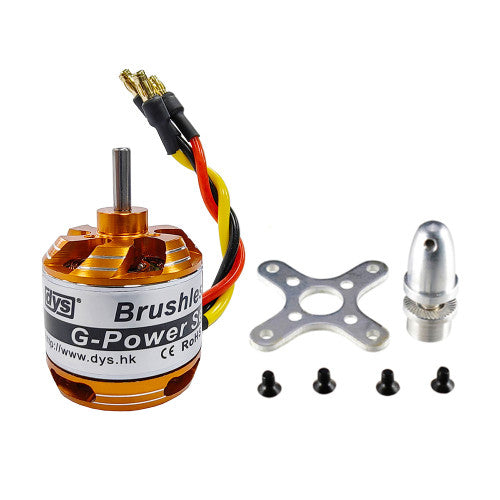

DYS D2826 930KV Brushless Outrunner Motor (CW/CCW)

Product Description

The DYS D2826 930KV is a torque-oriented brushless motor engineered for smooth, high-efficiency propulsion. With its lower 930KV rating, this motor is specifically optimized to drive larger propellers at moderate RPMs, making it an exceptional choice for endurance-focused quadcopters, aerial photography platforms, and fixed-wing trainer aircraft.

Designed for 2-3S Li-Po setups, it provides a stable 645g of maximum pull while maintaining a highly efficient power draw. The motor features a precision-balanced rotor and a durable aluminum alloy casing to ensure minimal vibration and excellent heat dissipation, which are critical for long-duration flights and maintaining the longevity of your airframe.

Key Features

• Optimized 930KV Performance: Delivers strong low-RPM torque, ideal for stable cruising and long-endurance flight missions.

• Large Propeller Support: Specifically designed to handle 12x6 or 10x7 propellers, providing efficient lift for larger or heavier builds.

• High-Efficiency Design: Maximizes flight time by providing a steady thrust-to-watt ratio, reaching up to 160W of maximum power.

• Advanced Cooling: The aluminum alloy housing facilitates superior airflow, keeping the motor cool during extended operations.

• Precision Balancing: Features a factory-balanced rotor to reduce "jello" in camera footage and minimize mechanical stress on motor mounts.

• Robust Construction: High-quality magnets and durable windings ensure consistent torque delivery and a long service life with minimal maintenance.

Technical Specifications

• Brand: DYS

• Model: D2826

• KV (RPM/V): 930KV

• Motor Size: 28 x 26 mm

• Shaft Size: 3.17 mm

• Weight: 50g

• Input Voltage: 7.4V – 11.1V (2-3S Li-Po)

• Max Current: 12A

• Max Power: ~130–160W

• Max Thrust/Pull: 645g

• Suggested ESC: 40A

• Suggested Propeller: 12x6 or 10x7 inch

• Motor Type: Brushless Outrunner

Package Includes

• 1 x D2826 930KV Brushless Motor

• 1 x Propeller Adapter & Mounting Hardware Set

Warranty Information

All products supplied by Partsbaba are genuine and original. We offer a 14-day replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.
