D2822 2600KV Brushless Motor CW/CCW For Fixed-wing/MultiCopter/QuadCopter Drone

DYS D2822 2600KV Brushless Motor (CW/CCW)

Product Description

The DYS D2822 2600KV is a high-speed brushless outrunner motor engineered for high-RPM performance and rapid throttle response. With its 2600KV rating, this motor is specifically designed for agile fixed-wing aircraft, racing drones, and high-speed multirotors that require powerful lift and aggressive acceleration.

Optimized for 2-3S Li-Po power systems, it generates a massive 850g of maximum pull while weighing only 38g. The motor utilizes high-precision bearings and quality copper windings to ensure efficient operation with reduced vibration, providing the dependable power needed for both professional and hobby-grade DIY projects.

Key Features

• High-Speed 2600KV Output: Engineered for fast acceleration and strong thrust, ideal for racing and agile maneuvering.

• Superior Power-to-Weight Ratio: Delivers up to 850g of thrust from a lightweight 38g frame, enhancing aircraft agility.

• Efficient Outrunner Design: Ensures cooler operating temperatures and smoother throttle transitions for extended motor longevity.

• High Current Handling: Capable of handling up to 24A of max current, providing the "punch" needed for demanding flight envelopes.

• Versatile Compatibility: The standard 28x22mm size and 3.17mm shaft make it a perfect fit for 6x4 or 7x3 propellers and various small-to-medium airframes.

Technical Specifications

• Brand: DYS

• Model: D2822

• KV (RPM/V): 2600KV

• Motor Size: 28 x 22 mm

• Shaft Size: 3.17 mm

• Weight: 38g

• Input Voltage: 7.4V – 11.1V (2-3S Li-Po)

• Max Current: 24A

• Max Thrust/Pull: 850g

• Suggested ESC: 30A

• Suggested Propeller: 6x4 or 7x3 inch

• Motor Type: Brushless Outrunner

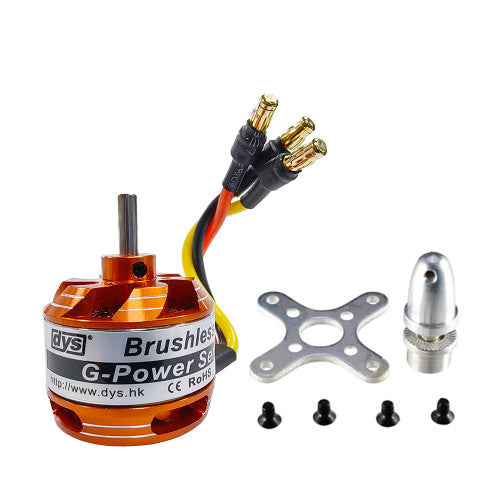

Package Includes

• 1 x D2822 2600KV Brushless Motor

• 1 x Propeller Adapter & Mounting Hardware Set

Warranty Information

All products supplied by Partsbaba are genuine and original. We offer a 14-day replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.
