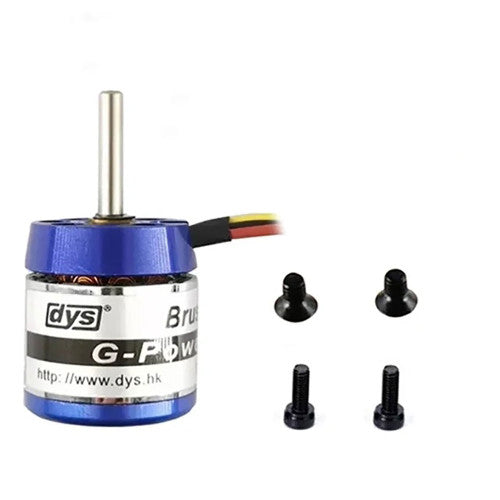

D2225 1350KV Brushless Motor CW/CCW For Fixed-wing/MultiCopter/QuadCopter Drone

DYS D2225 1350KV Brushless Motor (CW/CCW)

Product Description

The DYS D2225 1350KV is a high-efficiency brushless motor specifically engineered for endurance flying and stable cruising. With a lower 1350KV rating, this motor is optimized for efficiency and torque, making it a perfect match for larger propellers or specialized fixed-wing trainers and multirotor platforms where flight time is a priority.

Operating on 2-3S Li-Po batteries, it provides a maximum pull of 340g while maintaining a lightweight 32g profile. The motor is built with precision-machined components and high-quality magnets to ensure low vibration and consistent performance, which is vital for smooth aerial photography or FPV cruising.

Key Features

• Efficiency-Optimized 1350KV Output: Ideal for long-endurance missions, training aircraft, and stable multirotor builds requiring consistent lift.

• Superior Power Management: Designed to reduce heat generation and maximize battery life, supporting longer missions and improved runtimes.

• Lightweight & Durable Housing: At only 32g, it provides a solid 105W of power without weighing down the airframe.

• Low-Vibration Performance: A precision-balanced rotor ensures stable operation, reducing the risk of "jello" in camera footage and protecting onboard sensors.

• Broad Compatibility: Features a standard 16mm mount and 3.17mm shaft, making it highly compatible with 7-inch propellers and various DIY drone frames.

Technical Specifications

• Brand: DYS

• Model: D2225

• KV (RPM/V): 1350KV

• Motor Size: 22 x 25 mm

• Shaft Size: 3.17 x 41 mm

• Weight: 32g

• Input Voltage: DC 7.4V – 11.1V (2-3S Li-Po)

• Maximum Power: 105W

• Max Thrust/Pull: 340g

• Suggested ESC: 18A

• Suggested Propeller: 7 inch

• Motor Mount: 16 mm

• Working Temperature: -20°C to +80°C

Package Includes

• 1 x D2225 1350KV Brushless Motor

• 1 x Propeller Adapter & Mounting Hardware
