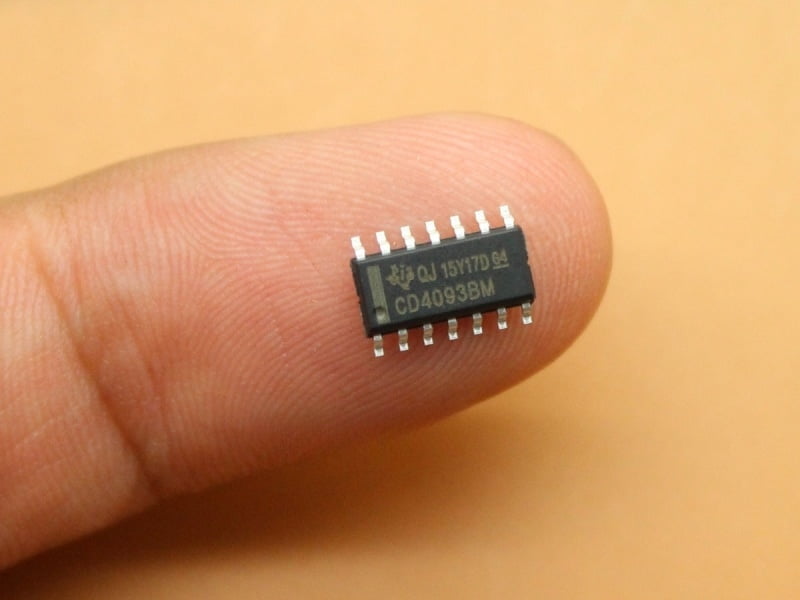

CD4093 SMD

The CD4093 SMD is a versatile quad 2-input NAND Schmitt trigger integrated circuit designed for digital logic applications. Its primary function is to provide reliable NAND gate logic with built-in Schmitt trigger inputs, which offer enhanced noise immunity and signal conditioning. This component is ideal for use in timing circuits, waveform shaping, and switch debouncing. Compatible with standard CMOS voltage levels, the CD4093 SMD suits a wide range of electronic projects that require stable and precise logic operations.

• Four independent 2-input NAND gates with Schmitt trigger inputs improve signal stability and noise rejection.
• The SMD package enables compact circuit designs and easy surface mounting on printed circuit boards.
• Operating voltage range supports typical CMOS logic levels for broad compatibility across devices.
• Enhanced switching characteristics make it suitable for timing, pulse generation, and waveform shaping.
• Low power consumption supports efficient energy use in battery-powered applications.
• Wide temperature range ensures reliable operation in various environmental conditions.
• Ideal for debouncing mechanical switches and cleaning noisy input signals.
