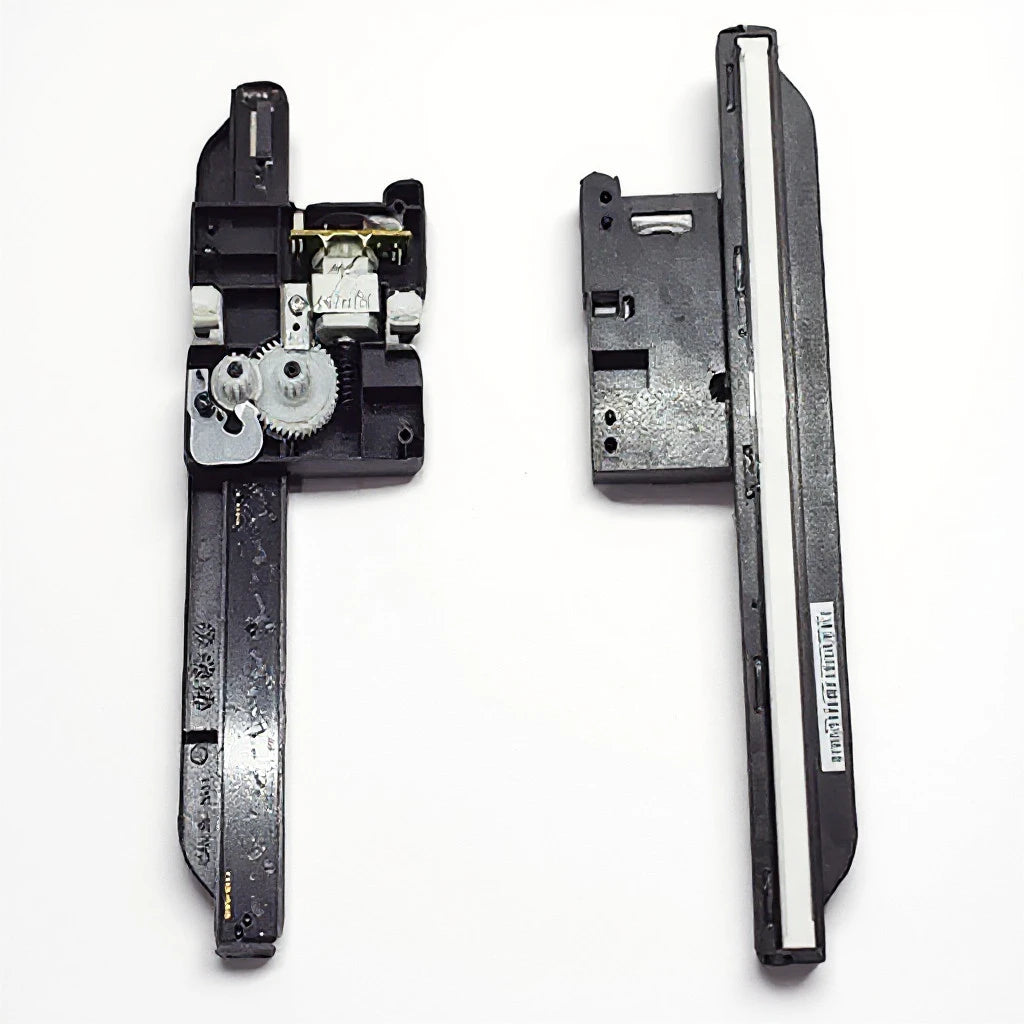

CCD Scanner Assembly HP – Complete Replacement Unit

Firstly, restore your printer's scanning capabilities with our quality CCD Scanner Assembly HP replacement part. Specifically, this complete unit resolves common scanning problems in your HP LaserJet M1005 MFP old model variants.

What Is the CCD Scanner Assembly HP?

Essentially, the CCD Scanner Assembly HP captures image data during scanning and copying operations. Primarily, this optical component converts physical documents into digital files. Therefore, your multifunction printer relies on this assembly for all scanning tasks.

Additionally, the unit includes multiple integrated components working together. Specifically, the CCD scan head reads document content with precision. Furthermore, supporting brackets, rails, and gears enable smooth scanner movement across documents.

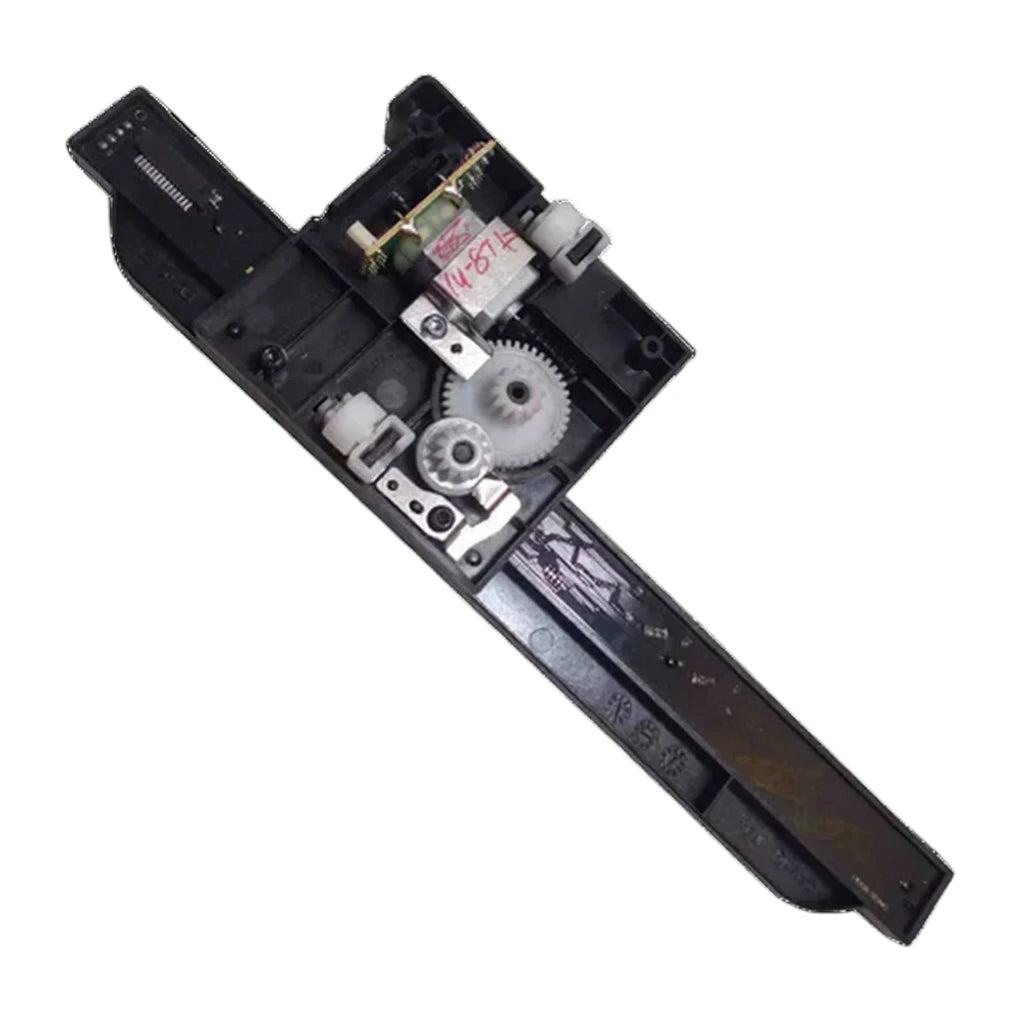

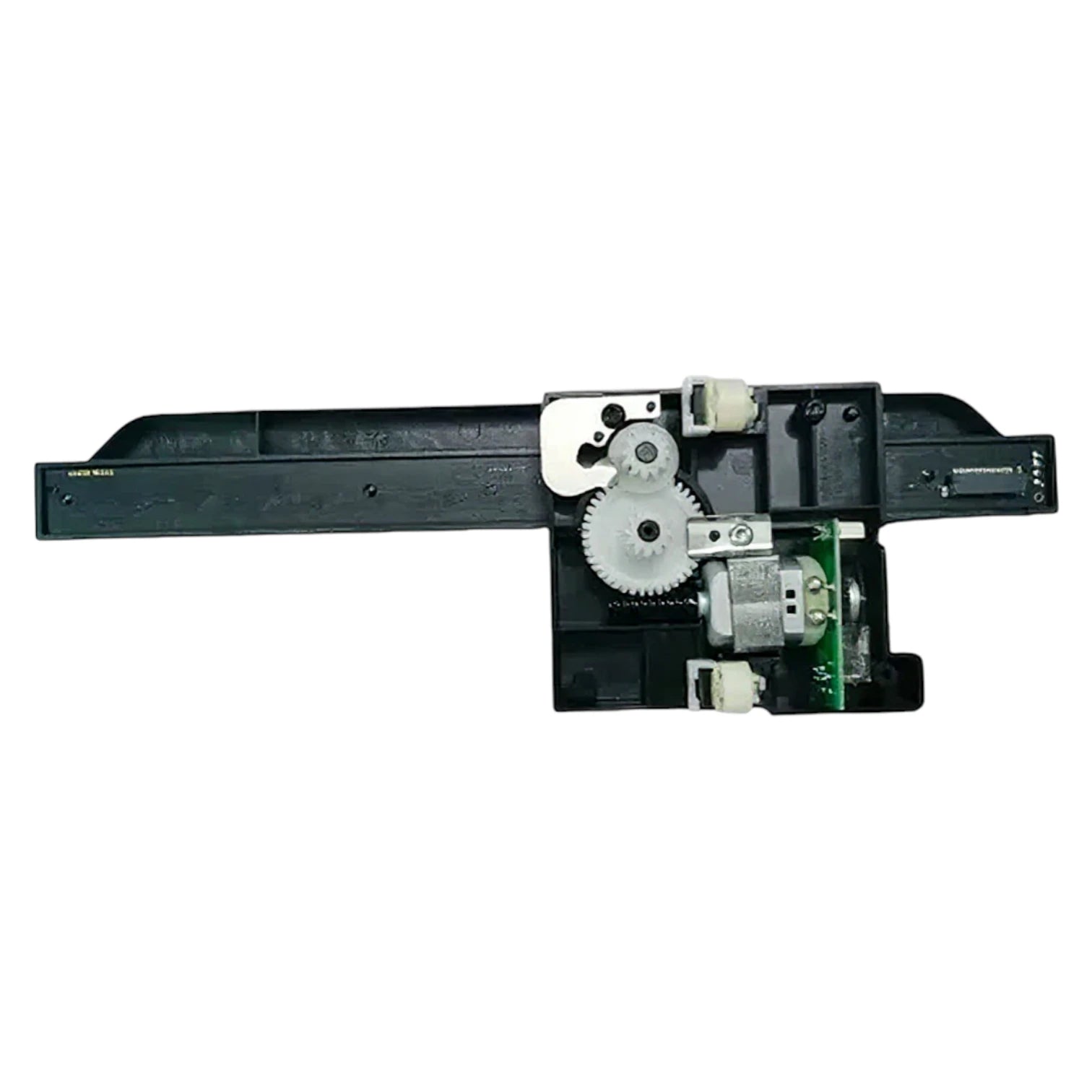

Complete Assembly Components

Notably, our CCD Scanner Assembly HP replacement includes these essential parts:

• Firstly, CCD scan head for image capture
• Secondly, bracket and rail assembly for stable movement
• Additionally, gear mechanism for precise positioning
• Finally, motor unit for automated scanning motion

Consequently, this comprehensive package eliminates guesswork during repairs. Ultimately, you receive everything needed for successful scanner restoration.

Common Scanning Problems This Part Solves

Specifically, watch for these symptoms indicating scanner assembly failure:

• Firstly, blank pages appear when scanning documents
• Secondly, scanned images show distortion or lines
• Moreover, scanner head error messages display on screen
• Additionally, copying function produces poor quality results
• Finally, scanner fails to move during operation

Therefore, replacing the faulty assembly eliminates these frustrating issues. Consequently, your HP LaserJet M1005 returns to full functionality.

Compatible Printer Models

Importantly, our CCD Scanner Assembly HP fits specific HP LaserJet models:

Important Compatibility Notice

Notably, this assembly fits only older M1005 MFP variants. However, newer revisions use different scanner configurations. Therefore, verify your printer version before ordering this replacement part.

Additionally, check your printer's manufacturing date or internal components. Alternatively, contact our support team for compatibility verification assistance.

Technical Specifications

• Part Type: CCD Scanner Assembly (Old Type)
• Typical Part Number: CB376-67901
• Build Materials: Durable plastic and metal construction
• Function: High-resolution image capture for scan and copy
• Condition Options: Refurbished or pulled original units available

Build Quality and Durability

Remarkably, durable construction ensures long-term reliable performance. Furthermore, metal and plastic components withstand regular daily use. Consequently, the assembly handles thousands of scanning cycles before requiring attention.

Moreover, original and refurbished units meet strict quality standards. Subsequently, each assembly undergoes testing before shipping to customers.

Installation Requirements

Importantly, this replacement requires moderate technical skill for proper installation. Additionally, handle the CCD scan head carefully during the process. Ultimately, proper alignment ensures accurate scanning results.

Specifically, follow these basic installation steps:

• Firstly, power off and unplug your printer completely
• Secondly, remove exterior covers to access scanner components
• Then, disconnect cables from the old assembly carefully
• Subsequently, remove mounting screws and extract the faulty unit
• Afterwards, install new CCD Scanner Assembly HP in reverse order
• Moreover, align scanner head precisely before securing screws
• Then, reconnect all cables and reassemble covers
• Finally, test scanning function with sample documents

Therefore, seek professional assistance if you lack technical experience. Otherwise, improper installation may cause additional problems.

Warranty Information

Typically, most units include 7 to 14-day testing or replacement guarantees. However, warranty terms vary by vendor and condition type. Therefore, check specific warranty details before completing your purchase.

Additionally, refurbished units typically offer similar warranty coverage. Furthermore, original pulled parts may include extended guarantee options.

Order Your Replacement Today

Finally, keep your HP LaserJet M1005 MFP operating at peak performance. Specifically, our quality scanner assembly restores full scanning and copying capabilities. Moreover, fast shipping minimizes your printer downtime.

Additionally, contact our team with compatibility or installation questions. Ultimately, we help you find the right solution for your specific printer needs.
