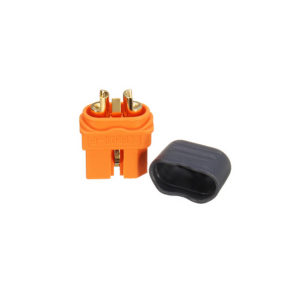

Amass XT60(2+1) Female Connector -XT60I-F.G.O Original Drone Connectors

Product Description

The Amass XT60(2+1) Female Connector (XT60I-F.G.O) is a high-quality 3-pin hybrid DC power connector designed for advanced power and signal integration in drones, UAV systems, robotics, smart battery packs, RC vehicles, and industrial electronic applications. Manufactured by Amass, a globally trusted connector brand, this XT60(2+1) series is engineered to provide reliable high-current power delivery along with an additional signal line, enabling smarter and more efficient electronic system design.

The XT60I-F.G.O Female Connector features a 2+1 pin architecture, consisting of two main power contacts and one auxiliary signal/identification pin. This additional pin is commonly used for functions such as battery identification, communication, or system recognition in smart power systems. This makes it highly suitable for next-generation UAV and battery management applications where simple power-only connectors are no longer sufficient.

It uses precision gold-flash plated brass contacts, ensuring excellent electrical conductivity, low resistance, and stable current transfer. This helps minimize heat generation and power loss during continuous operation, making it suitable for drone propulsion systems, ESC connections, and high-capacity lithium battery setups. The gold plating also enhances corrosion resistance, ensuring long-term reliability in outdoor and industrial environments.

The connector supports a straight cable-mount design with solder-type termination, allowing secure and durable wiring for field and manufacturing use. The housing is made from high-temperature PA (Polyamide) thermoplastic with UL94 V-0 flame-retardant rating, providing strong insulation, mechanical durability, and thermal stability under demanding conditions.

The XT60(2+1) series is typically rated for around 30A continuous current and up to 500V DC operation, depending on wire gauge and system configuration. This makes it suitable for medium-power UAV systems and smart electronic platforms where both power and signal communication are required.

Whether you're designing an advanced drone system, building a smart lithium battery pack, or developing robotics with integrated power monitoring, the Amass XT60(2+1) Female Connector provides a compact and intelligent connectivity solution.

Key Features

• Genuine Amass XT60I-F.G.O Female Connector
• 2 power pins + 1 signal/communication pin (2+1 design)
• Ideal for smart battery and identification systems
• Gold-flash plated brass contacts for high conductivity
• Low contact resistance for efficient power transfer
• High-temperature PA (Polyamide) UL94 V-0 housing
• Secure friction-fit cable-mount design
• Supports power + signal integration in one connector
• Strong resistance to vibration and mechanical stress
• Easy solder-type wire termination
• Long service life with stable performance

Applications & Use Cases

• Smart UAV and drone battery systems
• Lithium battery packs with communication/ID lines
• Power Distribution Boards (PDBs)
• ESC and flight controller integration
• Robotics and automation systems
• RC cars, boats, and aircraft
• Industrial embedded electronics
• IoT and smart power systems
• Battery monitoring and management systems (BMS)
• DIY electronics and prototyping

Technical Specifications

• Brand: Amass
• Model: XT60I-F.G.O
• Connector Type: Female
• Series: XT60(2+1) / XT60I
• Pin Configuration: 2 power + 1 signal pin
• Contact Material: Brass, gold-flash plated
• Housing Material: PA (Polyamide), UL94 V-0 flame-retardant
• Rated Current: ~30A continuous
• Rated Voltage: 500V DC
• Mounting Type: Cable mount, solder termination
• Wire Compatibility: Typically 12–14 AWG
• Operating Temperature: -20°C to 120°C
• Mechanical Life: ~1000 mating cycles
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT60(2+1) Female Connector is designed for modern electronic systems that require more than just power delivery. Its additional signal pin enables smart communication between battery and device, improving system intelligence and safety.

Compared to standard XT60 connectors, it offers enhanced functionality without increasing size significantly, making it a strong choice for next-generation drones and smart power systems.

Package Includes

• 1 × Amass XT60I-F.G.O (XT60 2+1) Female Connector
