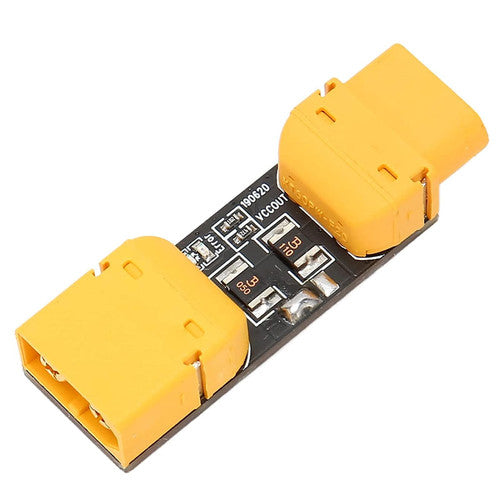

Amass XT60 Smoke Stopper Plug, Tester Circuit Breaker

XT60 Smoke Stopper Plug – Circuit Protection for FPV Drones & RC Models

The XT60 Smoke Stopper Plug is a practical safety tool for drone builders, FPV pilots, RC enthusiasts, and electronics technicians who need to test a newly assembled or repaired circuit safely. Connected between the LiPo battery and your drone or RC model, it helps identify short circuits, incorrect wiring, and other electrical faults before they can cause serious damage to expensive components.

Using resettable PPTC protection, the XT60 smoke stopper limits current when an electrical fault or excessive current draw is detected. Once the fault is removed, the protection can reset, making the device suitable for repeated testing and troubleshooting. This makes it particularly useful during the first power-up of a new build or after soldering and component replacement.

Key Features

• Short Circuit Protection: Helps protect electronic components from excessive current caused by wiring faults and accidental shorts.
• Resettable PPTC Protection: Provides reusable overcurrent protection without requiring a conventional fuse replacement after every fault.
• XT60 Connection: Designed for systems using XT60 battery connections and commonly used in FPV and RC applications.
• Visual Status Indication: LED feedback helps you identify the condition of the power connection during testing.
• Easy Inline Installation: Connect the smoke stopper between the battery and the electronic system before applying full power.
• Compact Testing Tool: Small and convenient enough to keep as part of your drone-building or electronics repair toolkit.

Why Use an XT60 Smoke Stopper?

The first power-up of a newly built FPV drone or repaired electronic system carries a higher risk of wiring mistakes. A misplaced solder bridge, damaged component, incorrect connection, or other fault can cause excessive current and damage an ESC, flight controller, motor, power distribution board, or other electronics.

An XT60 smoke stopper provides an additional layer of protection during this initial testing stage. Instead of connecting the battery directly to the system, place the smoke stopper inline and check the circuit before proceeding to normal operation.

Ideal Applications

• FPV drone and quadcopter first-power-up testing
• Drone ESC and flight controller troubleshooting
• Post-repair electrical testing
• LiPo-powered RC cars, boats, and aircraft
• DIY UAV and robotics projects
• Electronics prototyping and fault diagnosis
• Checking soldering and wiring after assembly

How to Use the XT60 Smoke Stopper

1. Turn off the battery and make sure the electronic system is ready for testing.
2. Connect the XT60 smoke stopper between the LiPo battery and the device under test.
3. Power the system and observe the indicator.
4. If the protection activates, disconnect the battery and inspect the wiring, solder joints, polarity, and connected components.
5. Correct the fault before attempting another power-up.

Compatibility

This XT60 circuit breaker and smoke stopper is intended for electronic systems that use XT60-style power connections. It is especially useful with FPV drones, RC models, LiPo battery systems, DIY UAVs, and other battery-powered electronics.

Always verify the connector type, battery voltage, current requirements, and product specifications of your particular setup before use.

Package Includes

• 1 × XT60 Smoke Stopper Circuit Protector

Frequently Asked Questions

What is an XT60 smoke stopper?

An XT60 smoke stopper is a circuit-protection device placed between a battery and an electronic system during initial power-up or troubleshooting. It helps limit current when a short circuit or electrical fault is detected.

Why should I use a smoke stopper on an FPV drone?

A smoke stopper can help reduce the risk of damaging expensive drone electronics during the first power-up after assembly, soldering, repair, or component replacement.

Can the XT60 smoke stopper be reused?

The resettable PPTC protection is designed to recover after the fault is removed, making the smoke stopper suitable for repeated testing and troubleshooting.

Where can I use an XT60 smoke stopper?

It can be used with compatible XT60-based FPV drones, RC cars, RC aircraft, boats, DIY UAVs, robotics projects, and other battery-powered electronic systems.

Does a smoke stopper replace proper electrical testing?

No. A smoke stopper is an additional protection tool, not a substitute for checking polarity, solder joints, wiring, component orientation, and electrical specifications before powering a circuit.
