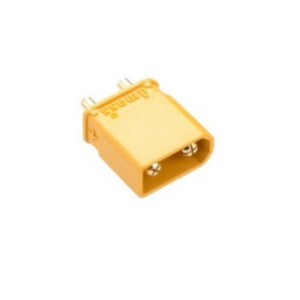

Amass XT30UPB30 Male Connector (XT30UPB-M30.G.Y) Drone Connectors

Product Description

The Amass XT30UPB30 Male Connector (XT30UPB-M30.G.Y) is a premium-grade, high-current PCB-mount power connector designed for compact and efficient electrical connections in drones, RC systems, robotics, and advanced electronic applications. Manufactured by Amass, a globally trusted brand in connector technology, this XT30UPB series connector is engineered for superior power delivery, low resistance, and long-lasting durability in demanding environments.

This XT30UPB male connector features precision-machined gold-plated brass bullet contacts combined with a reinforced high-temperature nylon housing for maximum strength and electrical efficiency. The gold plating ensures excellent conductivity, corrosion resistance, and reduced contact resistance, making it ideal for high-performance electronic systems that require stable and reliable power transfer.

The XT30UPB30 design is a PCB-mount (through-hole) variant, allowing direct integration onto printed circuit boards. This eliminates the need for additional wiring in some applications, making PCB layouts cleaner, more compact, and more efficient. It is especially useful in drone power distribution boards, ESCs, and embedded power systems where space optimization is critical.

Engineered for high-current, low-voltage applications, the XT30UPB-M30.G.Y ensures minimal voltage drop and reduced heat generation during operation. Its secure friction-fit design provides strong mechanical retention, preventing accidental disconnection even in high-vibration environments such as UAVs and RC vehicles.

The connector is widely used in modern electronics where performance, compact size, and reliability are essential. Whether in professional drone builds or DIY electronics projects, it delivers consistent and safe electrical performance.

Key Features

• Genuine Amass XT30UPB30 Male Connector (XT30UPB-M30.G.Y)
• PCB-mount (through-hole) high-current connector design
• Compact XT30 series for drones and RC applications
• Gold-plated brass contacts for superior conductivity
• High-temperature nylon housing for durability and insulation
• Low resistance design for efficient power transfer
• Secure friction-fit connection with strong retention
• Optimized for vibration-heavy UAV environments
• Space-saving PCB integration design
• Long service life with high mating cycle durability
• Easy solder-based PCB installation

Applications & Use Cases

The Amass XT30UPB30 Male Connector is widely used in various electronics and power systems, including:

• FPV drones and UAV power distribution boards (PDBs)
• RC cars, boats, trucks, and aircraft
• Electronic Speed Controllers (ESCs)
• Lithium Polymer (LiPo) battery power systems
• Brushless motor power connections
• Robotics and automation systems
• 3D printers and CNC machine electronics
• Embedded PCB power supply circuits
• DIY electronics and prototyping projects
• IoT devices and smart embedded systems
• Drone racing and high-performance UAV builds
• Industrial control and compact power modules

Technical Specifications

• Brand: Amass
• Model: XT30UPB-M30.G.Y
• Connector Type: Male
• Series: XT30UPB30
• Mounting Type: Through Hole (PCB Mount)
• Contact Material: Gold-plated brass
• Housing Material: High-temperature nylon
• Current Rating: High-current low-voltage applications (XT30 class)
• Contact Resistance: Ultra-low resistance
• Application Type: PCB-mounted power connector
• Operating Environment: High vibration and thermal stability

Why Choose This Connector?

The Amass XT30UPB30 Male Connector is designed for engineers and builders who require a compact, PCB-integrated, and high-efficiency power connector solution. Its through-hole mounting structure simplifies PCB design while ensuring strong mechanical stability and reliable electrical performance.

Compared to traditional wire-based connectors, the XT30UPB series provides a cleaner, more professional, and space-efficient solution, making it ideal for modern drone and embedded system designs.

Package Includes

• 1 × Amass XT30UPB30 Male Connector (XT30UPB-M30.G.Y)
