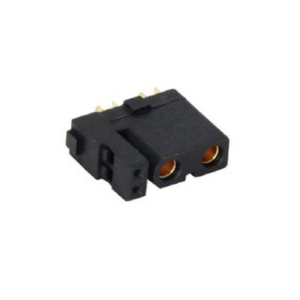

Amass XT30(2+2) Female Connector – XT30(2+2)-F.G.B Drone Connectors

Product Description

The Amass XT30(2+2) Female Connector (XT30(2+2)-F.G.B) is a compact, high-performance hybrid power and signal connector designed for reliable electrical connections in drones, RC systems, robotics, and advanced electronic applications. Manufactured by Amass, a globally trusted leader in professional connector technology, this connector is engineered to deliver stable power transmission, secure signal handling, and long-term durability in compact electronic systems.

This XT30(2+2) female connector combines standard XT30 high-current power terminals with additional signal pins in a single integrated housing. The “2+2” configuration typically includes two main power contacts (positive and negative) along with two auxiliary signal pins, making it ideal for applications requiring both power delivery and communication or sensing in one connector system.

The connector features precision-machined gold-plated brass contacts, ensuring excellent electrical conductivity, low resistance, and strong corrosion resistance. This ensures stable performance even under continuous load conditions and repeated mating cycles, which is essential in demanding drone and RC environments.

Designed for high-current, low-voltage applications, the XT30(2+2)-F.G.B provides efficient energy transfer with minimal voltage drop and heat generation. Its secure locking and friction-fit design ensure stable connection even under vibration, shock, and movement, making it highly reliable for UAVs, racing drones, and robotics systems.

The housing is made from high-temperature flame-retardant thermoplastic (UL94-V0 rated), offering excellent insulation, thermal stability, and mechanical strength. Its compact integrated structure reduces wiring complexity, making PCB layouts and system integration cleaner and more efficient.

This connector is widely used by engineers and manufacturers who require both power + signal integration in a single compact connector, improving system reliability and reducing assembly complexity.

Key Features

• Genuine Amass XT30(2+2) Female Connector (XT30(2+2)-F.G.B)
• Integrated power + signal connector design
• Gold-plated brass contacts for high conductivity
• Compact XT30 form factor with extended signal capability
• High-temperature UL94-V0 flame-retardant housing
• Low resistance design for efficient power transfer
• Secure friction-fit connection for vibration resistance
• Combines power delivery and auxiliary signal lines
• High durability with long mating cycle life
• Easy solder-type wire termination

Applications & Use Cases

The Amass XT30(2+2) Female Connector is widely used in advanced electronic and power systems, including:

• FPV drones and UAV power + telemetry systems
• RC cars, boats, trucks, and aircraft
• Lithium polymer (LiPo) battery systems with signal monitoring
• Electronic Speed Controllers (ESCs) with telemetry support
• Brushless motor and sensor-integrated systems
• Robotics and automation systems
• Smart battery packs with communication lines
• DIY electronics and advanced prototyping
• 3D printers and CNC machines with sensor feedback systems
• IoT and embedded electronics requiring power + data integration
• Industrial control and smart power modules

Technical Specifications

• Brand: Amass
• Model: XT30(2+2)-F.G.B
• Connector Type: Female
• Series: XT30 (2+2)
• Configuration: 2 Power + 2 Signal Pins
• Contact Material: Gold-plated brass
• Housing Material: High-temperature thermoplastic (UL94-V0)
• Current Rating: Up to 20A class for power pins (typical XT30 range)
• Voltage Rating: Up to 500V DC
• Operating Temperature: -20°C to 120°C
• Contact Resistance: ≤1.2 mΩ
• Mechanical Life: ~100 mating cycles
• Application Type: Power + signal PCB/wire connector
• Mounting Type: Solder wire connection

Why Choose This Connector?

The XT30(2+2) Female Connector is ideal for advanced drone and embedded systems where both power delivery and signal communication are required in a compact footprint. Its integrated design reduces wiring complexity, improves reliability, and enhances system efficiency.

Compared to standard XT30 connectors, the 2+2 variant offers additional functionality without significantly increasing size, making it a preferred choice for modern UAVs and smart electronic systems.

Package Includes

• 1 × Amass XT30(2+2) Female Connector (XT30(2+2)-F.G.B)
