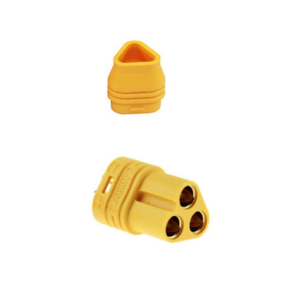

Amass MT30 3 Pole Motor/ESC Connector Set Female - 1 Pcs- MT30-F.G.Y

Product Description

The Amass MT30 3 Pole Motor/ESC Connector Set Female (MT30-F.G.Y) is a premium-quality 3-pin high-performance power connector specifically designed to provide secure and reliable connections between brushless motors and Electronic Speed Controllers (ESCs). Manufactured by Amass, a globally recognized leader in connector technology, this MT30 series connector delivers exceptional electrical performance, low contact resistance, and outstanding durability for drones, RC vehicles, robotics, and various compact electronic applications. Its lightweight yet rugged design makes it an excellent choice for FPV racing drones, agricultural UAVs, EDF jets, multirotor aircraft, and other high-performance RC systems.

The MT30-F.G.Y Female Connector features three precision-engineered 2mm gold-plated brass bullet sockets, ensuring superior electrical conductivity while minimizing voltage drop and power loss. The gold-plated contacts provide excellent resistance against corrosion and oxidation, maintaining stable electrical performance even after repeated mating cycles. This results in reliable power delivery and longer service life in demanding environments.

Designed for brushless motor and ESC connections, the MT30 female connector creates a secure, vibration-resistant connection with compatible MT30 male connectors. Its compact three-pole design simplifies motor wiring by combining all three motor phases into a single connector, reducing installation time while improving cable organization. The connector also includes an insulating cable tidy attachment cap, which protects solder joints, improves strain relief, and keeps wiring clean and professional.

Manufactured using high-temperature PA (Polyamide) thermoplastic with a UL94 V-0 flame-retardant rating, the connector provides excellent insulation, thermal stability, and mechanical strength. It supports wire sizes up to 16 AWG, making it suitable for medium-current brushless motor applications while maintaining a compact footprint for space-constrained installations.

Whether you're assembling an FPV racing quadcopter, upgrading an RC airplane, building a robotic platform, or developing industrial electronic systems, the Amass MT30 3 Pole Motor/ESC Connector Set Female offers professional-grade reliability, efficient power transfer, and dependable long-term performance.

Key Features

• Genuine Amass MT30 3 Pole Motor/ESC Connector Set Female (MT30-F.G.Y)
• 3-pin connector designed for brushless motors and ESCs
• Precision 2mm gold-plated brass contacts
• Low contact resistance for efficient power transmission
• Compact and lightweight design
• Secure anti-vibration locking mechanism
• High-temperature PA (Polyamide) UL94 V-0 flame-retardant housing
• Includes insulating cable tidy attachment cap
• Easy solder-type wire termination
• Excellent corrosion and oxidation resistance
• Long service life with high mating durability

Applications & Use Cases

The Amass MT30 Female Connector is widely used in numerous electronic and electrical applications, including:

• FPV racing drones
• Agricultural drones and UAVs
• Brushless motor to ESC connections
• Multi-rotor drone systems
• EDF (Electric Ducted Fan) aircraft
• RC airplanes, helicopters, boats, and cars
• Robotics and automation systems
• DIY electronics projects
• Embedded electronic systems
• Educational robotics
• Industrial electronic prototypes
• Compact power distribution systems

Technical Specifications

• Brand: Amass
• Model: MT30-F.G.Y
• Connector Type: Female
• Series: MT30
• Number of Pins: 3
• Contact Material: Gold-plated brass
• Housing Material: High-temperature PA (Polyamide), UL94 V-0
• Rated Current: 15A continuous (30A peak)
• Rated Voltage: 500V DC
• Recommended Wire Size: Up to 16 AWG
• Contact Diameter: 2mm bullet sockets
• Mechanical Life: Up to 1000 mating cycles
• Operating Temperature: -20°C to 120°C
• Mounting Type: Solder wire connection

Why Choose This Connector?

The Amass MT30 3 Pole Motor/ESC Connector Set Female is designed for drone builders, RC enthusiasts, robotics engineers, and electronics professionals who require a compact, durable, and high-performance motor connector. Its gold-plated contacts ensure excellent electrical conductivity and minimal power loss, while the secure locking mechanism provides reliable operation in high-vibration environments.

Compared to individual bullet connectors, the MT30 series integrates all three motor phase connections into a single compact housing, simplifying installation, reducing wiring errors, and improving overall system reliability. Whether you're building FPV drones, RC aircraft, robotics, or industrial automation systems, the MT30 connector delivers professional-grade performance and dependable connectivity.

Package Includes

• 1 × Amass MT30 3 Pole Motor/ESC Connector Set Female (MT30-F.G.Y)
• 1 × Insulating Cable Tidy Attachment Cap
