Ag++ Flight Controller and NamoAG With Aero GCS Software Stack

PDRL Ag++ Flight Controller with NamoAG GNSS Module

The PDRL Ag++ Flight Controller combined with the NamoAG GNSS module is a professional-grade control and navigation system designed specifically for agricultural drones. Built for precision, reliability, and automation, this system supports spraying, mapping, and terrain-adaptive operations in demanding farming environments.

Key Features

• Designed for Agriculture Drones suitable for spraying, surveying, and mapping applications
• High Accuracy GNSS Positioning delivers up to 1.5 m CEP accuracy for reliable navigation
• Advanced Obstacle Avoidance enables safe operation in complex and uneven terrain
• Terrain Following Capability supports stable low-altitude flight over farmland
• Multi-Constellation GNSS Support ensures strong signal reliability and coverage
• DroneCAN Communication for stable and noise-resistant data transmission
• Integrated AeroGCS Software Support for mission planning, monitoring, and automation

Technical Specifications

• Brand: PDRL
• Receiver: u-blox NEO-M9N
• Processor: ARM Cortex-M4 STM32F4
• Dimensions: 61.82 x 61.82 x 24.81mm
• Weight: ~30g
• Input Voltage: 5V DC
• Output Protocol: DroneCAN
• Positioning Accuracy: 1.5 m CEP
• Antenna: 35 x 35mm
• Safety Switch: Available
• Buzzer: Available
• LED Indicators: Arming LED, Power LED, Notification LED

Ag++ Flight Controller

The Ag++ Flight Controller delivers stable and responsive flight performance using a high-speed processor. It supports advanced safety features such as obstacle avoidance and terrain following, making it suitable for precision agricultural operations.

• Supports CAN-based obstacle avoidance sensors
• Compatible with CAN-based altimeter for terrain tracking
• 8 PWM motor outputs and 4 auxiliary PWM/GPIO outputs
• 2 CAN interfaces and 3 UART ports for flexible connectivity
• PPM and S.Bus receiver input support

NamoAG GNSS Module

The NamoAG navigation module provides accurate positioning and reliable performance in agricultural environments. It integrates advanced sensors and GNSS technology for stable navigation.

• u-blox NEO-M9N GNSS receiver for high accuracy
• Supports multi-constellation satellite tracking
• Includes compass, barometer, gyroscope, and accelerometer
• Compact and lightweight design for drone integration

AeroGCS Software Support

The system is compatible with AeroGCS software tools for enhanced drone operations, including mission planning, monitoring, and fleet management.

• AeroGCS GREEN: Precision spraying and mission execution
• AeroGCS Config: Configuration tool for manufacturers
• AeroGCS Enterprise: Fleet management and data synchronization

Applications

Suitable for agricultural drones used in crop spraying, mapping, surveying, and automated farming operations.

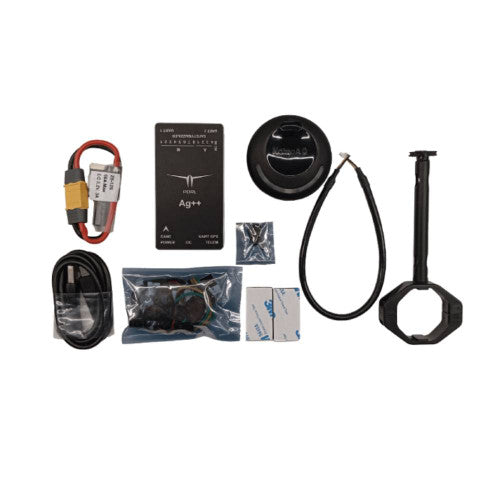

Package Includes

• 1 x Ag++ Flight Controller
• 1 x NamoAG GNSS Module
