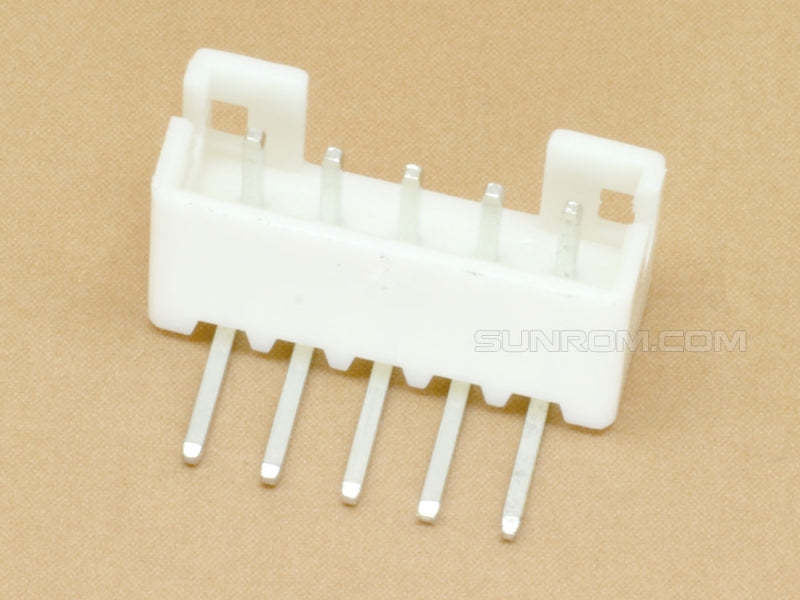

5 pin JST PH 2.0mm Through Hole Header Horizontal Right Angle Side Entry

Product Description

The 5 Pin JST PH 2.0mm Through Hole Header Horizontal Right Angle Side Entry is a high-quality PCB-mounted wire-to-board connector designed to provide secure and reliable electrical connections in compact electronic systems. Featuring a 2.0mm pitch, 5-pin configuration, and horizontal right-angle side-entry design, this connector is ideal for drones, robotics, battery management systems (BMS), IoT devices, sensors, LED lighting, consumer electronics, industrial control systems, and embedded electronics.

Compatible with the JST PH 2.0mm series, this header is designed for through-hole (THT) PCB mounting, providing excellent mechanical strength and long-term durability. The horizontal right-angle orientation allows cables to connect parallel to the PCB, making it ideal for applications requiring low-profile cable routing and compact enclosure designs.

The connector features high-quality copper alloy contacts with tin plating, ensuring low contact resistance, reliable electrical conductivity, and excellent corrosion resistance. Its high-temperature thermoplastic housing offers superior insulation and withstands soldering temperatures, making it suitable for both prototype development and mass production.

Whether you're designing a drone flight controller, building an embedded system, or assembling industrial electronic equipment, the 5 Pin JST PH 2.0mm Through Hole Header Horizontal Right Angle Side Entry provides a compact, durable, and dependable wire-to-board connection solution.

Key Features

• JST PH 2.0mm compatible PCB header
• 5-pin wire-to-board connector
• 2.0mm pitch
• Through-hole (THT) PCB mounting
• Horizontal right-angle side-entry design
• Polarized connector prevents incorrect mating
• Tin-plated copper alloy contacts
• High-temperature thermoplastic housing
• Strong mechanical retention after soldering
• Compact, low-profile design
• Reliable electrical performance and easy installation

Applications & Use Cases

The 5 Pin JST PH 2.0mm Right Angle Header is commonly used in:

• Drones and UAV electronics
• Robotics and automation
• Battery Management Systems (BMS)
• IoT devices
• Sensor modules
• LED lighting systems
• Consumer electronics
• Embedded systems
• Arduino and Raspberry Pi projects
• Industrial control equipment
• DIY electronics and PCB prototyping

Technical Specifications

• Connector Type: JST PH Compatible Header
• Number of Pins: 5
• Pitch: 2.0mm
• Mounting Type: Through-Hole (THT)
• Orientation: Horizontal Right Angle (Side Entry)
• Contact Material: Copper Alloy
• Contact Plating: Tin Plated
• Housing Material: High-temperature Thermoplastic
• Rated Voltage: 100V AC/DC
• Rated Current: Up to 2A
• Operating Temperature: -25°C to +85°C
• Compatible Connector: JST PH 2.0mm 5-pin Female Housing

Why Choose This Header?

The 5 Pin JST PH 2.0mm Through Hole Header Horizontal Right Angle Side Entry is an excellent choice for compact PCB layouts requiring side-entry cable routing. Its through-hole construction provides superior mechanical stability, while the polarized design ensures secure and reliable mating. Ideal for drones, robotics, industrial electronics, and embedded systems, it delivers dependable performance and long service life.

Package Includes

• 1 × 5 Pin JST PH 2.0mm Through Hole Header Horizontal Right Angle Side Entry Connector
