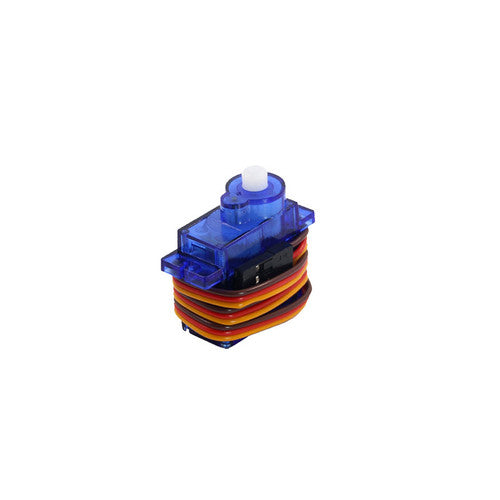

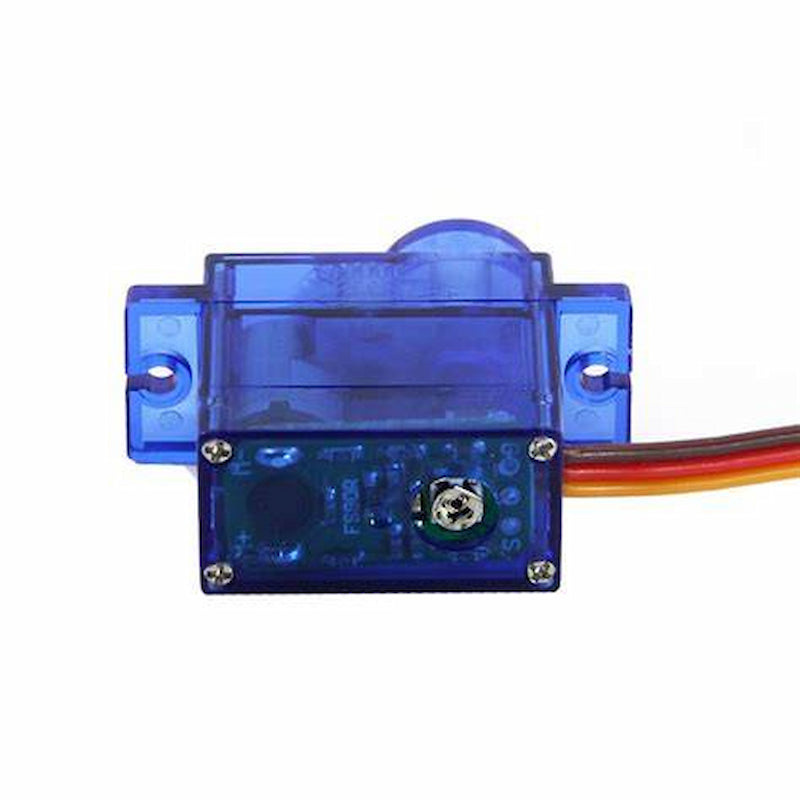

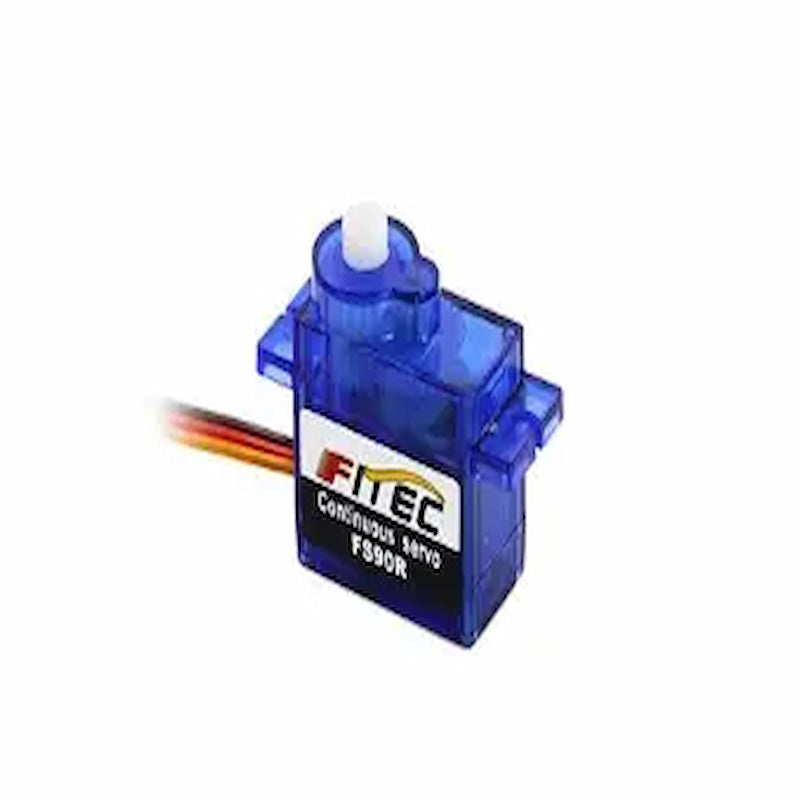

4.8V 1.3kg.cm Analog 360 Deg Continuous Rotation Servo Motor

Feetech 360° Continuous Rotation Servo Motor (4.8V–6V)

Overview

This compact and lightweight servo motor from Feetech is designed for applications that require continuous rotation rather than fixed positioning. With a 360° rotation capability, it is well-suited for robotics, automation systems, and small motion-based projects. Built using durable materials and a coreless motor, it offers stable performance with efficient power usage.

Key Features

• Continuous 360° Rotation
  Enables smooth, uninterrupted motion—ideal for wheels, conveyors, and robotic movement.
• Efficient Coreless Motor
  Provides reduced power consumption, faster response, and lower internal wear.
• Durable Build Quality
  Constructed with nylon and fiberglass casing along with POM plastic gears for long-lasting use.
• Compact & Lightweight Design
  Weighs only 9g, making it perfect for space-constrained applications like drones and small robots.
• Flexible Voltage Range
  Operates efficiently between 4.8V and 6V.
• Stable Control Mechanism
  Uses PWM signal input with an analog control system for consistent speed and direction control.

Technical Specifications

• Brand: Feetech
• Dimensions: 22.5 × 12.1 × 27.7 mm
• Weight: 9g
• Motor Type: Coreless
• Gear Type: Plastic (Nylon & POM)
• Bearing: No ball bearing
• Rotation Type: 360° Continuous
• Operating Voltage: 4.8V – 6V
• No Load Speed: 100 RPM @ 6V
• Rated Torque: 0.5 kg·cm @ 6V
• Stall Torque: 1.5 kg·cm @ 6V
• Idle Current: 5–6 mA
• No Load Current: 130 mA @ 6V
• Stall Current: 800 mA @ 6V
• Connector Wire Length: 250 mm (±5 mm)
• Operating Temperature: -15°C to 70°C
• Storage Temperature: -30°C to 80°C

Applications

• Robotics (wheeled robots, line followers)
• Automation systems
• DIY electronics projects
• Conveyor mechanisms
• RC and hobby projects
