24 Pin 1mm Pitch 300mm Same Side Connection FFC Ribbon Flexible Flat Cable

The 24 Pin 1mm Pitch 300mm FFC Cable is a flexible flat ribbon cable designed for compatible connections between PCBs, electronic components, displays, control boards and other devices that use an FFC interface.

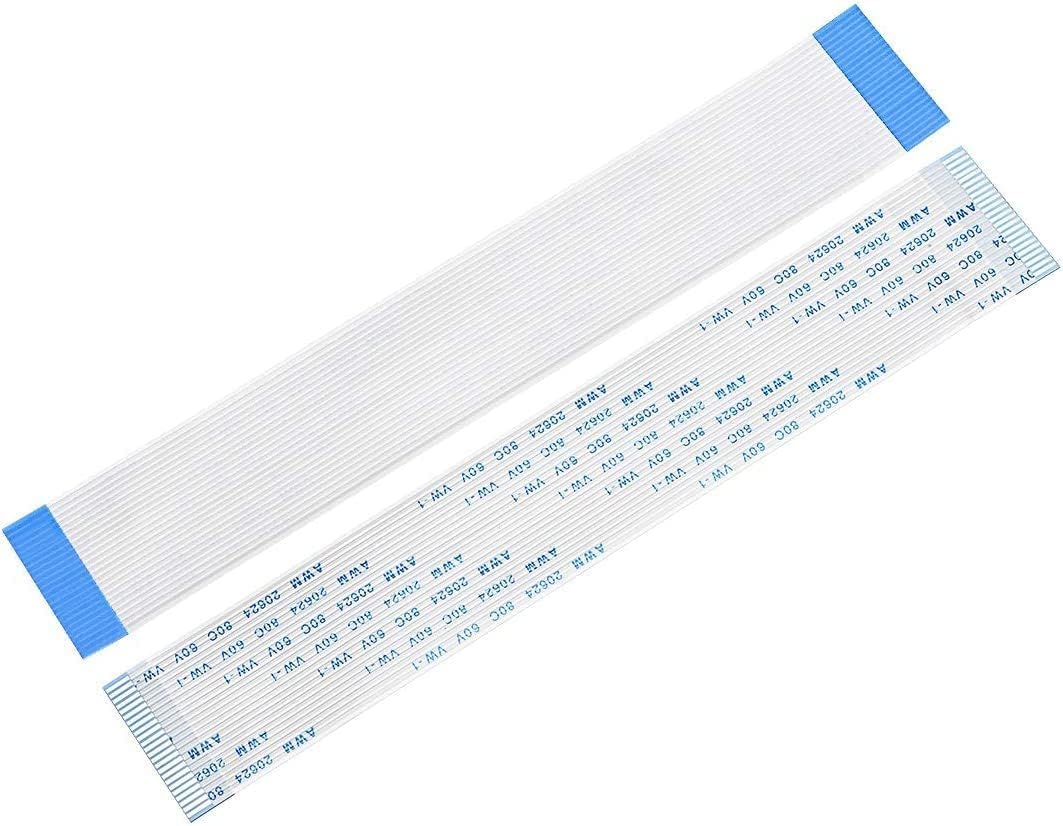

This 24 pin FFC cable features a 1mm pitch, 300mm length, and same-side contact orientation. The exposed contacts at both ends are positioned on the same side of the cable, making it suitable for compatible connectors that require this specific configuration.

Its flexible, flat construction allows the cable to be routed through narrow spaces inside electronic equipment while providing multiple electrical connections in a single compact cable.

Key Features

• 24-Pin Configuration: Provides 24 electrical contacts for compatible FFC connectors.

• 1mm Pitch: Designed for connectors with 1mm contact spacing.

• 300mm Length: Suitable for applications requiring a longer flexible connection.

• Same-Side Connection: Contacts at both ends are positioned on the same side.

• Flexible Flat Design: Easy to route through compact electronic assemblies.

• Low-Profile Construction: Suitable for space-conscious internal connections.

• Replacement Friendly: Useful for compatible repair and maintenance applications.

Product Specifications

Applications

The 24 Pin 1mm Pitch FFC Cable can be used in compatible:

• Printer assemblies

• Scanner assemblies

• Display and control panels

• PCB-to-PCB connections

• Consumer electronics

• Embedded electronic equipment

• Control boards

• DIY electronics projects

• Electronic repair and replacement applications

What Does Same-Side FFC Mean?

A same-side FFC cable has its exposed conductive contacts positioned on the same side at both ends of the cable.

This orientation is important when replacing an existing flexible flat cable. A cable with contacts on opposite sides may have the same number of pins and pitch but still be incompatible with the original connector arrangement.

Always compare the contact orientation of the replacement cable with the original cable before ordering.

Compatibility Guide

Before purchasing this 24 pin FFC cable, verify the following specifications:

• Pin count: 24 pins

• Pitch: 1mm

• Length: 300mm

• Contact orientation: Same Side

• Cable width: Must match the connector

• Connector type: Must be compatible with the intended FFC/FPC socket

Matching only the pin count is not sufficient. The pitch, cable length, contact orientation, width and connector configuration should all be checked.

Installation Information

Switch off and disconnect the electronic equipment before replacing the FFC cable.

Carefully release the locking mechanism of the FFC connector and remove the existing cable. Insert the replacement cable with the contacts facing the correct direction and secure the connector lock.

Avoid sharply folding, twisting, pulling or creasing the cable, particularly near the exposed contact areas. Improper handling can damage the conductive traces and cause intermittent or complete connection failure.

Package Includes

• 1 × 24 Pin 1mm Pitch 300mm Same Side FFC Ribbon Flexible Flat Cable

Frequently Asked Questions

How many pins does this FFC cable have?

This cable has 24 pins.

What is the pitch of the cable?

The contact pitch is 1mm.

What is the length of this FFC cable?

The cable length is 300mm.

What does same-side connection mean?

Same-side connection means the exposed conductive contacts at both ends are located on the same side of the cable.

Can I use this as a replacement for any 24-pin FFC cable?

No. You should also match the 1mm pitch, 300mm length, contact orientation, cable width and connector configuration.

Can this FFC cable be used in printers?

Yes, it can be used in compatible printer assemblies when the original cable has matching specifications and connector configuration.

Is this cable suitable for PCB-to-PCB connections?

Yes, provided both boards use compatible FFC connectors matching the cable's pin count, pitch and contact orientation.
