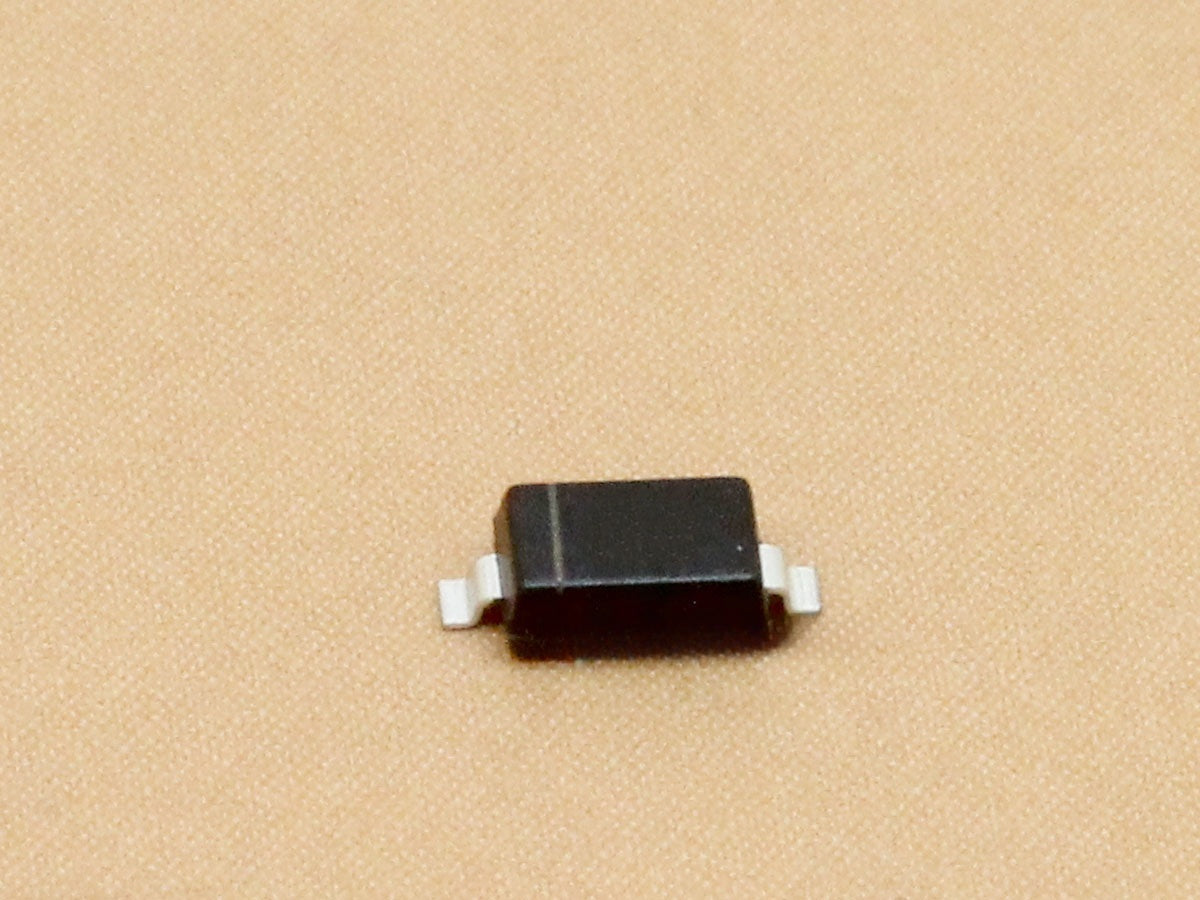

1N5819W Schottky Diode: Efficient Switching and Rectification

This 1N5819W Schottky diode is a high-performance component designed for efficient electronic applications. Featuring a 1A current rating and a 40V breakdown voltage, it excels in switching, AC to DC conversion, and polarity correction tasks within compact SOD123 (1206) packages. Its low forward voltage drop characteristic ensures minimal power loss, making it ideal for power supplies and signal processing circuits where reliability and efficiency are paramount.

• Schottky Barrier Technology: Delivers a low forward voltage drop, significantly reducing power loss and heat generation for enhanced system efficiency.
• 1 Ampere Continuous Current: Reliably handles up to 1A of current, making it suitable for a wide range of moderate power rectification and switching applications.
• 40 Volt PIV Rating: Offers substantial reverse voltage protection, safeguarding circuits from excessive back-voltage up to 40V.
• Versatile Application Use: Excellently suited for general-purpose switching, efficient AC-to-DC rectification, and essential polarity correction functions in electronic designs.
• Compact SOD123 Package: The small SOD123 (also known as 1206) footprint allows for easy integration into space-constrained PCB layouts.
• Fast Switching Capability: Designed for rapid response times, crucial for high-frequency switching power supplies and signal processing circuits.
