Adapter PCBs

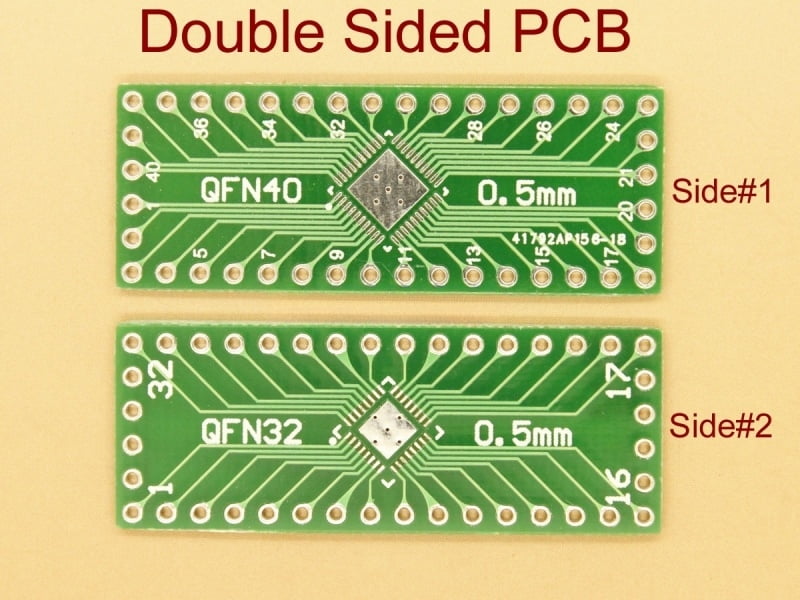

The QFN32 QFN40 0.5mm SMD Adapter PCB is designed to facilitate easy mounting and testing of QFN packages with 32 or 40 pins spaced at 0.5mm pitch. This adapter PCB acts as a bridge between surface-mount devices and standard test equipment or prototyping boards, ensuring reliable connectivity. Its precise layout and compact design make it ideal for engineers and technicians working on circuit validation, development, or repair tasks involving QFN components.

• Supports both 32 and 40-pin QFN packages with a fine 0.5mm pitch for accurate alignment
• Surface-mount design enables easy soldering and integration into test setups
• High-quality PCB material ensures durability and stable electrical performance
• Compact footprint optimizes space in crowded prototype or repair boards
• Facilitates testing and debugging by providing accessible pin connections
• Compatible with various QFN component types used in modern electronics

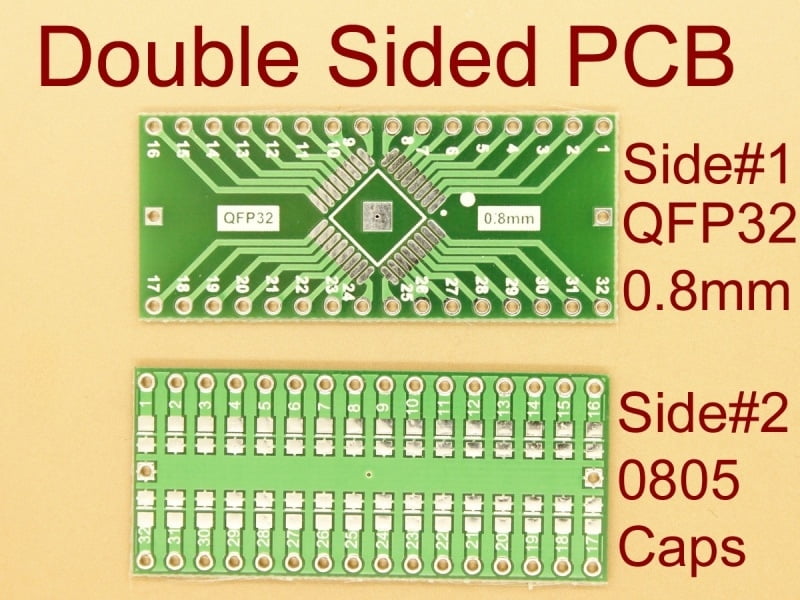

The QFP32 0.8mm SMD Adapter PCB is an essential component designed to facilitate the connection of QFP32 surface-mount devices to standard through-hole circuits. Featuring a compact 0.8mm pitch, this adapter board allows seamless integration and testing of delicate SMD chips with traditional prototyping or development boards. Ideal for electronics professionals and hobbyists, it supports precise soldering and reliable electrical contact, enhancing compatibility with a wide range of QFP32 packages for effective circuit design and troubleshooting.

• 0.8mm pitch spacing ensures accurate alignment and soldering of QFP32 packages
• Durable PCB material offers stable mechanical support and long-lasting performance
• Standard through-hole pin layout enables easy connection to breadboards and other test fixtures
• Compact size reduces space requirements on prototypes and development boards
• Improves circuit testing by adapting fine-pitch SMD components to conventional wiring
• Compatible with various QFP32 components for versatile electronics applications
• Facilitates efficient soldering with clearly marked pads and precise spacing
• Enhances prototyping workflow by bridging surface mount and through-hole technologies

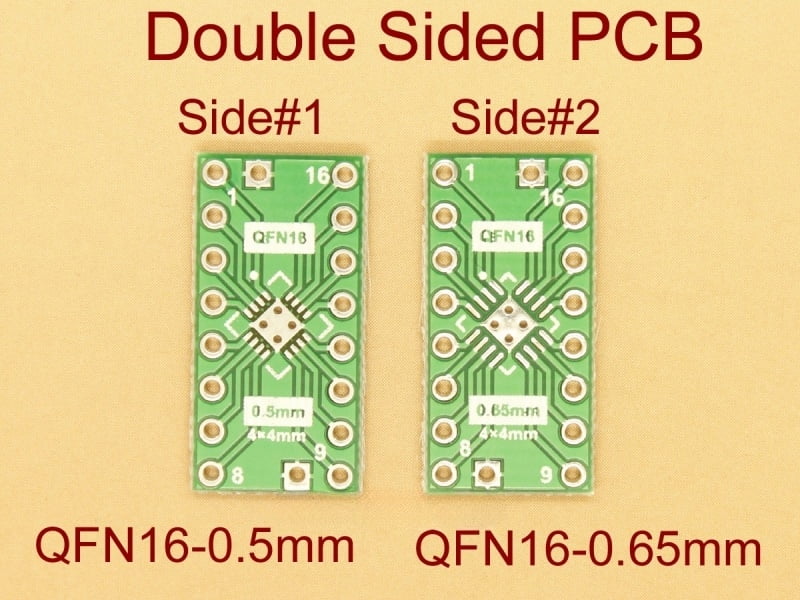

The QFN16 0.5mm 0.65mm SMD Adapter PCB is designed to facilitate the mounting and testing of QFN16 integrated circuits with 0.5mm pitch pads onto standard 0.65mm spaced surface-mount device (SMD) footprints. This adapter ensures reliable connectivity and compatibility for engineers and technicians working with compact IC packages. It is ideal for prototyping, circuit design verification, and small production runs where direct soldering onto PCBs with different pitch requirements is needed.

• Precision fit for QFN16 ICs with a 0.5mm pitch, enabling seamless adaptation to 0.65mm SMD pads.
• High-quality PCB material ensures stable electrical performance and durability during assembly.
• Compact and straightforward design simplifies integration into existing PCB layouts without extensive modifications.
• Supports accurate testing and development by providing consistent pin alignment and soldering surface.
• Compatible with various QFN16 package devices used in modern electronics applications.
• Enables prototype boards to accommodate components not originally supported by the base PCB footprint.
• Facilitates troubleshooting and repair by allowing easy replacement of QFN16 chips on standard SMD boards.

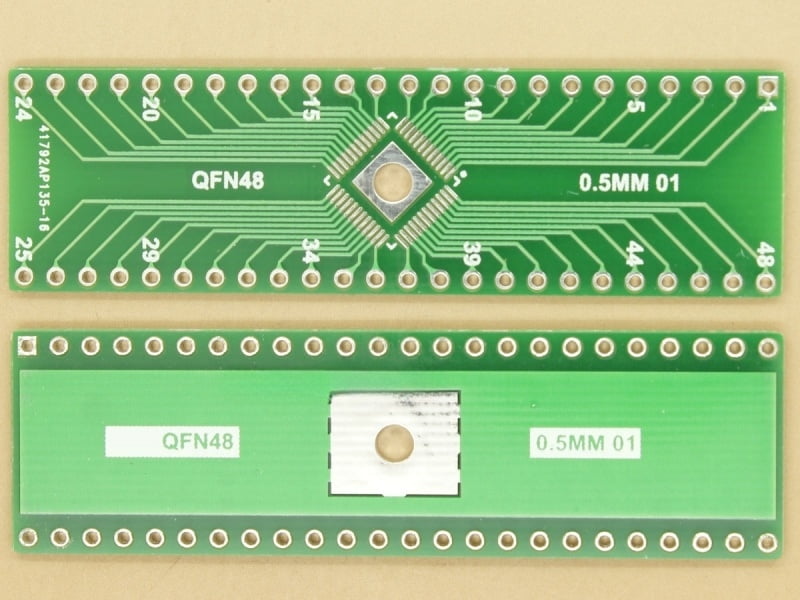

The QFN48 0.5mm SMD Adapter PCB is designed to facilitate the mounting of QFN48 packages with a 0.5mm pitch onto standard printed circuit boards. This adapter simplifies testing, prototyping, and integration by providing a reliable interface for surface-mount devices. Its precise layout ensures excellent compatibility with QFN48 chips, making it ideal for electronics development and repair applications where direct soldering is challenging.

• 0.5mm pitch ensures accurate alignment with QFN48 components for secure connections.
• Surface-mount design enables easy integration into existing PCB layouts without extensive modifications.
• Compact form factor allows use in tight spaces without compromising circuit density.
• High-quality PCB materials promote stable electrical performance and durability.
• Facilitates seamless testing and prototyping by converting QFN48 packages to a more accessible footprint.
• Compatible with a wide range of QFN48 chips used in advanced electronic assemblies.
• Reduces risk of damage during soldering by providing a controlled interface for fine-pitch components.

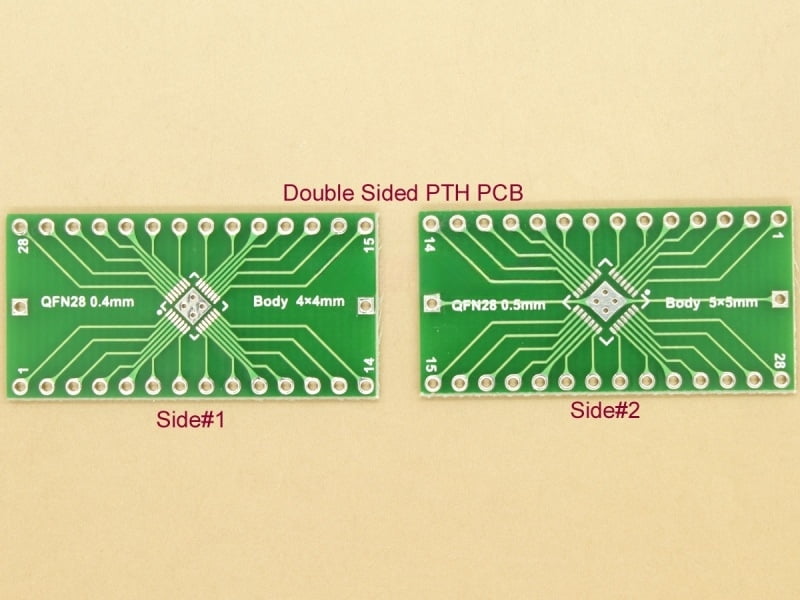

The QFN28 SMD Adapter PCB is designed for seamless integration of QFN28 packages with body sizes of 4x4mm at 0.4mm pitch and 5x5mm at 0.5mm pitch. This adapter aids in prototyping and testing by providing a reliable platform for surface-mount devices, ensuring compatibility with standard PCB layouts. Its precise dimensions and soldering pads make it ideal for electronics projects requiring efficient mounting of compact integrated circuits.

• Supports two pitch sizes: 0.4mm for 4x4mm bodies and 0.5mm for 5x5mm bodies, accommodating different QFN28 chip variants.
• Surface-mount design simplifies the assembly process on printed circuit boards, enhancing prototyping efficiency.
• Robust solder pads guarantee strong mechanical and electrical connections for reliable performance.
• Compact footprint minimizes PCB space, making it well-suited for dense electronic designs.
• Compatible with standard PCB manufacturing methods, offering versatility in various electronics applications.
• Ideal for testing and development phases, providing an accessible interface for QFN28 components.

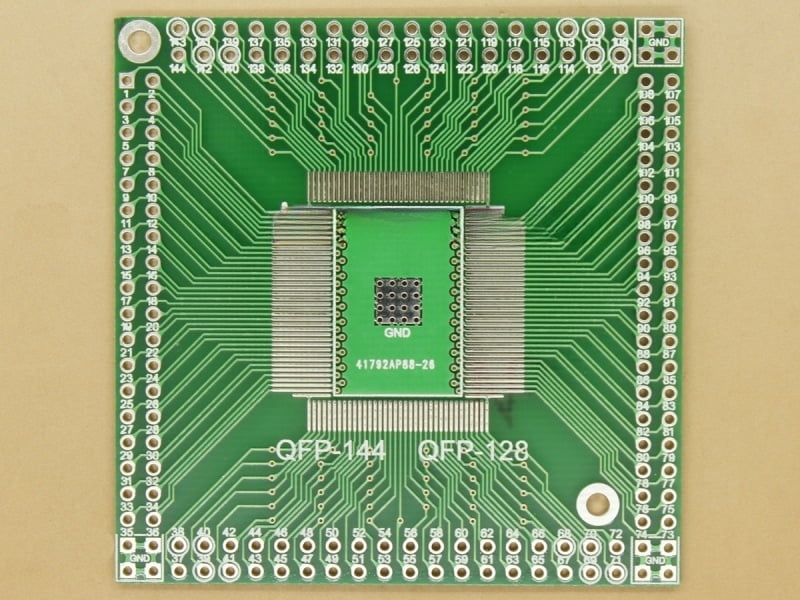

This SMD adapter PCB is designed to facilitate the mounting and testing of various QFP package types including QFP, EQFP, PQFP, TQFP, LQFP, and FQFP with pin counts of 128 and 144. It serves as a reliable interface for connecting surface-mount devices to standard through-hole or breadboard setups, enabling efficient prototyping and component evaluation. Compatible with a range of integrated circuits, this adapter ensures secure connections and optimal signal integrity across your electronics projects.

• Supports multiple QFP variants including QFP, EQFP, PQFP, TQFP, LQFP, and FQFP packages for versatile application.
• Accommodates 128 and 144 pins, providing flexibility for different IC sizes and configurations.
• Surface-mount design allows for easy soldering of components while facilitating connection to standard PCB or breadboard environments.
• Enhances prototype development by simplifying testing and integration of complex IC packages.
• Durable PCB material ensures stable mechanical support and reliable electrical performance.
• Compact footprint optimizes space without sacrificing accessibility or connection quality.

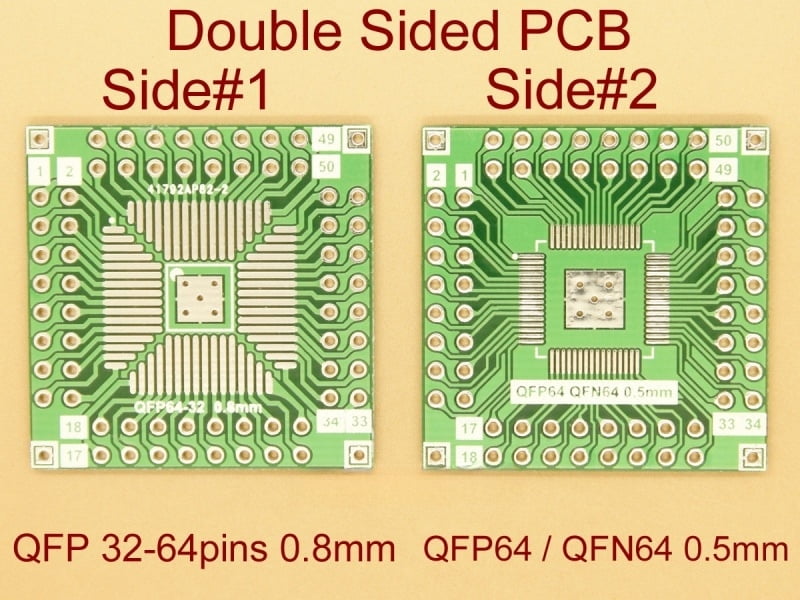

The QFP64 - QFN64 0.5mm / 0.8mm Adapter PCB is designed to facilitate the connection between QFP64 and QFN64 integrated circuits with fine pitch specifications of 0.5mm and 0.8mm. This adapter board enables seamless mounting and testing of components that require different footprint compatibilities. Ideal for prototyping and development environments, it supports precise alignment and reliable electrical connections for various electronic assemblies.

• Supports QFP64 to QFN64 conversion with fine pitch options of 0.5mm and 0.8mm for versatile use.
• Enhances prototype testing by providing a stable platform for ICs with different package types.
• Crafted with high-quality materials to ensure durability and accurate signal transmission.
• Compatible with standard surface mount technology for easy integration into existing workflows.
• Offers precise pin alignment to prevent solder bridging and ensure reliable connections.
• Compact design saves space on the testing bench or circuit board layout.
• Ideal for electronic component evaluation, debugging, and development projects.

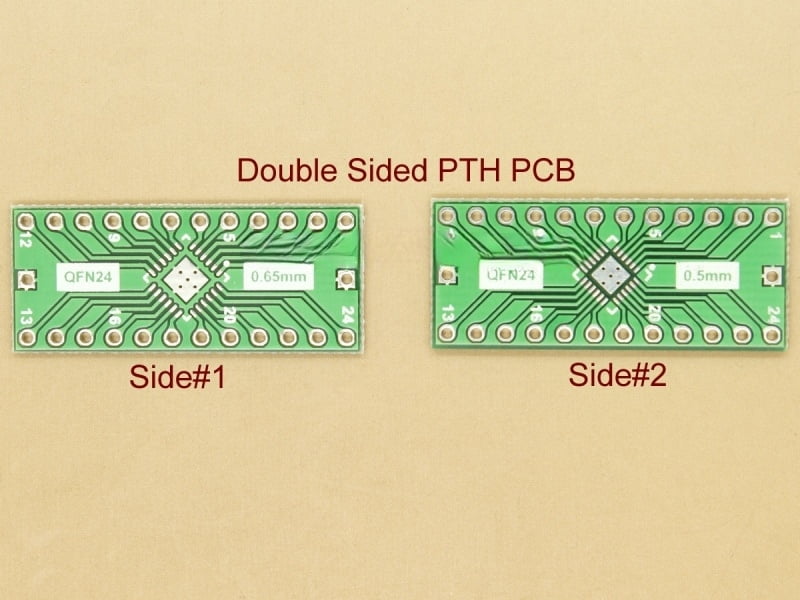

The QFN24 0.5mm 0.65mm SMD Adapter PCB is designed to facilitate the mounting of QFN24 integrated circuits with a 0.5mm pitch onto standard 0.65mm pitch SMD pads. This adapter board provides a reliable solution for developers and engineers needing to prototype or test components with incompatible footprints. Its precision manufacturing ensures compatibility with various QFN24 packages, making it ideal for electronics prototyping, repair, and small-scale production environments.

• Precision 0.5mm pitch on the QFN24 side ensures accurate alignment with IC pins
• 0.65mm SMD footprint allows seamless integration with common PCB designs
• Supports surface mount devices, enabling straightforward soldering and assembly
• Provides a compact and durable platform for component testing and prototyping
• Compatible with a wide range of QFN24 ICs, enhancing versatility
• Ideal for use in electronic design and repair applications

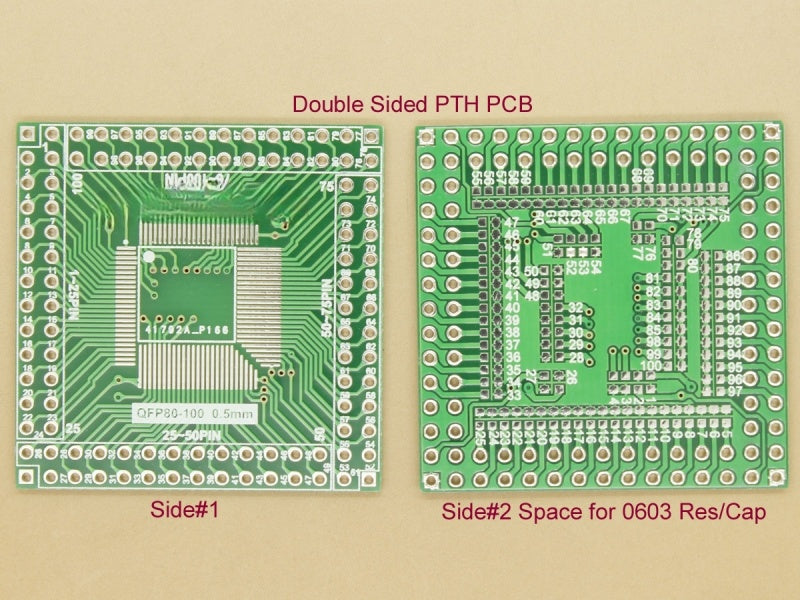

The QFP / EQFP / TQFP / LQFP 80/84/92/100 0.5mm SMD Adapter PCB is a versatile component designed to facilitate the mounting of various quad flat package integrated circuits. Its 0.5mm pitch and support for multiple pin counts make it ideal for adapting surface-mount devices for easy testing or integration into custom circuitry. Compatible with a broad range of QFP package types, this adapter PCB simplifies prototyping and repair tasks that require reliable and precise connections.

• Supports multiple QFP package sizes: 80, 84, 92, and 100 pins for broad application flexibility
• Features a fine 0.5mm pin pitch to accommodate high-density integrated circuits accurately
• Provides a solid platform for surface-mount device testing and development workflows
• Enables easy soldering and stable electrical connections thanks to its well-designed pad layout
• Compatible with various QFP package styles, including standard, extended, thin, and low-profile variants
• Ideal for engineers and hobbyists working on circuit prototyping and component evaluation
• Compact design enhances portability and minimizes workspace requirements during assembly

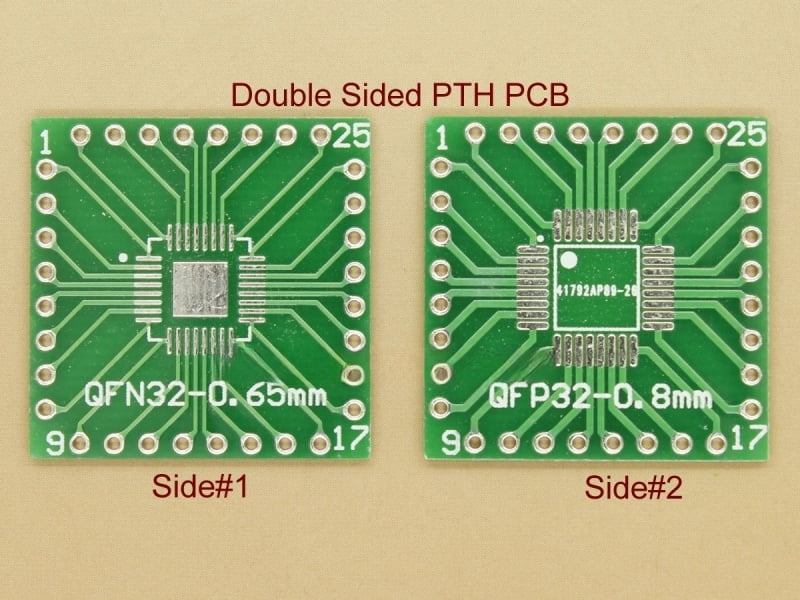

The QFP32 QFN32 0.65mm 0.8mm SMD Adapter PCB is designed to simplify the process of mounting fine-pitch QFP and QFN integrated circuits onto standard circuit boards. This adapter allows seamless conversion between 0.65mm and 0.8mm pitch sizes, ensuring compatibility with a range of surface-mount devices. Its compact design supports precise soldering and reliable electrical connections, making it ideal for prototyping, testing, or small-scale production in electronics assembly and repair.

• Facilitates integration of QFP32 and QFN32 packages with different pitch sizes for versatile circuit design
• Supports fine pitch spacing of 0.65mm and 0.8mm, enabling high-density component placement
• Engineered for surface-mount technology (SMT), ensuring stable and effective solder joints
• Compact footprint maximizes space efficiency on printed circuit boards
• Ideal for electronics prototyping, debugging, and upgrading legacy boards
• Durable PCB material provides consistent electrical performance and mechanical strength

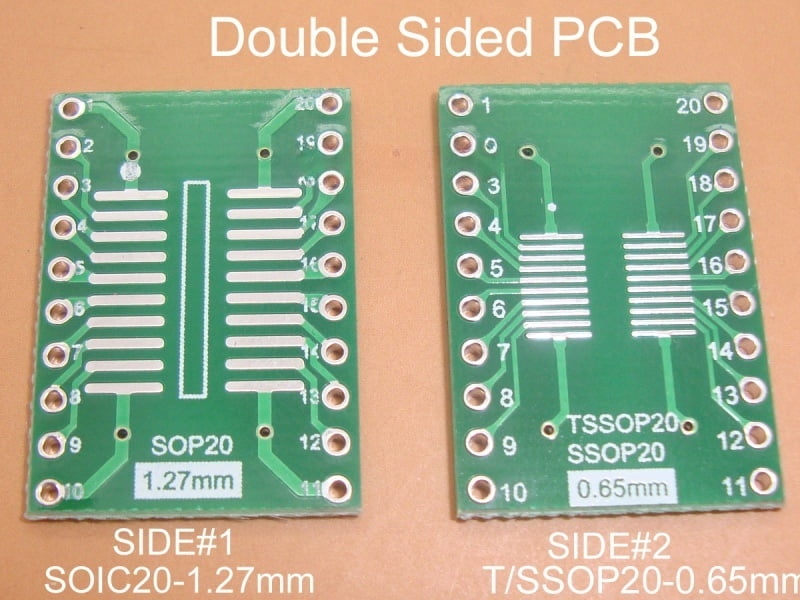

The SOIC20/TSSOP20/SSOP20 Adapter PCB is a versatile circuit board designed to facilitate the use of various 20-pin integrated circuits with different package types. This adapter provides a reliable platform to convert between SOIC, TSSOP, and SSOP packages, ensuring compatibility across multiple chip formats. Ideal for prototyping, testing, or repair applications, it supports efficient circuit development and troubleshooting by simplifying the integration of diverse ICs.

• Universal compatibility with SOIC20, TSSOP20, and SSOP20 packages allows seamless adaptation of 20-pin chips.
• High-quality PCB construction ensures stable electrical connections and durability during extensive use.
• Compact design enables easy incorporation into various electronic projects without occupying excessive space.
• Solder-friendly layout simplifies mounting and reduces assembly time for faster prototyping and testing.
• Improves circuit debugging by providing accessible pin connections for monitoring and measurement.
• Supports a broad range of applications including development boards, repair stations, and custom electronics builds.
• Enhances flexibility for engineers and hobbyists working with multiple IC package styles in one setup.

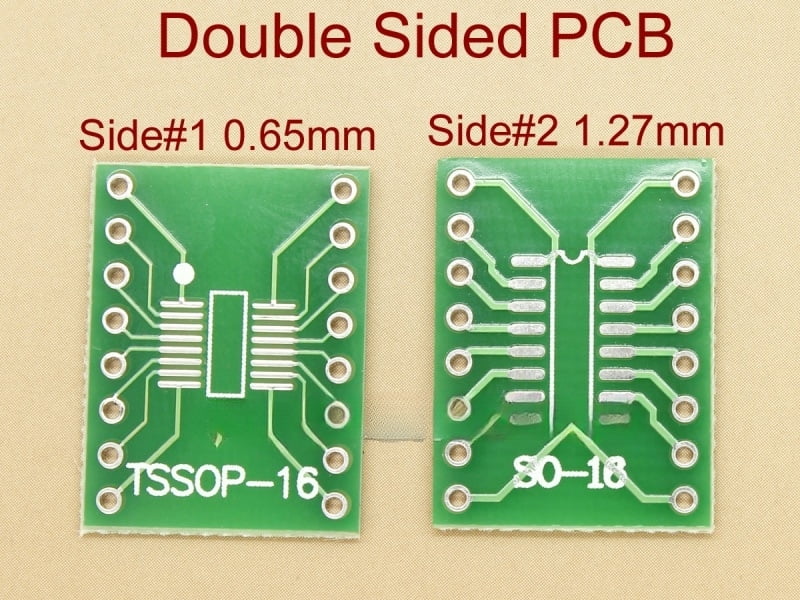

The SOIC16 SSOP16 0.65mm 1.27mm SMD Adapter PCB is designed to facilitate the connection of small-outline integrated circuit packages to standard breadboards or PCBs. It adapts SOIC16 and SSOP16 chips with a 0.65mm pitch to a 1.27mm pitch, allowing ease of prototyping and testing in various electronics projects. This adapter is compatible with surface-mount devices and is ideal for engineers and hobbyists working with fine-pitch ICs in applications requiring precise and reliable connections.

• Converts 0.65mm pitch SOIC16/SSOP16 packages to a standard 1.27mm pitch for compatibility with typical prototyping boards.
• Compact PCB layout ensures minimal space usage while maintaining robust electrical connections.
• Supports surface-mount device integration, simplifying the transition from SMD to through-hole environments.
• Made for easy soldering and testing of fine-pitch ICs during development and troubleshooting phases.
• Ideal for electronic design and repair tasks involving SOIC16 or SSOP16 packages.
• Durable PCB material guarantees consistent performance throughout multiple uses.

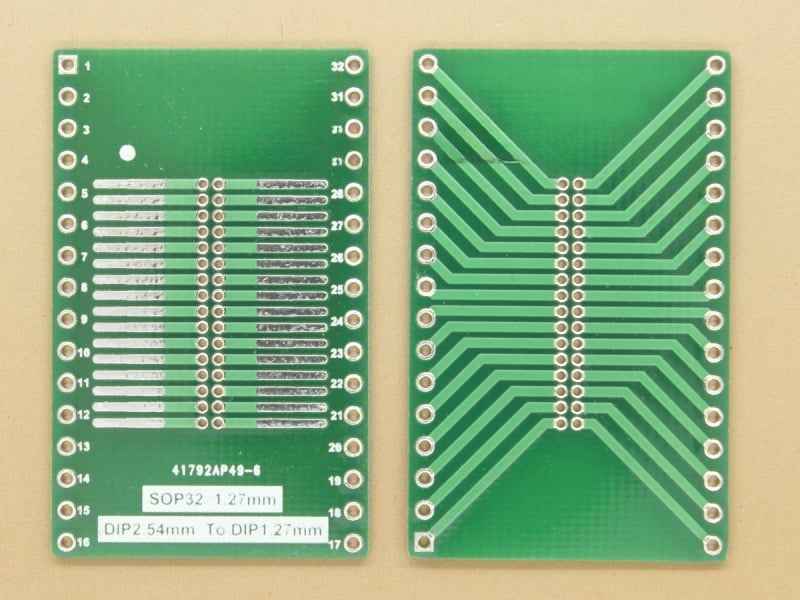

The SOIC32 1.27mm to 2.54mm SMD Adapter PCB is designed to facilitate seamless connections between small-outline integrated circuits (SOIC) or dual in-line package (DIP) components with a 1.27mm pitch and standard 2.54mm pitch breadboards or connectors. This adapter board enables easy prototyping and testing by converting fine-pitch surface mount devices to a more accessible pin spacing, making it ideal for electronics hobbyists and professionals working on circuit development and repairs.

• 32-pin layout supports both SOIC and DIP packages with a 1.27mm pitch for versatile component compatibility.
• Precisely spaced 2.54mm pins allow straightforward integration with standard breadboards and development boards.
• Rigid PCB construction ensures reliable mechanical support and consistent electrical connections during prototyping.
• Compact design minimizes board footprint while accommodating fine-pitch components for space-efficient circuits.
• Ideal for adapting surface mount ICs to through-hole setups, simplifying soldering and testing processes.
• Compatible with a wide range of electronic projects requiring pitch conversion between surface mount and breadboard formats.
• Enhances workflow efficiency by eliminating the need for specialized adapters or custom wiring arrangements.

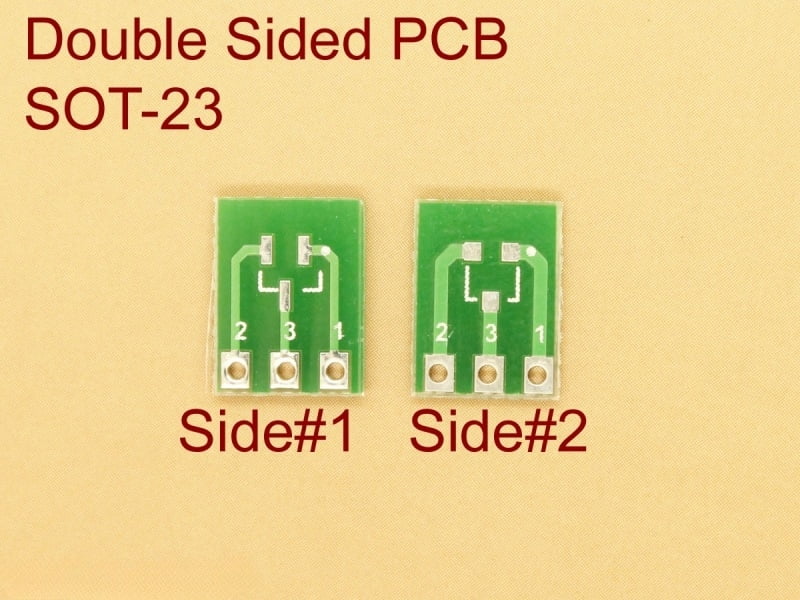

The SOT23 SMD Adapter PCB is a versatile component designed to facilitate the mounting of SOT23 surface-mount devices on standard through-hole boards. This adapter provides a reliable and straightforward solution for integrating compact SOT23 packages into prototyping and testing setups. Featuring a compact footprint and standard pin layout, it ensures compatibility with a wide range of SOT23 transistors and diodes, making it suitable for electronics development and repair tasks.

• Compact design that preserves board space while accommodating SOT23 devices.
• Standard pin configuration for easy integration with existing circuits and breadboards.
• Durable PCB material ensuring stable connections and consistent performance.
• Facilitates prototyping by converting surface-mount components to through-hole compatibility.
• Compatible with various SOT23 transistors and diodes, enhancing flexibility in circuit design.
• Simple soldering points allow quick and secure assembly.

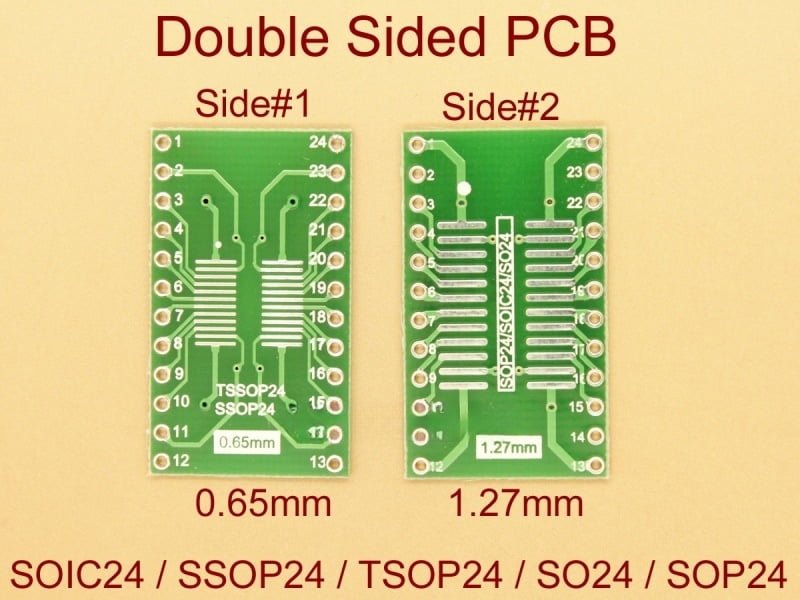

This SOIC24 SSOP24 TSSOP24 SMD adapter PCB is designed to facilitate the mounting and testing of surface-mount devices with 0.65mm and 1.27mm pin pitches. It supports seamless conversion between different package types, making it ideal for prototyping and circuit design. Compatible with a range of integrated circuits, this adapter enhances connectivity and simplifies integration on standard PCB layouts, ensuring reliable electrical performance in compact applications.

• Versatile pin pitch support for 0.65mm and 1.27mm packages allows flexible use with SOIC24, SSOP24, and TSSOP24 ICs
• Robust PCB construction ensures stable soldering and long-term durability in electronic assemblies
• Compact adapter size enables easy incorporation into prototype boards and testing rigs without consuming excess space
• Improves circuit compatibility by providing straightforward conversion between different surface-mount package types
• Accurate footprint layout guarantees reliable alignment and connection for all supported IC configurations
• Ideal for debugging and development phases in electronics projects involving surface-mount components

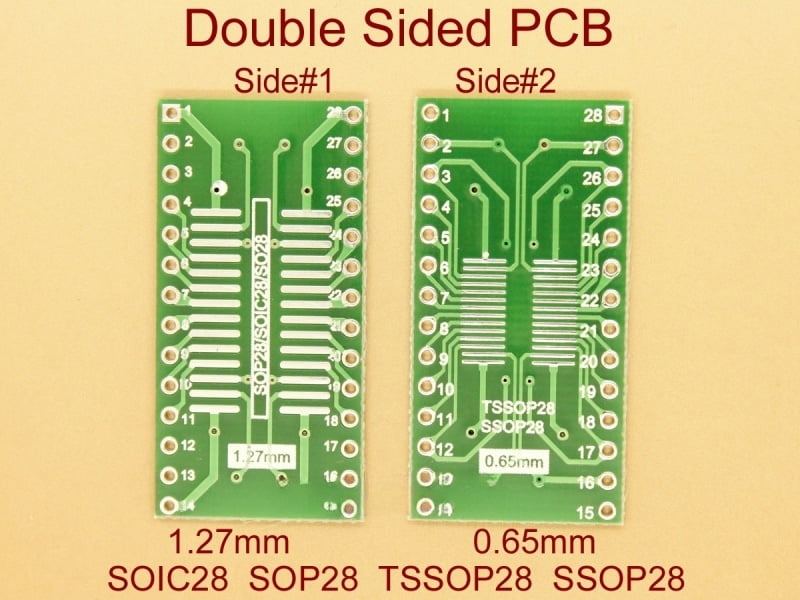

The SOIC28 SOP28 TSSOP SSOP28 adapter PCB is designed to facilitate seamless connections between different 28-pin IC packages with 0.65mm and 1.27mm pitch sizes. This versatile component adapter enables engineers and hobbyists to mount smaller surface-mount devices onto standard PCB layouts, ensuring compatibility across multiple package formats. Ideal for prototype development, testing, and repair applications, it accommodates various chip types while maintaining reliable electrical performance.

• Supports a broad range of 28-pin packages including SOIC28, SOP28, TSSOP, and SSOP28
• Features dual pitch options of 0.65mm and 1.27mm to fit diverse IC footprints
• Constructed with high-quality PCB material for stable and durable connections
• Enables easy integration and testing of surface-mount devices on through-hole or larger pitch boards
• Compact adapter size streamlines circuit design without compromising signal integrity
• Ideal for electronics prototyping, repairs, and development projects requiring flexible chip mounting

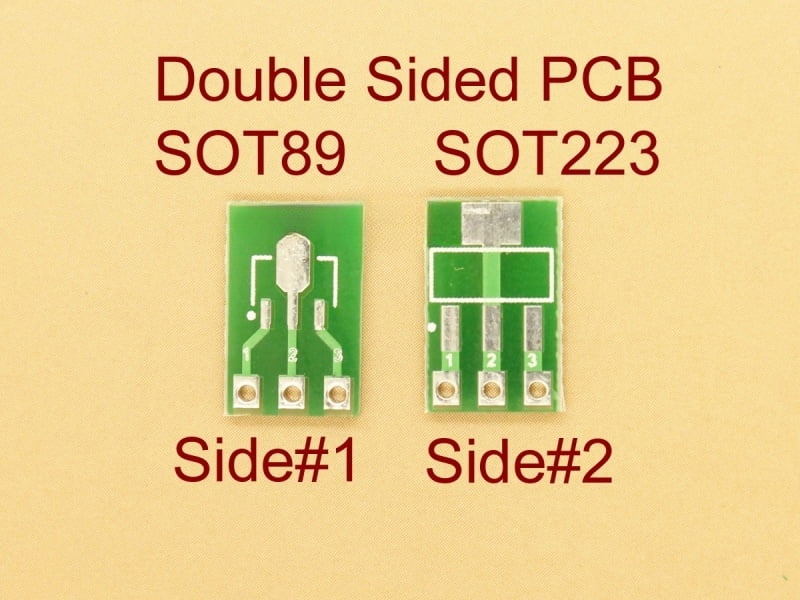

The SOT223 / SOT89 - SMD Adapter PCB is designed to facilitate seamless integration of surface-mount devices with SOT223 or SOT89 packages onto standard through-hole boards. This adapter offers a practical solution for prototyping and testing by converting compact surface-mount components into a more accessible format compatible with conventional breadboards or PCBs. Its versatile design supports various electronic projects requiring efficient adaptation between surface-mount and through-hole technologies.

• Universal compatibility with SOT223 and SOT89 package types simplifies component integration for prototyping and repair.
• Compact footprint optimizes space on your board while maintaining easy access to pins for soldering or testing.
• Reliable electrical connections ensure stable performance and reduce the risk of signal loss or interference.
• Durable PCB material provides a sturdy base for mounting, suitable for repeated use in various electronics applications.
• Easy-to-use adapter aids engineers and hobbyists in converting SMD components to through-hole format without specialized equipment.
• Ideal for prototyping and circuit debugging, helping streamline development and troubleshooting processes.
• Accurate pin mapping preserves the original pin layout, supporting correct circuit function and simplifying assembly.

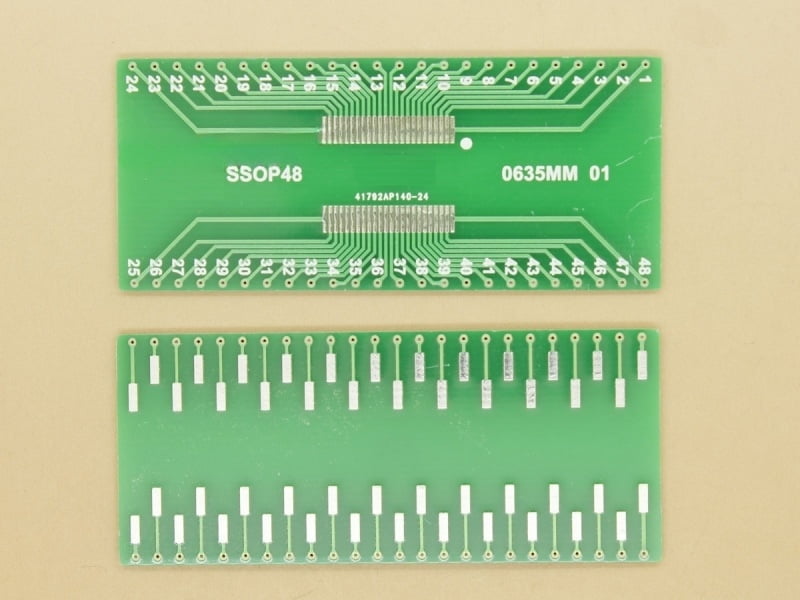

The SSOP48 0.635mm SMD Adapter PCB is designed to facilitate the secure mounting and connection of SSOP48 surface-mount devices with a 0.635mm pitch. This adapter board allows for easy integration of fine-pitch components into prototyping or repair workflows, providing a stable interface between the component and standard circuit boards. Ideal for electronics developers and technicians, it supports precise soldering and testing of complex integrated circuits in various electronic applications.

• 0.635mm pitch compatibility ensures accurate alignment with SSOP48 packages for reliable connections.
• The adapter PCB simplifies mounting of surface-mount devices onto through-hole or larger-pitch boards.
• Compact design enhances usability in tight prototyping spaces without compromising stability.
• High-quality copper traces provide excellent electrical conductivity and durability.
• Compatible with standard soldering techniques for easy assembly and rework.
• Facilitates efficient component testing and development by bridging different packaging styles.
• Durable substrate material resists warping and heat during soldering processes.

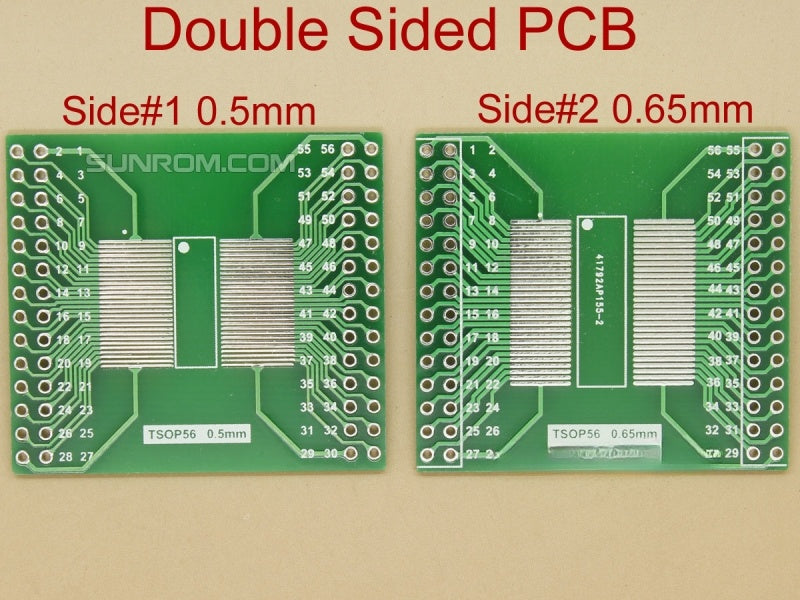

The TSSOP56 TSSOP48 SMD Adapter PCB is designed to facilitate the easy integration of small-outline integrated circuits into standard printed circuit boards. Featuring pitch options of 0.5mm and 0.65mm, this adapter provides reliable compatibility with TSSOP56 and TSSOP48 packages. It is ideal for applications requiring precision mounting and efficient circuit design modifications, supporting a wide range of components in electronics prototyping and repair.

• Supports both 0.5mm and 0.65mm pitch to accommodate diverse device requirements.
• Compatible with TSSOP56 and TSSOP48 packages, enabling versatile component connections.
• Enables smooth transition from surface-mount devices to through-hole PCB layouts for easier testing.
• Compact design ensures minimal footprint while maintaining stable electrical contacts.
• Constructed for reliable soldering with standard SMD assembly techniques.
• Ideal for prototype development, component debugging, and circuit upgrades.

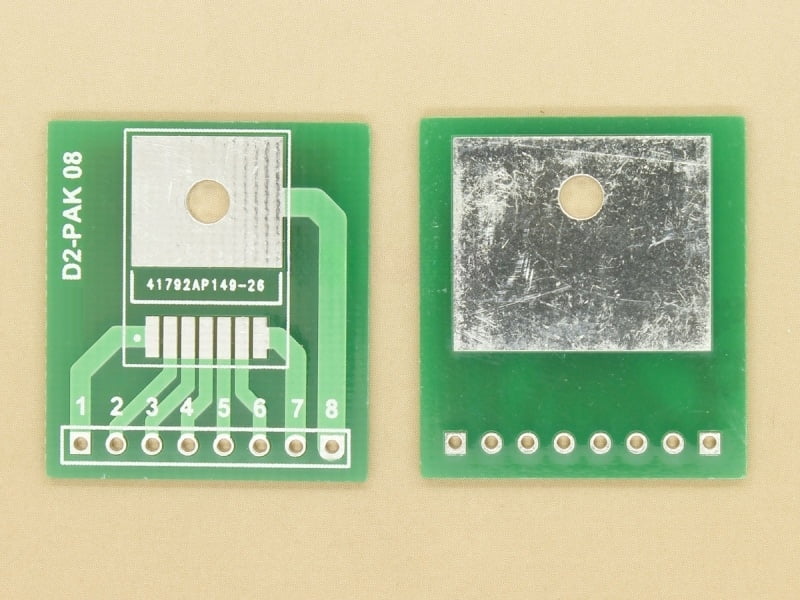

The TO263-8 D2-PAK SMD Adapter PCB is designed to simplify the integration of surface-mount devices with through-hole components. This adapter facilitates secure mounting and reliable connections for TO-263 package transistors and similar components, providing a practical bridge between PCB layouts. Ideal for electronics prototyping and repair, it enhances compatibility with various standard circuit boards while maintaining stable electrical performance.

• Enables easy installation of TO-263 (D2-PAK) surface-mount devices on through-hole PCBs for versatile design options
• Compact adapter board ensures efficient use of space without compromising connection quality
• Durable construction supports stable electrical contacts under varying operational conditions
• Compatible with a wide range of power transistors and voltage regulators in the TO-263 package
• Facilitates quick replacement and testing of SMD components during development and maintenance
• Simplifies circuit modifications by providing a reliable interface for mixed-mounting styles
• Supports high current handling suitable for power electronics applications
• Standardized footprint ensures broad compatibility with common PCB layouts and designs

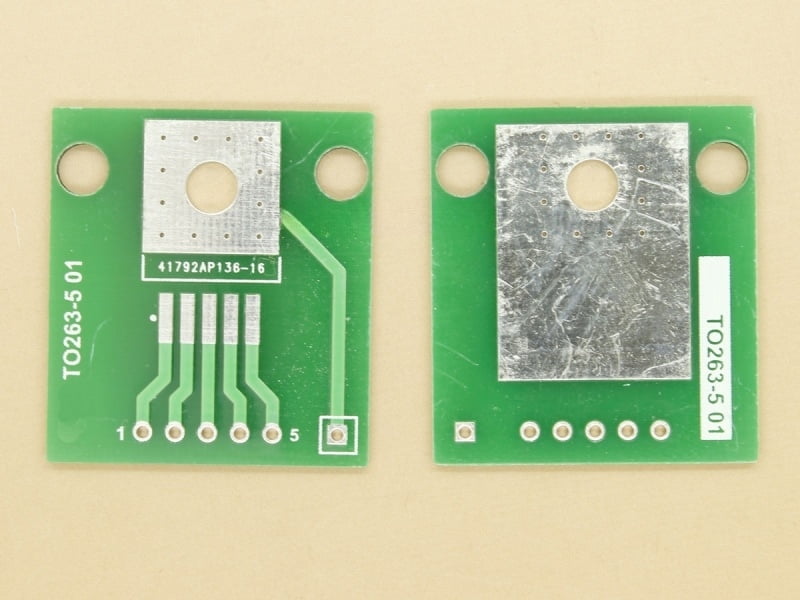

The TO263-5 SMD Adapter PCB is designed to facilitate the integration of TO263-5 package components into surface-mount technology (SMT) assemblies. This adapter board provides a reliable platform for mounting and testing devices with the TO263-5 footprint, enabling easy prototyping and circuit development. Its compact design ensures compatibility with various electronic projects, making it a versatile choice for engineers and hobbyists working on power management and semiconductor applications.

• Compact adapter board tailored for TO263-5 package devices, ensuring precise fit and connection.
• Surface-mount design streamlines PCB assembly and soldering processes for efficient manufacturing.
• Improves prototyping flexibility by enabling easy swapping and testing of TO263-5 components.
• Compatible with standard SMT workflows, supporting smooth integration into existing circuit designs.
• Durable construction ensures stable electrical and mechanical performance during device operation.
• Facilitates thermal management by providing an optimized footprint for heat dissipation in power components.

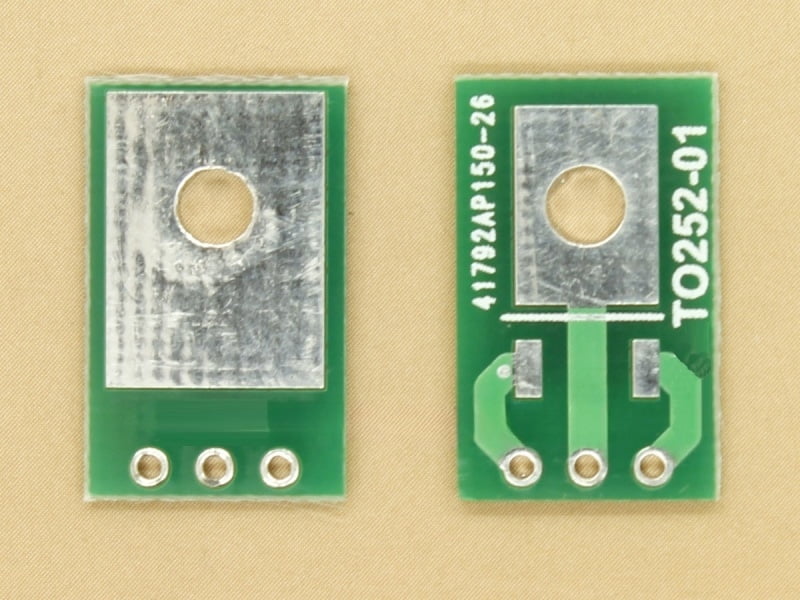

The TO252 SMD Adapter PCB is designed to facilitate the mounting and testing of TO252 package components in surface-mount device (SMD) setups. This adapter provides an efficient solution for integrating through-hole TO252 devices onto standard SMD layouts, ensuring reliable electrical connections and compatibility with various circuit boards. Its compact design supports applications requiring precise component placement and easy prototyping in electronics development.

• Seamlessly converts TO252 through-hole packages to surface-mount format for versatile circuit integration.
• Compact layout that fits neatly onto standard PCBs, saving valuable board space.
• Robust copper pads ensure secure soldering and reliable electrical contact.
• Compatible with a wide range of TO252 components, supporting flexibility in design and testing.
• Ideal for prototyping and small-scale production where adapting legacy parts to modern SMD boards is required.
• Facilitates efficient debugging by enabling easy replacement and measurement of TO252 devices on SMD circuits.

The TSSOPII TSSOP56 to DIP56 Adapter PCB is designed to convert a 0.635mm or 0.8mm pitch TSSOP56 package to a DIP56 form factor, enabling easier integration with standard through-hole prototyping boards. This SDRAM adapter facilitates reliable testing and development by bridging surface-mount and DIP configurations, supporting a wide range of SDRAM components. Its precise pitch compatibility and quality PCB construction make it an essential tool for hardware engineers working with memory modules and custom circuits.

• Dual pitch support of 0.635mm and 0.8mm accommodates various TSSOP56 SDRAM packages for versatile use.
• Converts compact surface-mount TSSOP56 pins into a standard DIP56 layout, facilitating convenient prototyping.
• High-quality PCB material ensures stable electrical connections and durability during repeated use.
• Ideal for hardware debugging, testing, and development of memory-related circuits using SDRAM.
• Compatible with common prototyping platforms and breadboards that accept DIP56 form factor components.
• Compact size maintains efficient use of workspace without compromising accessibility.
• Designed specifically to bridge the gap between surface-mount technology and through-hole assembly methods.

The USB A-Type Female Breakout PCB serves as a versatile interface component designed to facilitate easy connections between USB A-type female ports and other circuits on a printed circuit board. Ideal for prototyping and hardware development, its layout simplifies integrating USB functionality into various electronic projects. Compatible with standard USB A-type connectors, this breakout board offers a reliable foundation for applications requiring USB data transfer or power supply within compact setups.

• Standard USB A-Type female port ensures broad compatibility with USB devices and cables
• Breakout PCB design provides accessible pins for straightforward wiring and testing
• Compact footprint fits easily into tight spaces on development boards and prototypes
• Durable construction supports consistent electrical connections and long-term use
• Solderable pads enable secure attachment to other circuit components or breadboards
• Ideal for electronic projects involving USB data communication or power interfaces
