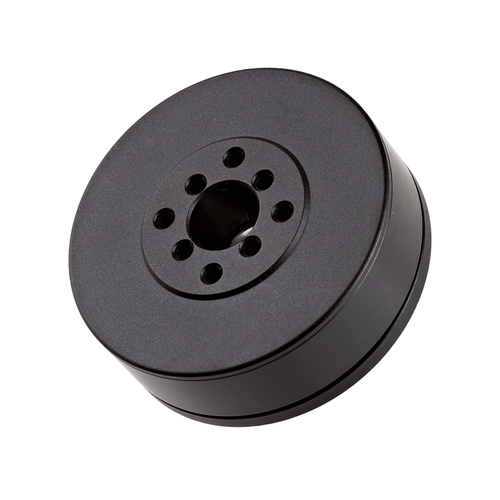

Sparkfun Gimbal Motor With/Without Encoder - 12V, 467RPM
Sign up to be the first to know when it's back in stock.
Multibuy Discounts
Planning to purchase IT accessories or printer parts in bulk? We offer exclusive B2B pricing with customised quotations when you order multiple products together. Mail us at b2b@partsbaba.com or submit this form for your quotation to get your tailored quote today.
Shipping Information
The standard delivery charges are based on your order value:
FREE shipping on orders above ₹1000.
₹125 shipping charge on orders under ₹200.
₹79 shipping charge on orders under ₹1000.
Delivery Information
We know that you expect your goods to be delivered promptly and efficiently. That’s why we have made it a priority at partsbaba.com to deliver your goods as quickly as possible using our fast, efficient delivery service which comes direct to your home!
- We deliver seven days a week
- Standard deliveries are dispatched via specialist carriers and are normally delivered within 3-5 working days.
- Express deliveries are dispatched same day (if ordered before 14:30) for delivery within 2-4 working days.
- For weekend deliveries, orders need to be placed by 14:30 on Friday.
Free Shipping
On Order Above ₹1000
Cash On Delivery
Partial COD Available Above ₹500
SparkFun 12V High-Performance Gimbal Motor (40x16mm)
Product Description
The SparkFun 12V Gimbal Motor is a precision-engineered brushless motor designed for high-performance motion control. This compact motor is ideal for gimbal stabilization systems, robotics, and automated platforms where smooth, reliable rotation is critical. Weighing just 58.3g with a slim 40x16mm profile, it delivers a nominal speed of 467 RPM and can reach a maximum speed of 1610 RPM. Built to withstand demanding environments, it features a wide operating temperature range and high demagnetization resistance. Whether you are building a custom drone camera rig or a precision robotic arm, this motor provides the torque and responsiveness required for professional-grade stabilization.
Key Features
-
High-Speed Versatility: Provides a steady 467 RPM nominal speed with the capability to push up to 1610 RPM.
-
Precision Control: Features 11 pole pairs and a 40-turn winding for smooth torque delivery and minimal cogging.
-
Compact & Lightweight: Slim 40x16mm form factor allows for seamless integration into space-constrained gimbal frames and robotic joints.
-
Thermal Resilience: Operates effectively between -20°C and 80°C, with a maximum demagnetization threshold of 120°C.
-
Optimized Efficiency: Low phase-to-phase resistance (6.34 Ohm) ensures efficient power usage and reduced heat buildup during operation.
-
Encoder Ready: Available in configurations that support high-resolution feedback for closed-loop control systems.
Technical Specifications
-
Brand: SparkFun
-
Nominal Voltage: 12V
-
Nominal Current: 1.1A (1.9A Stall)
-
Nominal Torque: 0.09 N.m (0.15 N.m Stall)
-
Speed: 467 RPM (Nominal) / 1610 RPM (Max)
-
Speed Constant (Kv): 117 rpm/V
-
Torque Constant (Kt): 0.08 Nm/A
-
Number of Pole Pairs: 11
-
Winding Turns: 40T
-
Resistance / Inductance: 6.34 Ohm / 1.08 mH
-
Dimensions: 40 x 16 mm
-
Weight: 58.3g
