H2836 3500KV Brushless Motor CW/CCW For Fixed-wing/MultiCopter/QuadCopter Drone

DYS H2836 3500KV Brushless Outrunner Motor (CW/CCW)

Product Description

The DYS H2836 3500KV is a high-performance brushless outrunner motor engineered for 450-class RC helicopters and high-velocity fixed-wing aircraft. With its 3500KV high-speed rating, this motor provides the rapid RPM and aggressive throttle response required for aerobatic maneuvers, fast take-offs, and high-speed passes.

Optimized for 2-3S Li-Po systems, it delivers a powerful 880g of maximum pull while maintaining a compact 66g weight. The motor is built with a precision-balanced rotor and high-quality bearings to ensure smooth, low-vibration operation, which helps extend the lifespan of your propellers and onboard electronics. Its optimized stator design and durable winding technology provide excellent heat dissipation, allowing for reliable performance even under demanding flight loads.

Key Features

• High-Speed 3500KV Performance: Delivers a balanced mix of speed and thrust, ideal for 450-size helis and performance RC drone builds.

• Superior Thrust-to-Weight Ratio: Provides up to 880g of thrust from a 66g frame, enhancing overall aircraft agility and power.

• High Current Handling: Capable of managing a max current of 32.3A, offering the "punch" needed for aggressive maneuvers.

• Precision Engineering: Features a balanced rotor and quality bearings to ensure smooth rotation and minimal mechanical vibration.

• Efficient Thermal Management: Designed for optimal airflow and cooling to maintain performance during continuous high-speed flight.

• Versatile Application: Specifically suggested for 450-class helicopters, but also highly effective for FPV wings and multicopters.

Technical Specifications

• Brand: DYS

• Model: H2836

• KV (RPM/V): 3500KV

• Motor Size: 28 x 36 mm

• Shaft Diameter: 4 mm

• Weight: 66g

• Input Voltage: 7.4V – 11.1V (2-3S Li-Po)

• Max Current: 32.3A

• Max Thrust/Pull: 880g

• Suggested ESC: 40A

• Suggested Prop/Application: 450-class Heli

• Motor Type: Brushless Outrunner

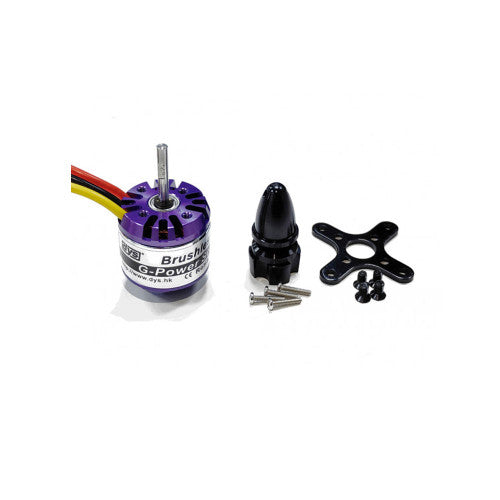

Package Includes

• 1 x H2836 3500KV Brushless Motor

• 1 x Mounting Hardware Set

Warranty Information

All products supplied by Partsbaba are genuine and original. We offer a 14-day replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.
