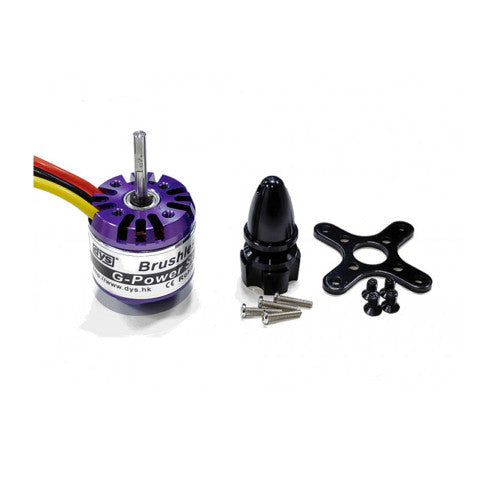

H2830 4000KV Brushless Outrunner Motor CW/CCW For RC Plane Fixed-wing Aircraft Drone

DYS H2830 4000KV High-RPM Brushless Motor (CW/CCW)

Product Description

The DYS H2830 4000KV is an ultra-high-speed brushless outrunner motor specifically engineered for high-performance RC helicopters (400 class) and extreme-velocity fixed-wing aircraft. With a massive 4000KV rating, this motor is built for applications that require maximum RPM, rapid throttle response, and aggressive acceleration.

Optimized for 2-3S Li-Po systems, it is capable of handling a significant 36.4A of maximum current, delivering the "punch" needed for advanced aerobatics and high-speed maneuvers. Its precision-balanced rotor and lightweight 50g aluminum housing ensure minimal vibration and efficient cooling, protecting your bearings and extending the operational life of the motor during intense flight sessions.

Key Features

• Extreme 4000KV Output: Provides the high-speed RPM necessary for 400-size helicopters and specialized high-velocity RC planes.

• High Current Handling: Engineered to manage up to 36.4A, allowing for sustained high-power output during demanding maneuvers.

• Optimized for Performance: Delivers a maximum pull of 710g, offering a superior thrust-to-weight ratio for lightweight airframes.

• Precision-Balanced Rotor: Minimizes harmonic vibrations to ensure flight stability and reduce mechanical wear on propellers and bearings.

• Efficient Thermal Design: The outrunner construction and alloy housing facilitate rapid heat dissipation, maintaining performance during high-load operations.

• Specialized Compatibility: Specifically suggested for 400-class helicopter systems and high-speed DIY UAV prototypes.

Technical Specifications

• Brand: DYS

• Model: H2830

• KV (RPM/V): 4000KV

• Motor Size: 28 x 30 mm

• Shaft Size: 3.17 mm

• Weight: 50g

• Input Voltage: 7.4V – 11.1V (2-3S Li-Po)

• Max Current: 36.4A

• Max Thrust/Pull: 710g

• Suggested ESC: 30A (High-burst capable)

• Suggested Prop/Application: 400-class Heli

• Motor Type: Brushless Outrunner

Package Includes

• 1 x H2830 4000KV Brushless Motor

• 1 x Mounting Hardware Set

Warranty Information

All products supplied by Partsbaba are genuine and original. We offer a 14-day replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.
